Description

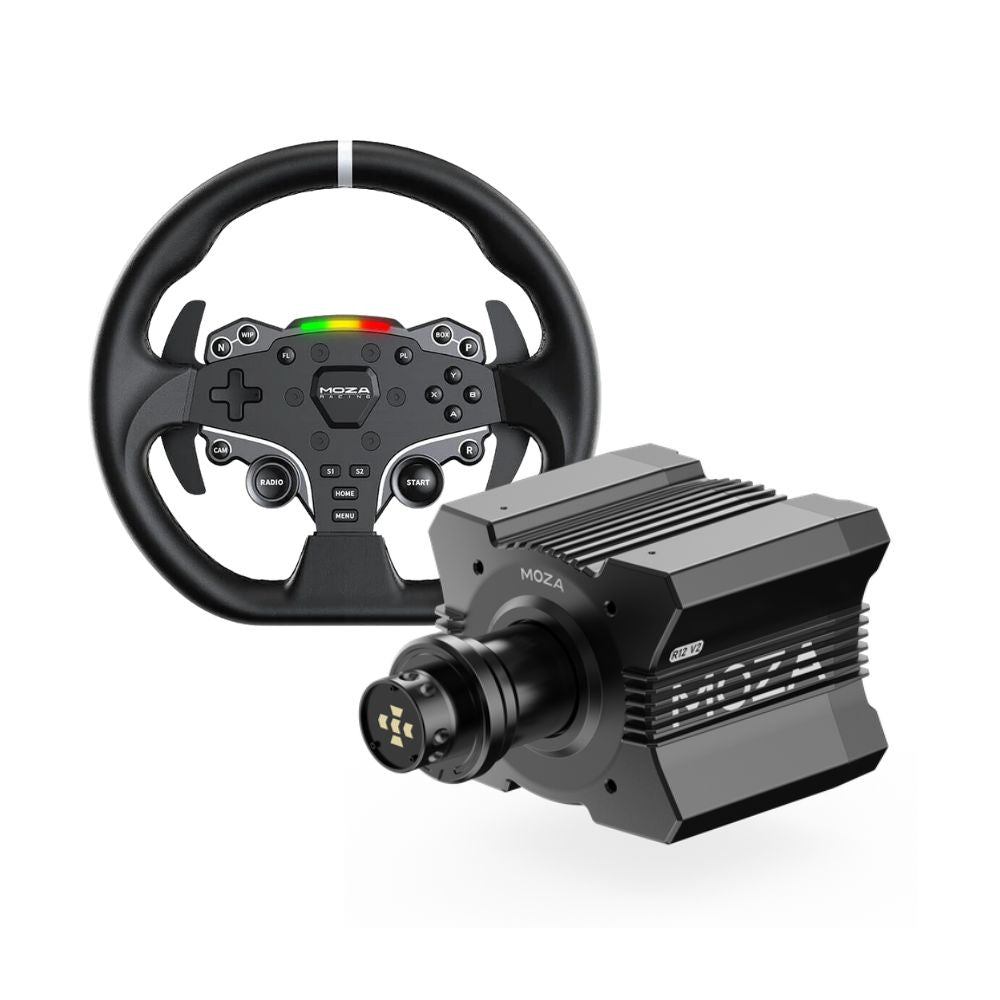

MOZA R12 V2 Bundle
The MOZA R12 V2 Bundle pairs the 12Nm R12 V2 direct drive wheelbase with a MOZA wireless racing wheel of your choosing, matched and ready to run. It suits a driver on a rigid cockpit who wants more weight and detail through the rim than an entry direct drive base delivers.
As supplied it ships with the MOZA ESX racing wheel, which is officially licensed for Xbox, so the bundle is Xbox and PC compatible as it comes. Choose a different wheel from the options above and the setup becomes PC only.
If you already own a MOZA wheel, buy the MOZA R12 V2 wheelbase on its own instead. If 12Nm is more than your rig can use, the MOZA R9 V3 Bundle covers the 9Nm tier.
Key features
- MOZA R12 V2 direct drive wheelbase and your choice of MOZA racing wheel
- Ships with the Xbox licensed ESX wheel as standard
- 12Nm peak torque direct drive servo motor
- Wheel options spanning GT, formula and road styles
- Wireless power and data between wheel and base
- MOZA quick release on every wheel in the range
- 21-bit magnetic encoder resolving 2,097,152 steps per revolution
- 1000Hz USB refresh rate
- Aviation grade aluminium alloy housing
- Bottom and side mounting, with an optional table clamp
- Configured and updated through MOZA Pit House software
- 24-month manufacturer warranty on the wheelbase
Choosing your MOZA wheel
Every option connects to the same R12 V2 base over the same wireless quick release, so the choice is about shape, materials and controls rather than compatibility.
Round GT style rims suit touring cars, GT racing and rally. Formula style rims are flat-bottomed or butterfly shaped, put more controls under your thumbs, and suit open wheelers. Higher tier wheels add carbon fibre construction, more rotaries and encoders, and in some cases an integrated display.
The ESX is the entry point and the only Xbox licensed option. The quick release means changing to a second rim later takes seconds rather than a rebuild.
What the R12 V2 base brings
The base is the R12 V2: a 12Nm direct drive wheelbase with a 21-bit encoder and a 1000Hz refresh rate, in an aviation grade aluminium housing. At 12Nm the rim carries real weight, which is what makes a heavy car feel heavy and a light one feel nervous.
That output rewards a rigid mount. Full specifications, mounting detail and the comparison against the rest of the MOZA range live on the MOZA R12 V2 wheelbase page.
What this bundle does not include
This bundle is a wheelbase and a wheel. Pedals are not included. The CRP2 pedal bundle adds the CRP2 load cell set and the SRP2 pedal bundle adds the hybrid load cell pedals, both cheaper than adding pedals afterwards. Our sim racing pedals range covers the alternatives.
A mount is not included either. The base takes four bottom bolts or an optional side bracket and fits the sim racing cockpits we stock along with most aluminium profile rigs. Third party rims fit through the MOZA Universal Hub Kit.
Which R12 V2 bundle suits you
There are four ways to buy the R12 V2 here, and the right one depends on how much of the rig you still need.
This bundle is base plus wheel. The CRP2 pedal bundle adds the CRP2 load cell pedals. The SRP2 pedal bundle adds the hybrid load cell set at a lower entry point. The Trucking Bundle swaps the racing rim for truck sim controls.
Setting up your bundle
The base and wheel arrive matched, so there is no pairing to work out. Connect the base to your PC, install MOZA Pit House, and run the calibration once.
Pit House is also where force feedback strength, damping, friction and steering angle are set, and where profiles are saved per car. Firmware updates go through the same software.
MOZA R12 V2 bundle frequently asked questions
What is included in this bundle?
The R12 V2 direct drive wheelbase and one MOZA racing wheel, which you select above. The standard price includes the ESX wheel. Pedals and a mount are not included.
Does this bundle work on Xbox?
Yes, as supplied. The standard ESX wheel is officially licensed for Xbox, which makes the bundle Xbox and PC compatible. The other wheels in the range are PC only, so choose the ESX if you race on console.
Which wheel should I choose?
Round GT rims suit touring, GT and rally driving. Formula rims suit open wheelers and put more controls in reach. Higher tier wheels add carbon construction, more encoders and in some cases a display. All of them fit the same base through the MOZA quick release.
Can I change the wheel later?
Yes. The quick release means swapping rims takes seconds and needs no tools. Adding a second wheel later is a common upgrade path.
Is 12Nm too much for my rig?
It depends on the mount. A rigid aluminium profile cockpit will take it comfortably. A desk or a lightweight stand will flex before the base is delivering everything it can, and that flex blunts the detail you paid for. On a desk setup a lower torque base often feels better.
Do I need pedals as well?
Yes, if you do not already own a set. This bundle does not include them. The CRP2 pedal bundle and SRP2 pedal bundle include a set and cost less than buying pedals separately afterwards.
Is the bundle cheaper than buying the parts separately?
Yes. The wheel is discounted against its standalone price when bought as part of the bundle.
What do I need to mount it?
Four bottom bolts into a rig, or an optional side bracket. A table clamp is available, though at this torque level a rigid cockpit is strongly preferable.
How hard is the setup?
Connect the base to your PC, install MOZA Pit House, and run the calibration once. Firmware updates go through the same software.
How long is the warranty?
MOZA covers the wheelbase for 24 months and the power supply for 12 months. Gamer Gear Direct handles warranty support locally, and your rights under Australian Consumer Law apply in addition.
Specifications
MOZA R12 V2 Direct Drive Wheelbase
Applicable Platform
PC
Driving Type
Direct Drive
Maximum Steering Angle
Unlimited
Housing Material
Aluminium Alloy
Housing Colour
Black
Maximum Torque
12 Nm
Maximum Power
216W
Input Voltage
110V~220V AC to 36V DC
USB Refresh Rate
1000Hz
Wheelbase Indicator Light
Applicable
Smartphone APP
Applicable
Quick Release
Customised Quick Release
Connection Port
Starting Switch, Power Supply, Data, Emergency Stop Switch, Display Screen
Accessories
User Guide, Warranty Card, Power Supply, USB Cable, Took Kit
Mounting
4 holes on the bottom; exclusive holder that supports angle adjustment and side fix; table clamp
Table Clamp
Optional
Side Mounting
Optional
Emergency Stop Switch
Optional
Firmware Upgrade
Applicable
Size (L x W x H mm）
226 x 157 x 124
Mass
7.5 KG
MOZA ES Racing Wheel
Grips
Microfibre Leather
Face Plate Material
Aluminium Alloy
Shifter Paddle Material
Aluminium Alloy
Size
280mm
Buttons
22
LED Lamp Beads
10
Intelligent Telemetry
Supported
Fully Adjustable RPM LEDs through MOZA Pit House
Supported
Release Method
MOZA Quick Release
CS V2P Racing Wheel
Grips
Microfiber Leather
Face Plate Material
Aluminium Alloy
Back Plate Material
Aluminium Alloy
Shifter Material
Forged Carbon Fiber
Size
13 Inches
Magnetic Shifters
2
Mechanical Key Buttons
6
Joysticks
2
Rotary Encoders
2
LED RGB Light Beads
10
Choice of Colours
7
Intelligent Telemetry
Yes
Fully Adjustable RPM LEDs through MOZA Pit House
Supported
Release Method
MOZA Quick Release
Communication Method
Wireless
Shifter Sensor
Non-contact Photoelectric Sensor
KS Racing Wheel
Size
300mm standard GT wheel
Paddle Material
Aluminium alloy
Magnetic Shifter Paddles
2
Clutch Paddles
2
Luminous Short Travel Buttons
10
Joysticks (depressible)
2
Thumb Encoders
2
Rotary Encoders
3
High Brightness LEDs
10
LED Colours
8
Intelligent Telemetry
Supported
Fully Adjustable RPM LEDs through MOZA Pit House
Supported
Release Method
MOZA Quick Release
Communication Method
Wireless or via Industrial Conductive Slip Ring
Paddle Sensor
Non-contact Hall Sensor
Dual Clutch Paddle Modes
Combined Axis/Independent Axis/button
Knob Modes
Button or dial
Compatibility
All MOZA wheelbases and 3rd party wheelbases
3rd party base expansion port
Supported
RS V2 Racing Wheel
Size
330mm
Grips
Genuine Leather
Face Plate Material
Forged Carbon Fibre
Back Plate Material
Aluminium
Shifter Paddles Material
Forged Carbon Fibre
Shifter Paddles
Magnetic
Buttons
10
Button Light
Yes
Choice of Colours
8
Button Type
Mechanical Buttons
Universal Joysticks
2
Rotary Encoders
2
Communication Methods
Wireless & Wired
Release Method
MOZA Quick Release
Quick Release Material
Aluminium
Shift Light Indicator
Yes
Shift Light Customisation
Yes
Shift Light Colour Options
7
Shift Light Mode Switch
Yes
RPM Indicator
Yes
GS V2P GT Racing Wheel
Grips
Perforated Microfiber Leather
Wheel Rim & Face Plate Material
5mm-thick Forged Carbon Fibre
Back Plate Material
Carbon Fiber Reinforced Composite
Shifter Paddle Material
3 mm-thick Forged Carbon Fibre
Size
300mm Diameter Standard Racing Wheel
Magnetic Shifter Paddles
2
Clutch Paddles
2
Luminous Mechanical Buttons
10
Rotary Encoders
5
Thumb Encoders (depressible)
2
Joysticks
2
LED Lamp Beads RGB
10
Choice of colours
8
Intelligent Telemetry
Yes
Fully Adjustable RPM LEDs through MOZA Pit House
Supported
Release Method
All-aluminium MOZA quick release
Power Supply
Wireless
Communication Methods
Wireless and Wired
Paddle Sensor
Non-contact Hall Sensor
Dual Clutch Modes
Combined Axis/Independent Axis/button
FSR Racing Wheel
Size
280mm
Digital Dash Size
4.3 Inches
Digital Dash Resolution
800*480
Grips
Perforated Leather
Face Plate Material
5mm-thick Toray Carbon Fiber
Shifter Paddles Material
3 mm-thick, Forged Carbon Fiber
Back Plate Material
Aviation-grade Aluminium
Magnetic Shifter Paddles
2
Dual Clutch Paddles
2
Luminous Mechanical Buttons
10
Thumb Encoders (depressible)
2
Rotary Encoders
5
LED Lamp Beads
10
Choice of colours
7
Intelligent Telemetry
Supported
Fully Adjustable RPM LEDs through MOZA Pit House
Supported
Release Method
MOZA Quick Release
Communication Method
Wireless / USB (Requires the use of the MOZA universal HUB in order to connect via USB.)
Paddle Sensor
Photoelectric Sensor
Dual Clutch Paddle Mode
Combined Axis/Independent Axis/button
What’s In The Box?
1x MOZA R12 V2 direct drive wheelbase
1x MOZA ESX racing wheel (or choose from the wheel options above)
1x MOZA quick release
1x Power supply
Cables
User manual
Reviews
Warranty
MOZA covers the R12 V2 wheelbase for 24 months and the power supply for 12 months against defects in materials and workmanship, supported by Gamer Gear Direct’s Australian team. Every product is genuine and sourced through official MOZA distribution. Your rights under Australian Consumer Law apply in addition to the manufacturer warranty.
If for some reason your item doesn't work as expected, simply contact us and we'll either repair your item under warranty or we may be able to offer a refund/exchange. Again, if for some reason your item doesn't work as expected, contact us right away and we'll sort out any issues ASAP.
