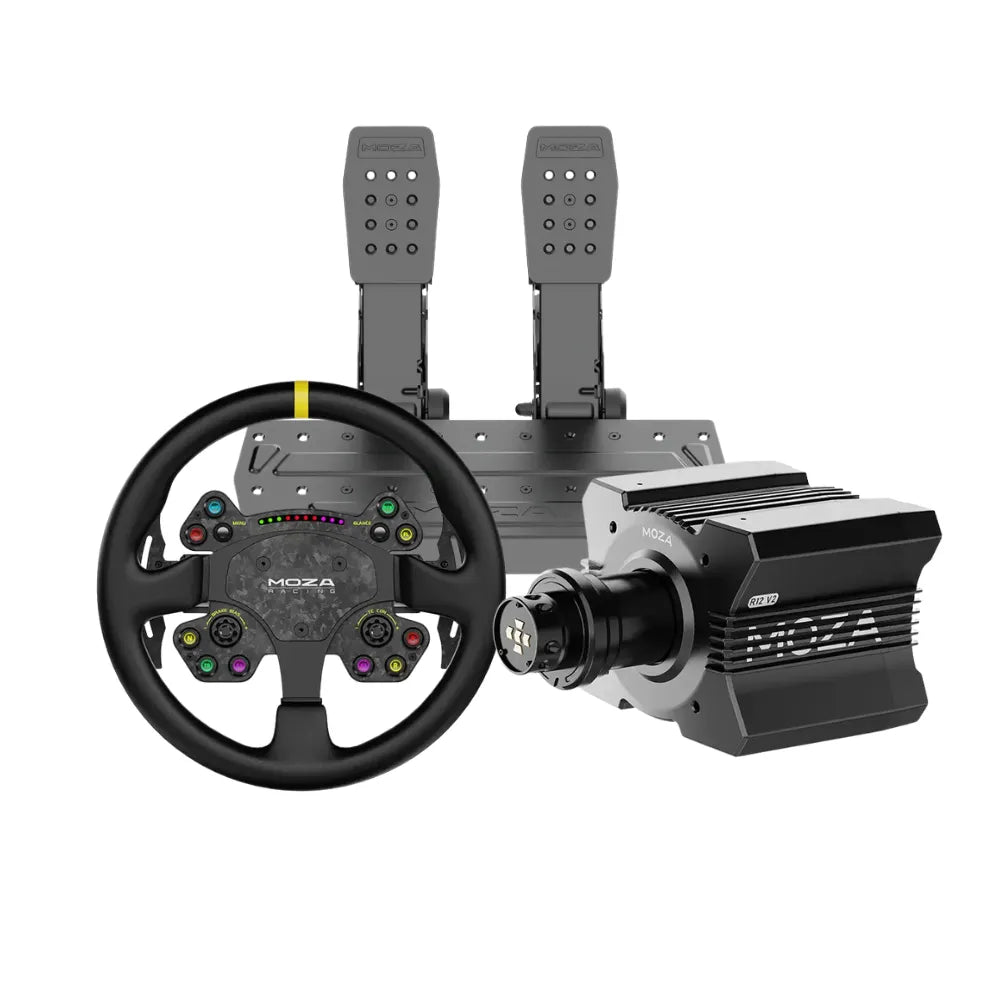

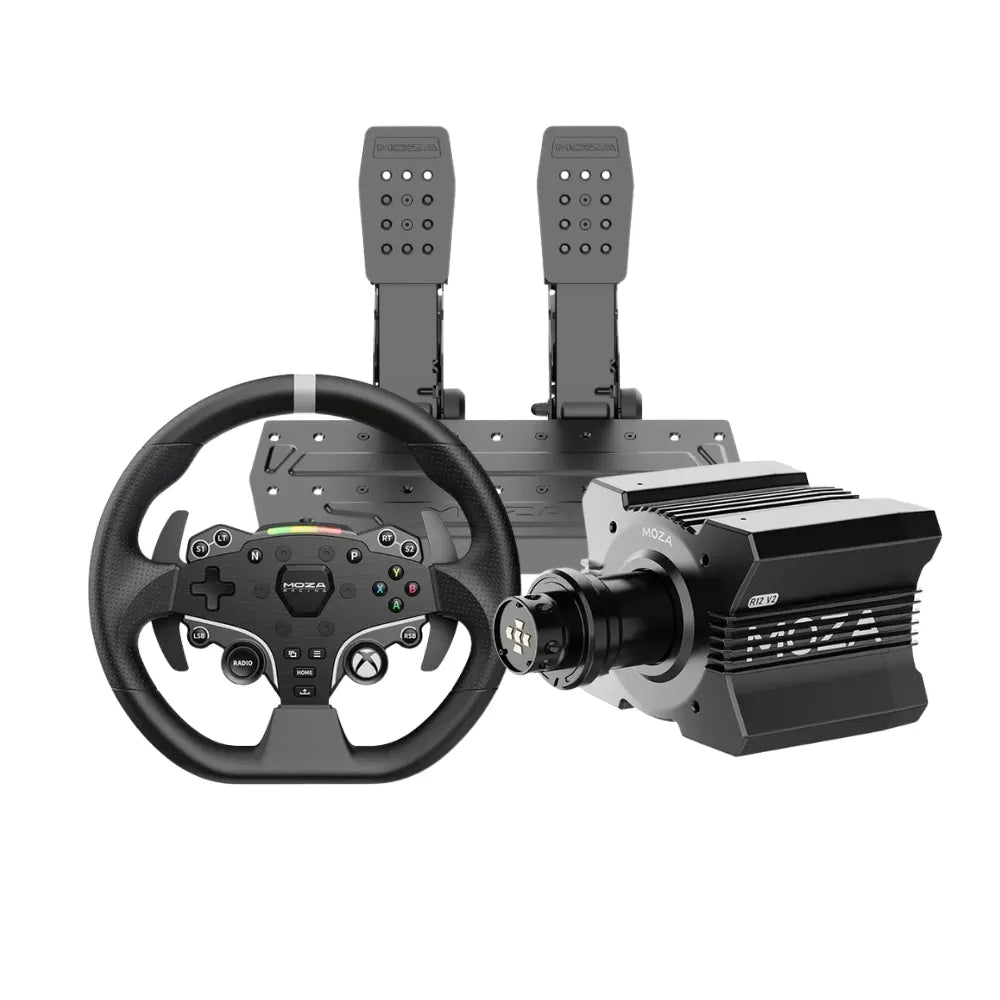

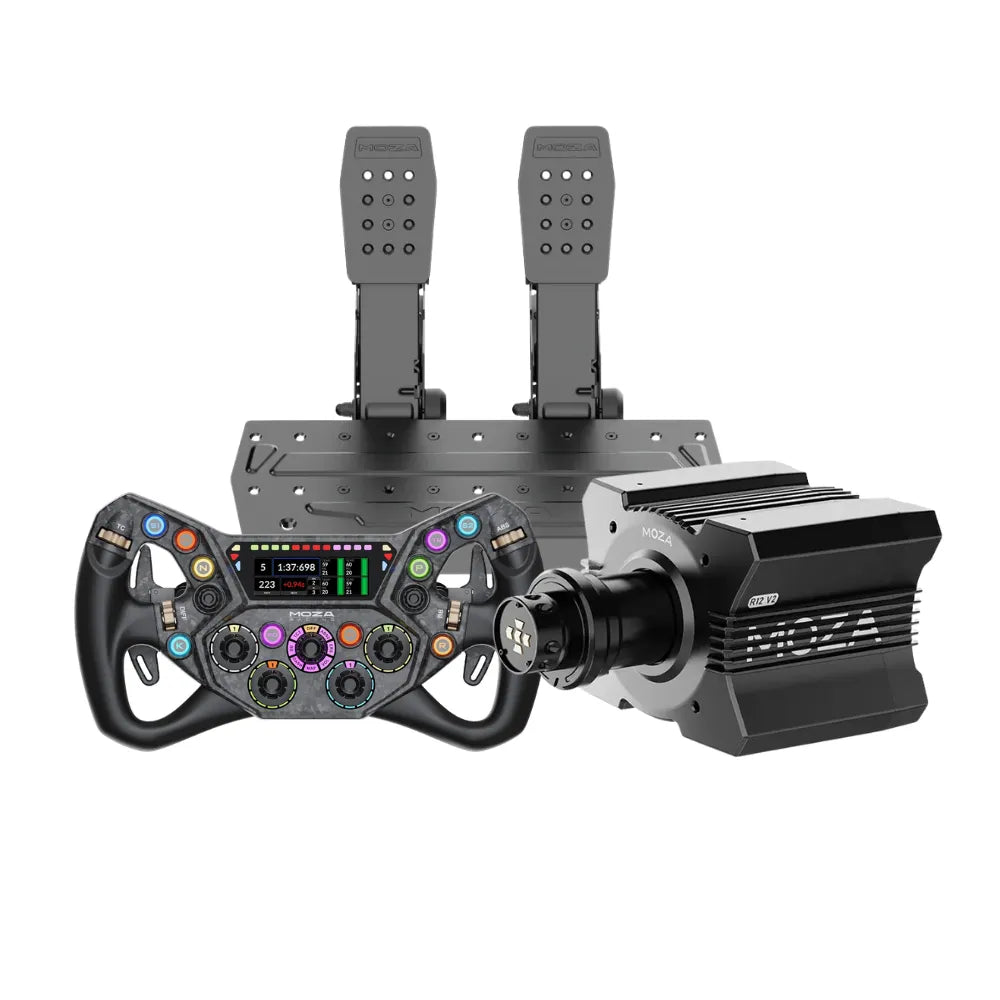

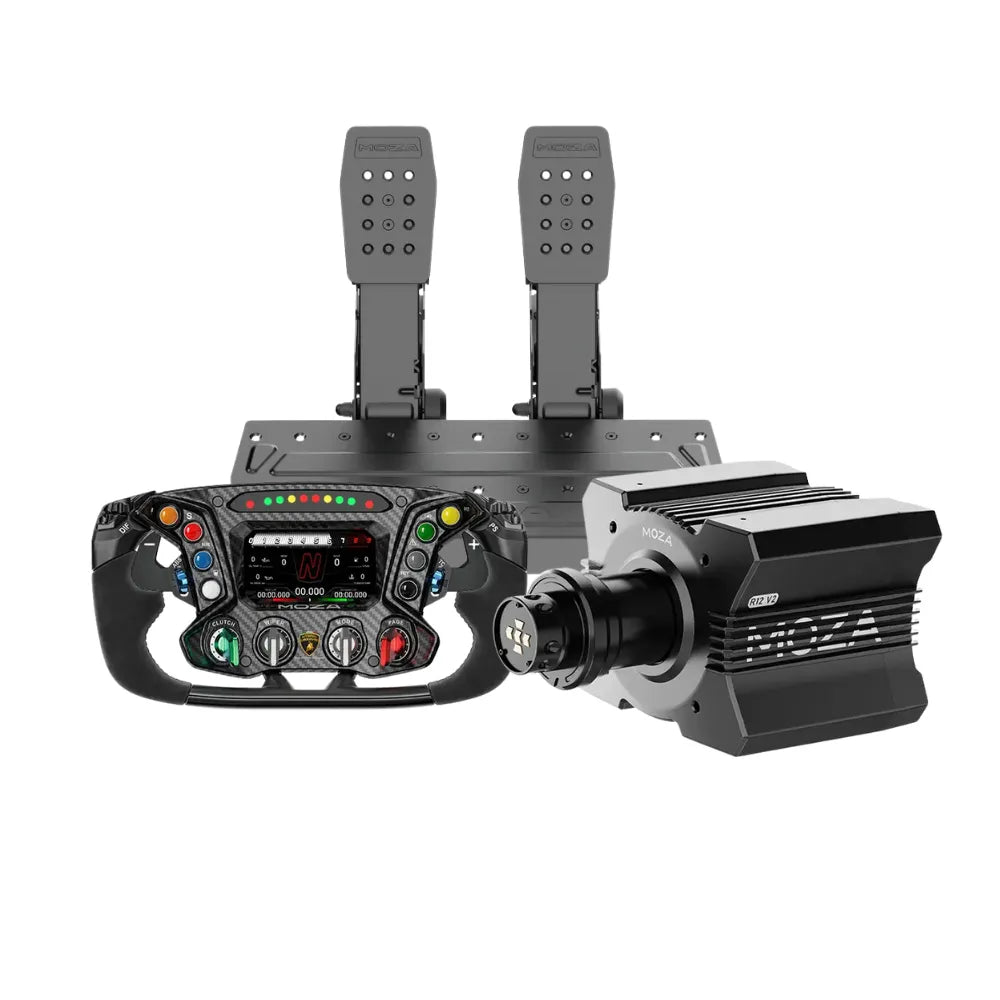

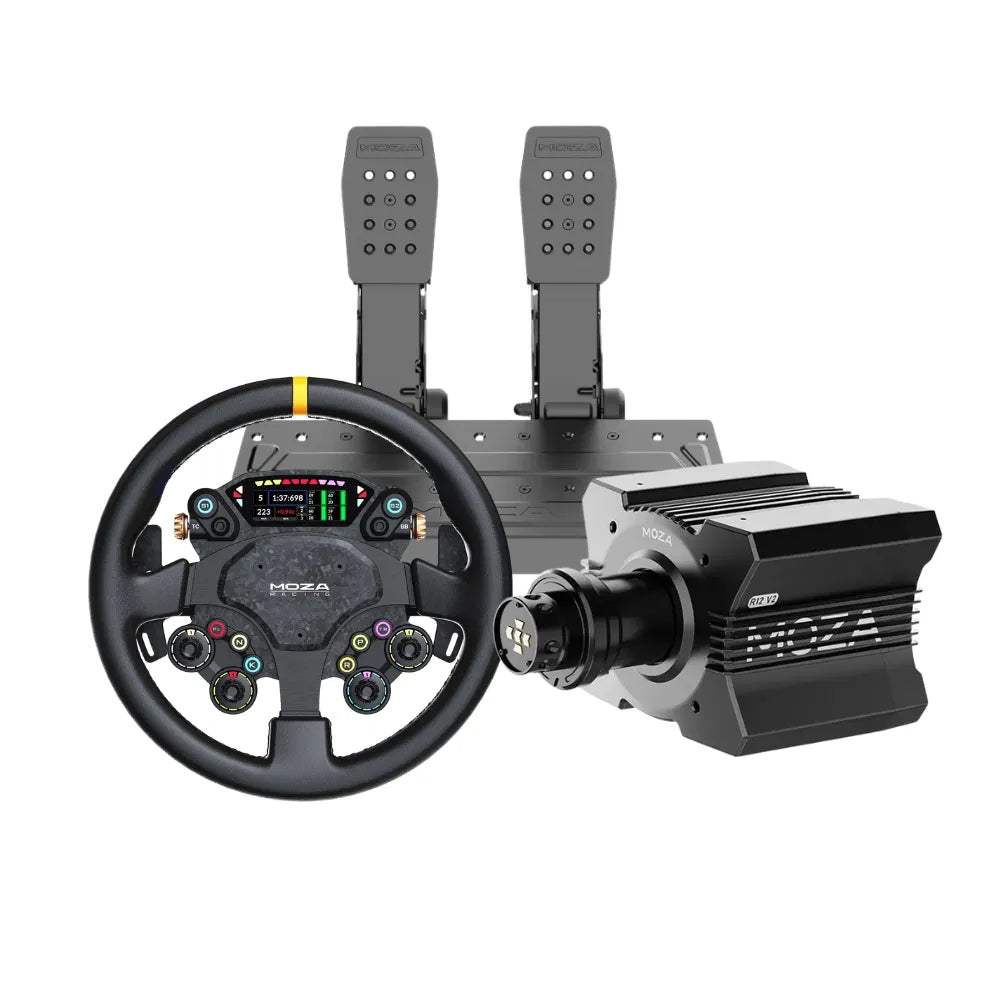

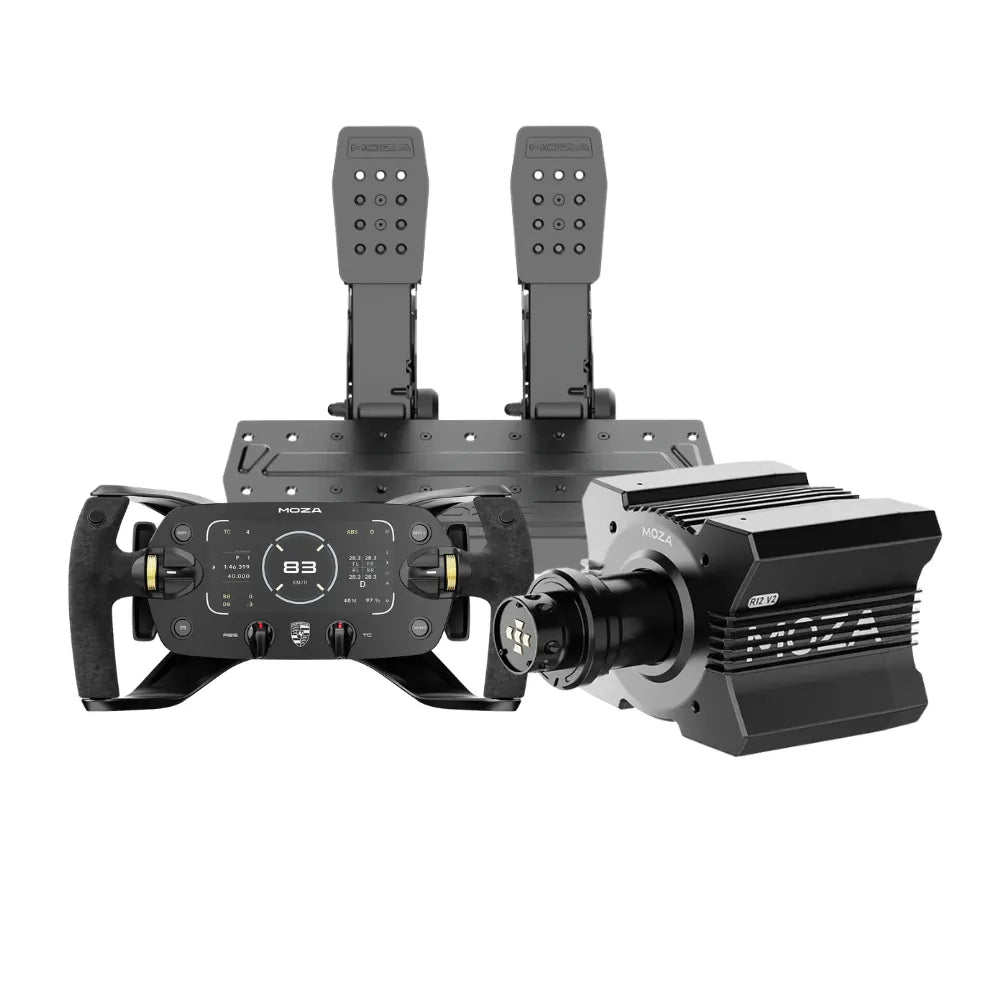

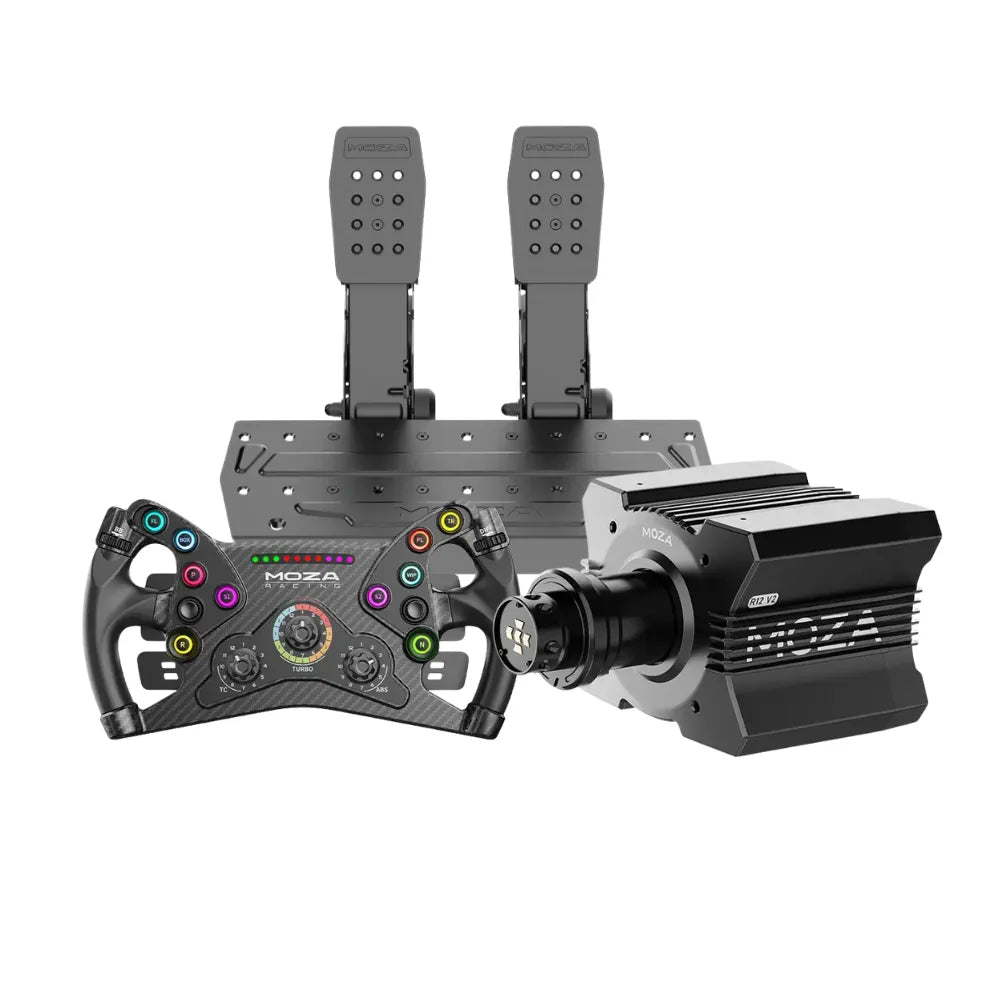

The MOZA R12 V2 + SRP2 Pedals Bundle pairs the R12 V2 direct drive wheelbase with [MOZA's SRP2 Pedals](LINK: MOZA SRP2 Pedals), giving you 12Nm of force feedback, active cooling, and a hybrid 100kg load cell and angle sensor brake system in a single package. Choose your MOZA wheel from the options above to complete the setup.

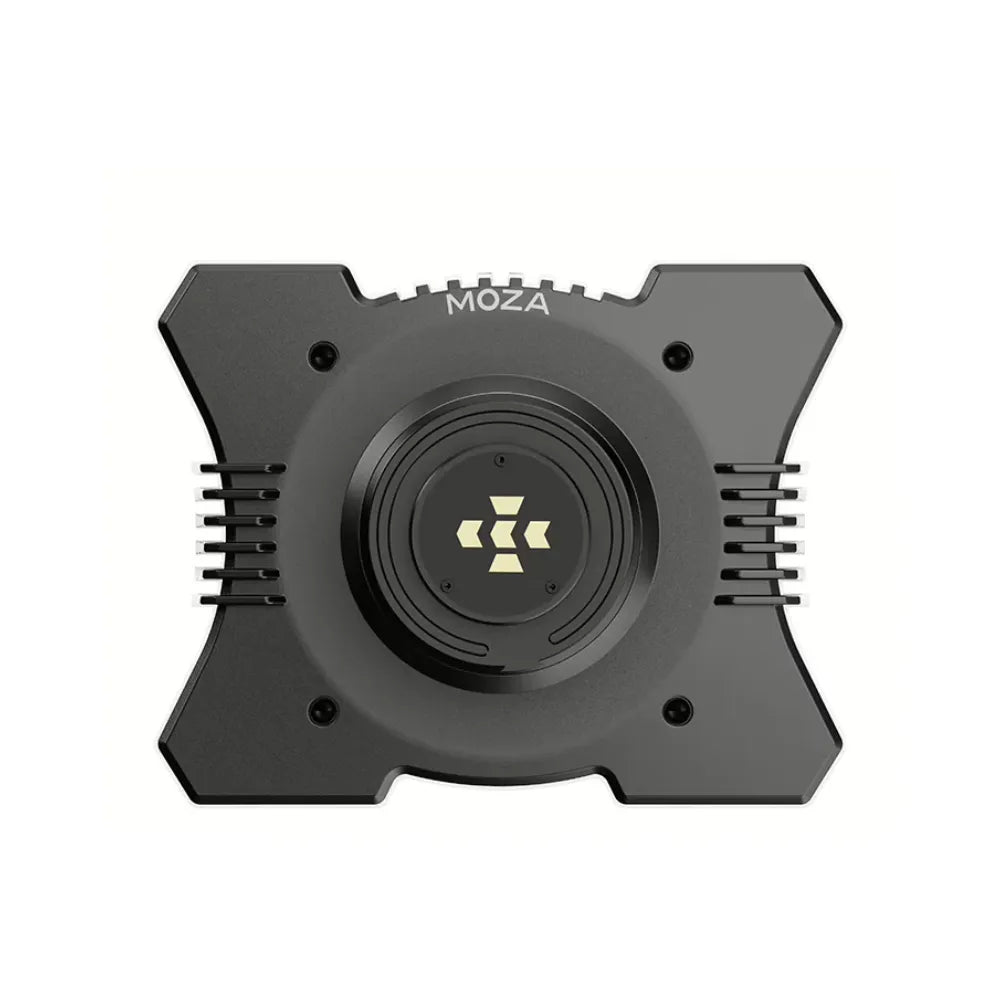

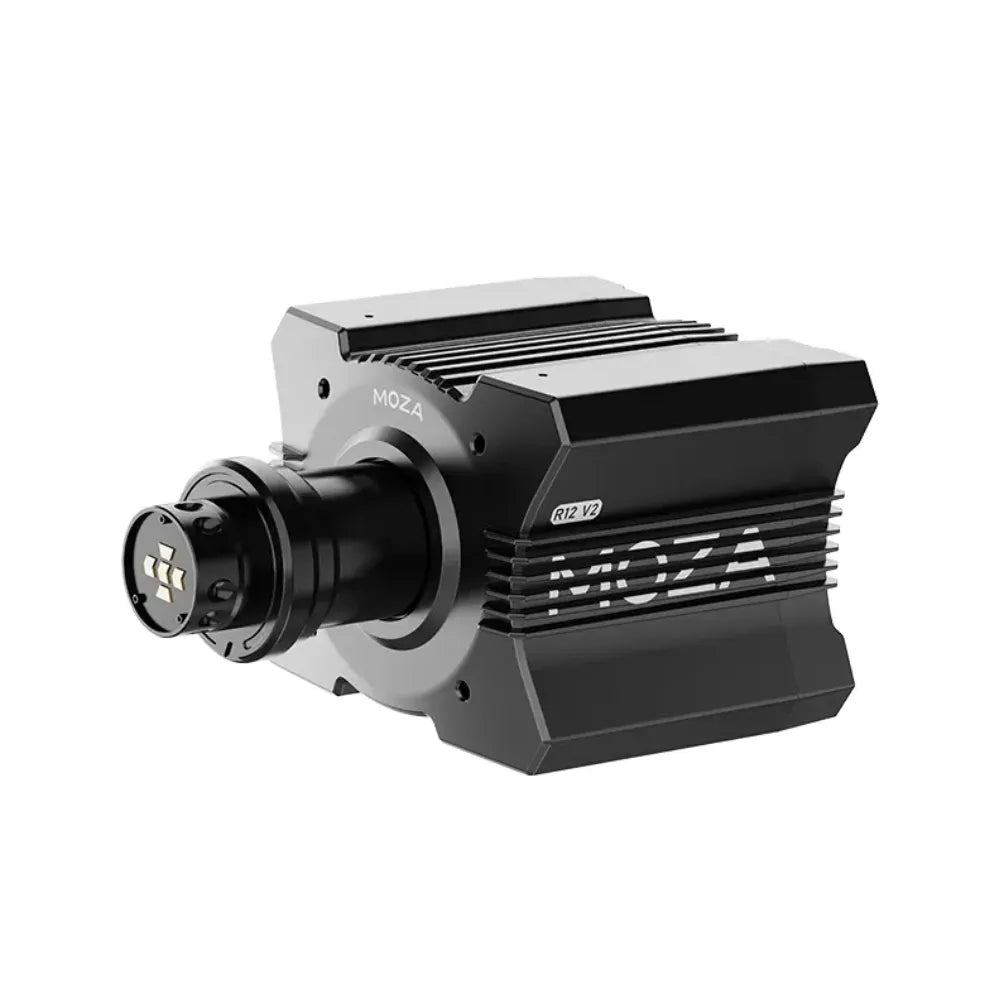

The R12 V2 is built for drivers who want to feel more of what the car is doing. Its additional torque over the R9 V3 delivers more physical detail at the limit, where the subtle transitions between grip and traction loss are most useful to read through the wheel. Active cooling keeps output consistent across extended sessions, and the SRP2 Pedals' hybrid brake sensing pairs naturally with the higher feedback resolution the R12 V2 provides.
The R12 V2 + SRP2 bundle sits above the [MOZA R9 V3 + SRP2 Pedals Bundle](LINK: R9 V3 + SRP2 Bundle) in the MOZA lineup, with 3 additional Nm of torque and active cooling as the primary differences. At 9Nm the R9 V3 communicates tyre behaviour and road feel clearly across most driving conditions. The R12 V2's 12Nm makes the difference most felt in the moments that require subtlety: the onset of understeer, the tyre warming across a stint, traction building progressively on corner exit. Drivers who want to feel those transitions more clearly through the wheel will notice the R12 V2's additional output.
Active cooling means the R12 V2 maintains consistent torque output regardless of session length. Without cooling, a wheelbase under sustained load gradually reduces output to manage heat, which is most noticeable during endurance stints or back-to-back sessions. The SRP2 Pedals round out the package with a hybrid 100kg load cell and angle sensor brake system, with a clear upgrade path to the MOZA R12 V2 + CRP2 Pedals Bundle when a higher load cell capacity becomes the next priority.
The R12 V2 uses the same 21-bit magnetic encoder technology as the R9 V3 but delivers 12Nm of peak torque from a higher-output servo motor. That additional torque headroom is most useful in high-load corners and at the limit, where the wheel communicates tyre behaviour more physically rather than topping out before the driver reaches the edge of grip. The R12 V2 connects to your wheel wirelessly and mounts at the bottom of most rig cross-tubes.
Active cooling runs continuously to regulate wheelbase temperature and maintain consistent torque output from start to finish of a session. MOZA Pit House manages all force feedback configuration alongside pedal curve settings, button mapping, and LED profiles from a single interface. iRacing 360Hz support is included, increasing the resolution of force feedback delivery during rapid changes in tyre grip and load transfer.

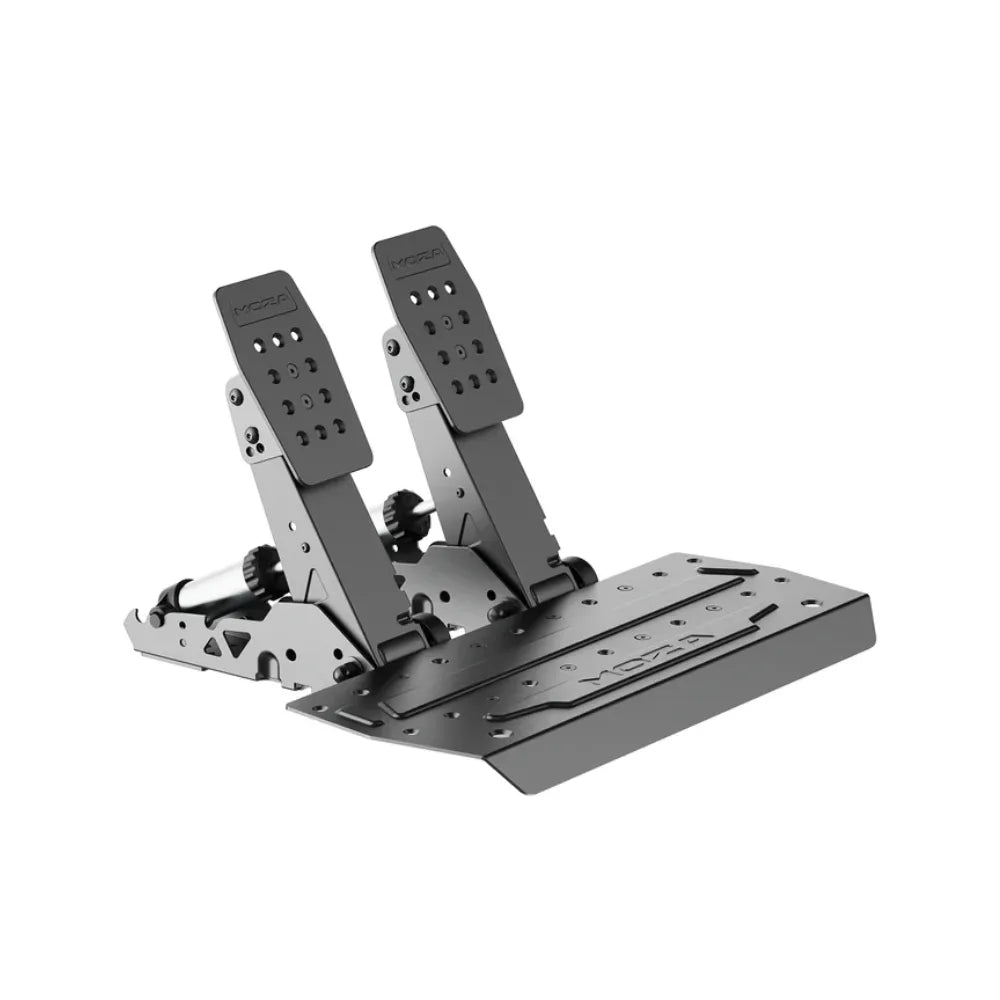

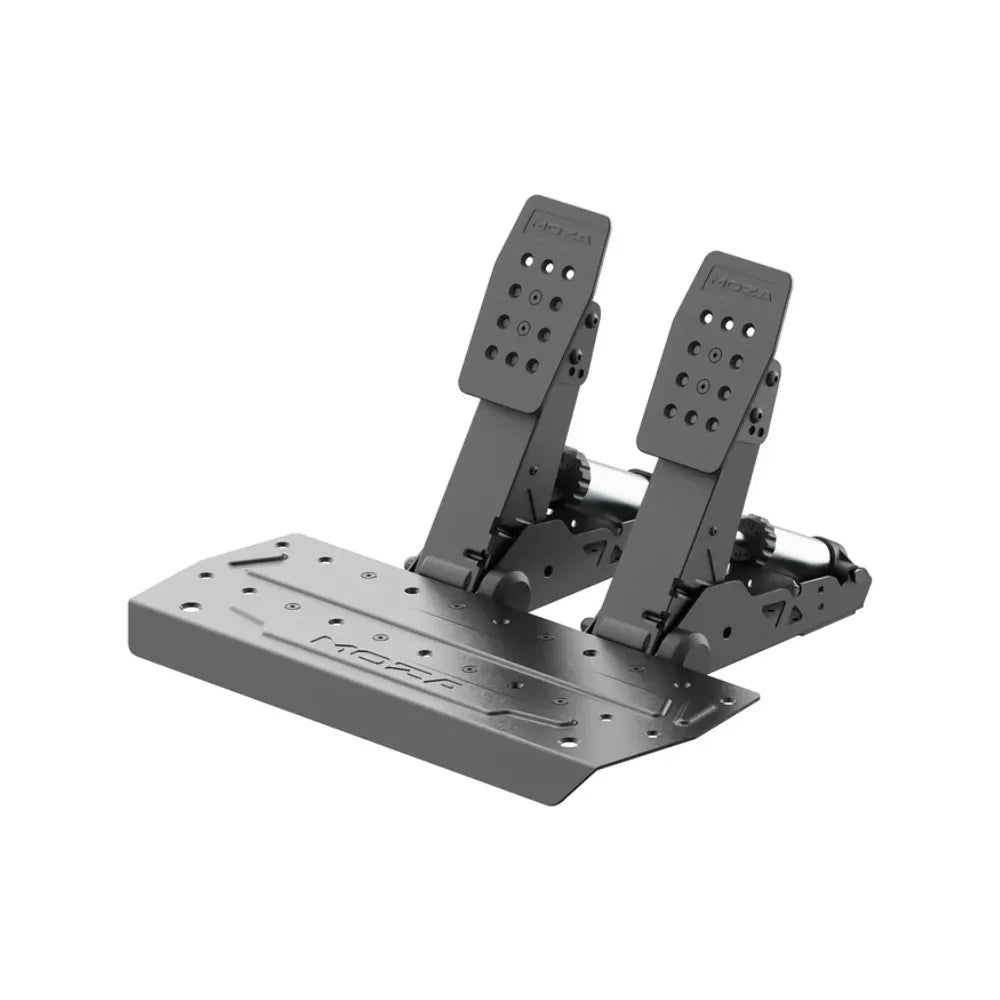

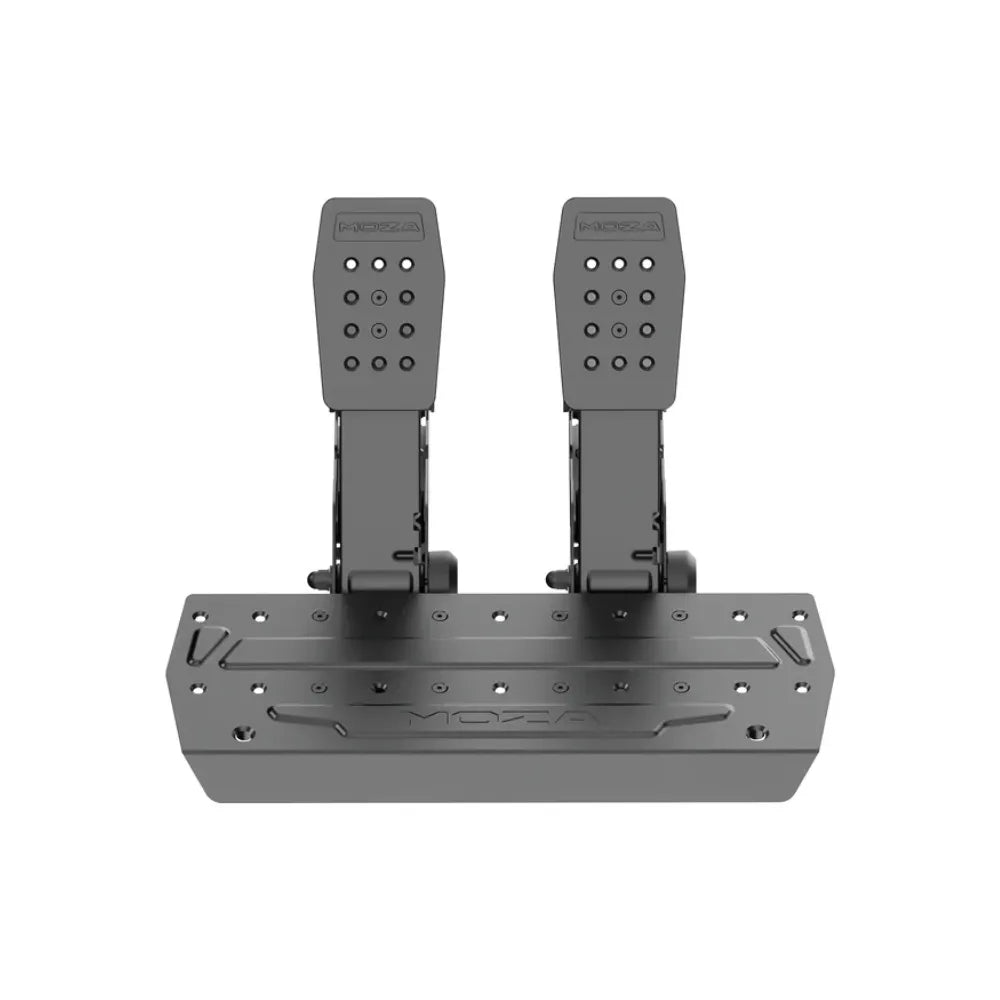

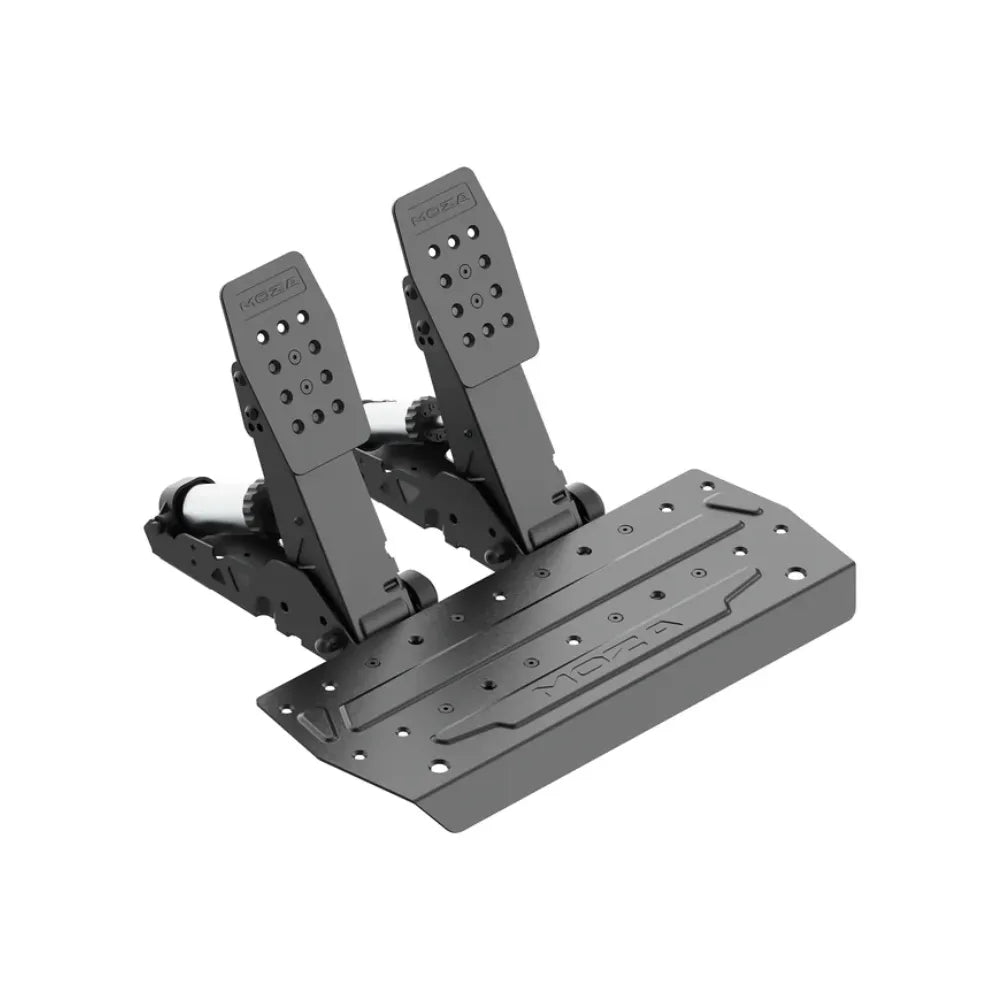

The SRP2 Pedals use a hybrid brake sensing system that combines a 100kg load cell with a 15-bit angle sensor (32,768 PPR) and sensor fusion technology. The angle sensor manages initial pedal travel while the load cell handles the later force range, and the blend between the two is configurable through MOZA Pit House. Standard configuration with the three included elastomer sets provides 25 brake feel setups. The optional Brake Performance Kit, compatible with both the SRP2 and CRP2, expands that to over 1,000 configurations for F1 or LMP1-style brake feel.
The pedal set is built from high-strength steel throughout and offers two discrete pedal face angle settings of 10° and 25°, plus 36mm of height adjustment and 15mm of lateral pedal spacing. All pedal tuning runs through Pit House alongside the R12 V2 settings. If you want to add clutch control for manual shifting, drifting, or rally driving, the MOZA SRP2 Clutch Pedal mounts directly onto the SRP2 base.
The R12 V2 + SRP2 bundle comes with the MOZA ESX wheel as standard, giving you a 280mm aluminium alloy wheel with 22 buttons, a 10-LED RGB RPM strip, and MOZA Quick Release ready to mount. If you want a different wheel to match your preferred racing discipline, select from the options above before adding to cart.

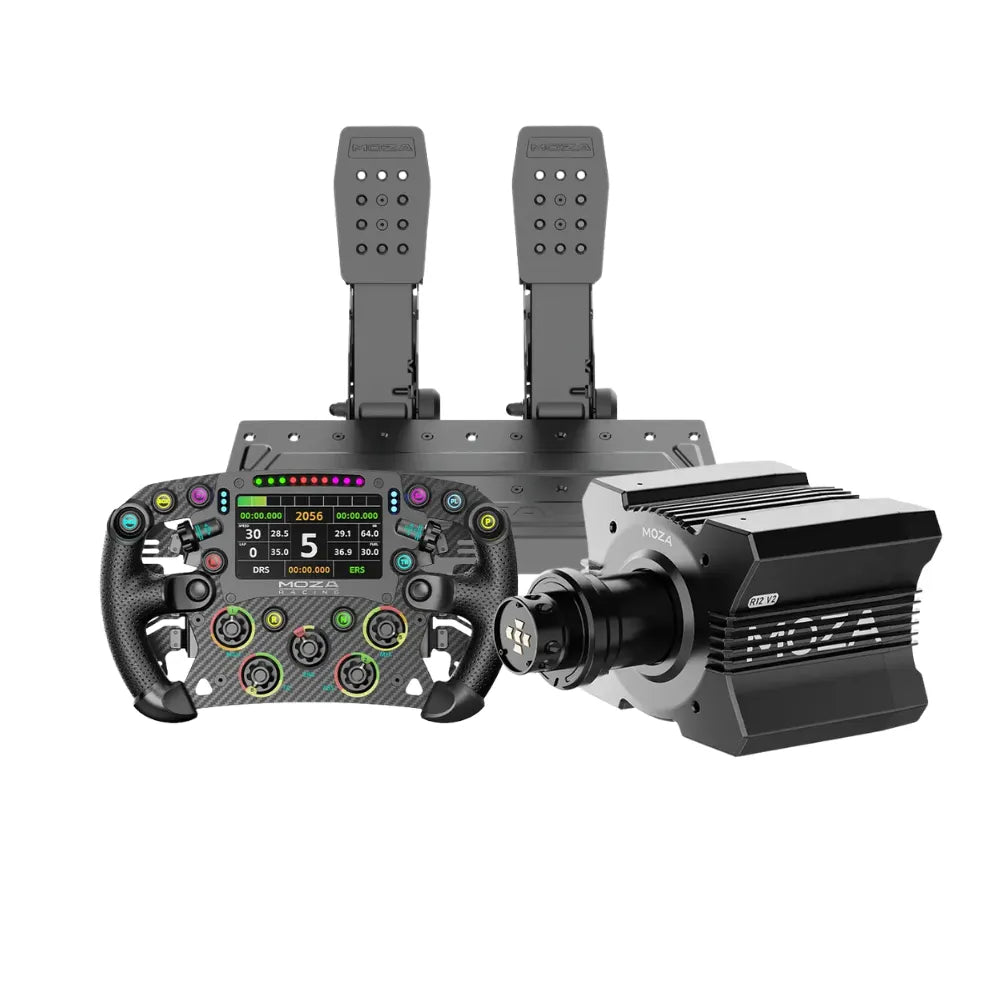

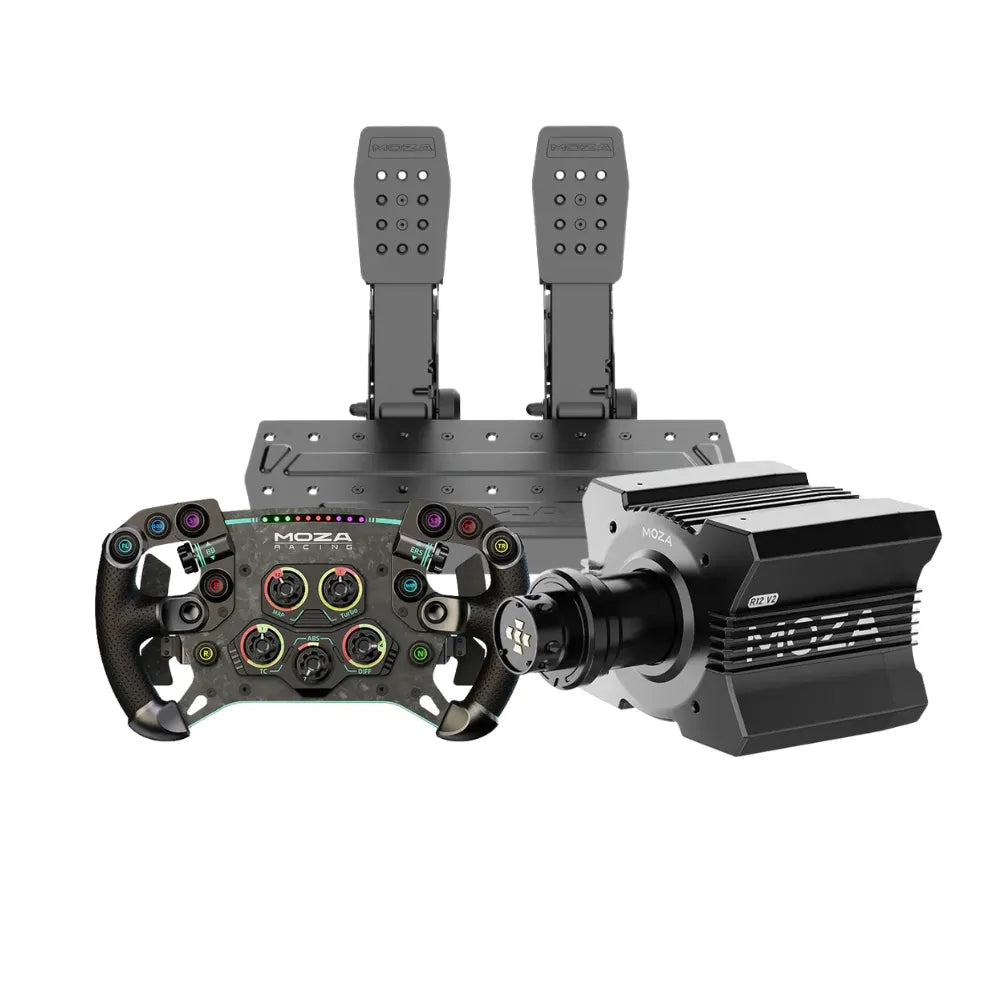

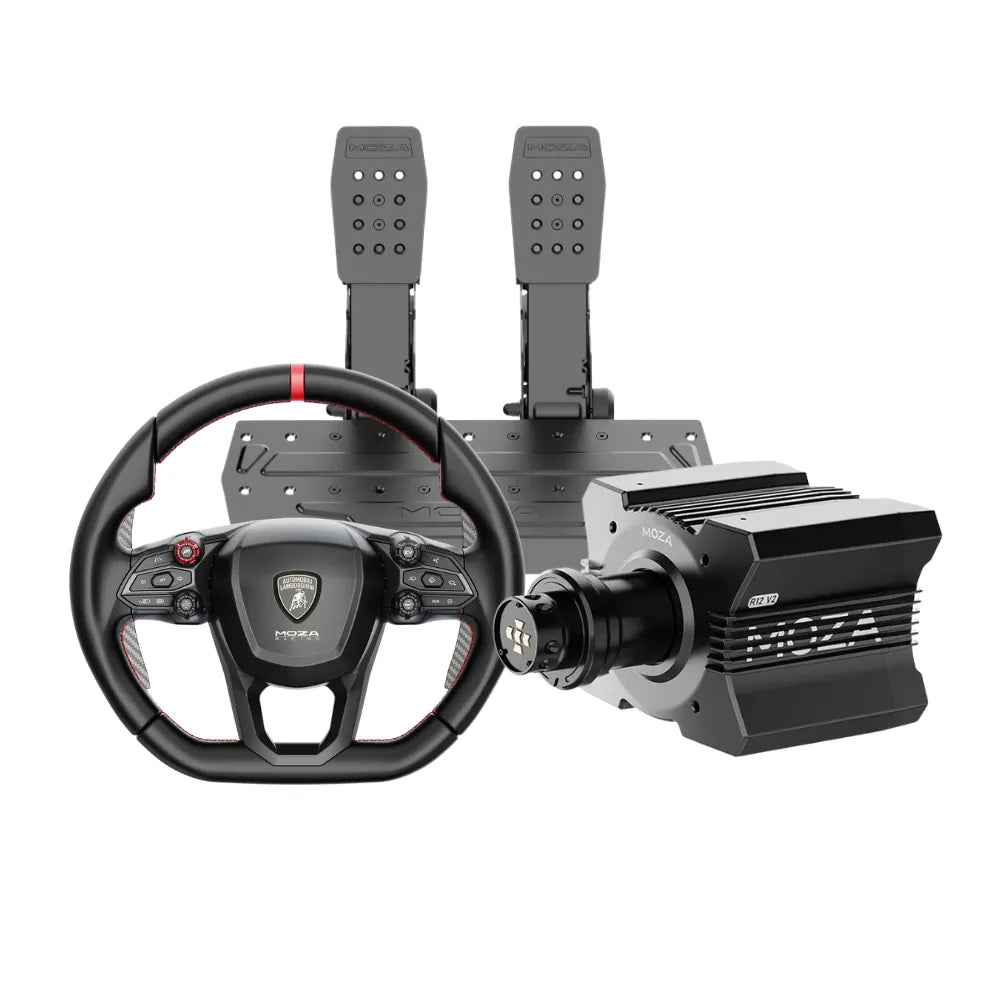

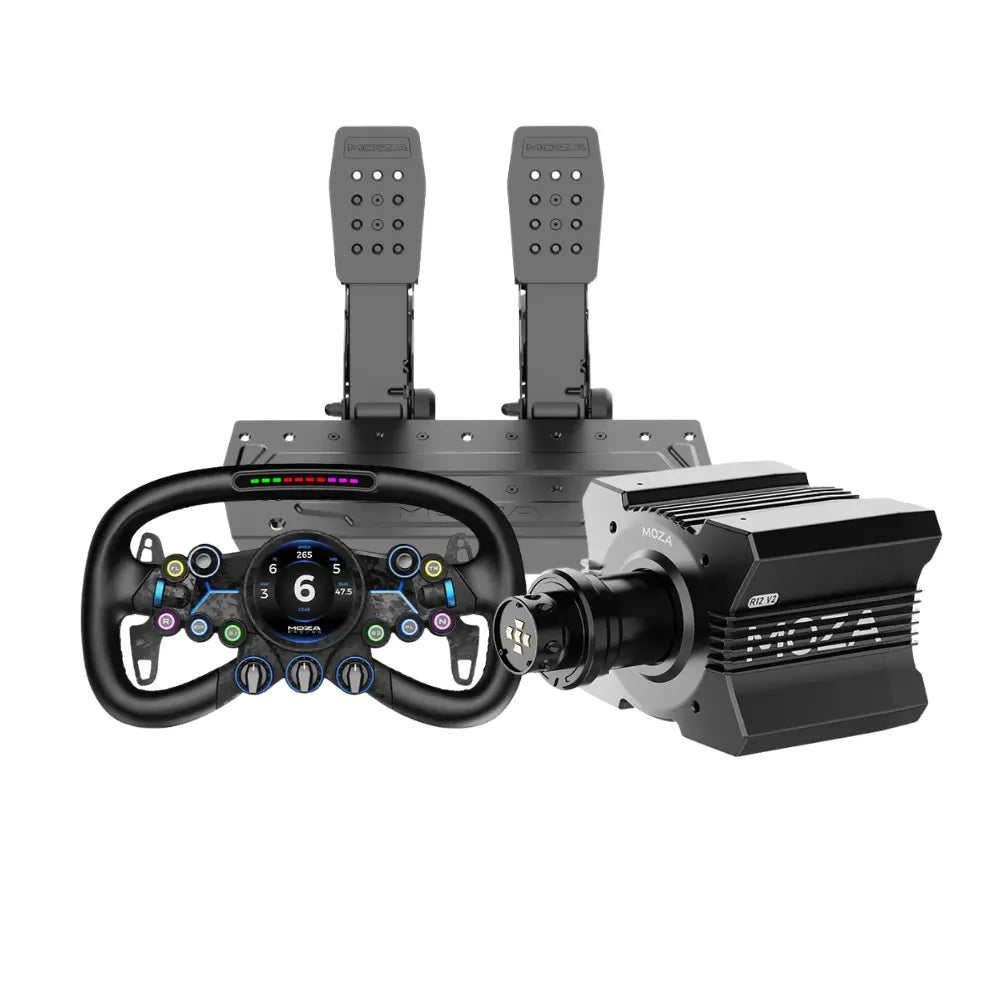

The full wheel range available in this bundle covers compact open-wheel designs, mid-size GT-style rims, and larger touring and endurance options. Every wheel uses MOZA's wireless Quick Release system, keeping swaps between rims quick and straightforward.
The R12 V2 is the wheelbase for drivers who want to feel more of what the car is doing. The extra torque over the R9 V3 translates to more physical feedback in the subtle moments: the onset of understeer, traction building on corner exit, the gradual shift in tyre load across a stint. Pair that with the SRP2's hybrid load cell brake and you've got a setup that communicates the car clearly at every point of the corner.
Tested and recommended by the team at Gamer Gear Direct's Melbourne sim racing showroom.
The bundle includes the MOZA R12 V2 direct drive wheelbase, the MOZA SRP2 Pedal set (throttle and brake), and your choice of MOZA steering wheel. All standard wheelbase accessories are included.
The SRP2 brake uses a hybrid sensing system that combines a 100kg load cell with a 15-bit angle sensor and sensor fusion technology. The angle sensor manages initial pedal travel while the load cell handles the later force range. The blend between the two sensors is configurable through MOZA Pit House, giving you control over exactly how the brake input is read across the pedal's travel arc.
Both pedal sets use load cell braking. The SRP2 uses a hybrid 100kg load cell and angle sensor system in a high-strength steel frame with 25 brake feel configurations standard. The CRP2 uses a dedicated 200kg load cell, CNC aerospace-grade aluminium construction, and a carbon fibre heel plate. The MOZA R12 V2 + CRP2 Pedals Bundle is the step up if higher load cell capacity and premium materials are the priority.
Yes. The SRP2 comes with three elastomer sets providing 25 brake feel configurations out of the box. The optional Brake Performance Kit, compatible with both the SRP2 and CRP2, expands this to over 1,000 configurations for F1 or LMP1-style brake feel.
Yes. The MOZA SRP2 Clutch Pedal mounts directly onto the SRP2 pedal base and adds a third pedal for manual shifter use, drifting, and rally driving.
Yes. The ESX wheel is included as standard, but you can select from the available wheel options above before adding to cart.
PC compatibility covers all major sim titles. Xbox compatibility is supported when the ESX wheel is selected. Other wheel options may not support Xbox, so check the individual wheel page before purchasing if Xbox play is a requirement.
Both bundles use the same SRP2 Pedal set and wheel options. The R12 V2 delivers 12Nm of torque versus 9Nm on the R9 V3 and includes active cooling for consistent output across long sessions. If you are stepping up from a belt or gear-driven wheel for the first time, the [R9 V3 + SRP2 bundle](LINK: R9 V3 + SRP2 Bundle) is the natural starting point. If you want more torque headroom and finer feedback detail across longer, more intensive sessions, the R12 V2 is the better wheelbase.
Without active cooling, a wheelbase under sustained load gradually reduces torque output to manage heat. This is most noticeable during endurance stints or back-to-back sessions without a cool-down gap. The R12 V2's cooling system maintains consistent output throughout the session, so the wheel behaves the same at the end of a long stint as it does at the start.
Yes. MOZA Pit House is free to download and handles configuration for both the R12 V2 and SRP2 pedals from a single interface, covering force feedback, pedal curves, button mapping, and LED profiles.

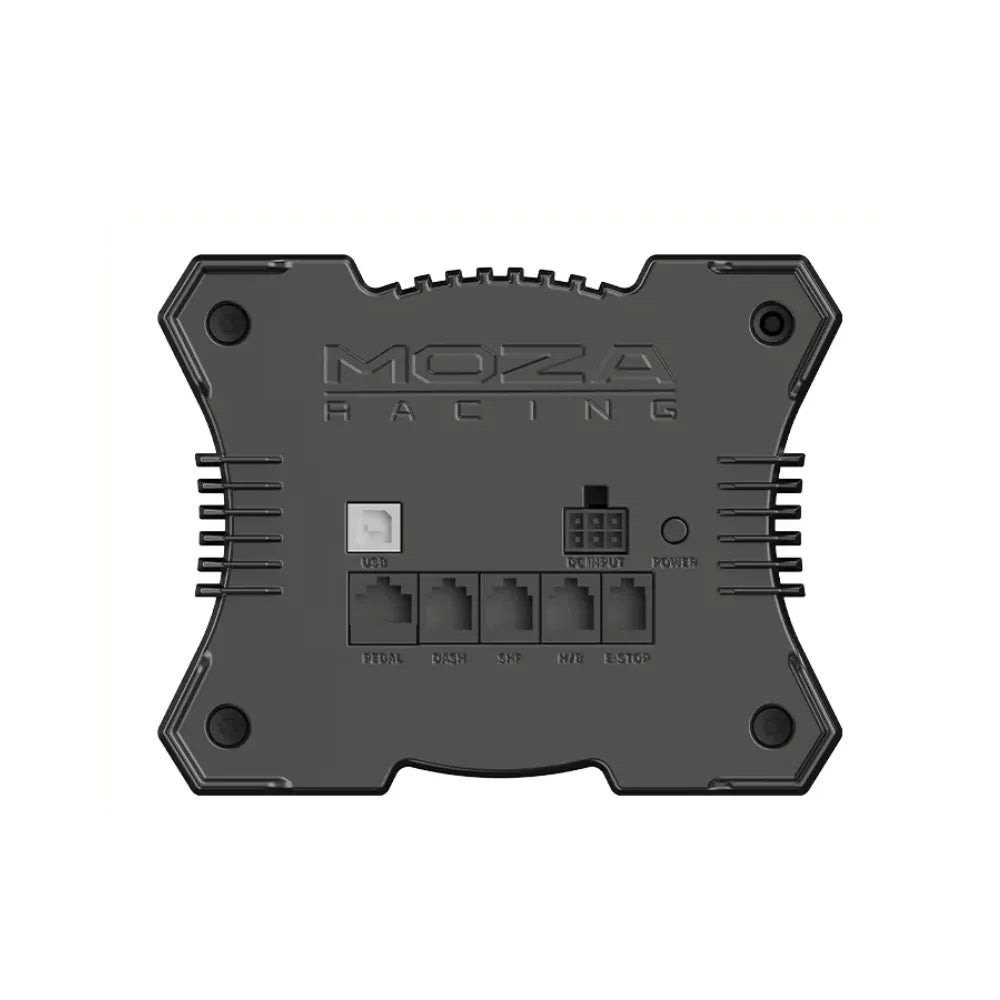

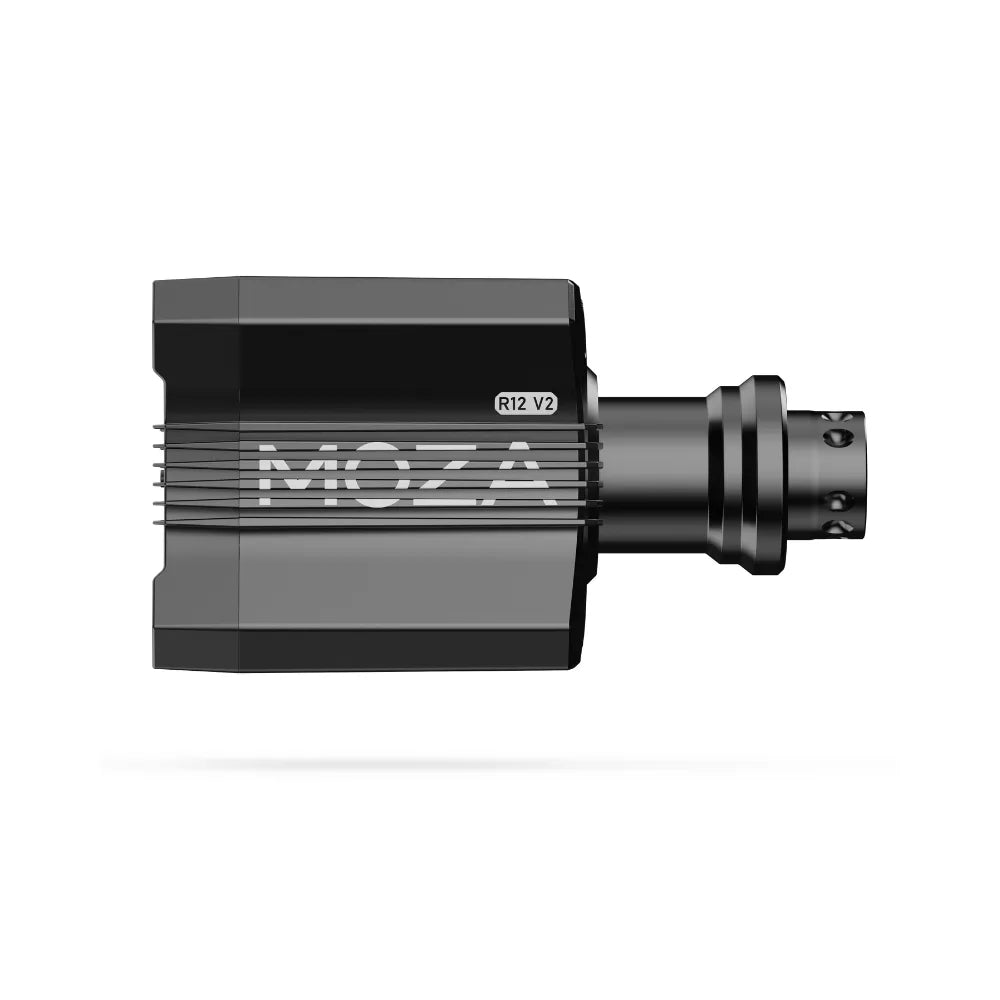

MOZA R12 V2 Wheelbase
|
Specification |
Detail |
|
FFB Drive System |
Direct Drive |
|
Peak Torque |
12Nm |
|
Peak Power |
240W |
|
Encoder Resolution |
21-bit |
|
USB Refresh Rate |
1000Hz |
|
Housing Material |
Aviation Grade Aluminium Alloy |
|
Active Cooling |
Yes |
|
Wireless Wheel Communication |
Supported |
|
iRacing 360Hz Support |
Supported |
|
Mounting Method |
Bottom mount |
|
Side Mount Option |
With optional bracket |
|
Desk Clamp |
Optional |
|
Colour |
Black |
|
Warranty |
24 months |
MOZA SRP2 Pedals
|
Specification |
Detail |
|
Pedal Material |
High-strength steel |
|
Base Material |
High-strength steel |
|
Brake Sensing Method |
Hybrid load cell and angle sensor (sensor fusion) |
|
Load Cell Range |
0-100kg |
|
Angle Sensor Resolution |
15-bit (32,768 PPR) |
|
Brake Feel Configurations |
25 standard; 1,000+ with optional Performance Kit |
|
Throttle Adjustment |
2-step preload |
|
Pedal Angle Settings |
10° / 25° |
|
Pedal Height Adjustment |
36mm range |
|
Pedal Left/Right Adjustment |
15mm |
|
Pedal Curve Adjustment |
Supported |
|
Real-time Output Display |
Supported |
|
Brake Pressure Engagement Point |
Adjustable |
|
Software |
MOZA Pit House (PC) |
|
Colour |
Black |
|
Warranty |
24 months |
MOZA ESX Wheel (standard)
|
Specification |
Detail |
|
Size |
280mm |
|
Grips |
ISF PU |
|
Face Plate Material |
Aluminium Alloy |
|
Paddle Material |
Aluminium Alloy |
|
Buttons |
22 |
|
RPM LED Strip |
10 High Brightness RGB LEDs |
|
Intelligent Telemetry |
Supported |
|
Quick Release |
MOZA Quick Release |
|
Wheelbase Compatibility |
R3, R5, R9 V2, R12, R16 V2, R21 V2 |
|
Warranty |
24 months |
MOZA R12 V2 Wheelbase x 1 (includes power supply, USB cable, toolkit, user manual)
MOZA SRP2 Pedals x 1
MOZA Steering Wheel of choice x 1 (ESX as standard)
MOZA stickers
User manuals
