Description

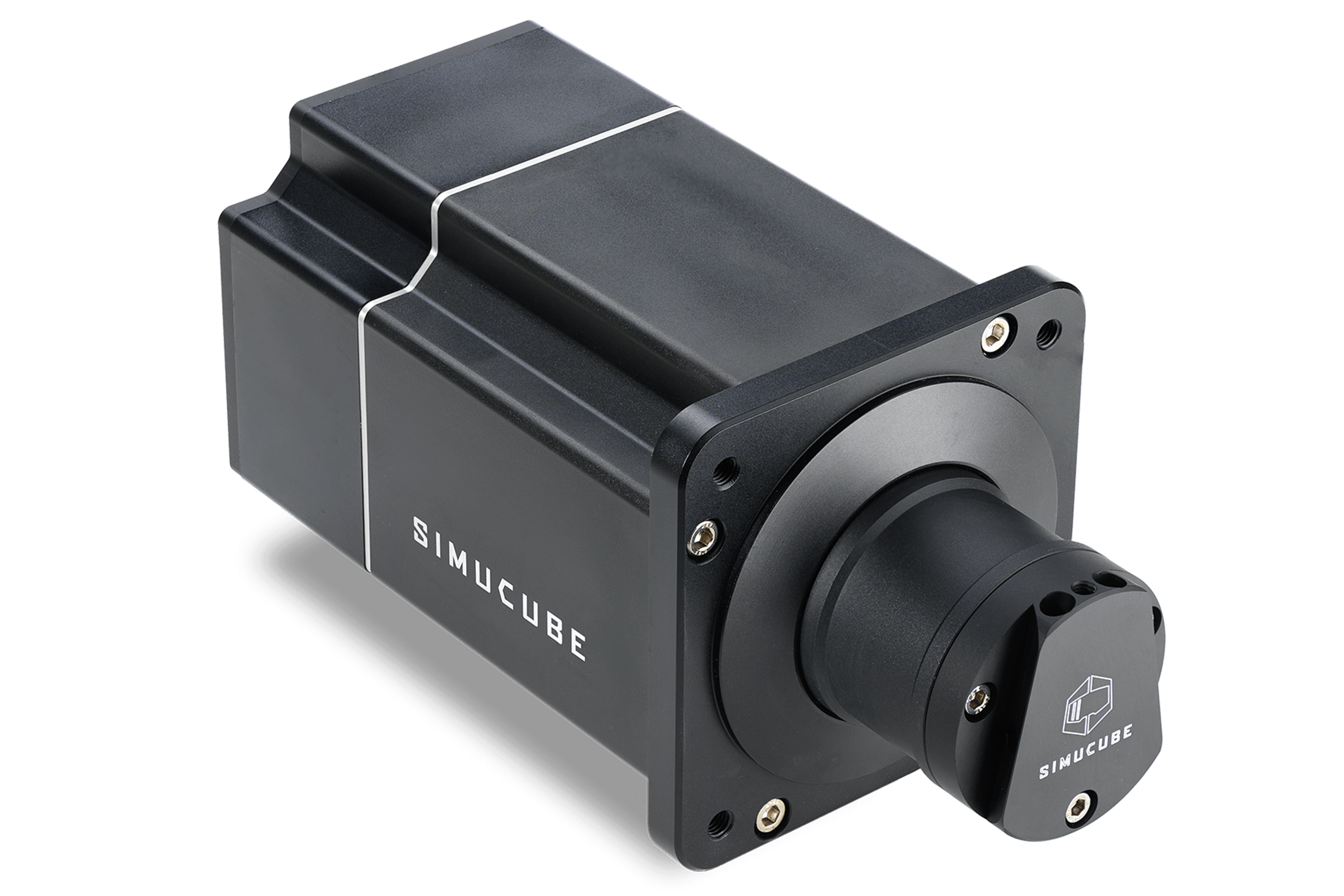

Simucube 2 Pro Direct Drive System R2
The Simucube 2 Pro Direct Drive System R2 raises the bar for sim racing steering wheel systems. It offers the most realistic and detailed force feedback currently available through a high torque, brushless motor. With 25Nm of torque available, the Pro is capable of providing a high level of immersion for any car or track combination. Ideal for professional sim racer and serious enthusiasts, the Pro offers an incredibly high torque response rate, which is also adjustable and amazing feedback clarity.
- The Pro R2 comes with a single 450W power cable
- The ultra low latency will give you incredible feel, you can feel and then correct those small slides sooner, putting you a step ahead of your opponents
- A high efficiency direct drive motor and clever electronics heat guiding means the system produces less heat and doesn't require a noisy fan to keep it cool
- Built in wireless receiver that will automatically connect to a wireless steering wheel and has an unbreakable millisecond range response time
- 2 years manufacturers warranty

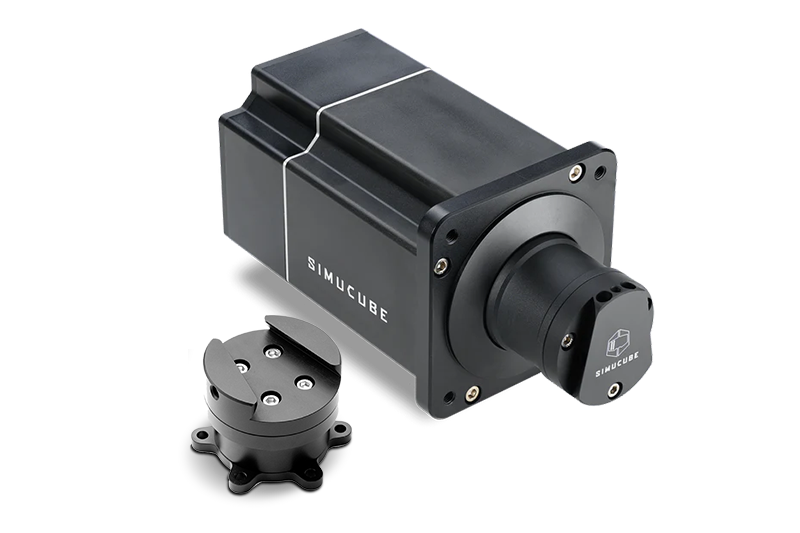

Not only can the Pro wheel base produce a huge amount of torque, it is also highly accurate with robotics grade angle sensors and high quality encoders. This combined with custom made electronics and all wrapped up inside a full metal CNC machined case means that the Pro is a solid unit that is capable of providing the very best in sim racing force feedback. The wheel base system works with the Simucube quick release wheel side kit which is available to purchase separately. The wheel side kit simply clips onto the wheel base and it locks in place with a safety pin. This system allows you to have multiple steering wheels where you can quickly change wheels with ease.
Dimensions
- Wheel Base Dimensions incl. SQR: 130 x 130 x 270 mm
- Mounting Holes: M8 x 4 pcs threaded hole
- Mounting Hole Pattern DIA: 145 mm
- Flange Centering Hole DIA: 110 mm
- Wheel Base Weight: 11.1kg
Specifications
- Motor: High response speed Direct Drive optimized ultra low torque ripple motor
- Wireless Wheel Support: Yes
- Max Torque: 25 Nm
- Max Torque Slew Rate: 8.0 Nm/ms
- Angle Sensor: 22 bit absolute
- Power Supply: R2 1 x 450 W Peak
- Torque Slew Rate Adjustment: 1 – 8.0 Nm/ms
- Torque Reconstruction Processing: Yes
- Static Force Reduction: Yes
-
Natural Damping, Inertia and Friction Filters: Yes
COMPARE MODELS
|
SIMUCUBE 2 SPORT |
SIMUCUBE 2 PRO |
SIMUCUBE 2 ULTIMATE |
|
|
MOTOR |
Direct Drive optimized ultra low torque ripple motor |
High response speed Direct Drive optimized ultra low torque ripple motor |
Maximum response speed, low inertia, Direct Drive optimized ultra low torque ripple motor |
|
SIMUCUBE WIRELESS WHEEL™ SUPPORT |
Included |
Included |
Included |
|
SIMUCUBE QUICK RELEASE™ |
Not Included |
Not Included |
Included |
|
MAX TORQUE * |
17 Nm |
25 Nm |
32 Nm |
|
MAX TORQUE SLEW RATE |
4.8 Nm/ms |
8.0 Nm/ms |
9.5 Nm/ms |
|
ANGLE SENSOR |
22 bit absolute |
22 bit absolute |
24 bit Hiperface |
|
TORQUE OFF BUTTON |
Standard (Premium optional) |
Standard (Premium optional) |
Premium (with remote power switch) |
|
POWER SUPPLY |
280 W |
R2 1 x 450 W Peak |
1000 W |
|
WHEEL BASE DIMENSIONS INCL. SQR™ |
130 x 130 x 250 mm |
130 x 130 x 270 mm |
115 x 115 x 310 mm |
|
MOUNTING HOLES |
M8 x 4 pcs threaded hole |
M8 x 4 pcs threaded hole |
9 mm dia x 4 pcs through hole |
|
MOUNTING HOLE PATTERN DIA |
145 mm |
145 mm |
130 mm |
|
FLANGE CENTERING HOLE DIA |
110 mm |
110 mm |
110 mm |
|
WHEEL BASE WEIGHT |
8.0 kg |
11.1 kg |
11.3 kg |
|
STANDARD WARRANTY |
24 months |
24 months |
60 months |
|
*) Torque is continuous until motor gets very hot. In preliminary testing, no-one has managed to cause torque to start throttling. |
|||
|
SIMUCUBE 2 SPORT |
SIMUCUBE 2 PRO |
SIMUCUBE 2 ULTIMATE |
|
|
TORQUE RECONSTRUCTION PROCESSING |
Yes |
Yes |
Yes |
|
STATIC FORCE REDUCTION |
Yes |
Yes |
Yes, in detail adjustable |
|
NATURAL DAMPING, INERTIA AND FRICTION FILTERS |
Yes |
Yes |
Yes, in detail adjustable |
|
ULTRA LOW LATENCY MODE |
Yes |
Yes |
Yes |
|
TORQUE SLEW RATE ADJUSTMENT |
1 – 4.8 Nm/ms |
1 – 8.0 Nm/ms |
1 – 9.5 Nm/ms |

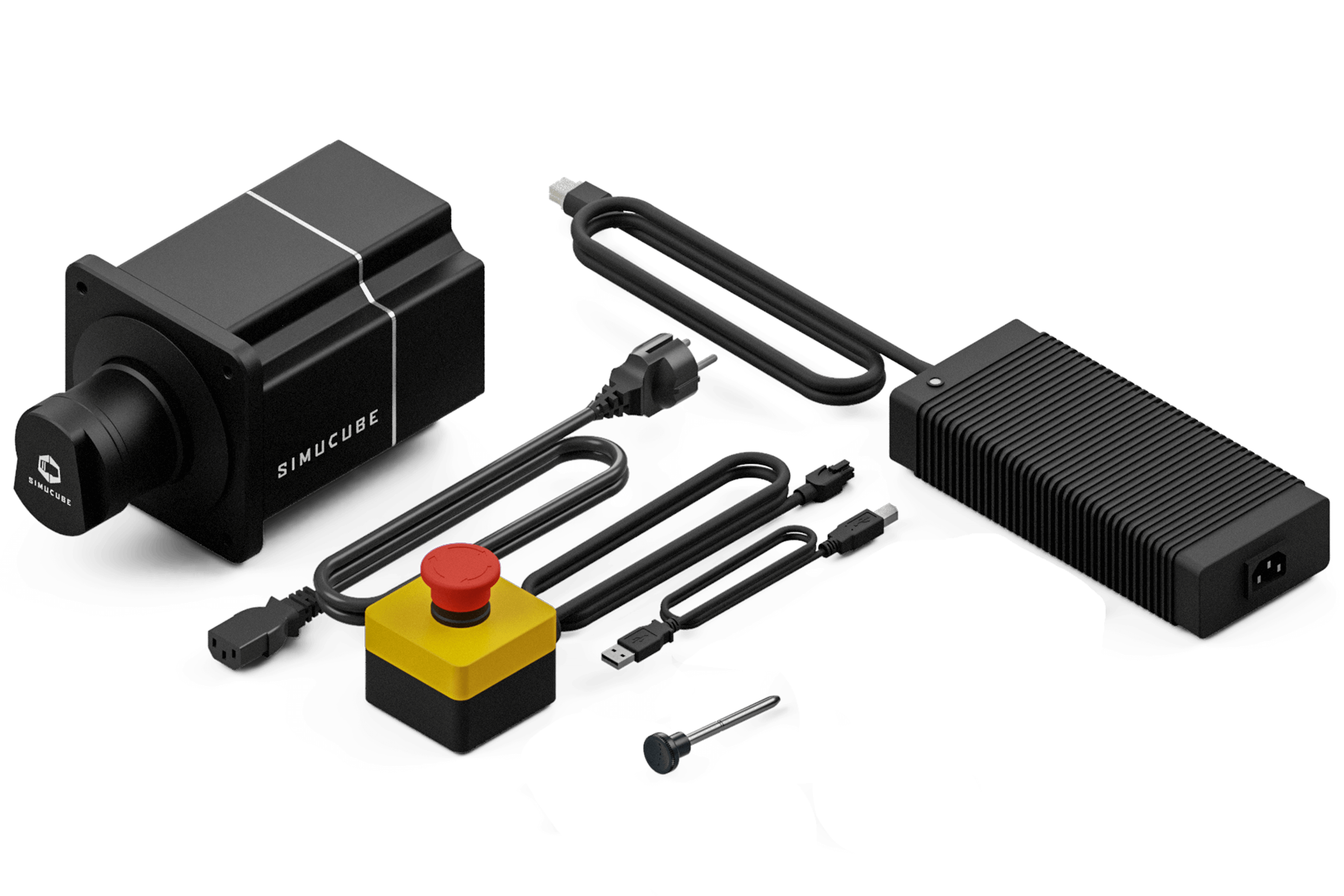

Simucube 2 Pro Wheel Base
- Power Supply
- All required cables
- Standard Torque Off Button
- Fixings for Wheel Base
- Pin for Simucube Quick Release
- Does NOT include: Simucube Quick Release Side Parts
