Description
Two at the front, one at the rear, the layout many drivers choose
Three D-BOX G5 haptic actuators running from a single Haptic Bridge. Two sit at the front of the rig and one at the rear, which still gives you pitch and roll but concentrates the hardware where a driver feels the most: under braking and through the front axle.
Each actuator lifts 114kg through a 38.1mm stroke at up to 100mm per second, across a 0 to 100Hz frequency range. Three Trak Racer carbon steel brackets are supplied for mounting directly to an aluminium profile frame.
This is not the entry version of a four actuator system, it is a deliberate layout. Our motion simulators range covers the alternatives.
Key features
- Three D-BOX G5 haptic actuators, two front and one rear
- 114kg lifting capacity per actuator
- 38.1mm stroke at up to 100mm per second
- Frequency range from 0 to 100Hz
- Single Haptic Bridge drives all three
- Three Trak Racer steel brackets supplied
- Voltage switch on every actuator for 230V
- FIA licensed haptic technology
Why three actuators is a real choice
Three actuators still produce pitch and roll. What you give up against four is some of the independence at the rear, because a single rear actuator moves the whole back of the rig together rather than one side at a time.
What you gain is a simpler install, one less actuator to find space and power for, and the front of the car doing most of the talking. Braking, front grip and kerb strikes on the front axle are where a driver takes most of their cues, and all three of those live at the front.
One Haptic Bridge, one USB cable
The Haptic Bridge is a single compact controller that drives one to four actuators, so a three actuator system uses exactly the same unit as a four. It connects to the PC on one USB A to B cable and to the actuators on RJ45 patch leads.
Connect it directly to a USB port on the PC rather than through a hub. If you later want a fourth actuator, the bridge already has the port for it.
HaptiSync Center and Adaptive Gaming
D-BOX HaptiSync Center is the current software suite, replacing the older Motion Core. More than 90 titles are coded by D-BOX so the actuators move from the game's own telemetry, which is the most accurate way the system can run.
Adaptive Gaming covers everything else. It generates motion without any telemetry from the game using more than 300 effects, so a title with no native D-BOX support still moves the rig.
Profile frames and tube frames

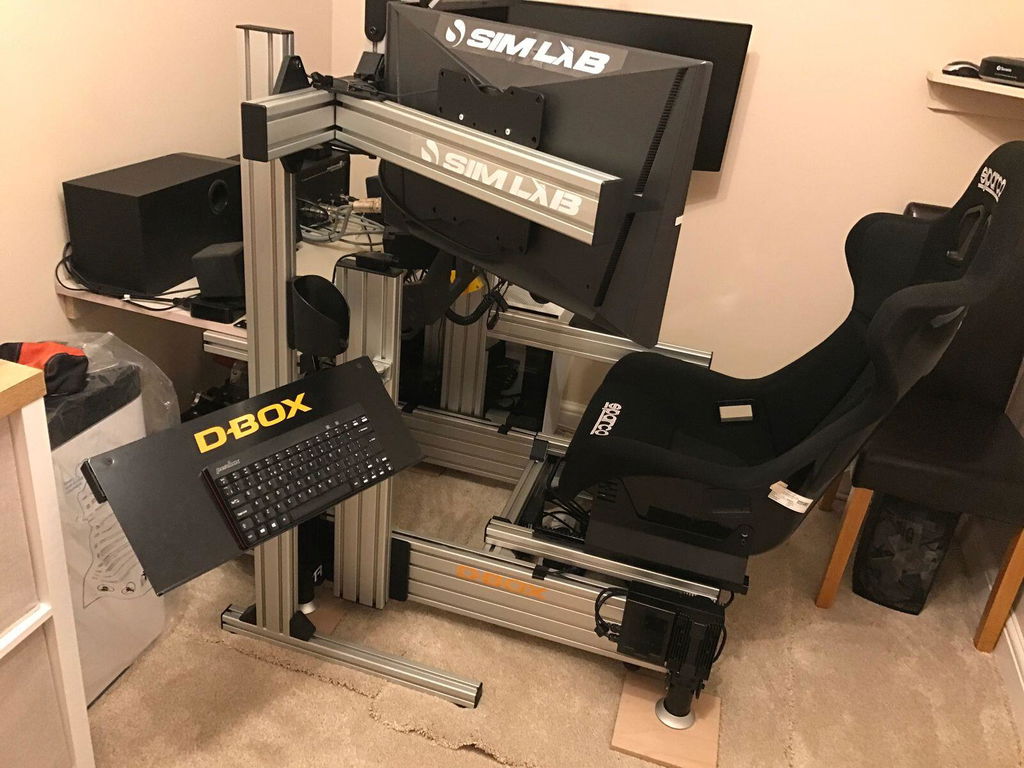

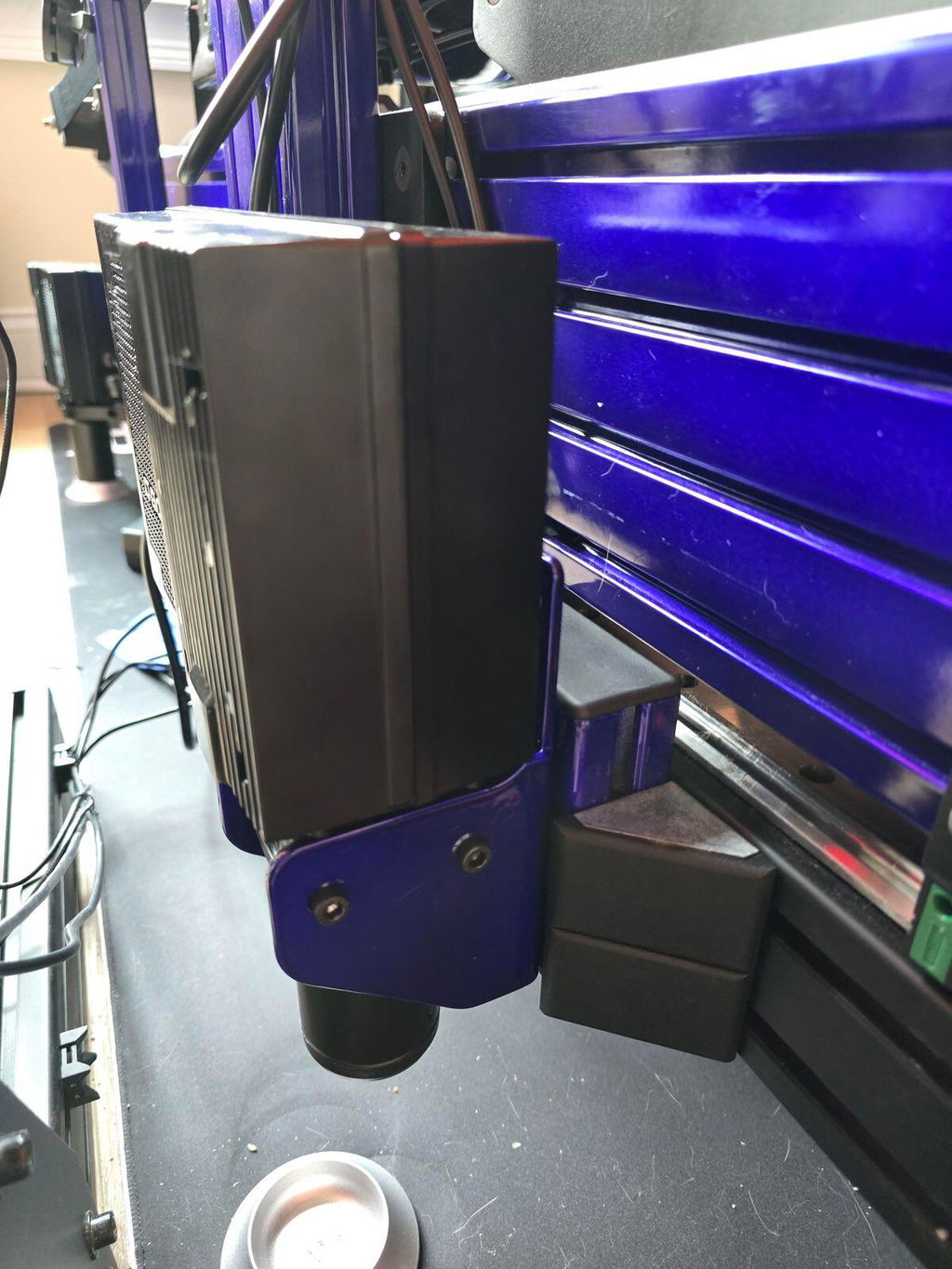

The three Trak Racer carbon steel brackets supplied here bolt the actuators straight to an aluminium profile rig, with the M6 and M8 hardware included.

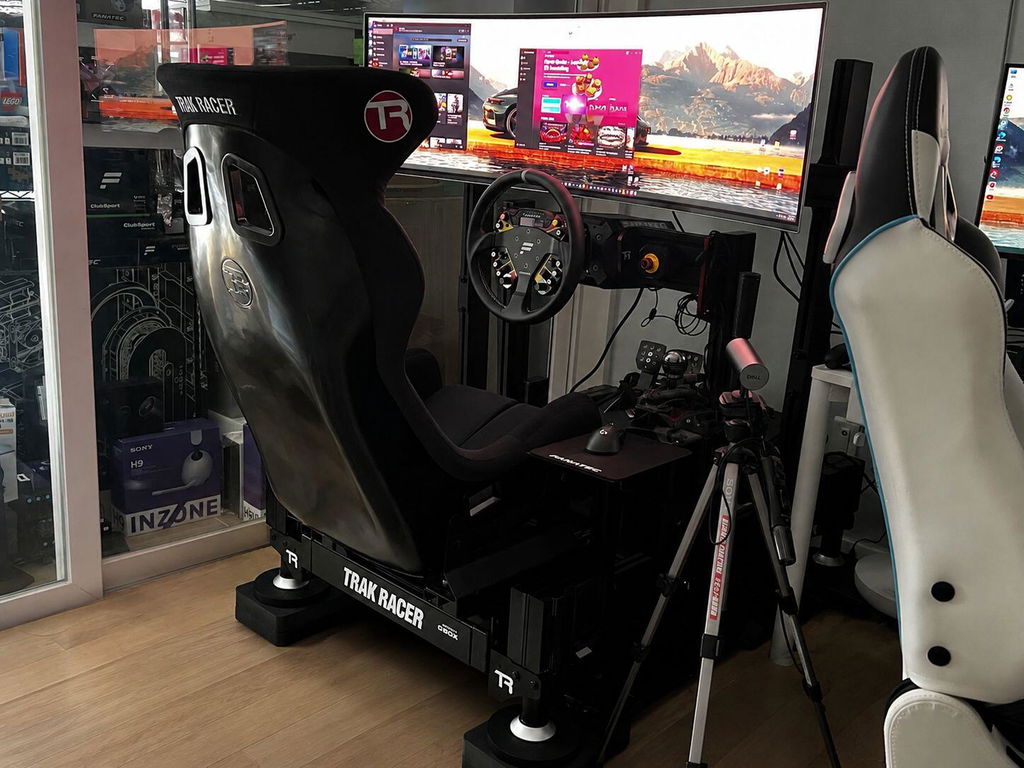

A tube chassis such as the Alpine Racing TRX cannot take brackets directly and needs a motion platform underneath instead. The TR Move Motion Platform Base for 3 actuators is the matching part, and our motion simulator packages cover the complete builds.
Adding a fourth later
The Haptic Bridge already drives up to four actuators, so going from three to four is a matter of adding hardware rather than replacing the controller. A single D-BOX G5 haptic actuator and a bracket is all it takes on a profile rig.
If you would rather start at four, the D-BOX G5 4250i is the same system with an actuator at each corner.
Our expert take
"Three is the layout I would point most people to first, and not because it is the cheaper option. Two at the front and one at the back covers the cues that actually make you faster, and it is a simpler thing to live with. The upgrade path is genuinely open too, because the bridge already drives four. Start here, add the fourth if you want it."
- Blake Sterling, Founder & CEO, Gamer Gear Direct
Frequently asked questions
What do I lose compared to four actuators?
Independent movement at the rear. A single rear actuator lifts the whole back of the rig together, where four give you roll at both ends. Pitch and roll are both still there.
Can I upgrade to four later?
Yes. The Haptic Bridge supplied here already drives up to four actuators, so it is a matter of adding a fourth actuator and bracket rather than replacing the controller.
What weight will it carry?
Each actuator is rated to 114kg, so three carry 342kg between them. The rating is per actuator and D-BOX stress even weight distribution, because an unbalanced rig can overload one of them.
Will it work with my rig?
The supplied brackets are for aluminium profile frames. A tube chassis needs a motion platform base instead, which is a separate purchase.
Is it PC only?
Yes. D-BOX G5 and HaptiSync Center are built for Windows PC, with no console support.
How much power does it draw?
A three actuator system draws 420W average at 230V, with a 740VA rating and 3.2A peak current. Each actuator has a voltage switch set for Australian mains.
Specifications
Actuators: 3 x D-BOX G5 haptic actuators
Layout: Two front, one rear
Controller: 1 x D-BOX Haptic Bridge, drives 1 to 4 actuators
Lifting capacity: 114kg (250lb) per actuator, 342kg across three
Maximum stroke: 38.1mm (1.5 inch)
Maximum velocity: 100mm per second
Maximum acceleration: Plus or minus 1 g-force
Frequency range: 0 to 100Hz
PC connection: USB A to USB B, direct to the PC, not through a hub
Actuator connection: RJ45
Power at 230V: 420W average, 740VA, 3.2A peak
Voltage: Switchable 120V or 230V per actuator
Operating temperature: 0 to 40 degrees C
Software: D-BOX HaptiSync Center
Coded titles: More than 90, plus Adaptive Gaming for the rest
Brackets: 3 x Trak Racer carbon steel, for aluminium profile frames
Bracket torque: 11Nm (100 lbf-in)
Platform: Windows PC
Motion platform base: Required for tube frames, sold separately
Warranty: 2 years D-BOX, 5 years Trak Racer brackets
What's In The Box?
3 x D-BOX G5 haptic motion actuators
1 x D-BOX Haptic Bridge processing unit
1 x USB A to USB B cable
1 x power supply
3 x Trak Racer carbon steel brackets
Bracket mounting hardware
Actuator mounting screws
Power cables and IEC lock inserts
