Description

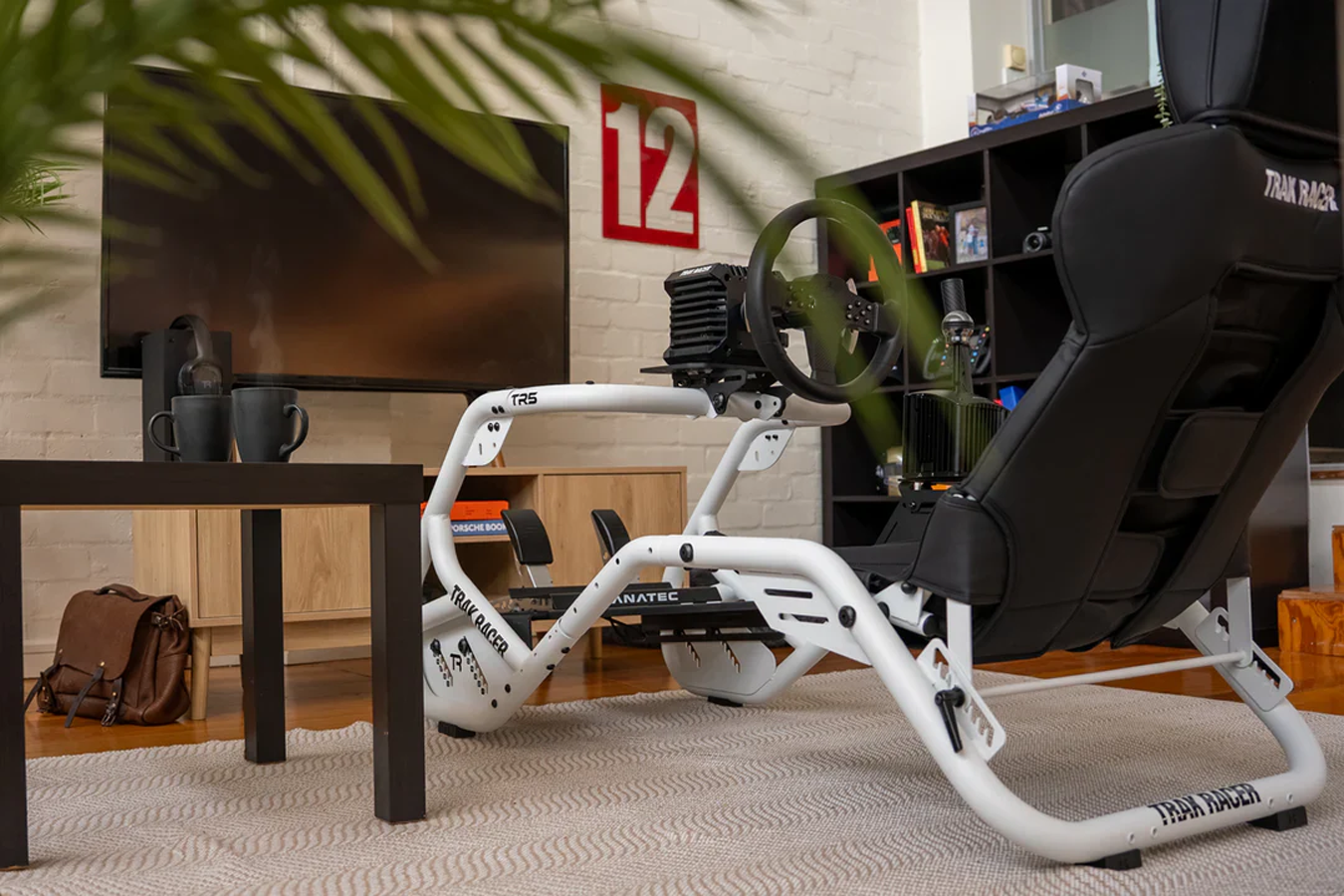

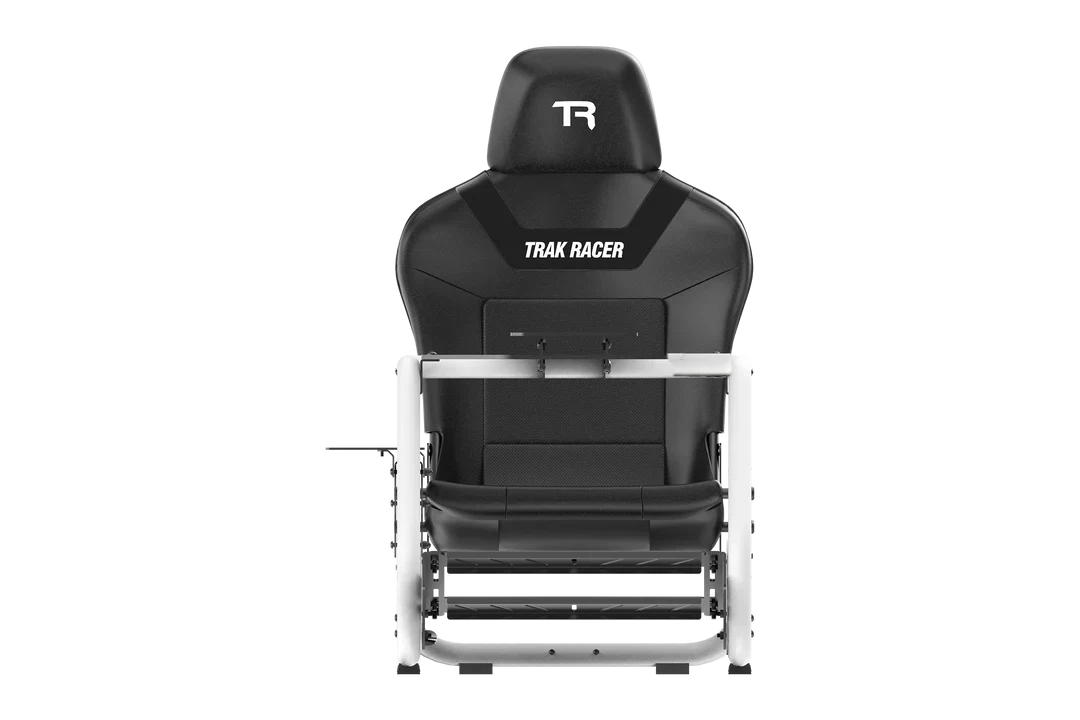

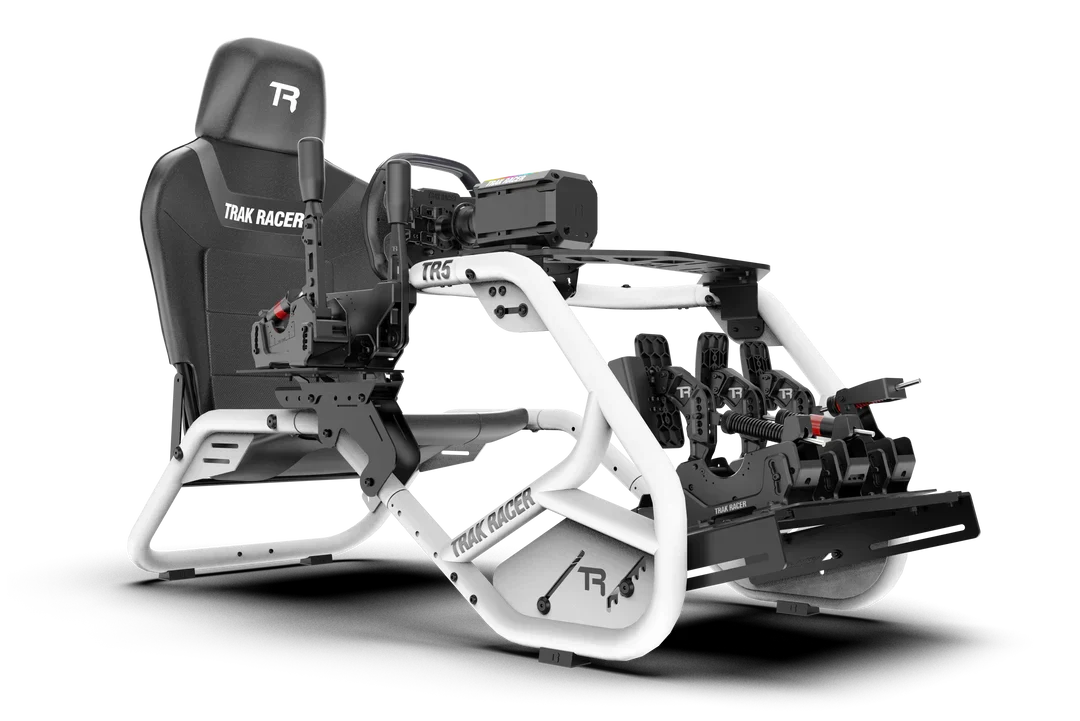

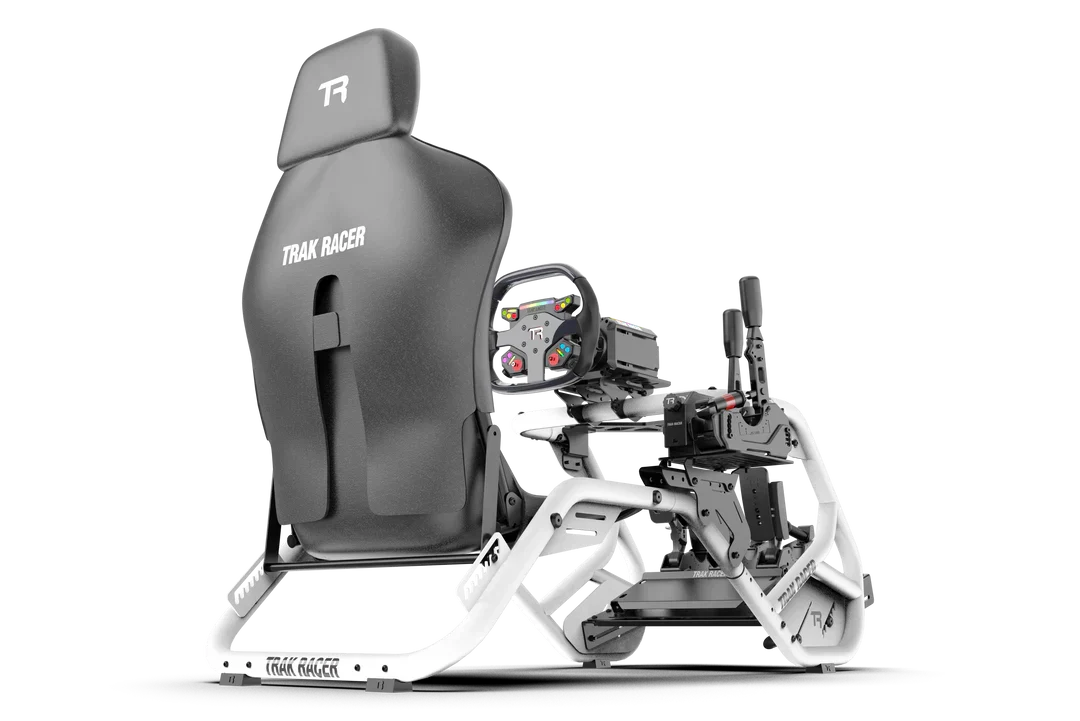

A complete cockpit, seat included
The TR5 is the one that arrives ready to use. A rigid carbon steel tube frame with a faux leather and micro suede seat already fitted, a shifter and handbrake mount included, and a footprint small enough to live in a normal room.
It is also the most adjustable cockpit in this batch on paper, with published ranges rather than descriptions: 85 to 145 degrees of backrest recline, a pedal plate that moves through 580 to 600mm and tilts from plus 18 to minus 56 degrees, and a wheel deck with 100mm of horizontal travel.
Key features

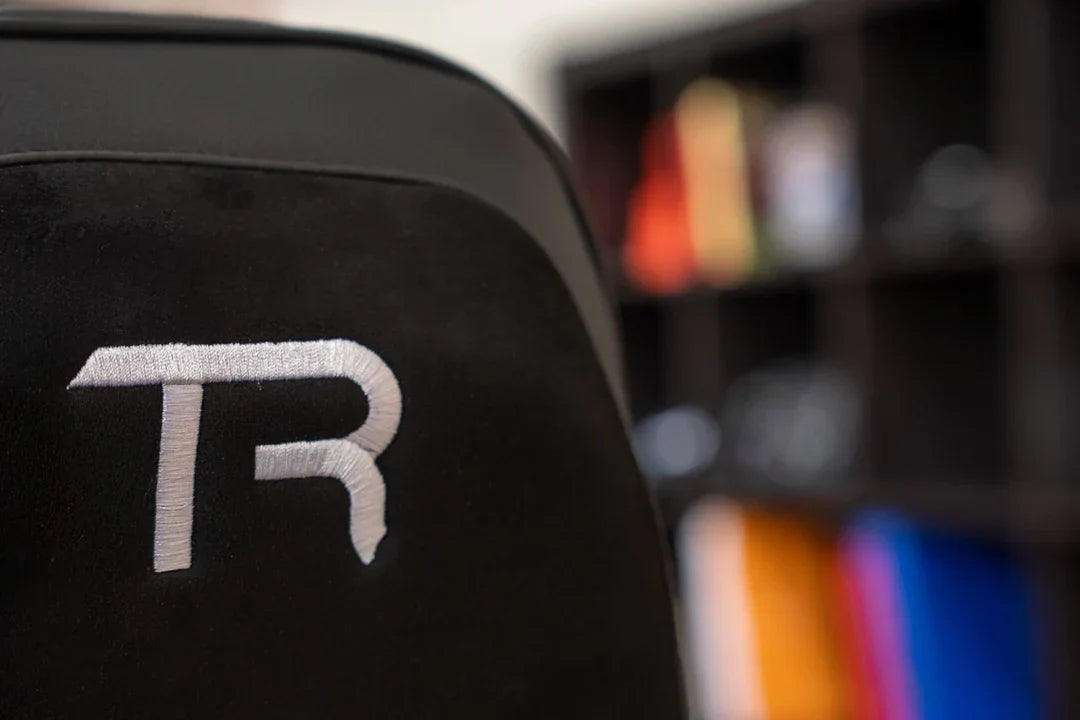

- Seat included, faux leather and micro suede
- Rigid carbon steel tube frame
- Handles direct drive up to 25Nm
- Backrest reclines 85 to 145 degrees
- Shifter and handbrake mount included
- Fits drivers from 140cm to 200cm
Upright or reclined, in the same frame

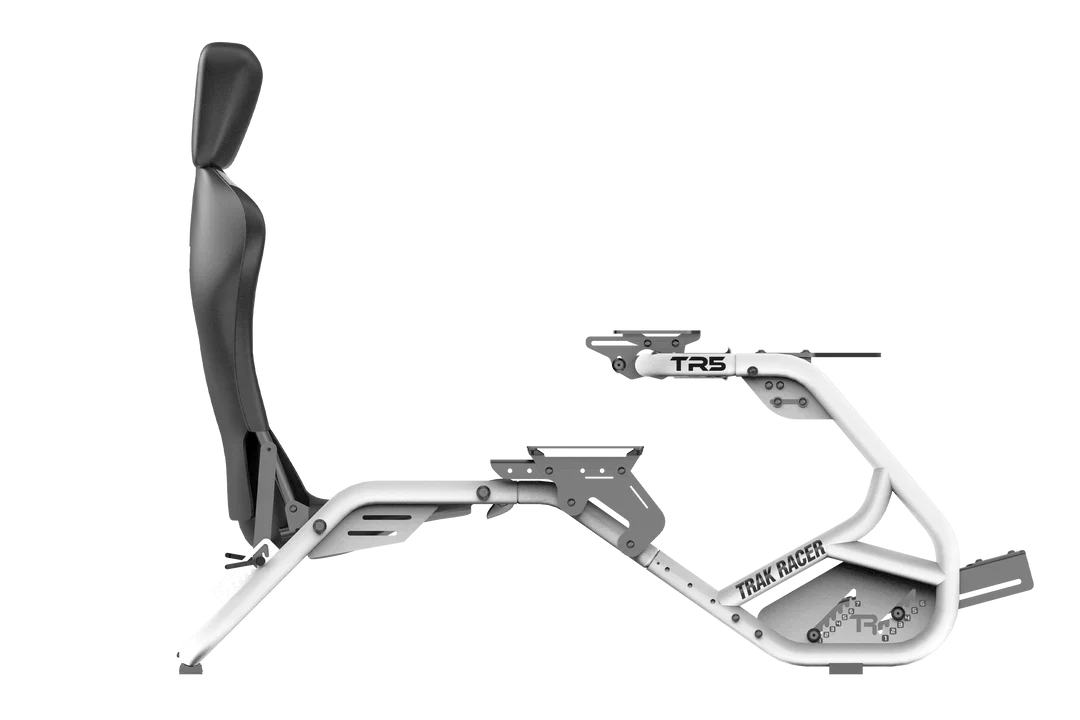

The backrest swings through 85 to 145 degrees, which is a genuinely wide range: upright enough for a rally or truck sim, reclined enough for a single seater. That range is what the TR5's hybrid driving positions means in practice, and it is the reason the overall length changes from 1405mm to 1530mm depending on how you have it set.

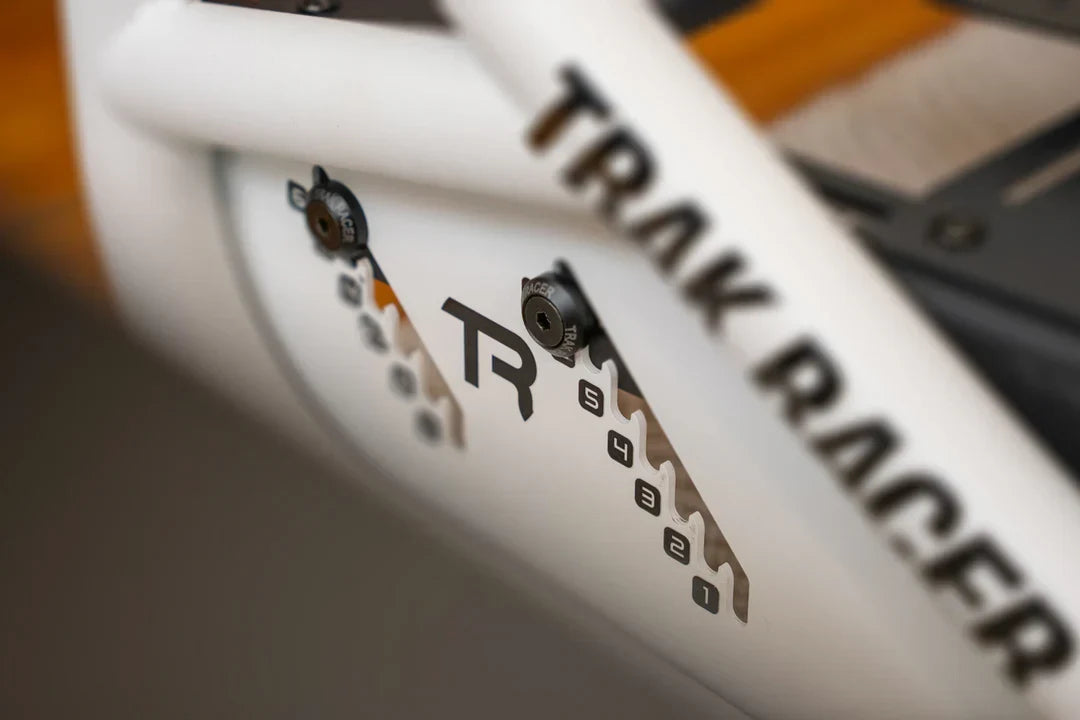

The pedal plate moves with you. Distance runs 580 to 600mm and the angle sweeps from plus 18 to minus 56 degrees on a single plate, so the pedals follow the seat rather than fighting it.
What it takes, and where the limit is
25Nm is the maximum wheelbase torque for this frame, and the steel tubing has been fatigue tested at a 150kg static load over 16,000 cycles. That covers direct drive bases from Logitech, Fanatec, Thrustmaster, Moza, Simagic, Simucube and Trak Racer's own, on PC, Xbox or PlayStation.
If you are running something above 25Nm, look at an aluminium profile cockpit instead. The TR200 TANK sits at the other end of that scale with no stated torque limit at all.
It flies as well as it races
Trak Racer designed the TR5 for racing and flight alike, and the side arms are the reason. The TR5 dual flight sim mounts attach directly to them and carry a stick and a throttle, or a yoke and a quadrant, in a rigid position.
The frame also carries expansion mounts for a speaker, headphones, a drink holder, caster wheels and a bass shaker. A monitor stand and a keyboard tray are separate, and our sim racing monitor stands range covers the screens up to quad setups. Our racing simulator seats pages cover the upgrade path if you ever want to change the seat that comes with it.
Our expert take
"The seat being included changes the maths on this one more than people expect. By the time you buy a frame and then a decent seat and then the brackets to join them, you are past what the TR5 costs complete. If you are inside the 25nm ceiling, this is the least fuss you can have and still be sitting in something properly rigid."
- Blake Sterling, Founder & CEO, Gamer Gear Direct
Frequently asked questions
Is a seat included?
Yes. A faux leather and micro suede seat is part of the cockpit, along with a shifter and handbrake mount and cable management ties.
What wheelbase torque does it handle?
Up to 25Nm. The steel frame has been fatigue tested at a 150kg static load over 16,000 cycles.
What size driver does it fit?
It suits drivers from 140cm to 200cm, with a maximum driver weight of 150kg.
Can I use it for flight simulation?
Yes. The cockpit side arms take a dedicated pair of dual flight sim mounts for a stick and throttle, a yoke and quadrant, or a collective style layout.
Which pedals fit the TR5?
The pedal plate is pre-drilled for all the major brands: Asetek La Prima, Forte, Invicta, Invicta T.H.O.R.P. II and Initium; AW Prime Pedals Set; BJ Sim Racing Steel Series and 1000psi Hydraulic; Cammus LC100; Conspit CPP and CPP.LITE; Cube Controls Hydraulic SP01; DC Sim Racing DC3; Fanatec CSL Elite, ClubSport V1, V2 and V3 including Inverted Pedals; Ghost Sim Racing Phantom-PRO; HPP PRX 3P and JBV 2/3; Heusinkveld Ultimate, Ultimate+, Sprint and Pro; JCL Hydraulic; Logitech G25, G27, G29, G920, G923 and G Pro; Meca Cup 1-2, Meca Cup 1-3, Clutch and Base Plate, Meca Cup 1 Evo Hydraulic and LC; Moza CRP, SRP with and without SRP plate, and Moza Booster ActivePedal; OBP Pro Race V2; Protosimtech PT2; Quaife Throttle Pedal and Brake; Racewerk S1 Hydraulic; Ricmotech RealGear GTPRO3; SRP GT, GT-R, Formula and Formula-R; Simagic P2000, P1000 all variants and P500; Simucube Co-Pedal 2-in-1 Passive Throttle and Clutch, and ActivePedal; Simworx Pro Series; Simgrade pedal plate and VX PEDAL; Sim Coaches P1-3; Simtrecs ProPedal GT; SimJack Pro and SimJack Ultimate UT; Simforge Mark-1 and Mark-2; Sim-Lab XP1; Simtag PT-1 Modular; Trak Racer Loadcell Pro; Thera Pedals; Turtle Beach Velocity One Race; Thrustmaster T-LCM, T3PA, GT Edition, T3PGT, T3PA PRO add-on, T500 and T150; Velazquez Engineering PRO+ Hydraulic; Venym ATRAX Black; VRS DirectForce Pro; VNM V1; Wave Impetus; XP1 Loadcell Pedal Set; and 3DRAP Ngasa. If your pedals are not on that list, contact us and we will confirm the fit before you order.
Specifications
Frame material: Rigid carbon steel
Seat material: Faux leather and micro suede
Product dimensions: 1405 to 1530mm x 775mm x 1155mm, adjusts with driver position
Maximum wheel torque: 25Nm, direct drive compatible
Driving positions: Reclined and upright
Backrest recline range: 85 to 145 degrees
Wheelbase adjustment: 100mm horizontal, plus tilt
Pedal plate adjustment: Distance 580 to 600mm, angle plus 18 to minus 56 degrees
Recommended driver height: 140cm to 200cm
Recommended driver weight: Maximum 150kg
Structural fatigue test: 150kg static load over 16,000 cycles
Expansion mounts: Speaker, headphone, drink holder, caster wheels, bass shaker
Platforms: PC, PlayStation and Xbox
Foldable: No
Warranty: 2 years
What's In The Box?
1 x TR5 racing simulator cockpit
1 x faux leather and suede seat
1 x shifter and handbrake mount
Cable management ties
1 x quick-start guide
