Description

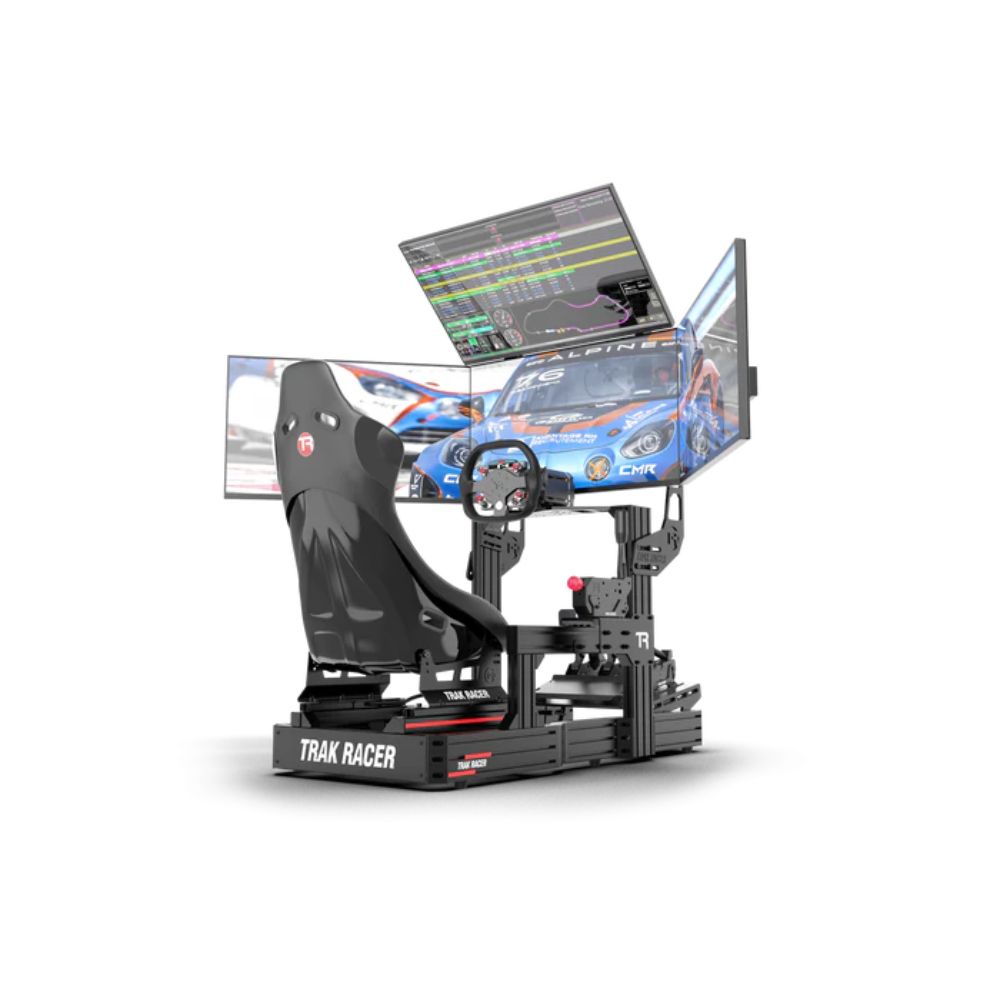

Trak Racer Cockpit-Mounted Quad Monitor Stand
A quad setup is a triple with the screen you actually keep glancing at moved out of the way. Three panels give you the track; the fourth sits overhead for telemetry, timing, mirrors or a flight instrument panel, which means none of that information is stealing space from the road ahead. This is Trak Racer's cockpit-mounted version, and it sits with the rest of the sim racing monitor stands we carry.

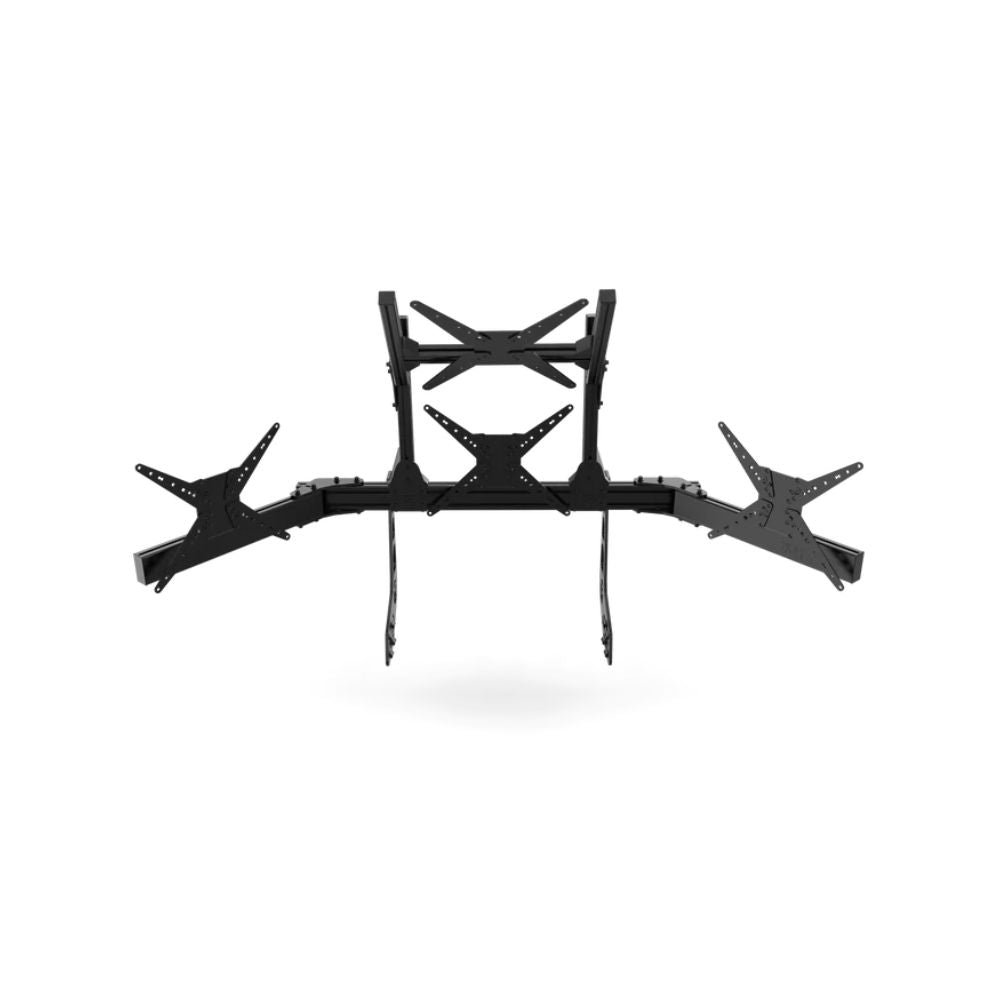

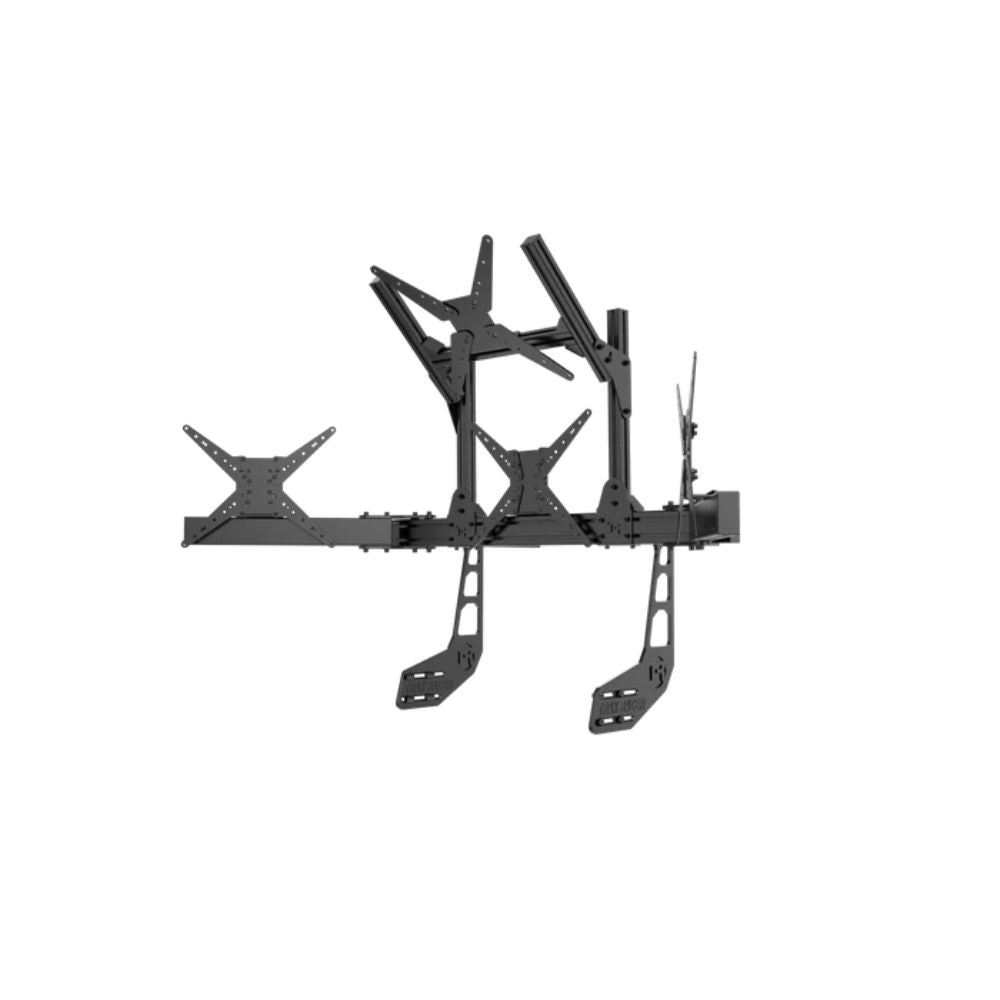

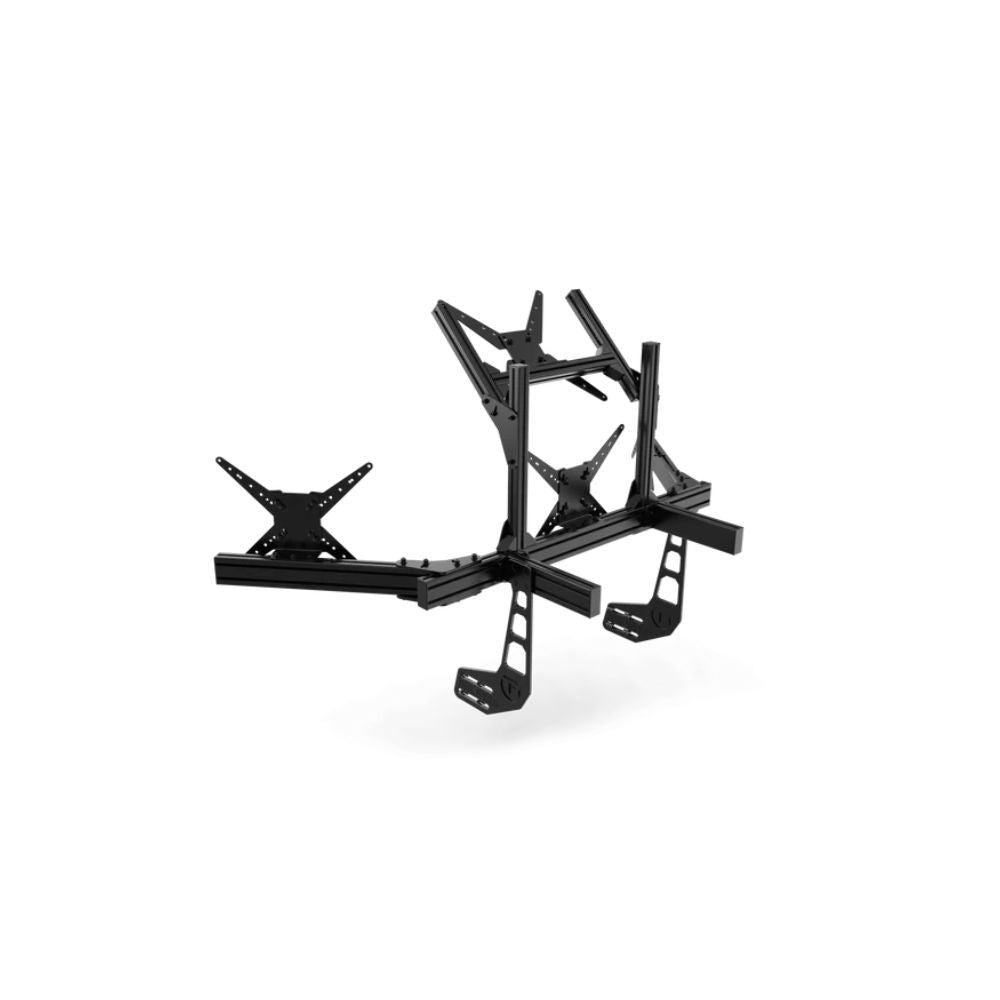

The frame is 80x40mm aluminium profile with reinforced mounting brackets, carrying four displays up to 45 inches each on any VESA pattern from 75x75 to 400x400. Height, bracket width, depth and individual monitor angles all adjust, so the three front panels can be wrapped around the driver rather than left flat.

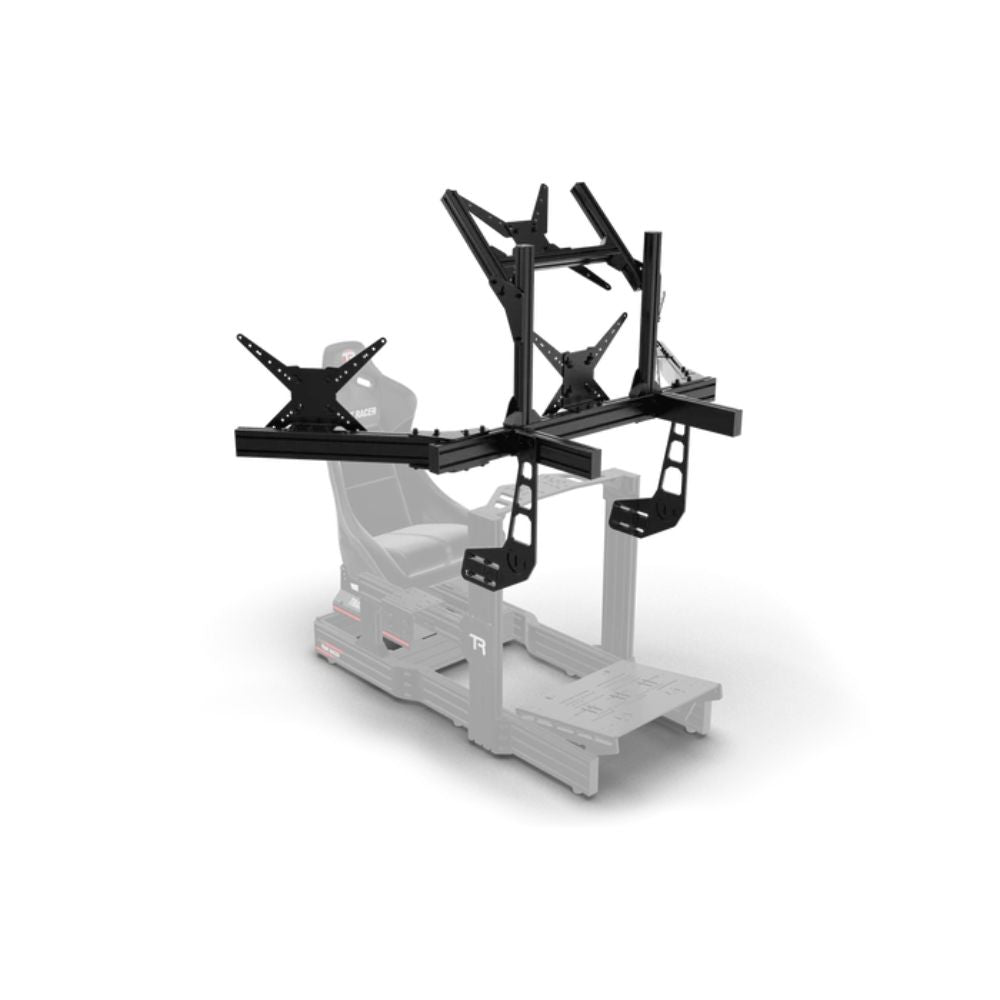

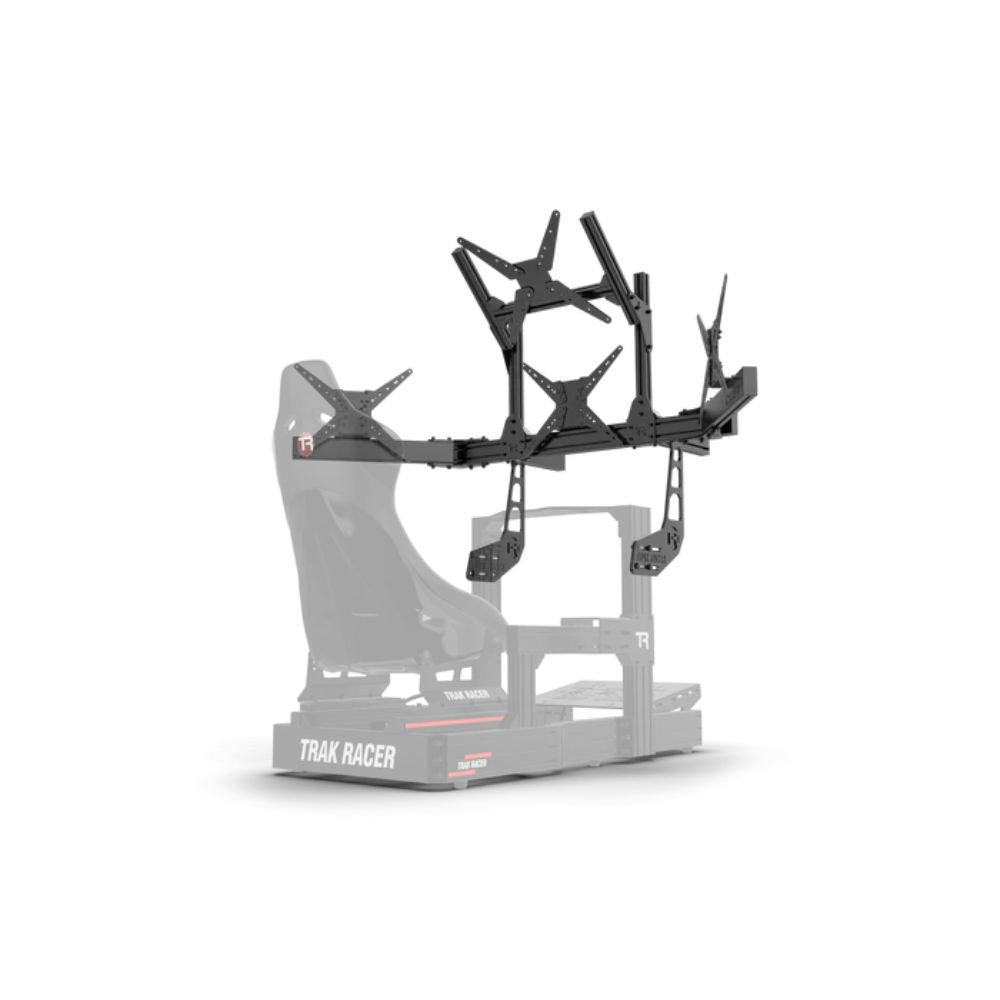

Because it mounts to the cockpit rather than the floor, the whole array moves with the rig and keeps its geometry relative to your eyes.
Key features
- Carries four displays up to 45 inches each
- Three front screens plus one overhead position
- 80x40mm aluminium profile construction
- Reinforced mounting brackets for stability under load
- VESA support from 75x75 to 400x400
- Height, bracket width and depth all adjustable
- Individual monitor angles for a wrap-around view
- Mounts directly to the cockpit for minimal flex
What the fourth screen is actually for
The three front panels do the job triples always did: peripheral vision, an apex you can see before you turn in, and a car alongside that exists before it appears in the mirror. The fourth screen is a different tool entirely.
Overhead is where telemetry, timing screens, a dash display or a flight instrument panel belong, because you glance at them rather than watch them. Putting that content above the driving view rather than beside it keeps the racing surface uninterrupted, which is exactly what a triple setup was meant to protect in the first place.
On the rig, so the whole array stays put
Four panels is a lot of mass hanging off one structure, and it is where a freestanding stand starts to show movement under a hard braking input. Mounting to the cockpit ties the screens and the frame together so they move as one unit.
The 80x40mm profile and the reinforced brackets are what carry that load. It is the same reasoning that puts a direct drive wheelbase on a stiff chassis: the hardware is only as good as the thing it is bolted to. Have a look at the aluminium chassis rigs if you are building the rig around it.
Fitment, and one thing to check first
Trak Racer's compatibility table lists the TR200, TRA, TR160 and TR120 extrusion frames, while the body of their own page also names the TR40S and TR80S. The tables across their monitor stand range are not consistent with each other, so if you are on a TR40S or TR80S, ask us and we will confirm it rather than guessing from the table.
Other branded extrusion rigs generally work as well. If you want a specific frame confirmed before ordering, ask us and we will check it. The rest of the sim racing monitor stands is worth comparing if you would rather have a freestanding option.
Our expert take
"Quad is worth it if you genuinely have a fourth thing to look at. Telemetry, timing, a dash or flight instruments all belong overhead rather than crowding the driving view, and this is a tidier way to get there than bolting a screen onto a triple stand as an afterthought."
"The caveat is that Trak Racer publishes no dimensions and no load rating for this stand, which is frustrating on a product carrying four screens. Forty-five inches is the stated ceiling per panel and we would treat that as the limit rather than a starting point. If your screens are larger, the freestanding quad with extra leg supports is the one built for it."
- Blake Sterling, Founder & CEO, Gamer Gear Direct
Frequently asked questions
How big can the monitors be?
Up to 45 inches each, across all four positions. If you want a specific set of monitors confirmed against it before ordering, ask us and we will check.
Which rigs does it fit?
Trak Racer lists the TR200, TRA, TR160 and TR120 extrusion frames in its compatibility table and names the TR40S and TR80S elsewhere on the same page. Most other branded extrusion rigs work too. Ask us if yours is not listed and we will check it against the racing simulator range.
Can I start with a triple and add the fourth screen later?
That path exists, but it is cleaner to buy the configuration you want. If you already run a triple stand, the overhead monitor mount is the add-on designed to bolt a fourth screen onto it. Both routes are in the sim racing monitor stands.
What VESA patterns does it support?
Anything from 75x75 to 400x400, which covers effectively every monitor and TV you would put on a sim rig.
Specifications
Type: Cockpit-mounted quad monitor stand
Display capacity: 4
Maximum display size: Up to 45 inches per screen
Layout: Three front screens plus one overhead
VESA compatibility: 75x75 to 400x400
Frame material: 80x40mm aluminium profile
Adjustment: Height, bracket width, depth and individual monitor angle
Compatible frames: TR200, TRA, TR160 and TR120, with TR40S and TR80S also named by Trak Racer
Monitors: Not included
Warranty: 5 years
What's In The Box?
1x Trak Racer cockpit-mounted quad monitor stand
VESA mounting brackets
Mounting hardware
