Description

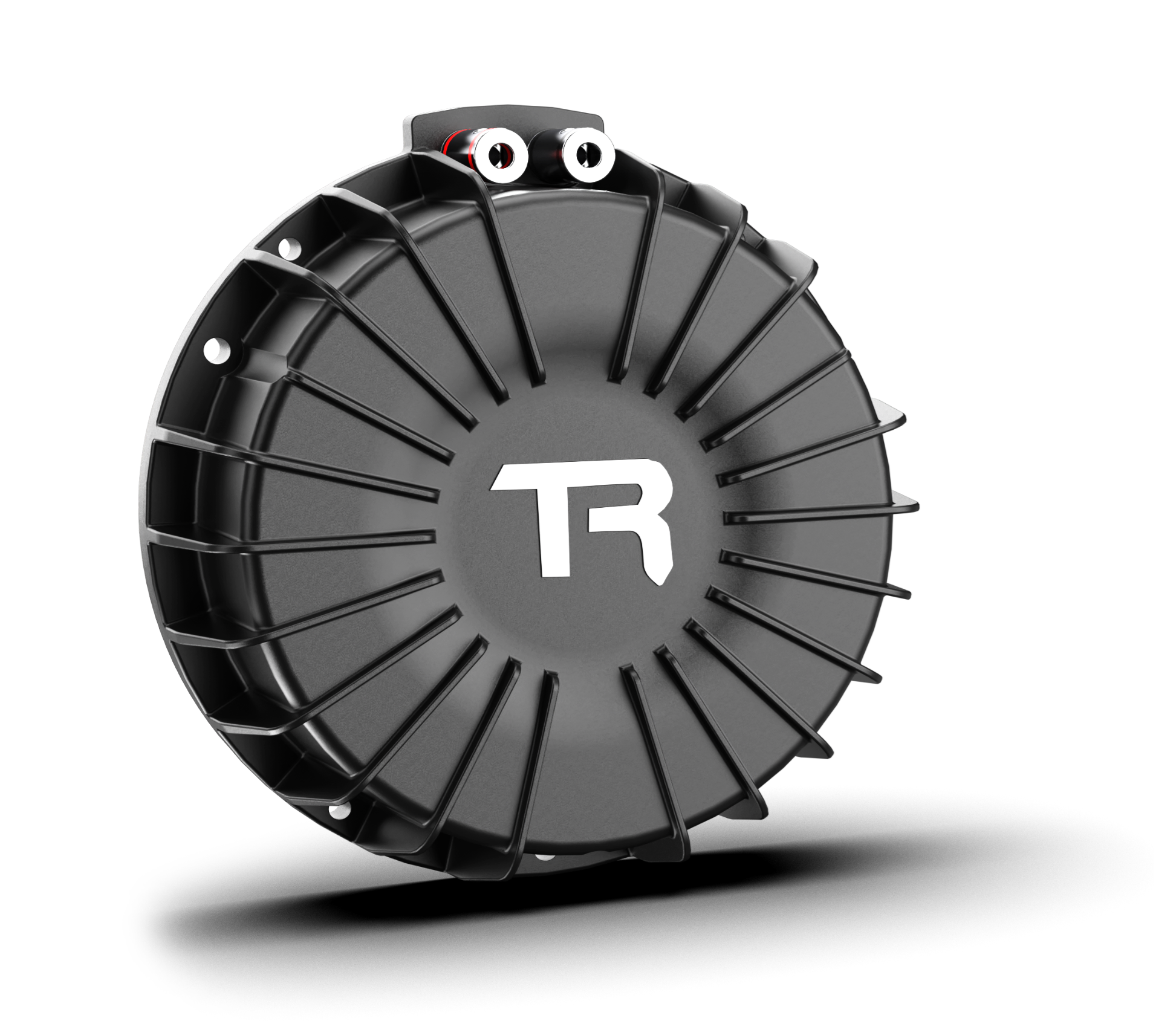

Trak Racer 100W Pro Haptic Bass Shaker
A single high-output tactile transducer that bolts to your rig and turns low-frequency audio into vibration you feel through the frame. This is the big one in the range: 50W nominal, 100W peak, working from 20Hz to 120Hz.
That frequency band is the point. It covers engine tone, drivetrain vibration, kerb strikes and impacts, plus runway rumble and turbulence for flight, and explosions and recoil for shooters. A normal speaker cannot reproduce any of it as physical movement, which is why a shaker is a separate purchase rather than a louder subwoofer.
It mounts to rigid structures: seats, cockpit frames, motion platforms and gaming chairs. It needs an amplifier to drive it, and Trak Racer make a dedicated bass shaker amp kit tuned for the job. See the rest of the haptic systems range.
Key features
- 1x TR-BSA100 tactile transducer
- 2m of 16-gauge heavy-duty speaker wire
- 50W nominal, 100W maximum input
- Effective range 20Hz to 120Hz
- Resonant frequency 40Hz
- 4 ohm rated AC impedance
- Diameter 155mm, height 51mm
- Amplifier required, sold separately
You will need an amplifier
A bass shaker is a transducer, not a powered speaker. It has no amplifier inside it, so plugging it into a spare audio output will do very little. To get the output the specification describes, it needs to be driven properly.
Trak Racer make a dedicated low-frequency amplifier kit for exactly this, and pairing the two is what gives you independent control over intensity and frequency response rather than fighting your main audio. Underpowering a shaker is the single most common reason people conclude that haptics are underwhelming. The amplifiers sit in the haptic systems range.
Where to mount it, and which shaker to buy

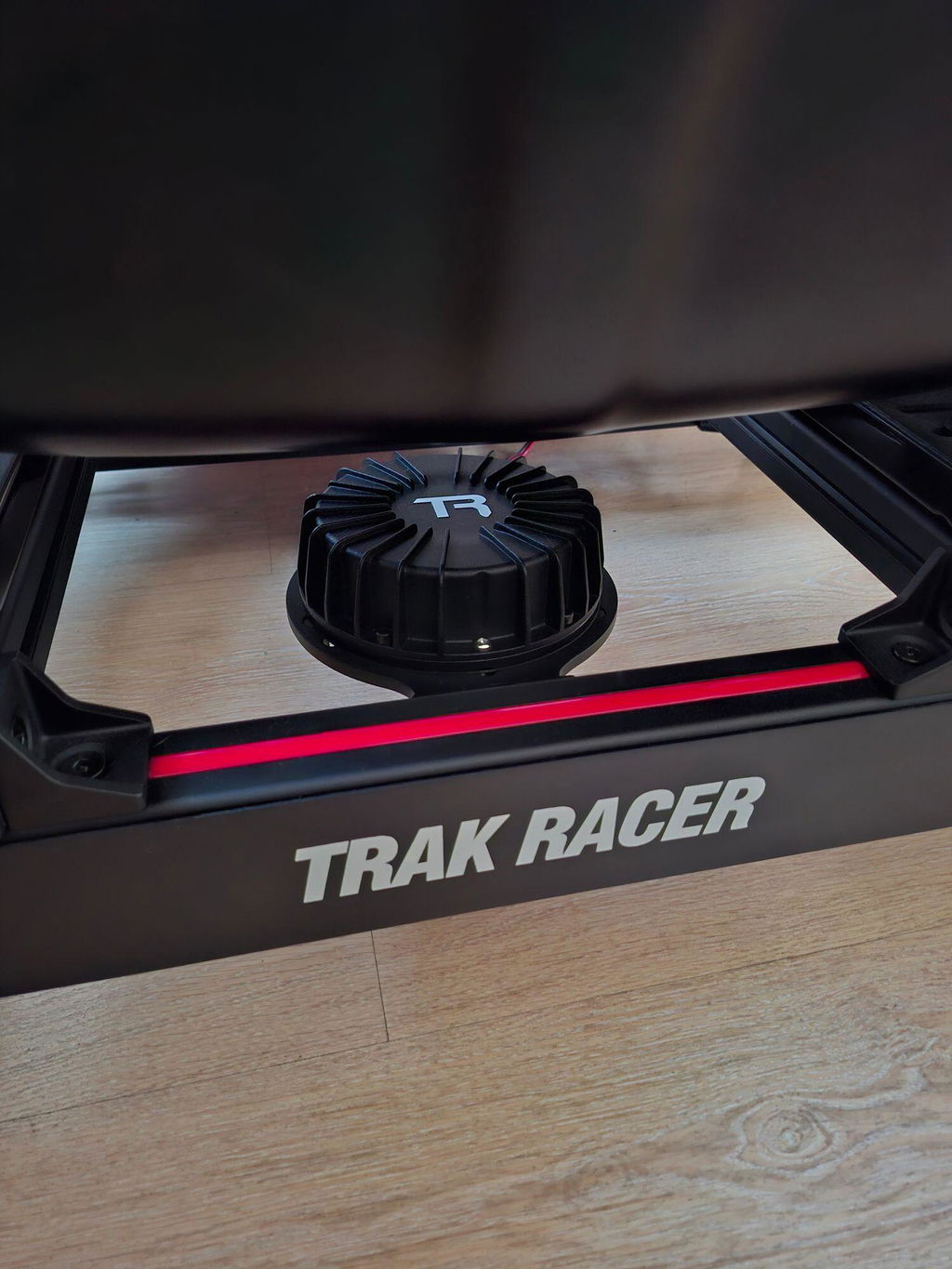

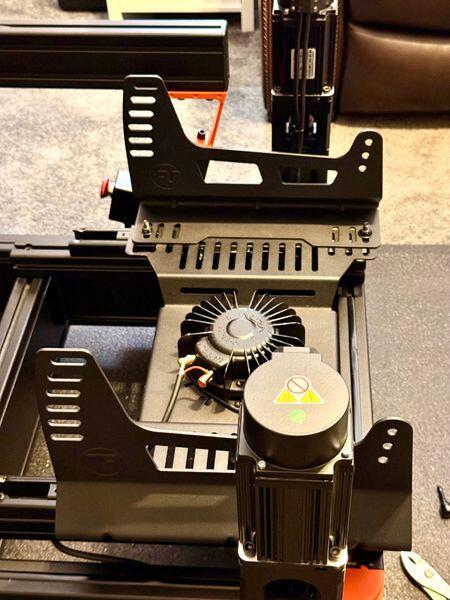

The 100W unit is a whole-rig device. Mount it to the seat frame, the chassis or the motion platform, where its job is to move a large mass and give you the deep, body-felt layer of the effect. One is usually enough to transform a rig.
It is not the right tool for detail at the controls. If what you want is ABS chatter through the brake pedal or drivetrain feel through the shifter, the 10W shakers are the ones built for that, because they are small enough to bolt to a pedal plate and quiet enough not to fill the room. Plenty of people end up running both: the 100W for the floor and the 10W pair on the pedals. Everything mounts to the aluminium chassis range without drama.
Frequently asked questions
Does it include an amplifier?
No. The kit is the shaker and 2m of speaker wire. An amplifier is required and sold separately.
What frequency range does it cover?
20Hz to 120Hz effective, with a resonant frequency of 40Hz.
Where should I mount it?
To a rigid structure: a simulator seat, cockpit frame, motion platform or gaming chair. Rigid mounting is what transfers the vibration.
How is it different from the 10W shakers?
Scale and purpose. The 100W moves the whole rig; the 10W units mount to individual controls for localised detail. See the racing simulator accessories range.
Specifications
Part number: TR-BSA100
Type: Low frequency tactile transducer, bass shaker
Outer dimensions: 155mm diameter x 51mm
Rated AC impedance: 4 ohm, plus or minus 10 percent at 22C
Rated DC resistance: 3.0 ohm, plus or minus 3 percent at 22C
Resonant frequency: 40Hz, plus or minus 10 percent
Effective frequency range: 20Hz to 120Hz
Nominal input power: 50W
Maximum input power: 100W
Buzz and rattle test: 14V, 20Hz to 200Hz
Operating condition: 10Vrms sine wave at 20Hz to 200Hz
Magnet: 70mm x 32mm x 12mm
Product weight: 1.25kg
Mounting: Rigid structures including simulator seats, cockpit frames, motion platforms and gaming chairs
Amplifier: Required, sold separately
What's In The Box?
1x TR-BSA100 high-power bass shaker, tactile transducer
2m of 16-gauge heavy-duty speaker wire
