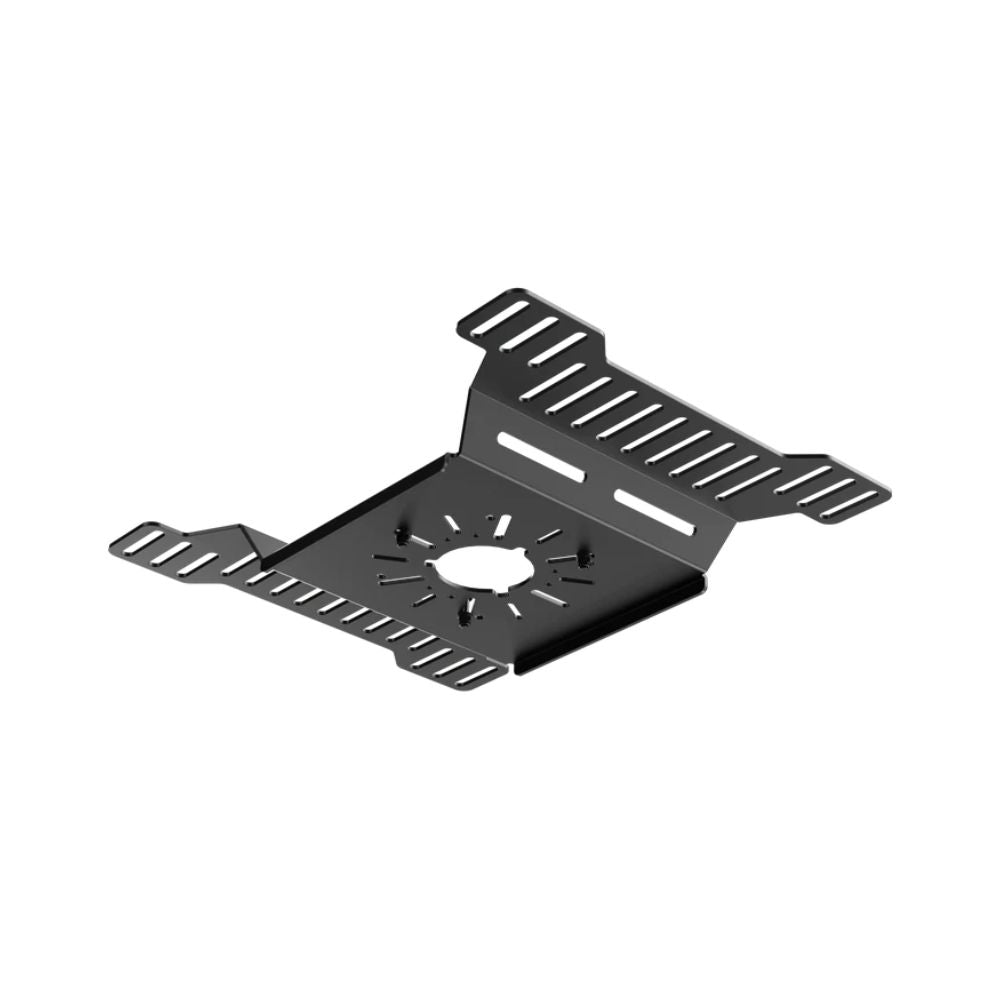

Trak Racer Universal Bass Shaker Sim Rig Mount
Where you put a tactile transducer decides what it feels like. Bolted to a chassis rail it shakes the whole rig; bolted under the seat it goes straight into your body, which is the version most people are actually chasing when they buy one.

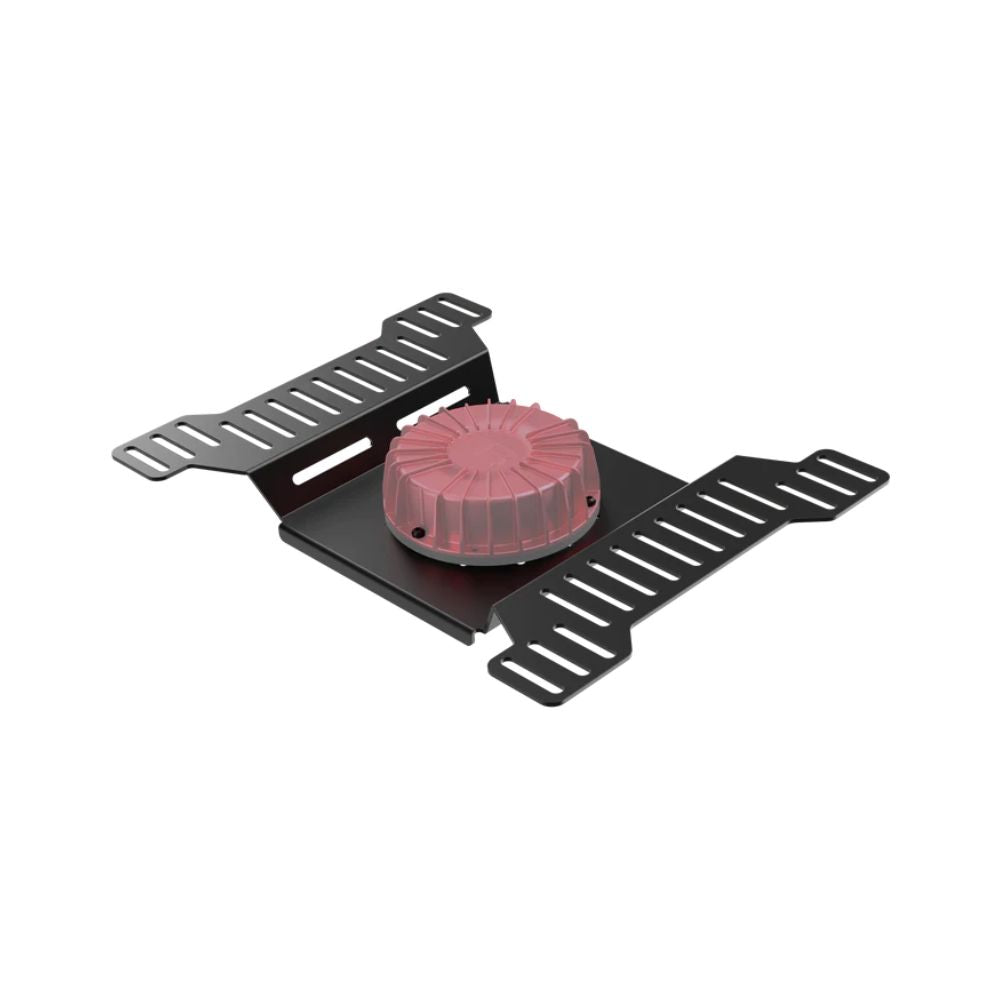

This plate is the seat-mounted answer. It fixes to the underside of your seat brackets and carries one transducer directly beneath the seat pan, so the signal couples into the seat rather than travelling through the frame first.
It fits the common bolt patterns rather than one brand's, and it sits with the rest of the haptic systems we carry.
Key features
- Mounts one transducer under the seat pan
- Fixes to the underside of the seat brackets
- Takes 71mm from-centre bolt patterns
- Takes 94 to 150mm from-centre patterns at 60 degrees
- Fits Trak Racer, Dayton Audio and Aurasound units
- Fits the ButtKicker LFE, Advance and Mini
- Couples the signal directly into the seat
- Transducer and amplifier chosen separately

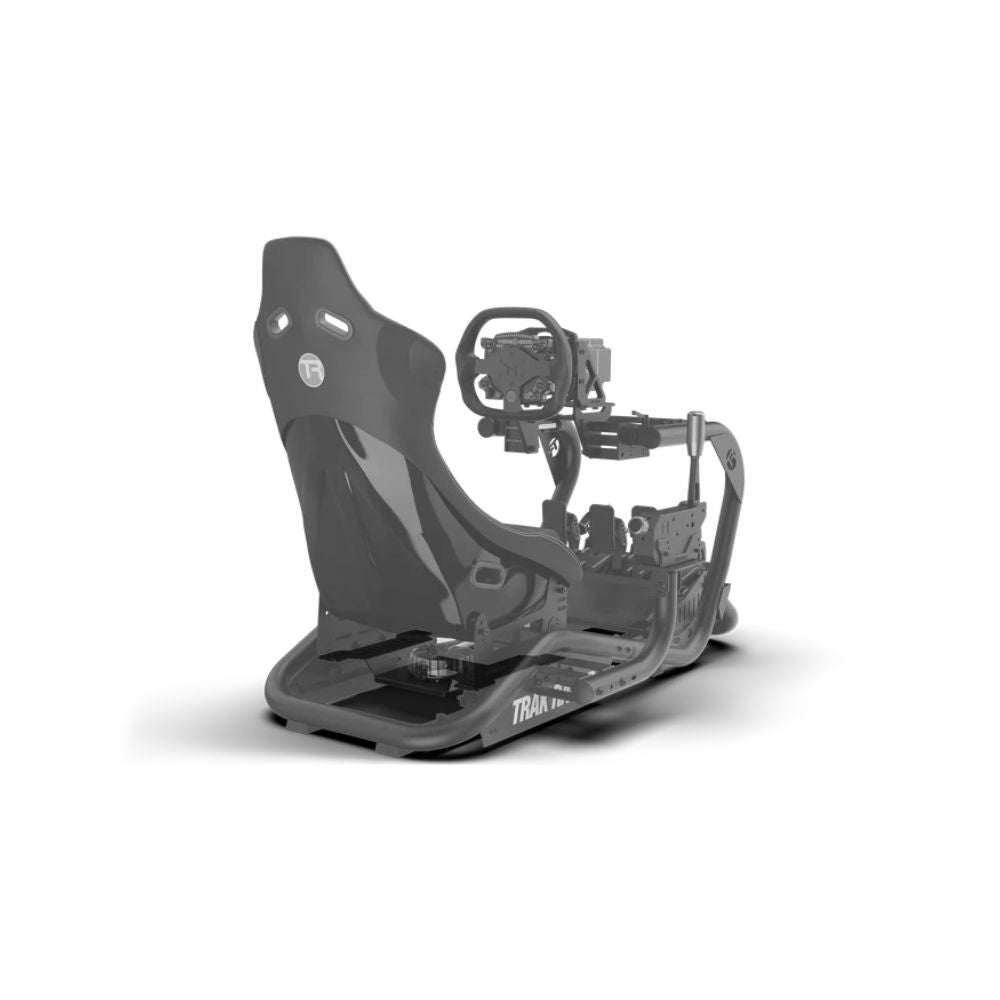

Under the seat, not on the frame
A transducer bolted to a chassis rail has to move the entire rig before any of it reaches you, and on a heavy cockpit a good deal of the energy is lost doing exactly that. Mounted under the seat pan it has one job: move the seat you are sitting in.
The practical result is more detail at lower volume. Kerb strikes, wheel lock and surface changes arrive as information rather than as a general rumble, and the rest of the room hears considerably less of it.
That last point matters more than people expect. A frame-mounted shaker transmits into the floor and through the building; a seat-mounted one is far more contained.
Bolt patterns, not brand names
The plate is drilled for the patterns the market actually uses rather than for a single manufacturer. It takes units with mounting holes 71mm from centre, and units with holes between 94 and 150mm from centre spaced at 60 degrees.
Trak Racer name the Trak Racer Bass Shaker, the Dayton Audio BST-1, the Aurasound AST-2B-4 and the ButtKicker LFE, Advance and Mini. If your transducer is not on that list, measure the bolt circle and tell us the figure, and we will confirm it against the plate.
It carries one transducer. That is the design rather than a limitation: a single unit under the seat does more than two spread around a frame.
Check your seat clearance first
This is the one thing to measure before ordering. The plate hangs the transducer below the seat brackets, so the space between the underside of your seat and the frame decides whether a given unit fits.
Taller transducers on a low seating position can foul the seat underside. If you run the seat low, or your unit is one of the deeper ones, check the gap before you buy rather than after.
Tell us your seat, your rig and the transducer model and we will work it out with you. The rest of the range is in the haptic systems and the racing simulator accessories.
Our expert take
"Seat mounting is what people mean when they say haptics changed their driving. On the frame you feel the rig; under the seat you feel the car, and at a fraction of the volume, which your household will also appreciate."
"Measure the gap under your seat before ordering. It is the single most common reason one of these goes back, and it takes thirty seconds with a tape measure to avoid."
- Blake Sterling, Founder & CEO, Gamer Gear Direct
Frequently asked questions
Which transducers does it fit?
Trak Racer name the Trak Racer Bass Shaker, the Dayton Audio BST-1, the Aurasound AST-2B-4 and the ButtKicker LFE, Advance and Mini. It takes 71mm from-centre bolt patterns and 94 to 150mm from-centre patterns spaced at 60 degrees.
How is it different to the frame-mounted plate?
This one fixes under the seat brackets so the transducer sits beneath the seat pan and couples into the seat. The frame-mounted plate hangs the unit off the cockpit structure instead, which spreads the effect through the whole rig.
How many transducers does it take?
One. A single unit directly under the seat delivers more usable detail than several mounted around a frame.
Is a bass shaker included?
No. The plate is the mount only. The transducer and the amplifier to drive it are chosen separately from the haptic systems.
Specifications
Type: Bass shaker and tactile transducer mount
SKU: TR-SHAPLATE3
Mounting: Underside of the seat brackets
Transducer capacity: One
Bolt patterns: 71mm from centre, and 94 to 150mm from centre at 60 degrees
Named fitments: Trak Racer Bass Shaker, Dayton Audio BST-1, Aurasound AST-2B-4, ButtKicker LFE, Advance and Mini
Transducer and amplifier: Not included
Warranty: 5 years
What's In The Box?
1x Trak Racer universal bass shaker sim rig mount
Mounting hardware
