Description

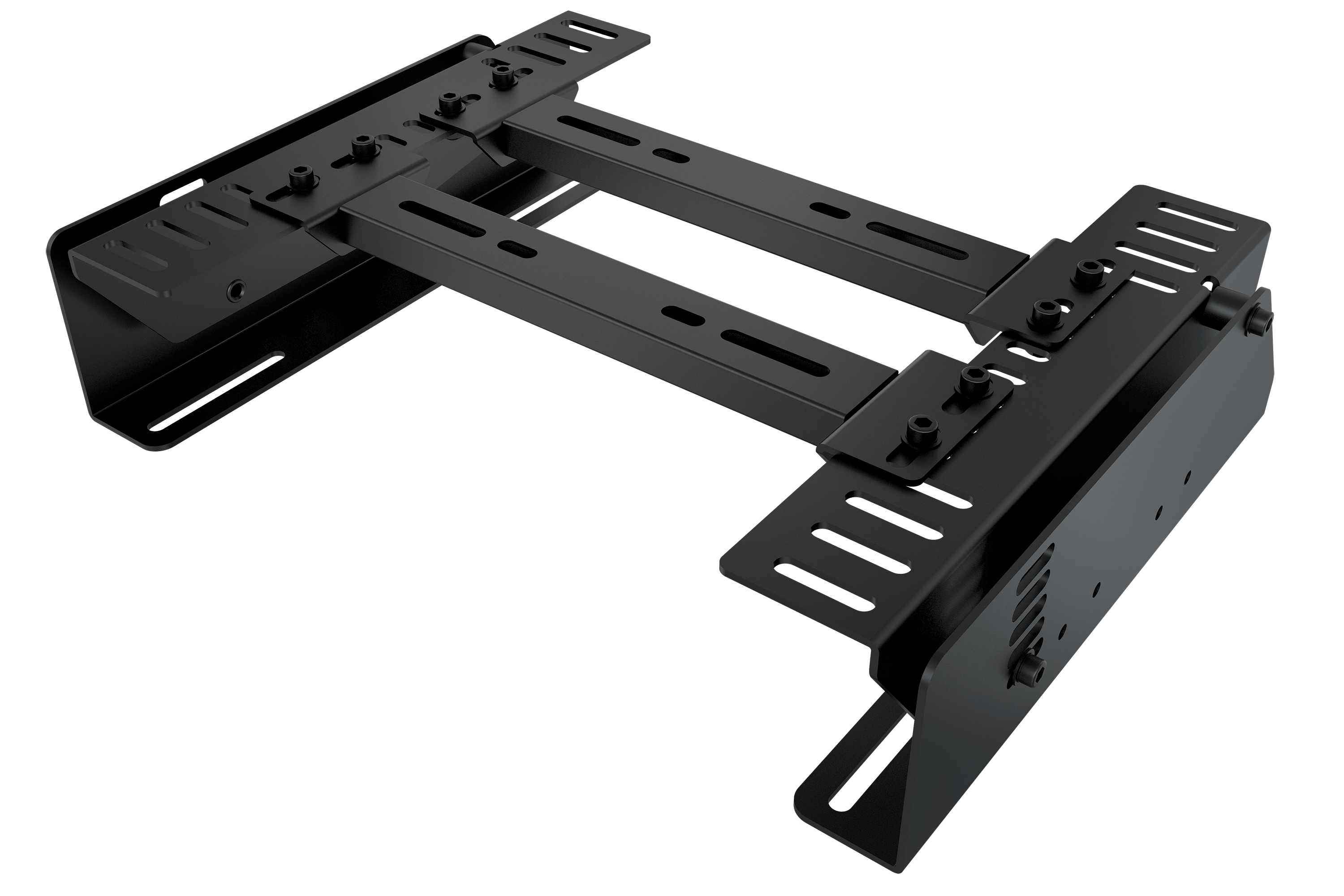

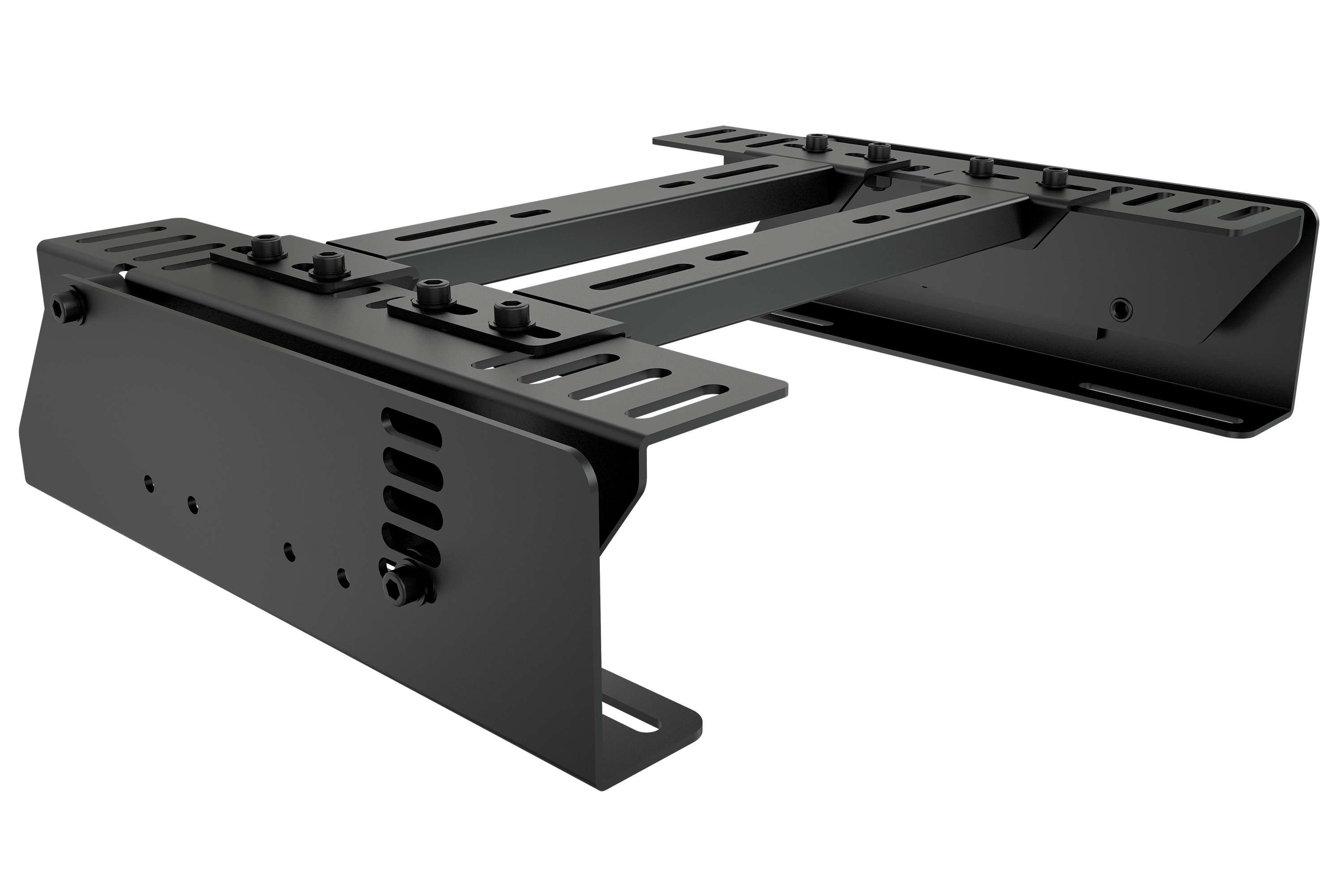

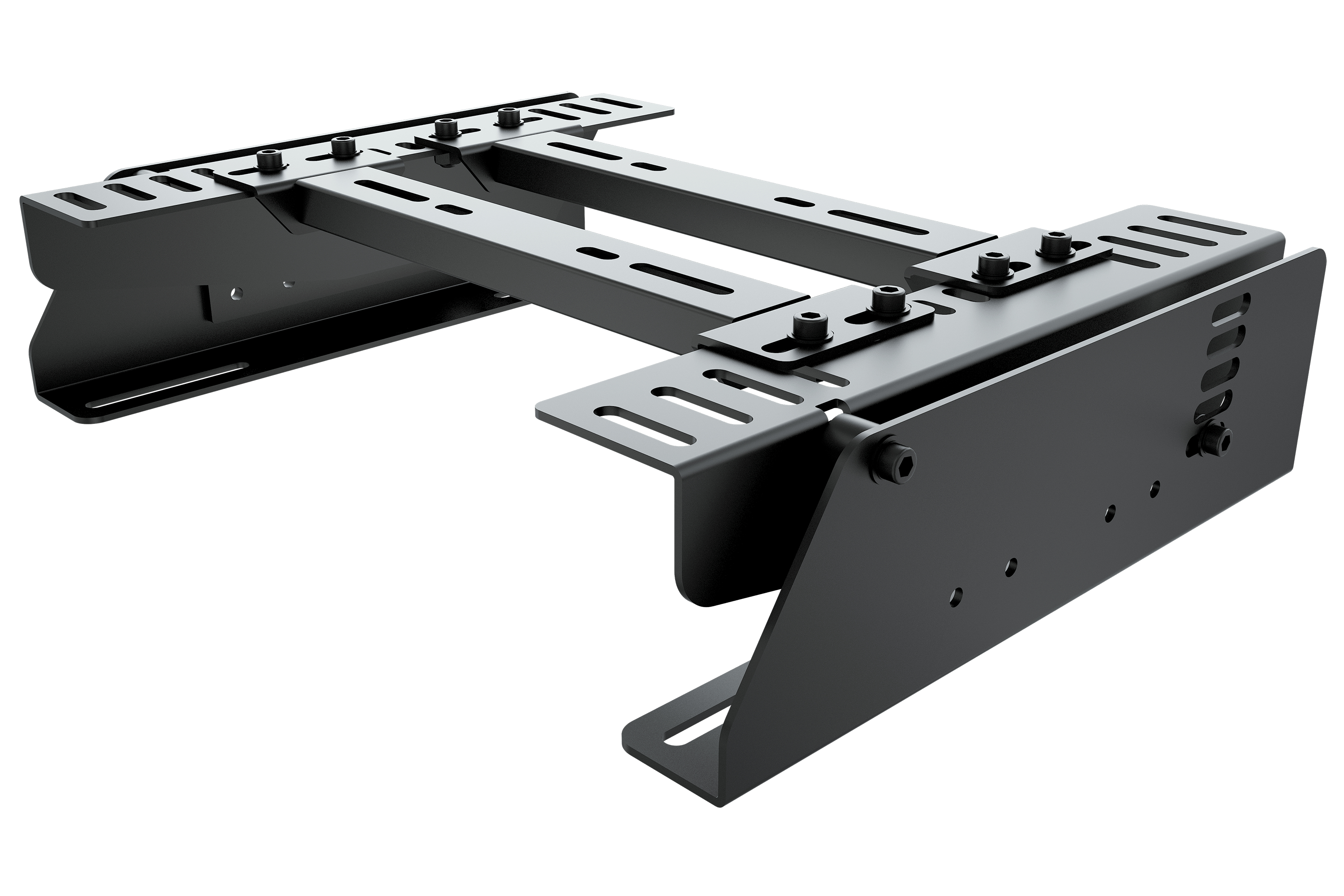

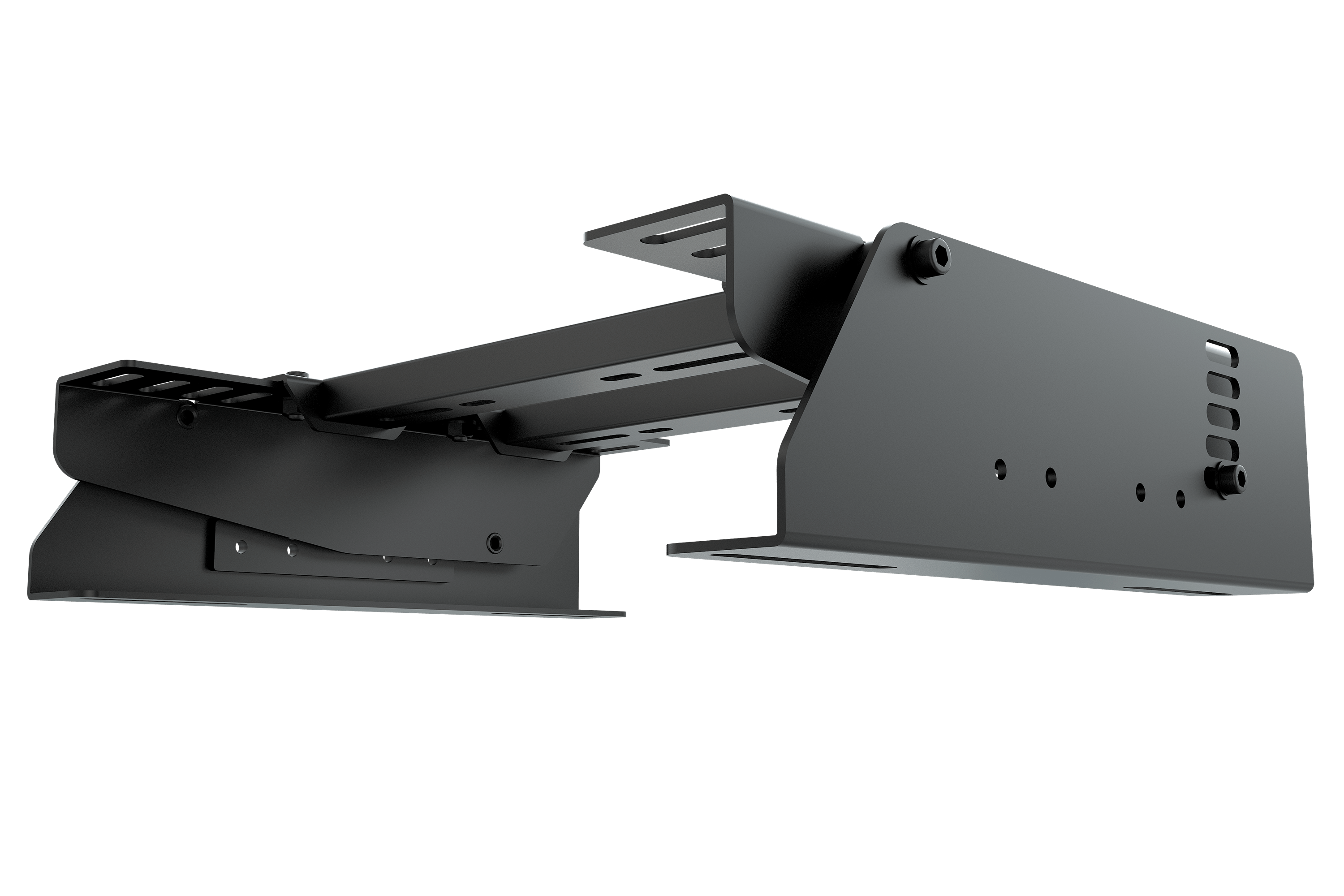

Bottom mount, with angle adjustment

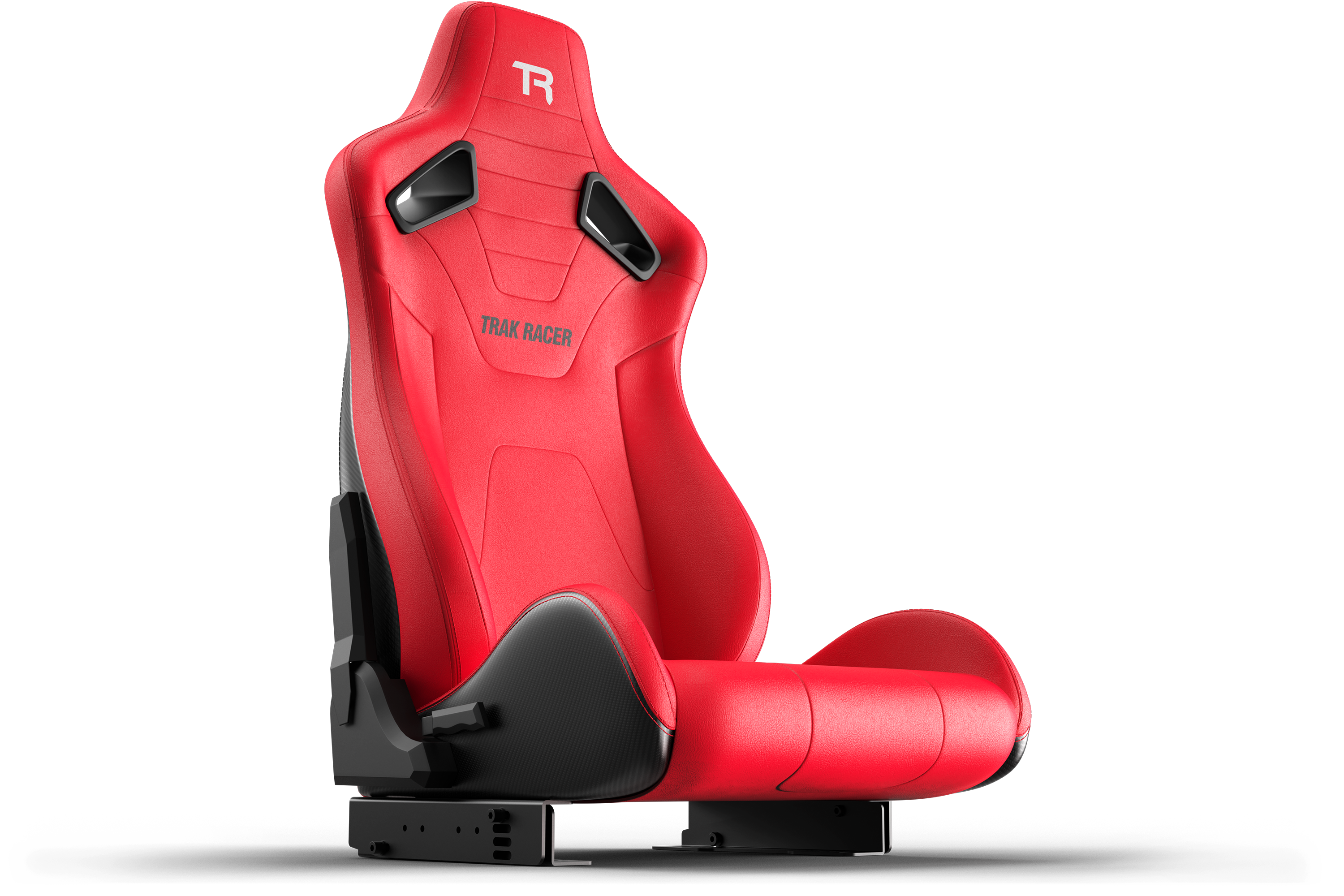

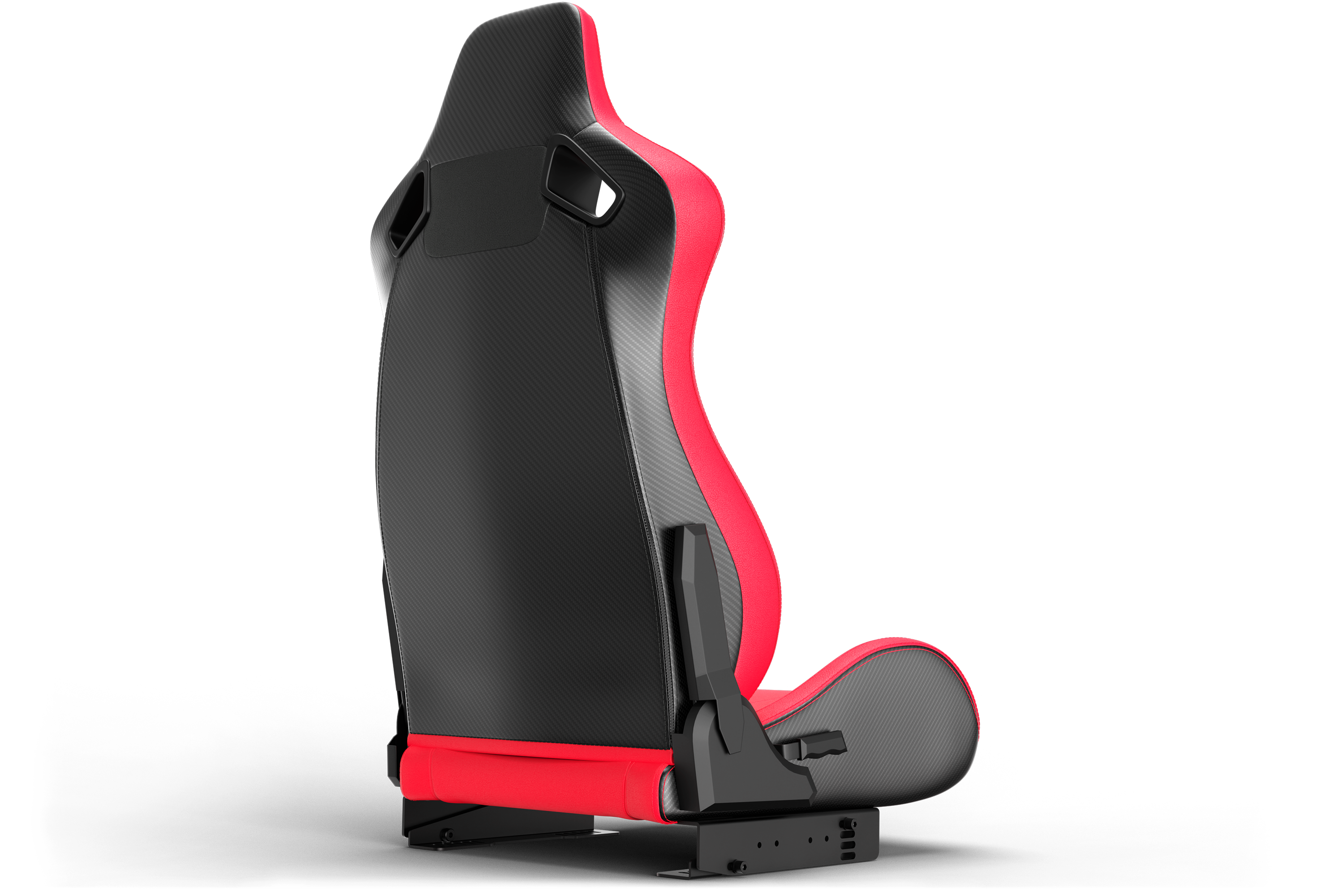

The bracket set that connects a bottom mounted seat to a sim chassis, with a recline adjustment built into the bracket itself. It suits reclining seats, office chairs and flight simulator seating, all of which bolt from underneath rather than hanging between side brackets.

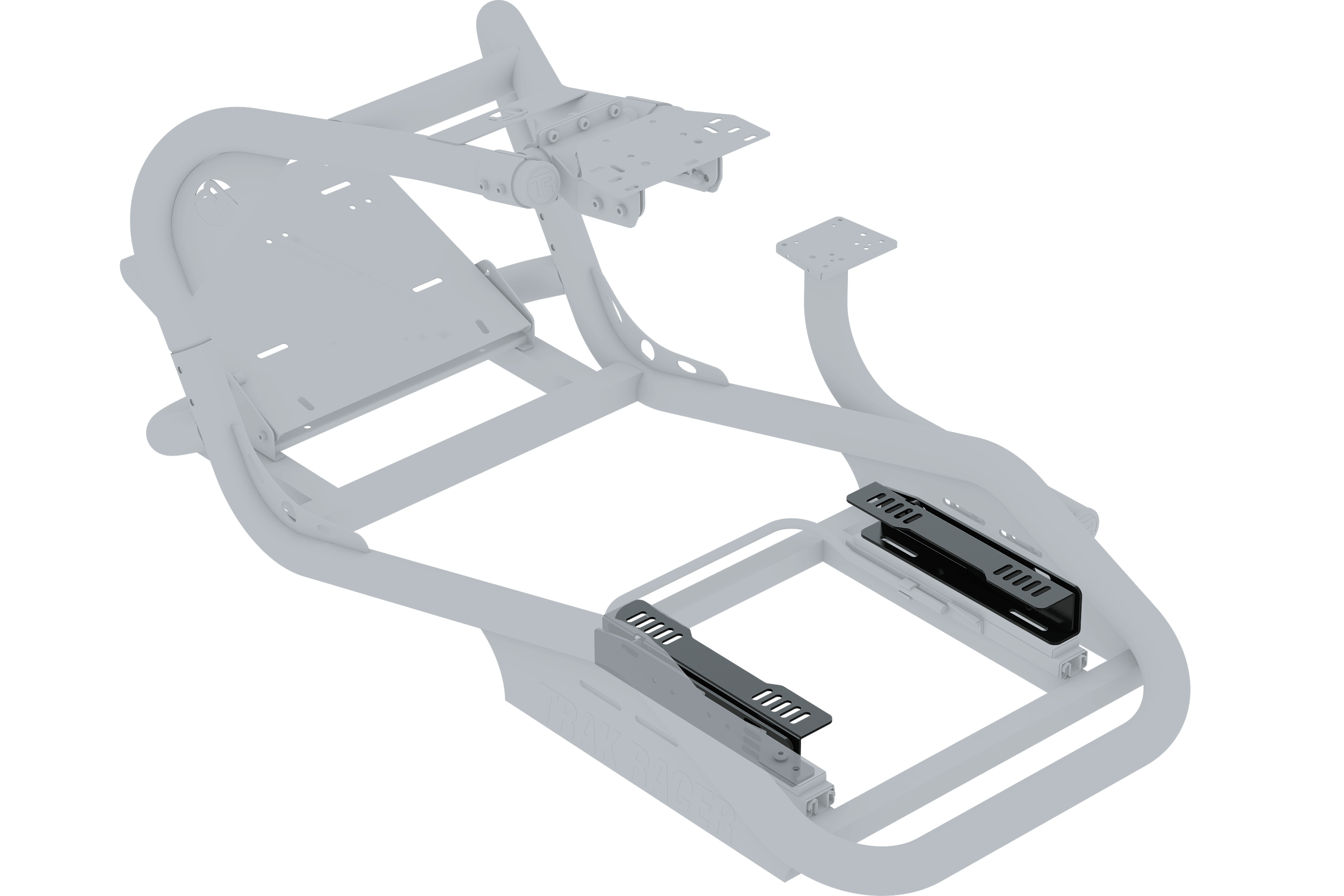

Because the angle adjusts at the bracket, you can set the base rake independently of whatever recline the seat itself offers. It fits Trak Racer cockpits across the range including the TR120, TR80, TR160 and the flight simulator series.
Key features
- Bottom mount bracket set
- Recline adjustment built into the bracket
- Suits reclining seats, office chairs and flight seating
- Seat side mounting points from 138mm to 350mm
- Rig side mounting points from 131mm to 291mm
- Heavy duty steel with a black finish
Check your two measurements first
Bottom mounted seats vary enormously in where their bolt holes sit, which is why this bracket is specified by range rather than by pattern. It accepts seat mounting points between 138mm and 350mm apart, and chassis or slider mounting points between 131mm and 291mm apart.
Measure both before ordering. Turn the seat over, measure centre to centre across the mounting points, then measure the rails or slider on the rig. If both numbers fall inside those ranges, the bracket fits.
Adjustable or fixed
This is the version with recline adjustment. There is a fixed alternative that does the same mounting job without the angle mechanism, and the difference in price is meaningful.
If you already have a seat that reclines on its own, you may not need the bracket to do it as well, and the fixed bracket set will do. If your seat is fixed, or you want to set the base rake separately from the backrest, this is the one.
Bottom mount is not side mount
This bracket is for seats that bolt from underneath. Fixed back bucket seats hang between two side brackets instead and take a completely different part, so check which kind of seat you have before ordering.
For a side mounted bucket, the bucket seat brackets are the correct choice. The rest of our racing simulator accessories range covers the sliders and hardware that sit between the bracket and the frame.
Our expert take
"Measure twice on this one. Bottom mounted seats are all over the place dimensionally, and the two ranges quoted here are the whole specification. If your numbers fall inside both, it fits, and if they do not, no amount of persuasion will help."
- Blake Sterling, Founder & CEO, Gamer Gear Direct
Frequently asked questions
What seats does this fit?
Bottom mounted seats, which covers reclining sim seats, office chairs and flight simulator seating. It is not for fixed back bucket seats, which side mount and need different brackets.
How do I know if my seat fits?
Measure centre to centre across the seat's mounting points, and across the rails or slider on the rig. The bracket accepts 138mm to 350mm on the seat side and 131mm to 291mm on the rig side.
How is this different from the fixed version?
This one has recline adjustment built into the bracket. The fixed version does the same mounting job without the angle mechanism.
Which cockpits does it fit?
Trak Racer cockpits across the range, including the TR120, TR80, TR160 and the flight simulator series.

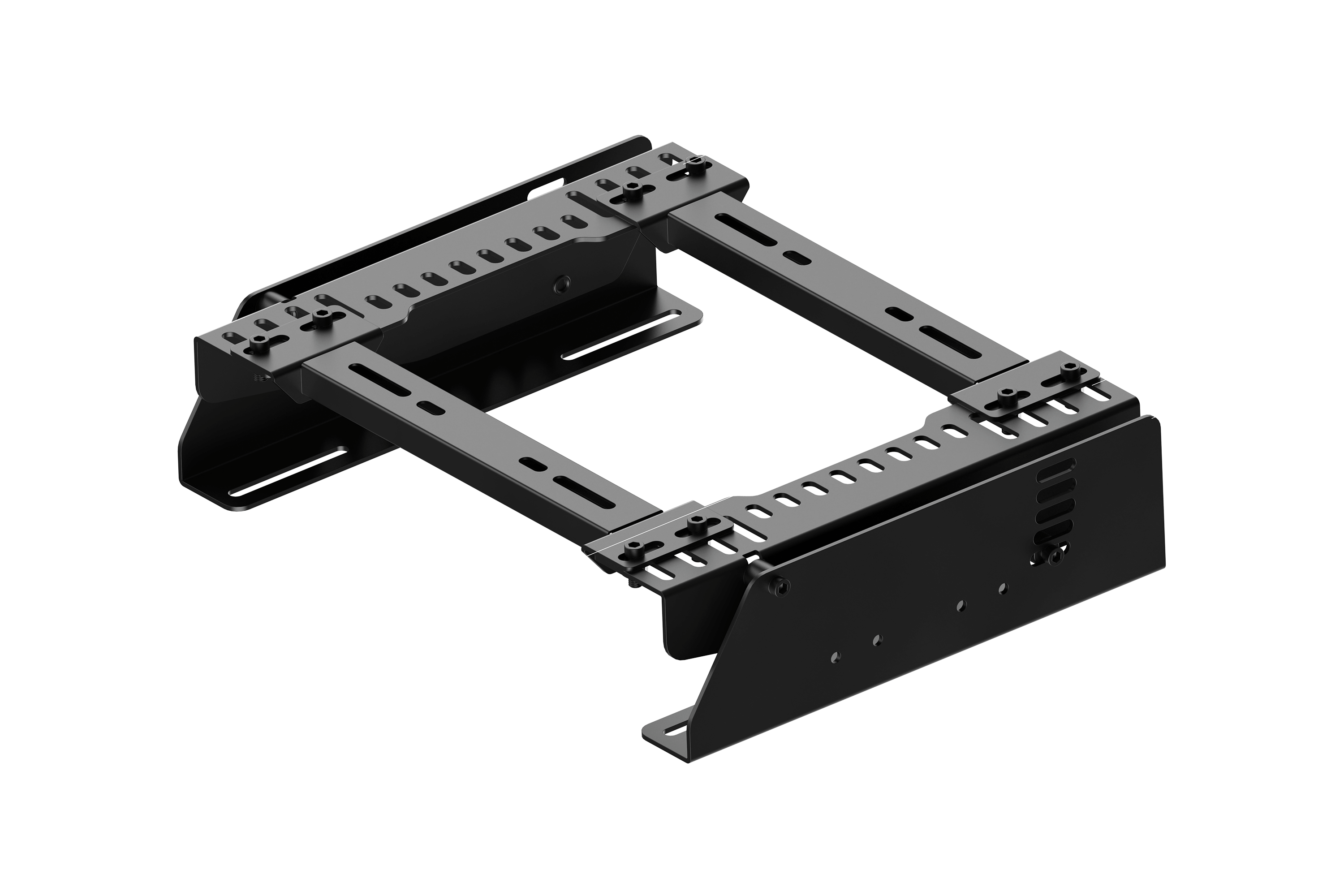

Specifications
Type: Bottom mount seat bracket set
Adjustment: Recline adjustment at the bracket
Seat mounting range: 138mm to 350mm
Rig mounting range: 131mm to 291mm
Material: Heavy duty steel
Finish: Black
Warranty: 5 years
What's In The Box?
1 x Adjustable seat bracket set for recline seats
