Qubic System QS-S25 6DOF Motion Cockpit

Name: Qubic System QS-S25 6DOF Motion Cockpit
Brand: Qubic System
SKU: QS-S25
Price: 53999.0 AUD
Availability: InStock

by Qubic System

Save $1,000.00

$54,999.00

$53,999.00

Availability: Only 2 left!

✔️ Authorised Australian Dealer
✔️ Fast Shipping Australia-Wide
✔️ 100 Day FREE Returns
✔️ Backed By Manufacturer Warranty
✔️ Experts Ready To Help: (03) 9961 0240

Quantity

Estimated Arrival: Between Jun 07 and Jun 09. *ETA approximate ONLY

Secured and trusted checkout with

Description

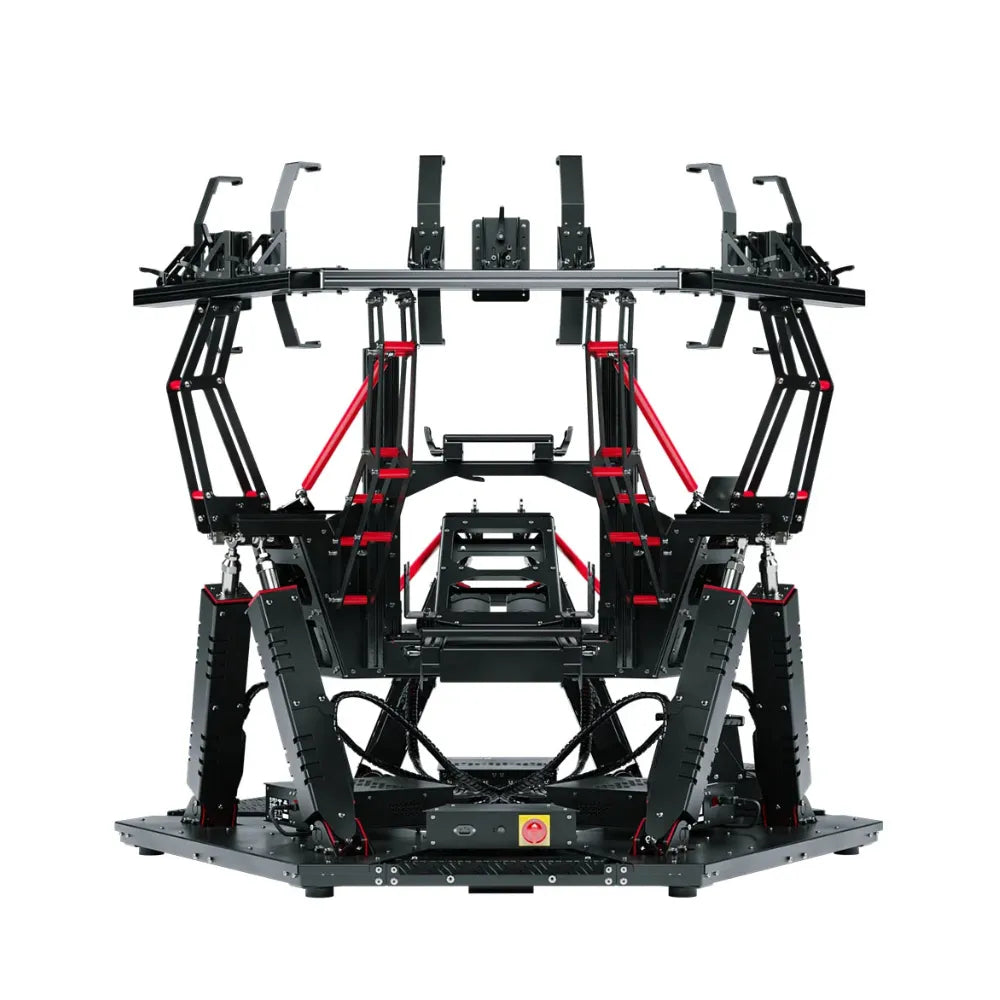

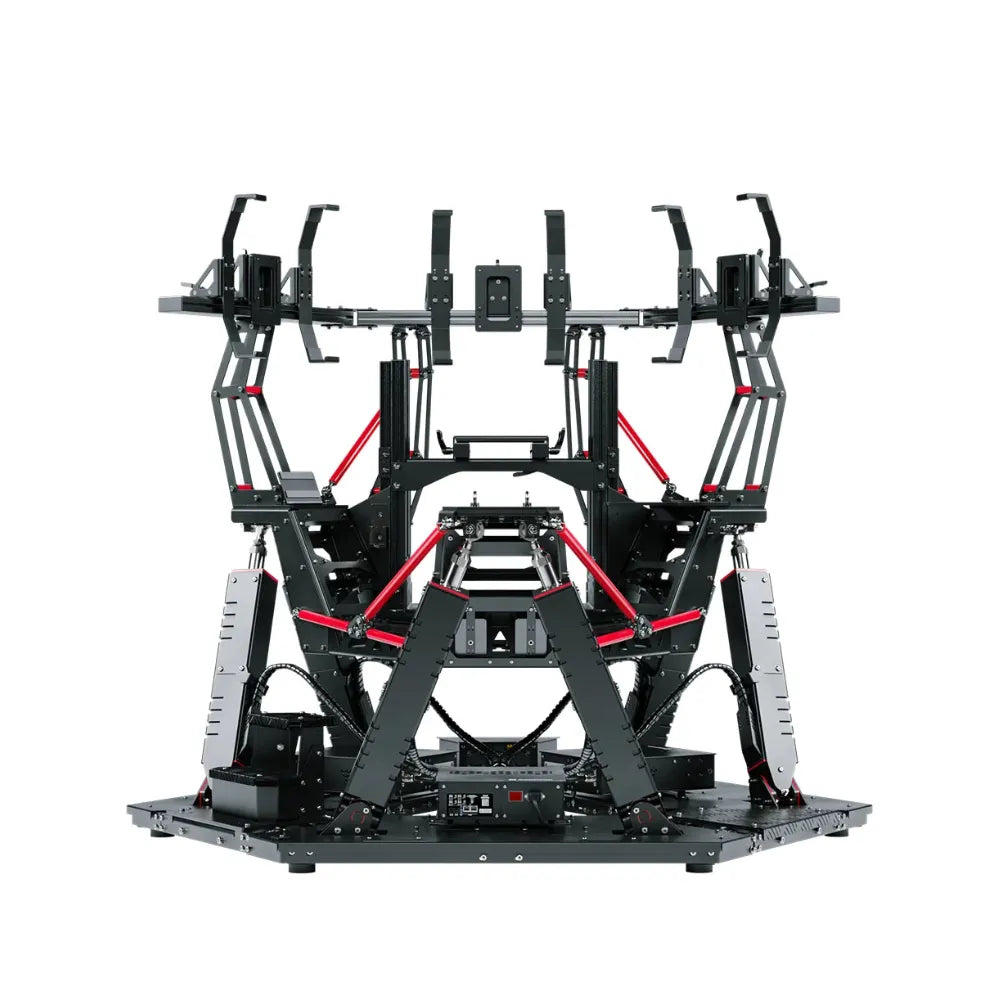

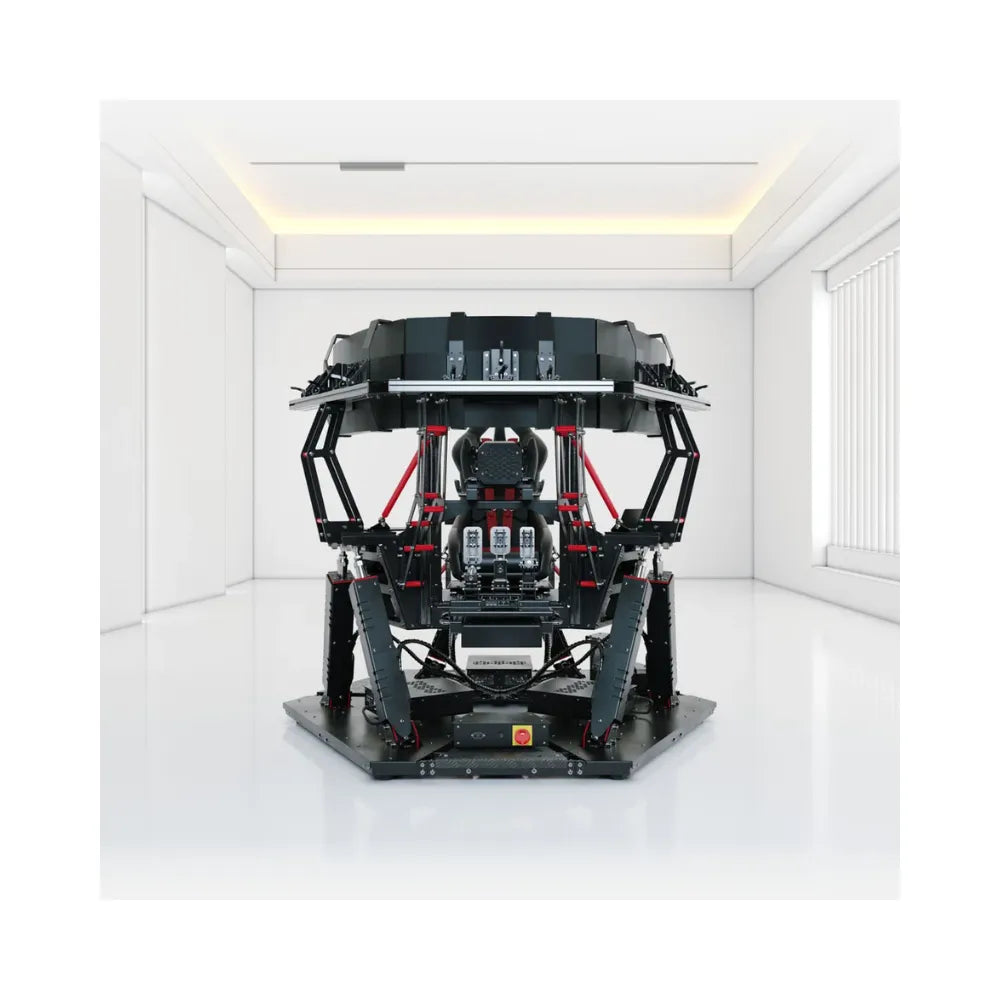

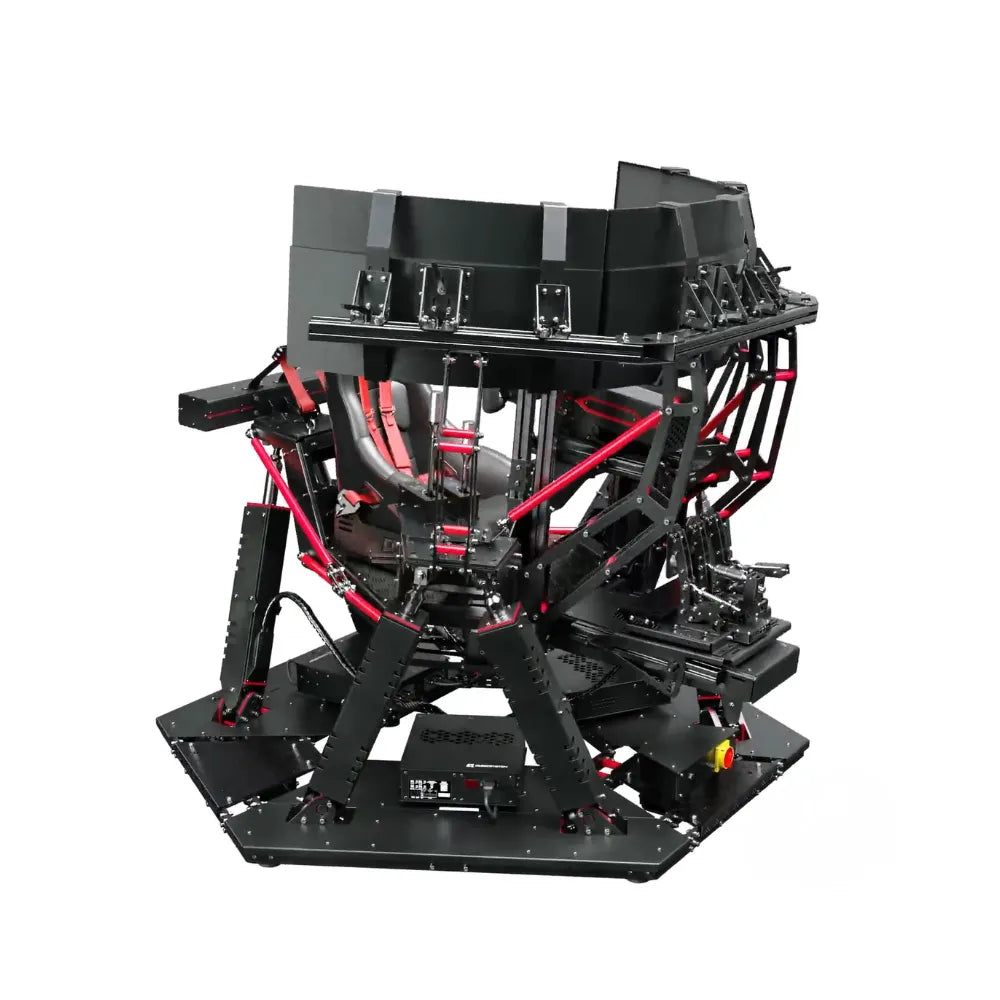

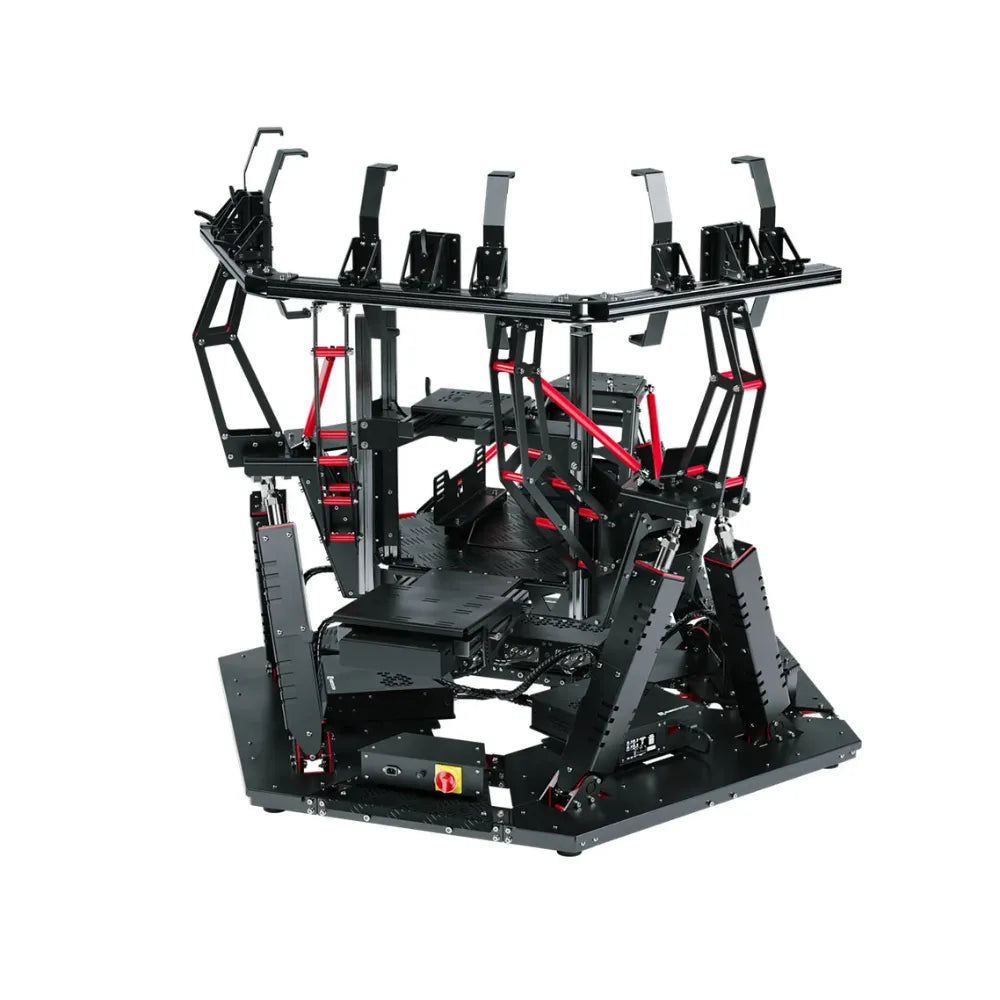

Qubic System QS-S25 6DOF Motion Cockpit

The Qubic System QS-S25 6DOF motion cockpit is built for serious sim racers, flight simulation users and professional training environments that need full-body motion feedback across all six axes.

Also known as the QS-S25 Spider, this motion platform uses high-speed linear actuator technology to simulate surge, sway, heave, roll, pitch and yaw.

It delivers detailed feedback for braking, acceleration, cornering load, grip loss, understeer, road texture and aircraft movement.

It’s a premium choice sim racers or flight sim enthusiasts who want an advanced motion simulator package.

Key features

Full 6DOF motion across all six axes
Surge, sway, heave, roll, pitch and yaw
Linear actuator technology for precise platform movement
250kg maximum payload for serious simulator builds

1000Hz maximum control frequency for fast response
0–100Hz vibration range for detailed tactile feedback
Qubic Manager software with VR HeadWay support
Modular cockpit design for transport and installation

Full 6DOF motion for complete simulation feedback

The QS-S25 6DOF motion cockpit gives drivers and pilots physical movement across surge, sway, heave, roll, pitch and yaw.

This creates a broader feedback range than lower-axis motion systems, helping the cockpit simulate acceleration, braking, lateral load, elevation changes, rotation and traction loss.

In racing, that means clearer feedback for kerbs, bumps, understeer, oversteer and grip changes.

In flight simulation, it helps recreate aircraft movement, stalls, spins and high-G manoeuvres.

For users already running high-torque direct drive wheelbases, the QS-S25 adds a full-motion layer to match high-end control hardware.

Linear actuator performance with detailed tactile feedback

The QS-S25 uses high-speed linear actuator technology built for professional-grade motion feedback.

Its surge velocity is up to 1250mm/s, sway velocity up to 1000mm/s and heave velocity up to 350mm/s, giving the platform the speed needed to communicate sharp vehicle and aircraft movement.

Plus, the 0–100Hz vibration range helps reproduce finer details, including engine vibration, road texture, gravel, kerbs, tyre slip and turbulence.

For users comparing premium Qubic System motion systems, the QS-S25 is designed for the most complete motion envelope in the range.

Built for racing, flight and professional training

The Qubic System QS-S25 6DOF motion cockpit is not limited to one type of simulation.

It’s designed for racing, flight, driver training, R&D labs, entertainment applications and high-end home simulator rooms.

The platform can help users feel braking load, acceleration force, lateral G inputs, traction loss, aircraft pitch, yaw movement and elevation changes.

Its modular construction also supports easier transport and installation, with components designed to fit through standard doorways.

Qubic Manager software and VR motion compensation

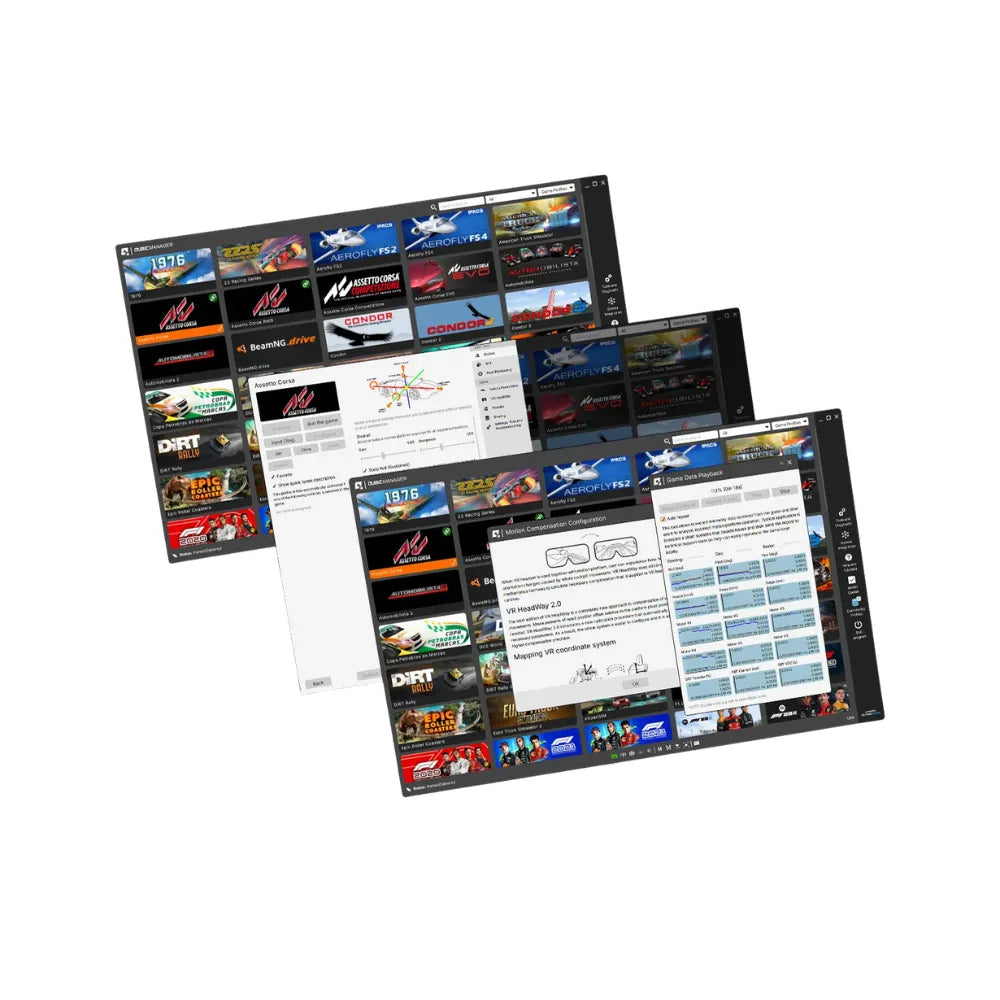

The QS-S25 is powered by Qubic Manager, Qubic System’s in-house motion software for PC simulation.

It supports major racing and flight titles, with simple controls for adjusting motion, bumps, roll and pitch.

The platform also supports VR HeadWay motion compensation, helping reduce out-of-sync head movement during VR use.

This is especially important on a 6DOF platform, where the cockpit can move across multiple axes during intense racing or flight simulation.

The QS-S25 is also compatible with the QS-BT1 seat belt tensioner, giving users another upgrade path for braking and acceleration cues.

Who is the Qubic System QS-S25 6DOF motion cockpit for?

The Qubic System QS-S25 6DOF motion cockpit is best for:

Serious sim racers wanting full six-axis motion feedback
Flight simulation users building a premium motion cockpit
Commercial simulator centres and driver training environments
R&D labs, universities and professional simulation projects
VR users wanting motion compensation support
Drivers who want traction loss and lateral load feedback
Users upgrading beyond 3DOF, 4DOF or 5DOF motion
High-end home simulator rooms with premium control hardware

Frequently asked questions

What is the Qubic System QS-S25 6DOF motion cockpit?

The Qubic System QS-S25 6DOF motion cockpit is a professional-grade motion platform designed for racing and flight simulation. It uses high-speed linear actuator technology to deliver movement across surge, sway, heave, roll, pitch and yaw.

What does 6DOF mean on the QS-S25?

6DOF means six degrees of freedom. On the QS-S25, this includes surge, sway, heave, roll, pitch and yaw. These motion axes help simulate acceleration, braking, lateral force, vertical movement, rotation and aircraft or vehicle attitude changes.

Is the QS-S25 suitable for sim racing?

Yes. The QS-S25 is designed for high-end sim racing, driver training and professional simulation. It helps recreate braking load, acceleration, understeer, grip loss, lateral G-force inputs, bumps, kerbs, gravel and road surface changes.

Is the QS-S25 suitable for flight simulation?

Yes. The QS-S25 is also designed for flight simulation. Its 6DOF motion range can help reproduce aircraft movement, including pitch, roll, yaw, stalls, spins and high-G manoeuvres in compatible simulation titles.

Does the QS-S25 support VR?

Yes. The QS-S25 supports VR technology through VR HeadWay motion compensation. This helps reduce out-of-sync head movement during motion simulation, making it a stronger option for VR racing and flight simulation builds.

What software does the QS-S25 use?

The QS-S25 uses Qubic Manager software. The software is used to configure the platform, activate the product through the serial number and adjust motion settings for supported PC racing and flight simulation titles.

Can the QS-S25 work with the QS-BT1 seat belt tensioner?

Yes. The QS-S25 can integrate with the QS-BT1 seat belt tensioner. Dedicated brackets are included, allowing the QS-BT1 to be mounted for added braking, acceleration and motion cue feedback through the belts.

What is the maximum payload of the QS-S25?

The QS-S25 has a maximum supported payload of 250kg for the basic platform without additional accessories and 150kg payload in performance mode.

Specifications

GENERAL SPECIFICATION
PLATFORM HIGHLIGHTS
Architecture 2 / 2.5 / 3 DOF
Max payload 250 kg | 551.2 lb
Product weight 30 kg | 66.1 lb

ACTUATOR DIMENSIONS
Total length 10.6 cm | 4.17 in
Total width 9.2 cm | 3.62 in
Total height 45.7-51.7 cm | 17.99-20.35 in

What’s In The Box?

3x QS-220 motion set
Dedicated upper and bottom frame
Motion controller
MOTION-LOCK Switch
Set of cables (US/EU/UK/AU)
Power Connector Hub
Set Of Wheels For Transport
