Qubic System QS-210 5DOF Motion System

Name: Qubic System QS-210 5DOF Motion System
Brand: Qubic System
SKU: QS-210-5DOF
Price: 30299.0 AUD
Availability: InStock

by Qubic System

Save $1,671.00

$31,970.00

$30,299.00

Availability: Only 3 left!

✔️ Authorised Australian Dealer
✔️ Fast Shipping Australia-Wide
✔️ 100 Day FREE Returns
✔️ Backed By Manufacturer Warranty
✔️ Experts Ready To Help: (03) 9961 0240

Quantity

Estimated Arrival: Between Jun 07 and Jun 09. *ETA approximate ONLY

Secured and trusted checkout with

Description

Qubic System QS-210 5DOF Motion System

The QS-210 5DOF motion system is built for serious sim racers who want a complete motion platform with heave, pitch, roll, surge and yaw feedback.

This Stage 4 kit combines four QS-210 linear actuators with the QS-CH2 motion platform and QS-MC6 controller, giving your cockpit detailed vertical movement, chassis roll, pitch movement, acceleration, braking and traction loss cues.

Designed for high-end racing simulator builds, it bolts onto most extrusion cockpits and is controlled through Qubic Manager software.

For a complete performance setup, combine it with a sim rig, direct drive wheelbase and premium sim racing pedals.

Key features

5DOF motion system with heave, pitch, roll, surge
QS-CH2 platform adds yaw and surge feedback
Four QS-210 actuators deliver detailed cockpit motion
QS-MC6 controller manages telemetry-driven motion response

Qubic Manager software controls and configures motion settings
Bolts onto most aluminium extrusion sim cockpits
Built for rally, drift, GT and F1 simulation
Ideal upgrade for advanced motion simulator packages

Complete 5DOF motion for true racing feel

The Qubic System QS-210 5DOF motion system gives your simulator a broader range of physical feedback than traditional 2DOF, 2.5DOF or 3DOF setups.

The four QS-210 actuators handle heave, pitch and roll, while the QS-CH2 motion platform adds surge and yaw movement underneath the cockpit.

This helps you feel braking, acceleration, traction loss, oversteer, road texture and sudden weight transfer through the rig.

QS-CH2 surge and yaw for traction loss feedback

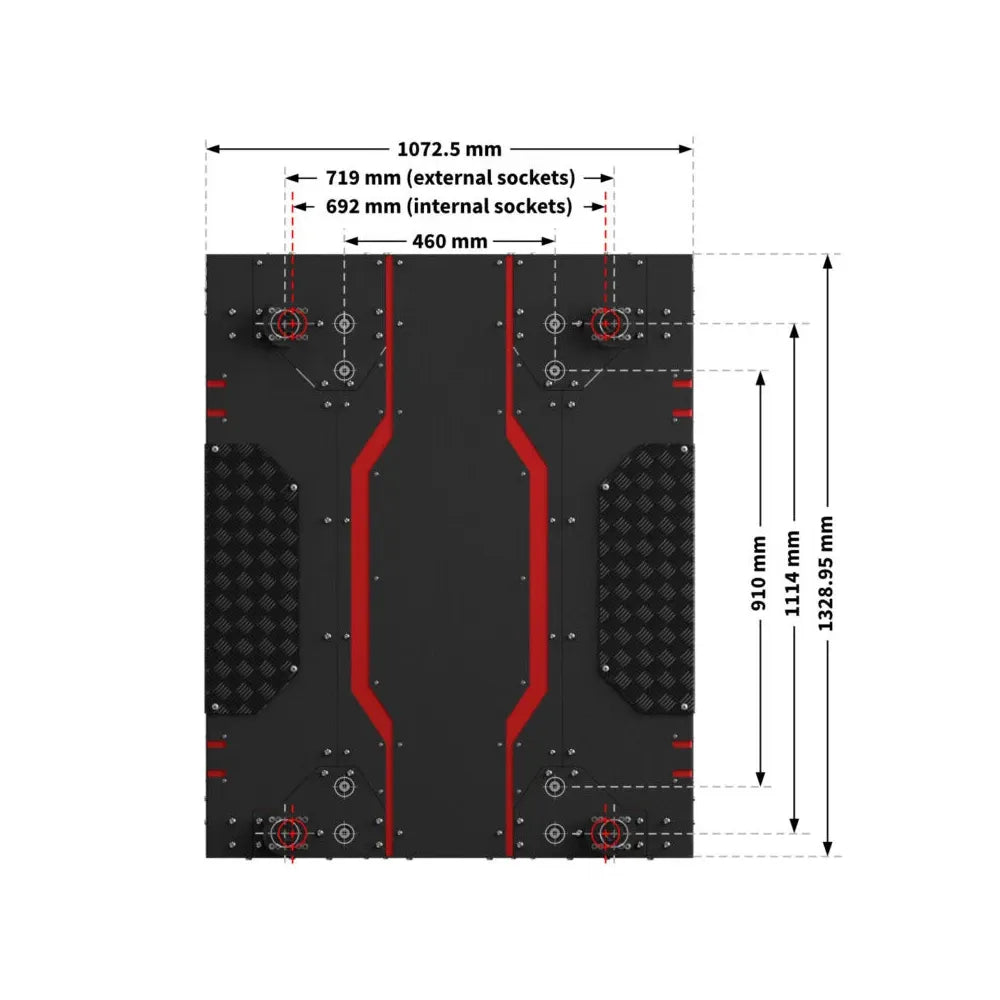

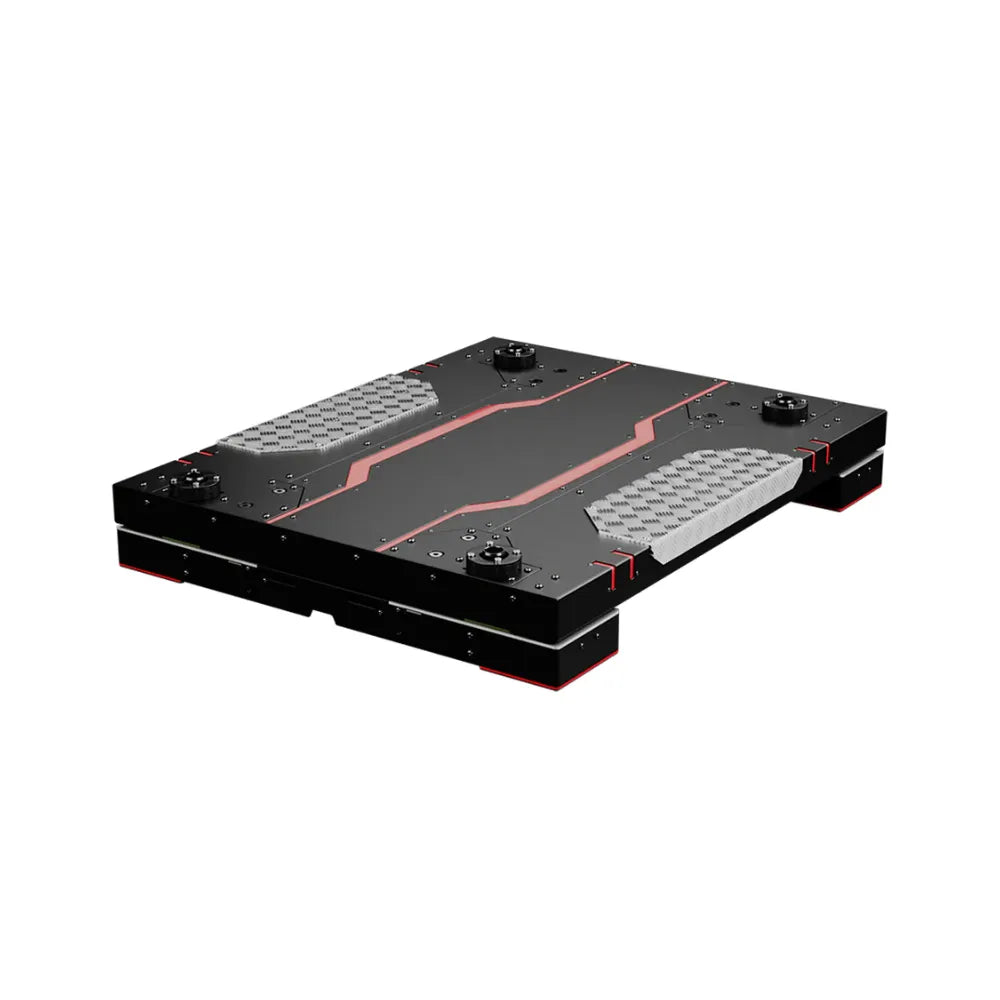

The QS-CH2 platform is what turns the QS-210 3DOF setup into a 5DOF motion system.

It adds surge and yaw, helping simulate acceleration, deceleration and traction loss in a more physical way.

Surge motion helps communicate braking and throttle inputs, while yaw rotation helps reveal rear-end slip before visual cues become obvious on screen.

This makes the system especially useful for rally, drift, GT and F1 simulation, where car control, oversteer correction and braking precision matter.

Four QS-210 actuators with 60mm stroke

The QS-210 actuator platform is designed as a compact, linear and efficient motion system for dedicated sim racers.

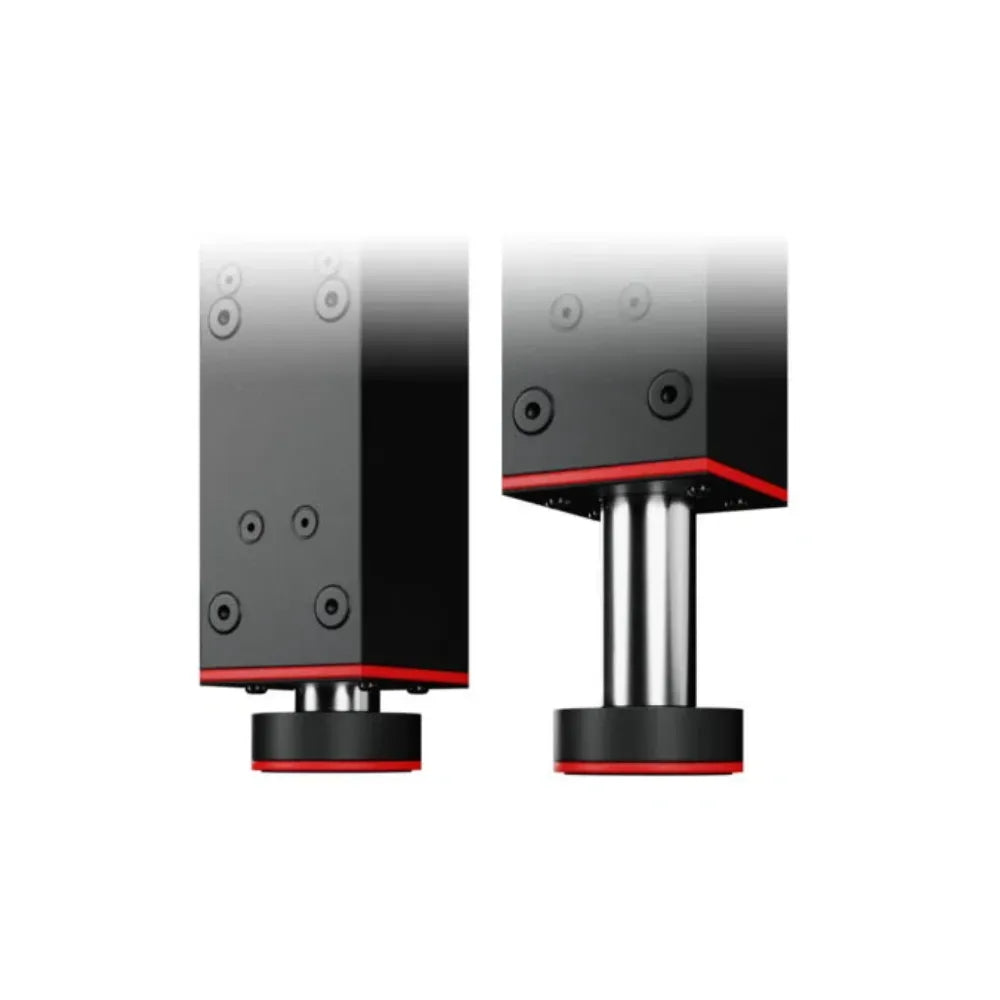

Each QS-210 actuator uses a 60mm / 2.36-inch stroke to reproduce bumps, road structure, engine vibration, braking, acceleration and vehicle movement.

In the 5DOF configuration, four QS-210 actuators work with the QS-CH2 platform to create a more complete motion experience across vertical, pitch, roll, yaw and surge movement.

This gives the driver clearer physical feedback through the cockpit without moving into a larger commercial simulator footprint.

Installed as a 3DOF actuator Set With QS-CH2 Surge And Yaw

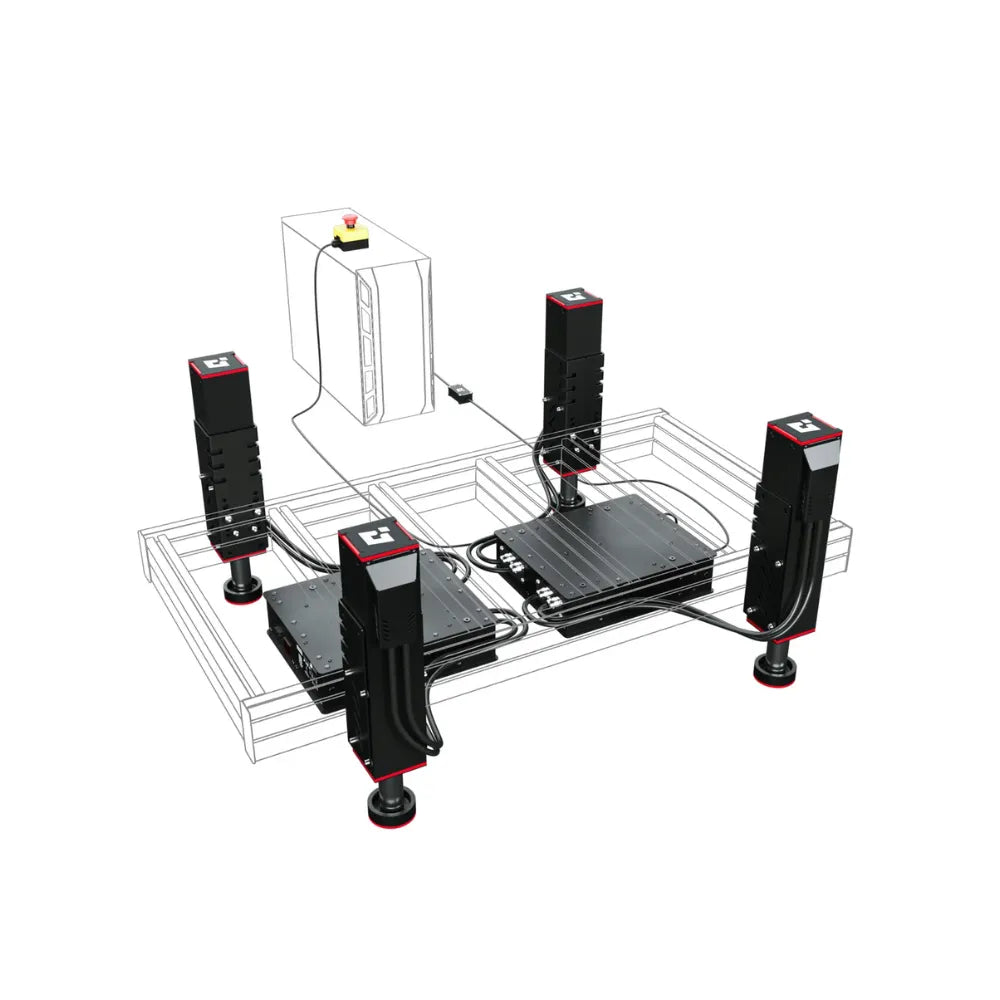

The system is installed by combining the four-actuator QS-210 3DOF setup with the QS-CH2 Surge/Yaw platform underneath the cockpit.

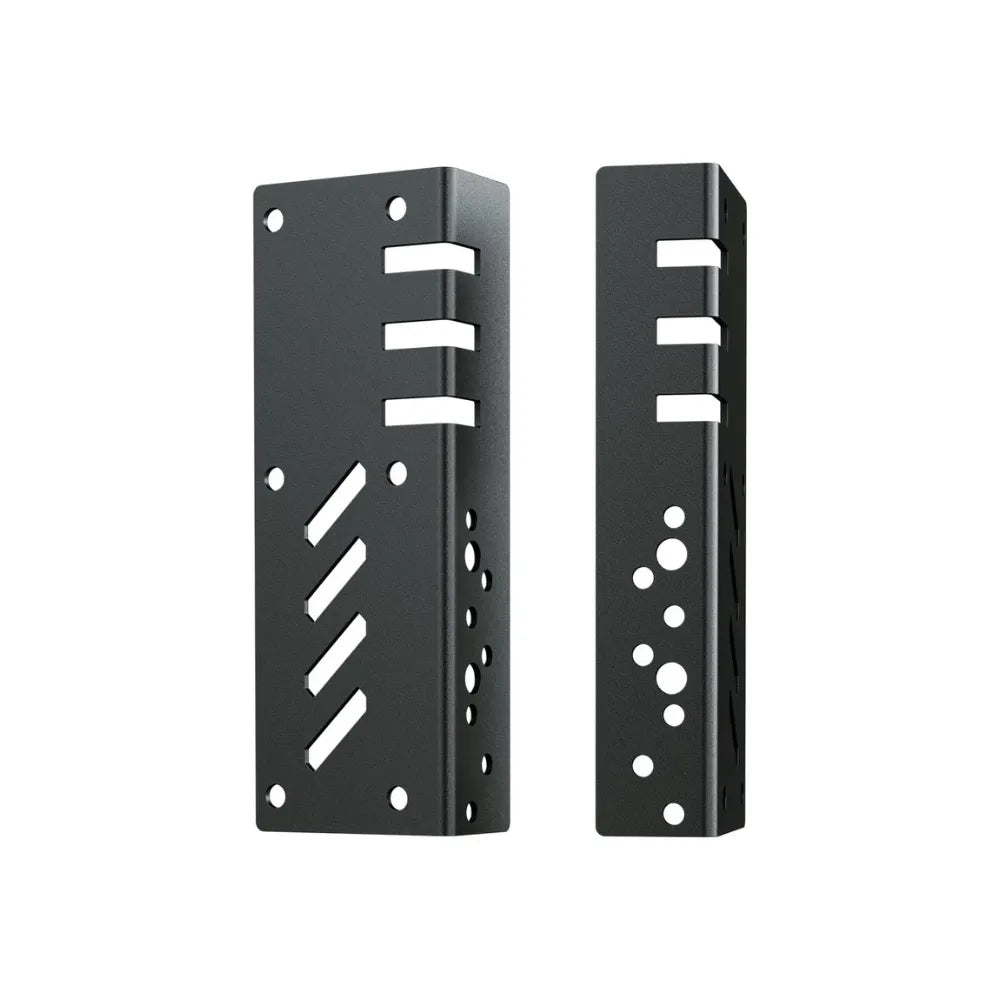

The QS-210 actuators are mounted around a compatible aluminium profile rig using actuator feet, brackets and locking plates, while the QS-CH2 platform supports the full cockpit to add traction loss and acceleration/deceleration movement.

All actuator feet must be screwed into the platform and locked in place with the top locking plate, creating a secure base for the full motion system.

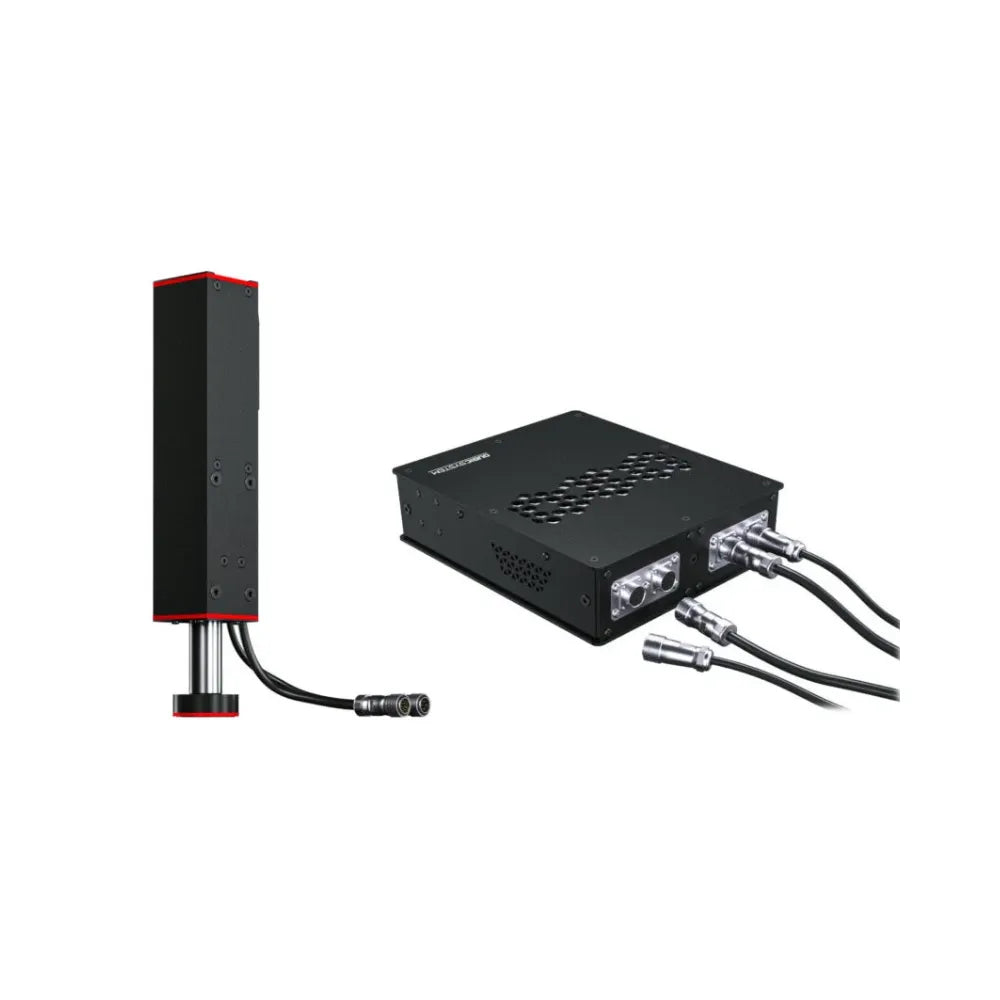

Once the hardware is mounted, the actuators, power cabinets, Motion-Lock safety system and M-BUS connections are configured through Qubic Manager software.

The Qubic System QS-210 5DOF motion system is best for

Serious sim racers wanting full 5DOF motion feedback
Rally and drift drivers training traction loss control
GT and F1 sim racers chasing deeper immersion
Aluminium extrusion cockpit owners upgrading to motion
Advanced home simulator and training room builds
Drivers wanting surge, yaw, heave, pitch and roll
PC-based simulator users running supported racing titles
Buyers wanting a premium modular Qubic System setup

Frequently asked questions

What is the Qubic System QS-210 5DOF motion system?

The Qubic System QS-210 5DOF motion system is a premium motion platform kit that combines a QS-210 3DOF actuator setup with the QS-CH2 motion platform. It gives the simulator heave, pitch, roll, surge and yaw feedback for more detailed physical motion.

What comes in the QS-210 Stage 4 Kit 5DOF?

The kit includes 2 x QS-210 actuator pairs with actuator brackets, a QS-MC6 motion controller and a QS-CH2 motion platform. This gives users the core Qubic System hardware needed to create a 5DOF motion setup.

What movements does the QS-210 5DOF system provide?

The system provides heave, pitch, roll, surge and yaw. The four QS-210 linear actuators deliver heave, pitch and roll, while the QS-CH2 motion platform adds surge and yaw movement underneath the cockpit.

Does the QS-210 5DOF system work with aluminium extrusion cockpits?

Yes. The supplied product page states that the kit bolts onto most extrusion cockpits, making it suitable for many aluminium profile-based racing simulator builds.

How does surge motion help in sim racing?

Surge motion helps simulate forward and backward force under braking and acceleration. This can make braking, throttle inputs and weight transfer feel more physical, which is especially useful for performance driving, rally, drift and GT simulation.

How does yaw motion help with traction loss?

Yaw motion rotates the cockpit around the vertical axis, helping communicate rear-end slip and oversteer. This gives drivers a physical cue when the virtual car starts losing traction, helping support faster reactions and better car control.

Is the QS-210 5DOF motion system controlled through one software platform?

Yes. The Stage 4 kit is controlled and configured through Qubic Manager software, allowing the motion system to be managed from one software environment.

Who should choose the QS-210 5DOF system?

The QS-210 5DOF system is best for advanced sim racers, rally and drift drivers, high-end cockpit builders and training setups that need more detailed feedback than a static, 2DOF, 2.5DOF or 3DOF simulator configuration.

Specifications

GENERAL SPECIFICATION

PLATFORM HIGHLIGHTS
Architecture 2 / 2.5 / 3 DOF
Max payload 250 kg | 551.2 lb
Product weight 30 kg | 66.1 lb

ACTUATOR DIMENSIONS
Total length 10.6 cm | 4.17 in
Total width 9.2 cm | 3.62 in
Total height 45.7-51.7 cm | 17.99-20.35 in

What’s In The Box?

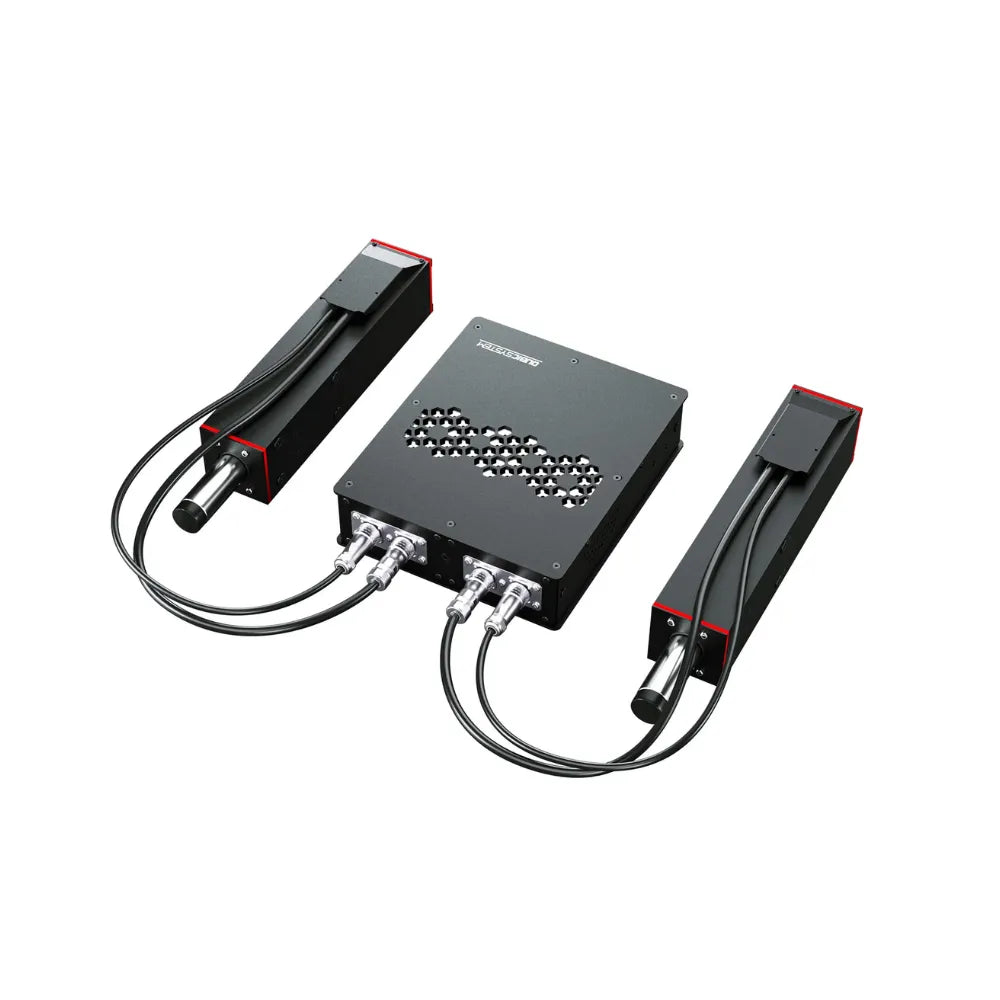

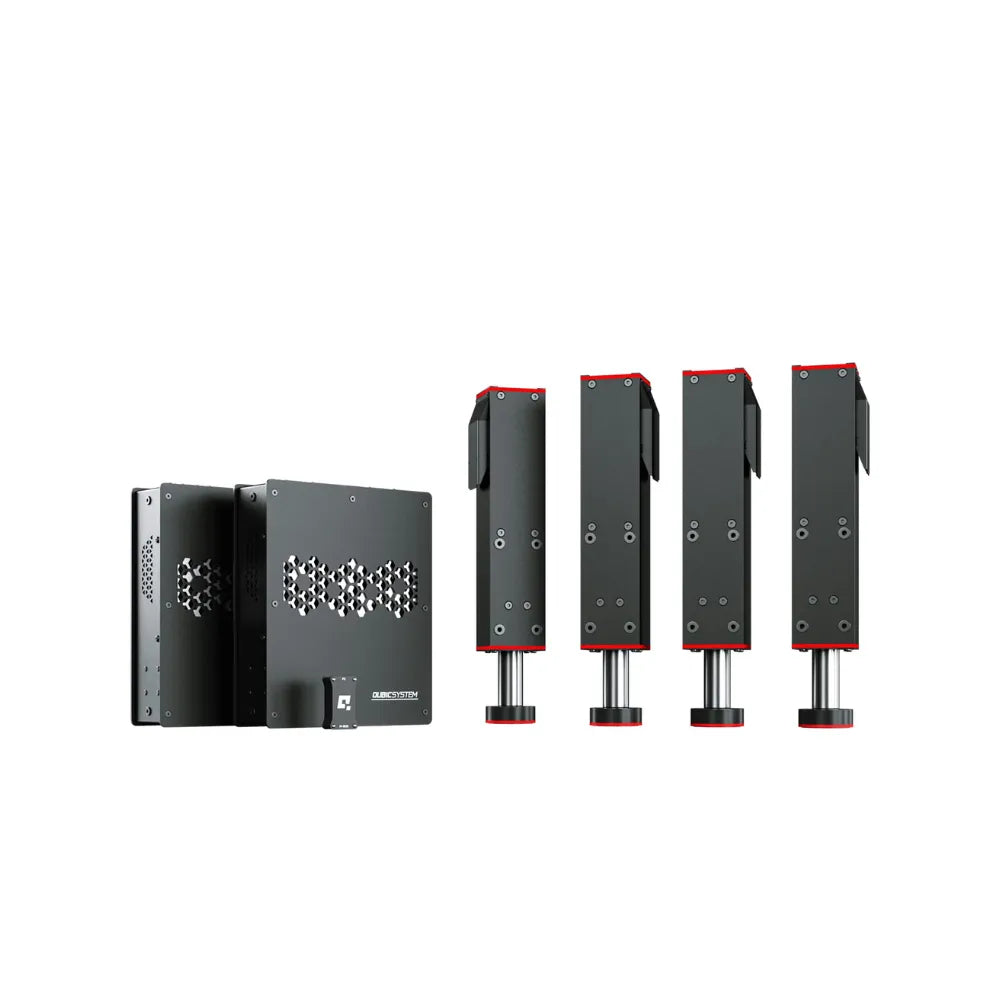

4x QS-210 actuators with brackets
2x Power Cabinets
1x QS-CH2 Platform
1x M10 Controller
1x Motion-Lock Switch
Qubic Manager Software
