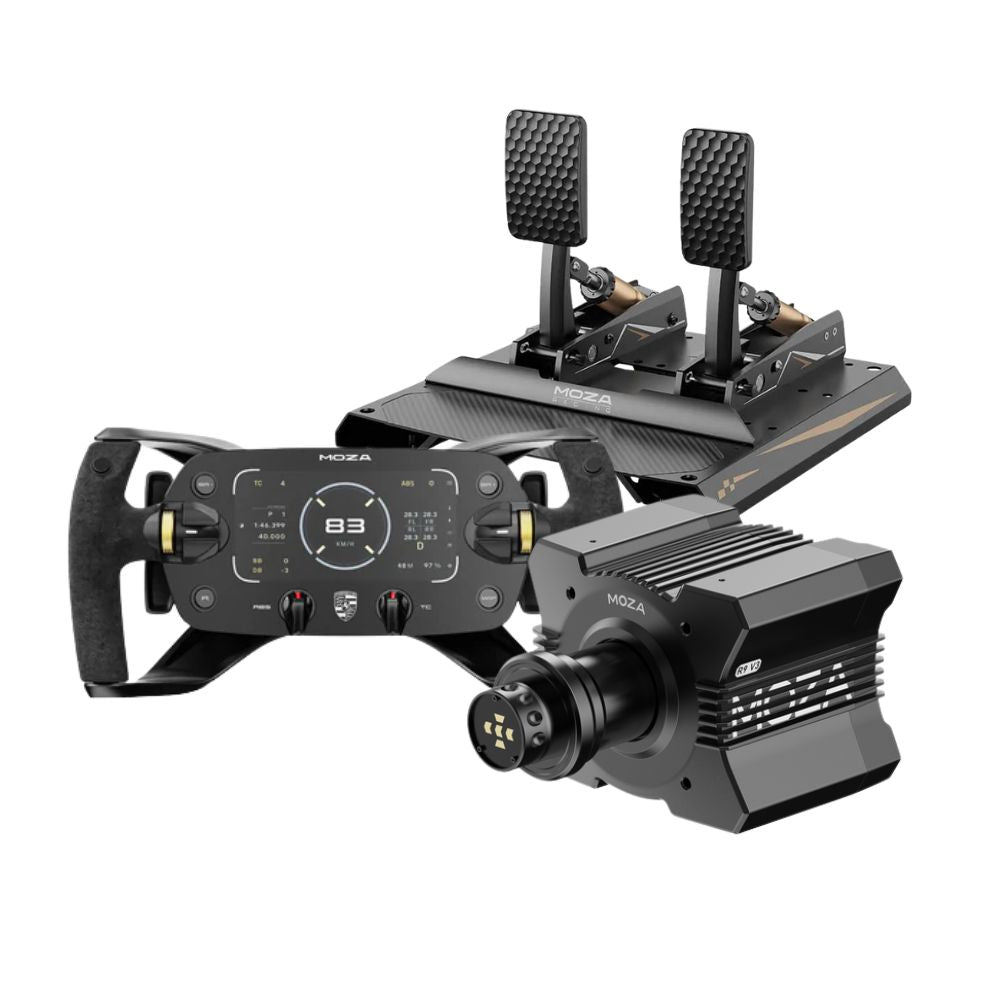

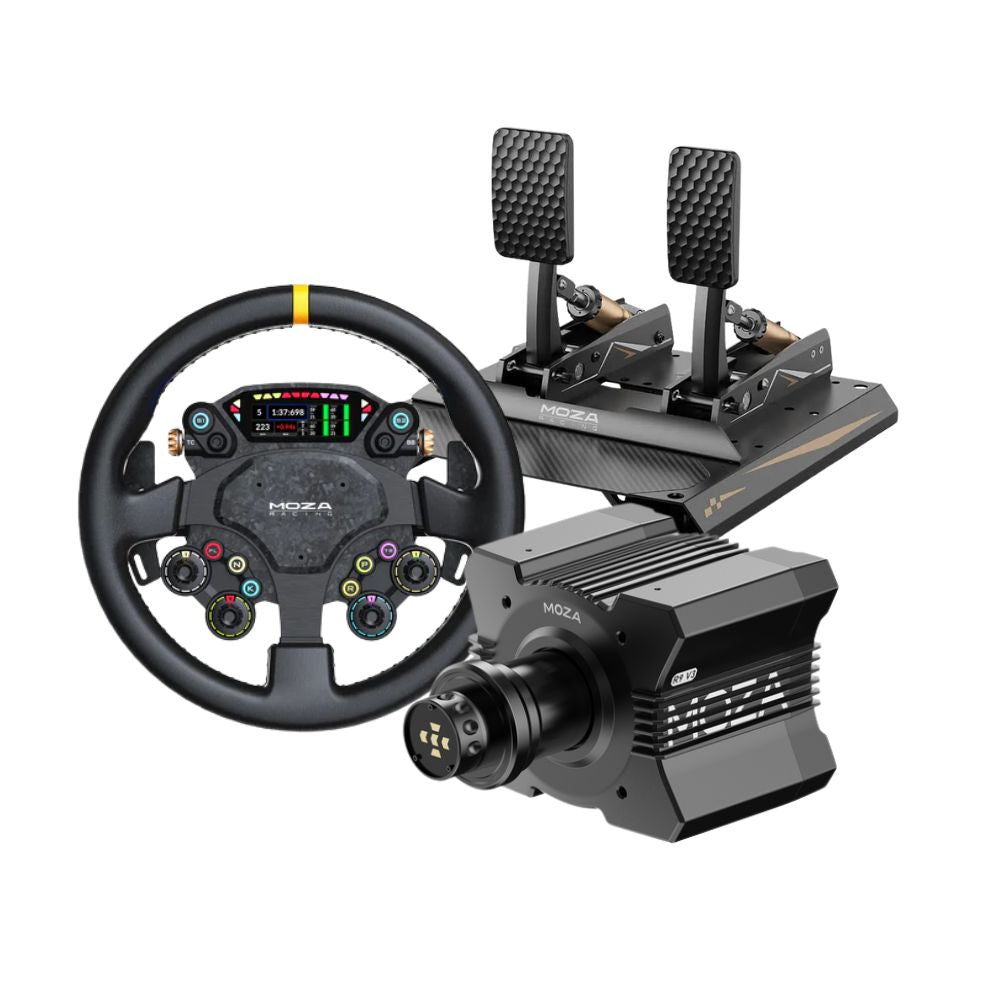

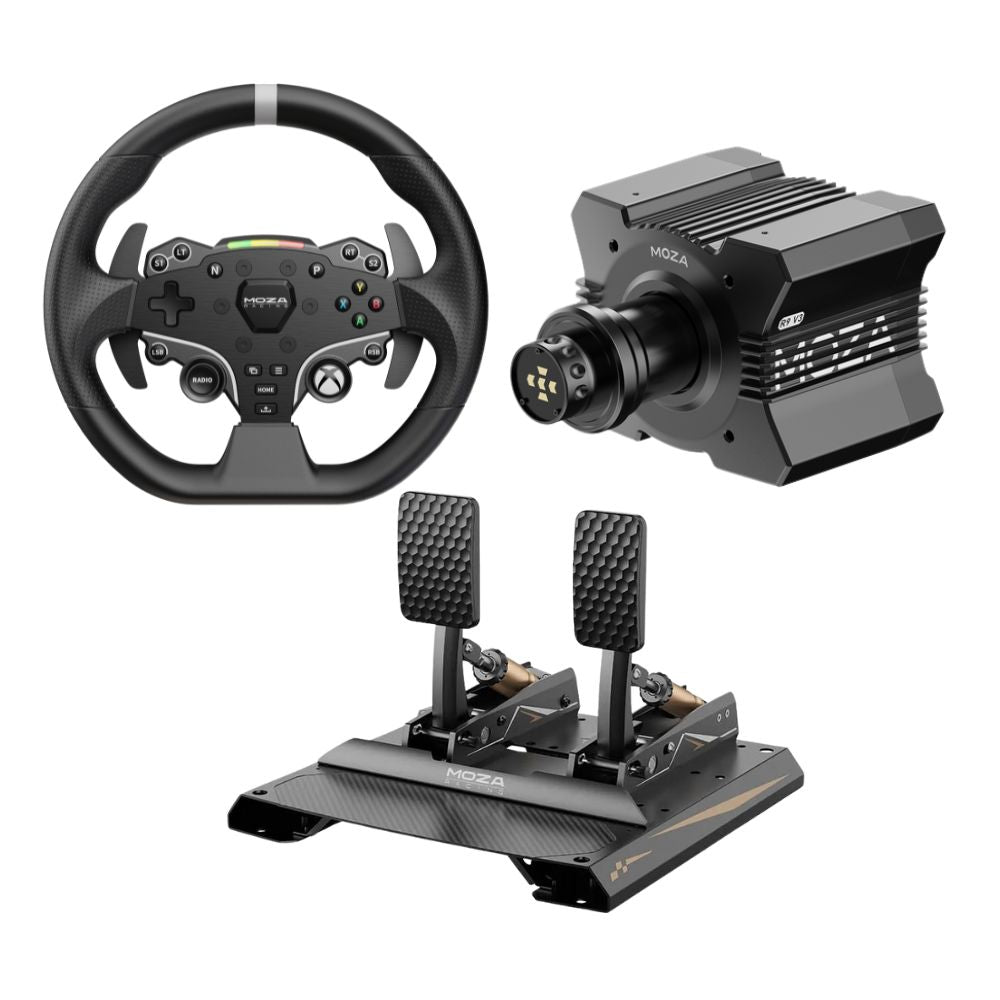

This bundle is a complete driving setup in one box: the 9Nm R9 V3 direct drive wheelbase, the CRP2 load cell pedals, and a MOZA racing wheel of your choosing. It suits a driver building a rig from scratch who wants pressure based braking from the start rather than upgrading pedals later.
The pedals are the reason to choose this one over the base and wheel bundle. A load cell brake measures how hard you push rather than how far, which is how a real brake behaves, and it is the single biggest step most drivers can take on lap time consistency.

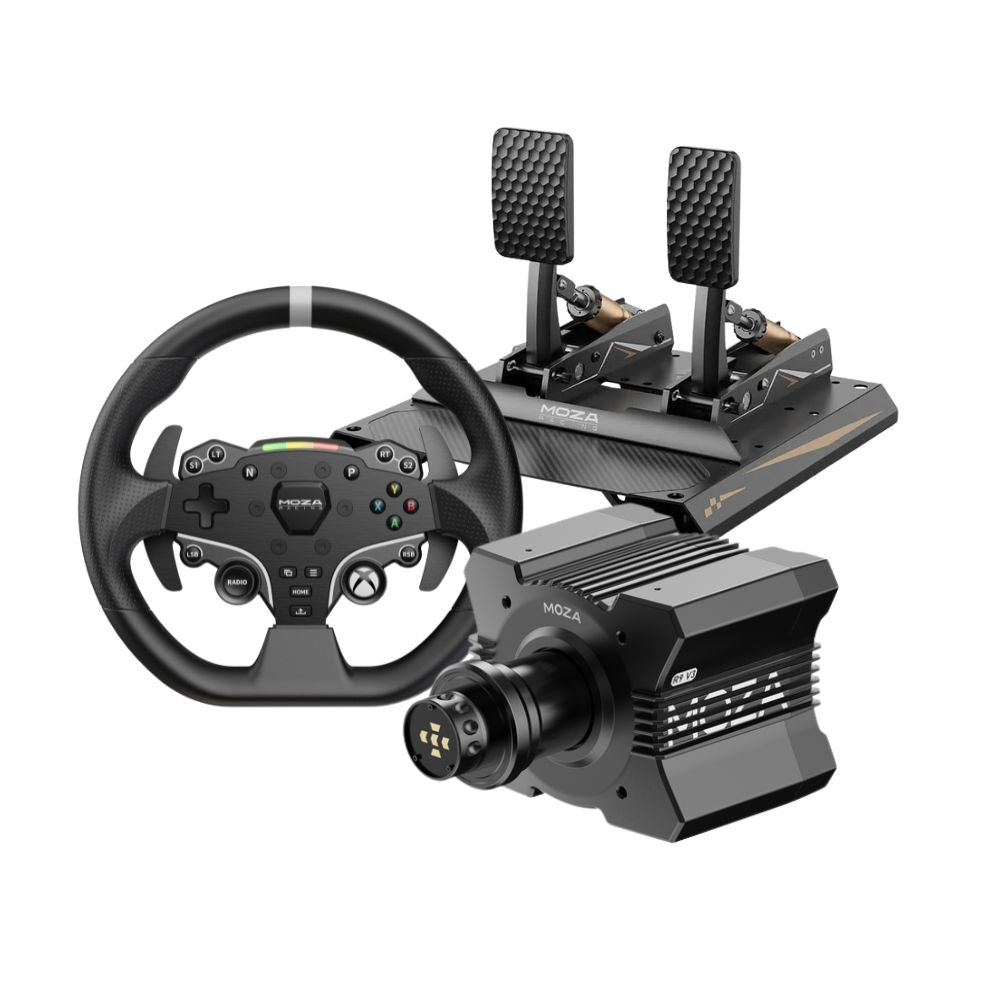

As supplied it ships with the ESX wheel, which is officially licensed for Xbox, so the setup is Xbox and PC compatible out of the box.
Three parts, matched and ready to run: the wheelbase, the CRP2 load cell pedal set, and your choice of wheel. There is no pairing to work out and nothing else to buy before you can drive.
A mount is not included. The base takes four bottom bolts or an optional side bracket and fits the sim racing cockpits we stock along with most aluminium profile rigs. Third party rims fit through the MOZA Universal Hub Kit.

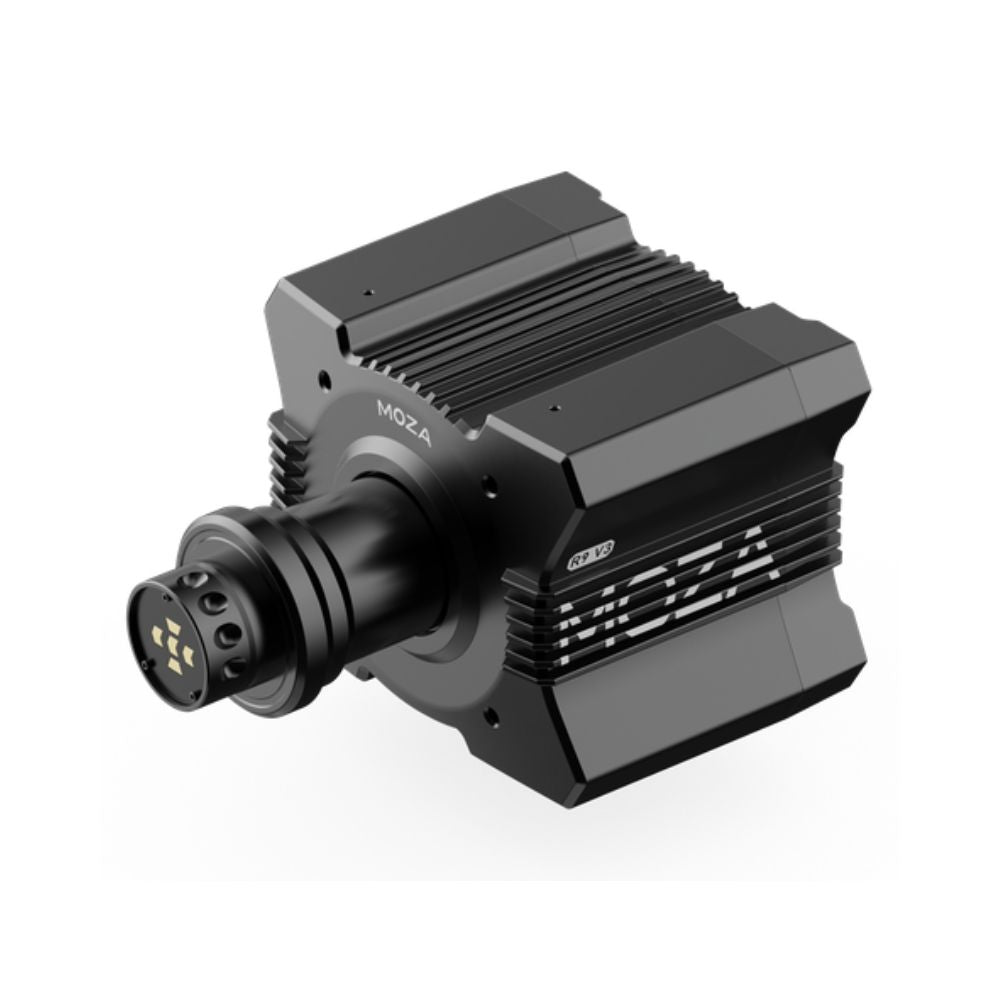

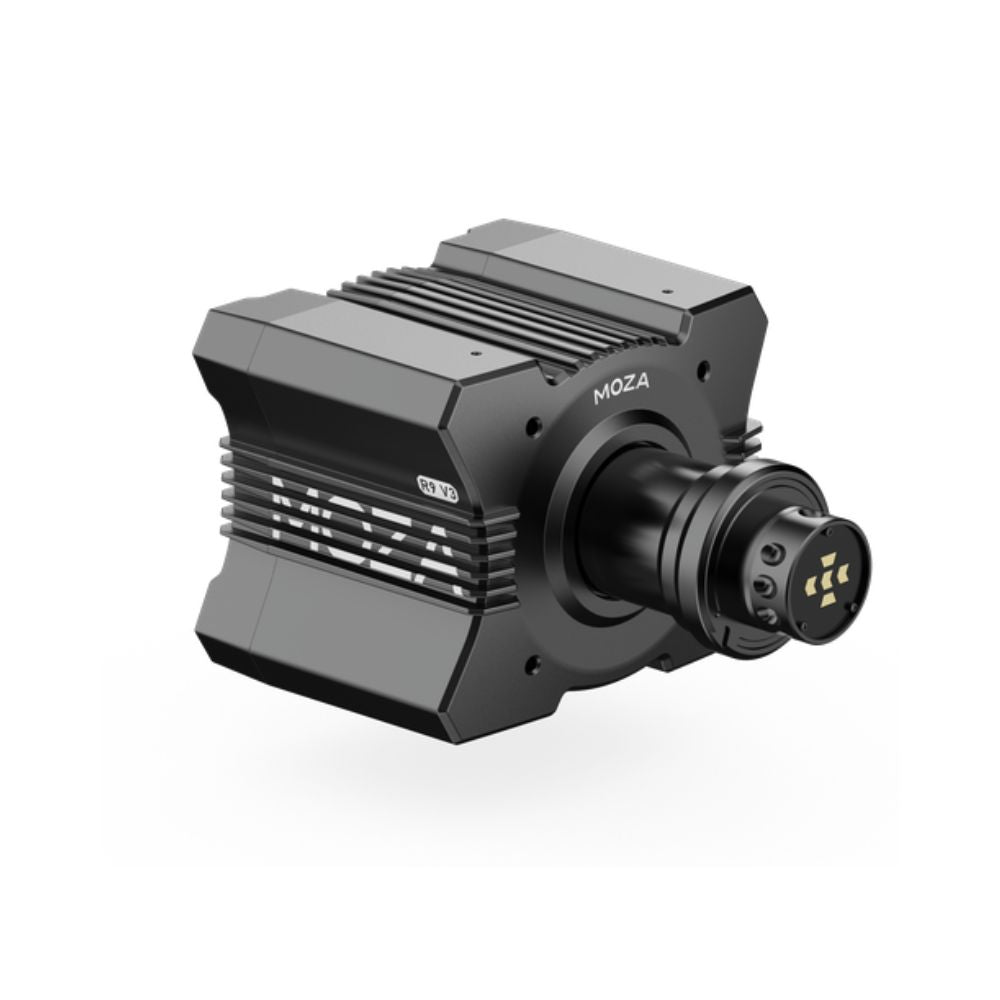

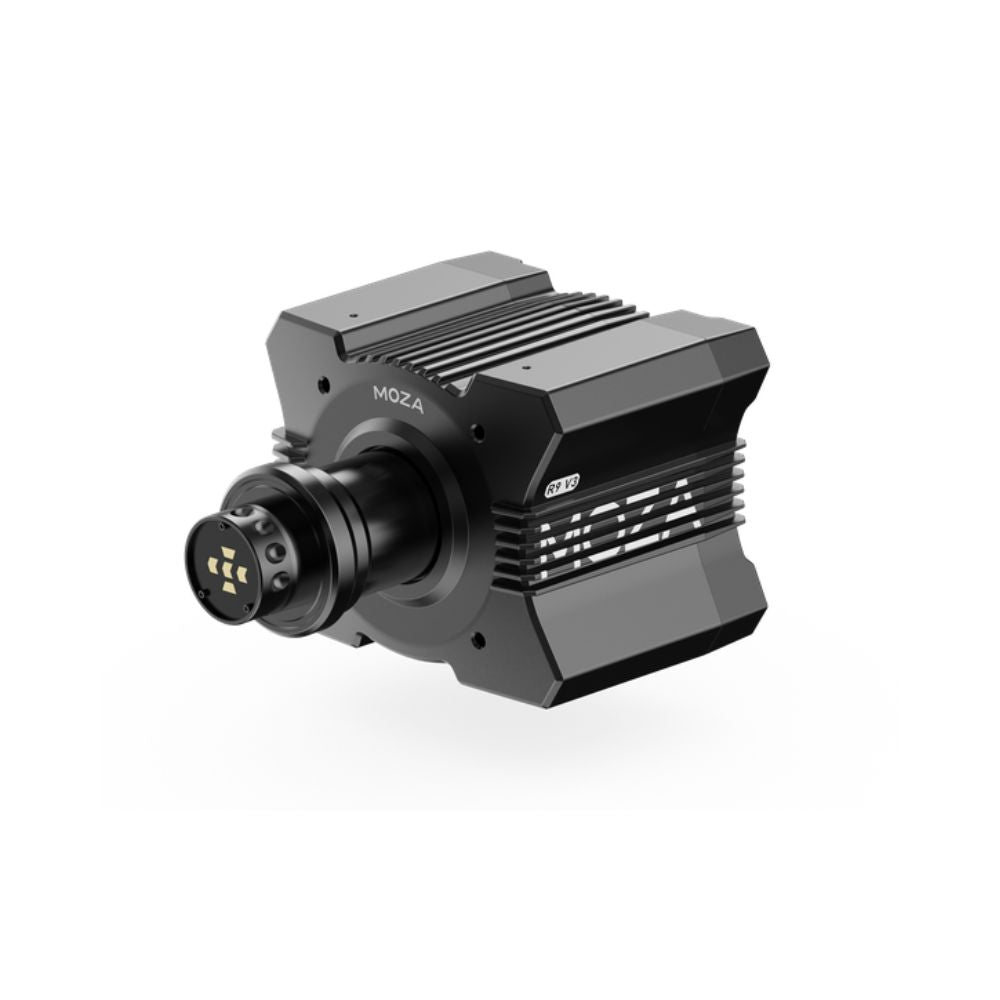

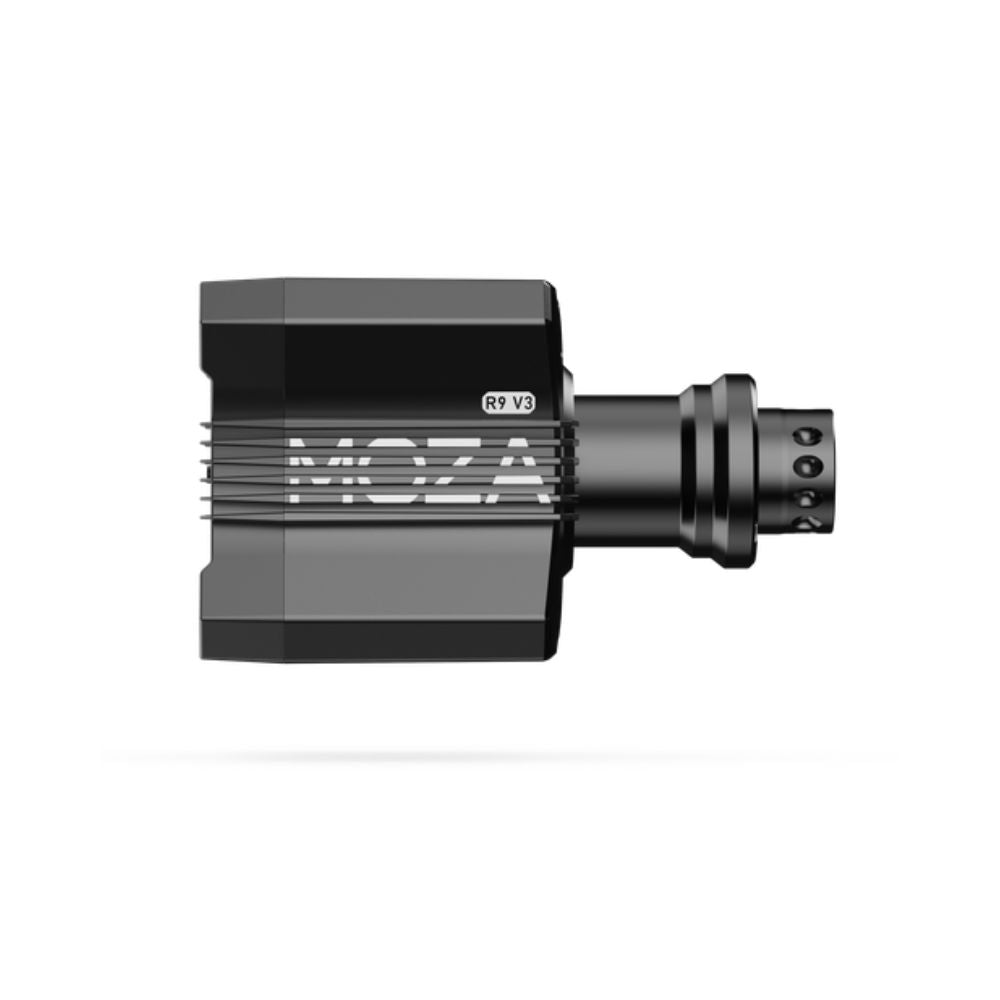

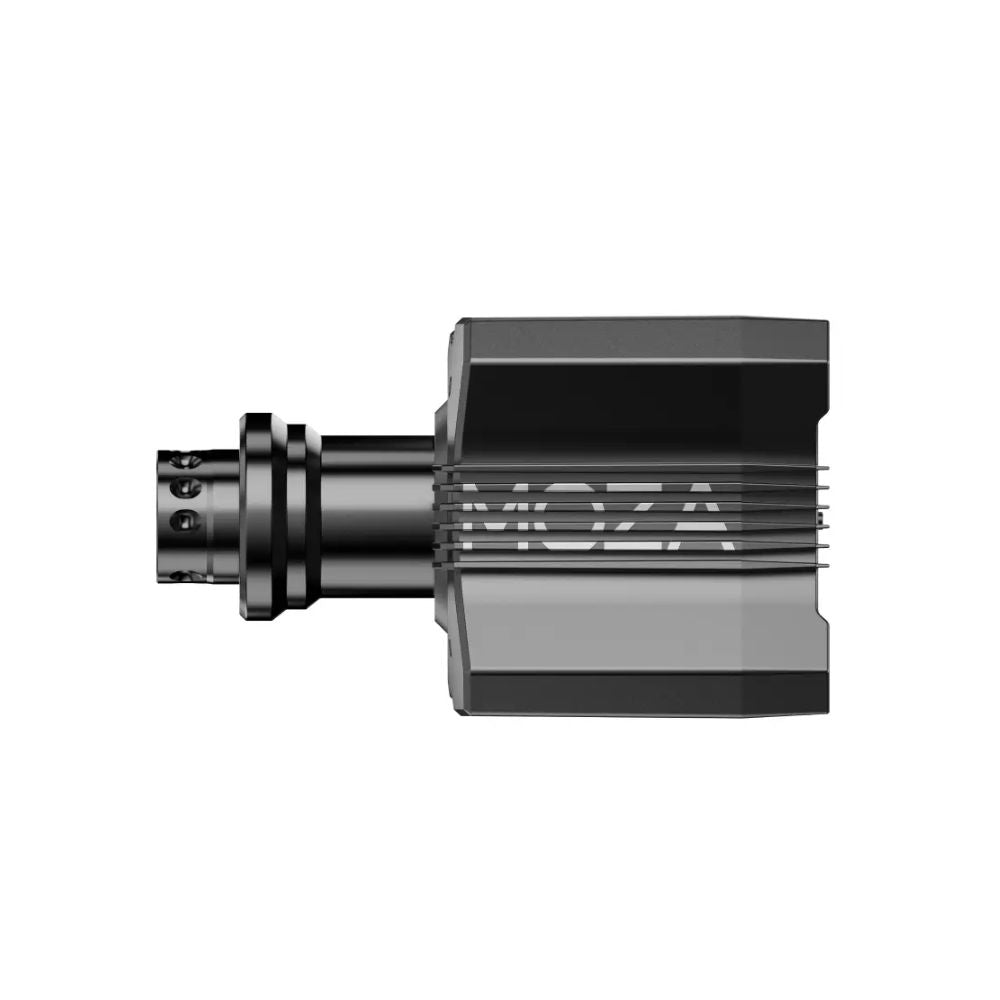

The base is the R9 V3: a 9Nm direct drive wheelbase with a 21-bit encoder and a 1000Hz refresh rate, in an aviation grade aluminium housing. Wheel communication is wireless, so there is no cable running to the rim.
Full specifications and mounting detail live on the MOZA R9 V3 wheelbase page, and the rest of our direct drive wheelbases sit together in one place. If you already own pedals, buying the base on its own is the cheaper route.

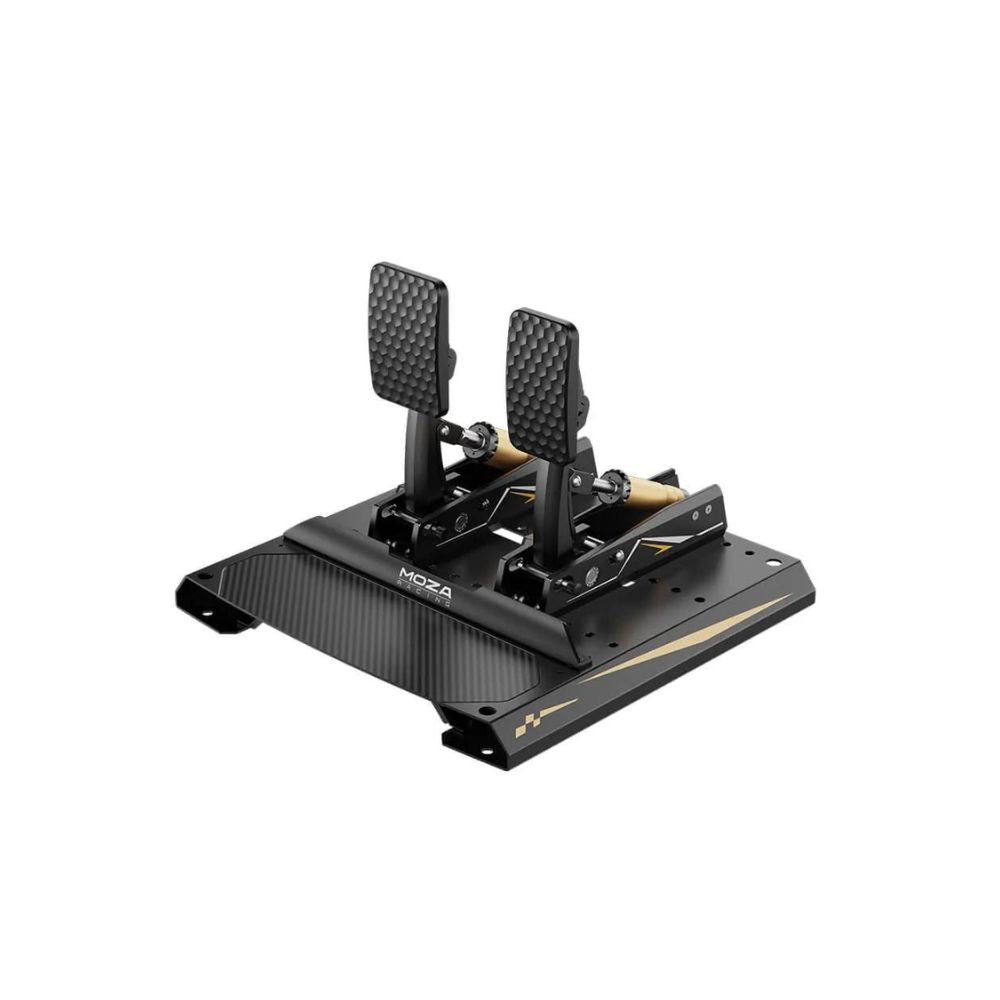

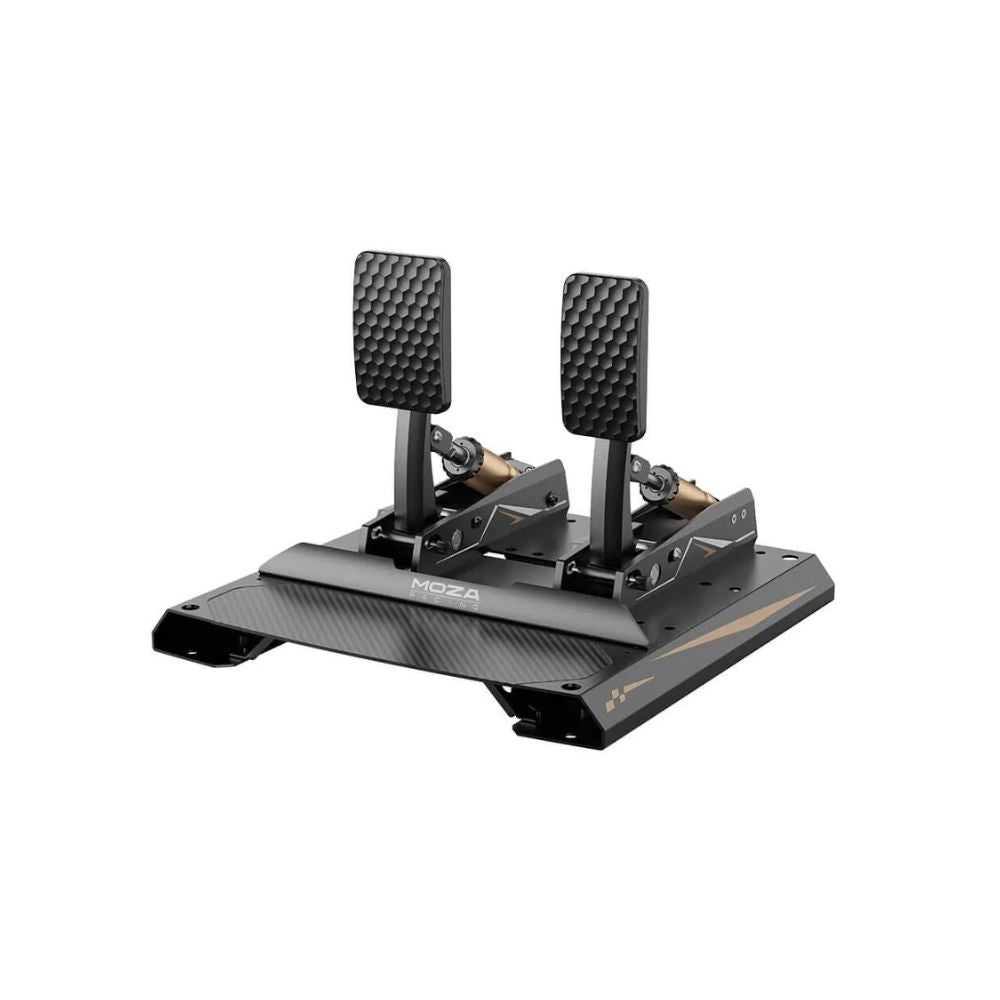

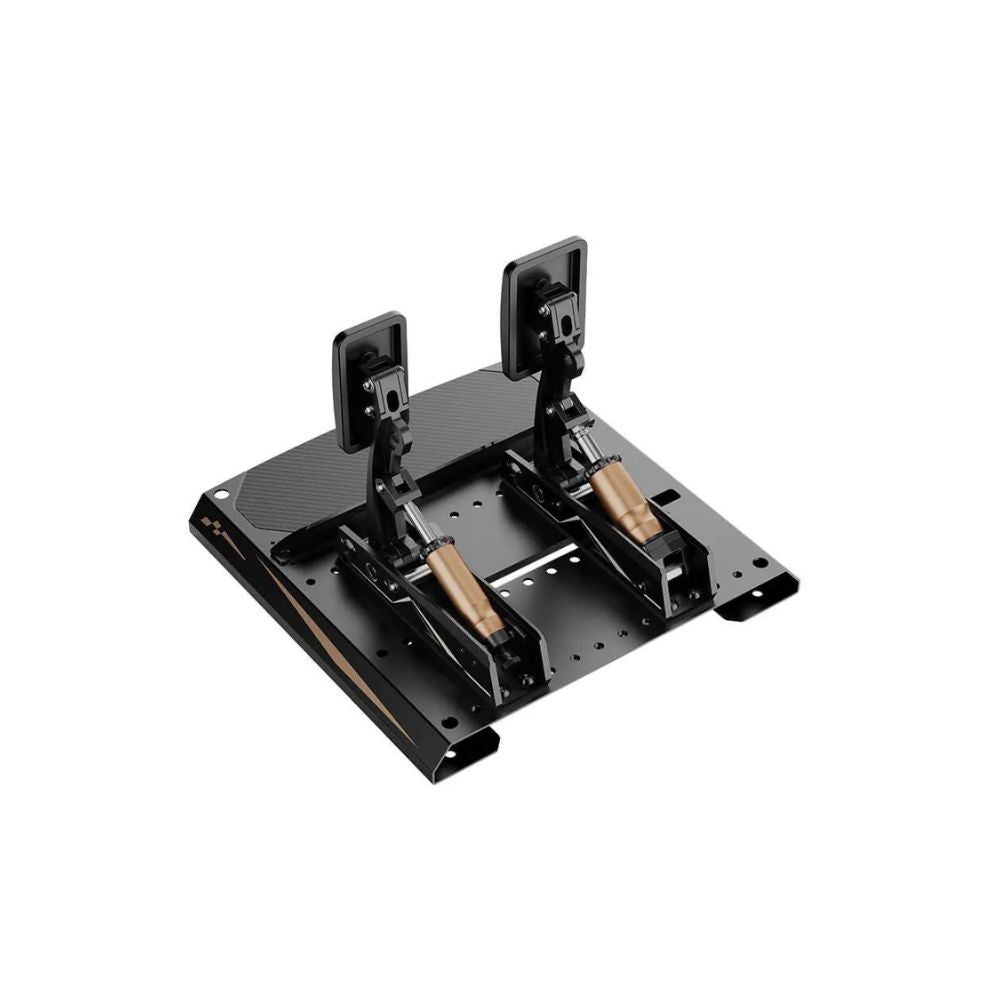

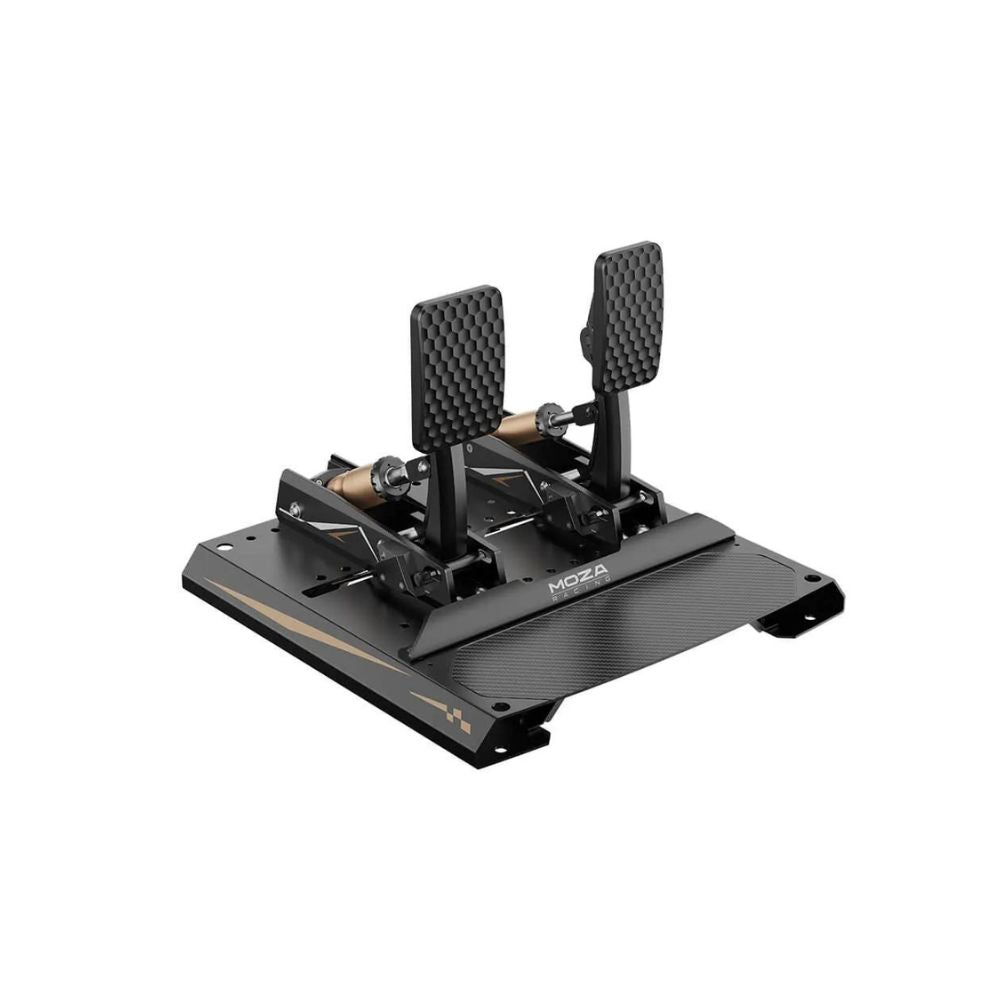

The CRP2 set is machined from aerospace grade aluminium on a high strength steel base, with a 3K twill carbon fibre heel plate. The brake runs a load cell rated to 200kg alongside a 15-bit angle sensor, so the pedal reads how hard you press as well as how far it has travelled.
Adjustment is the reason to take this set over a simpler one. The brake has 115 standard settings and up to 1,764 configurations once the spring and elastomer options are combined, throttle and clutch each take two spring options with infinite adjustment between them, and the pedal faces move for both height and angle. Tuning is tool free, and inverted mounting is supported if your rig hangs the pedals rather than floor mounting them. The rest of the range sits on our sim racing pedals page.

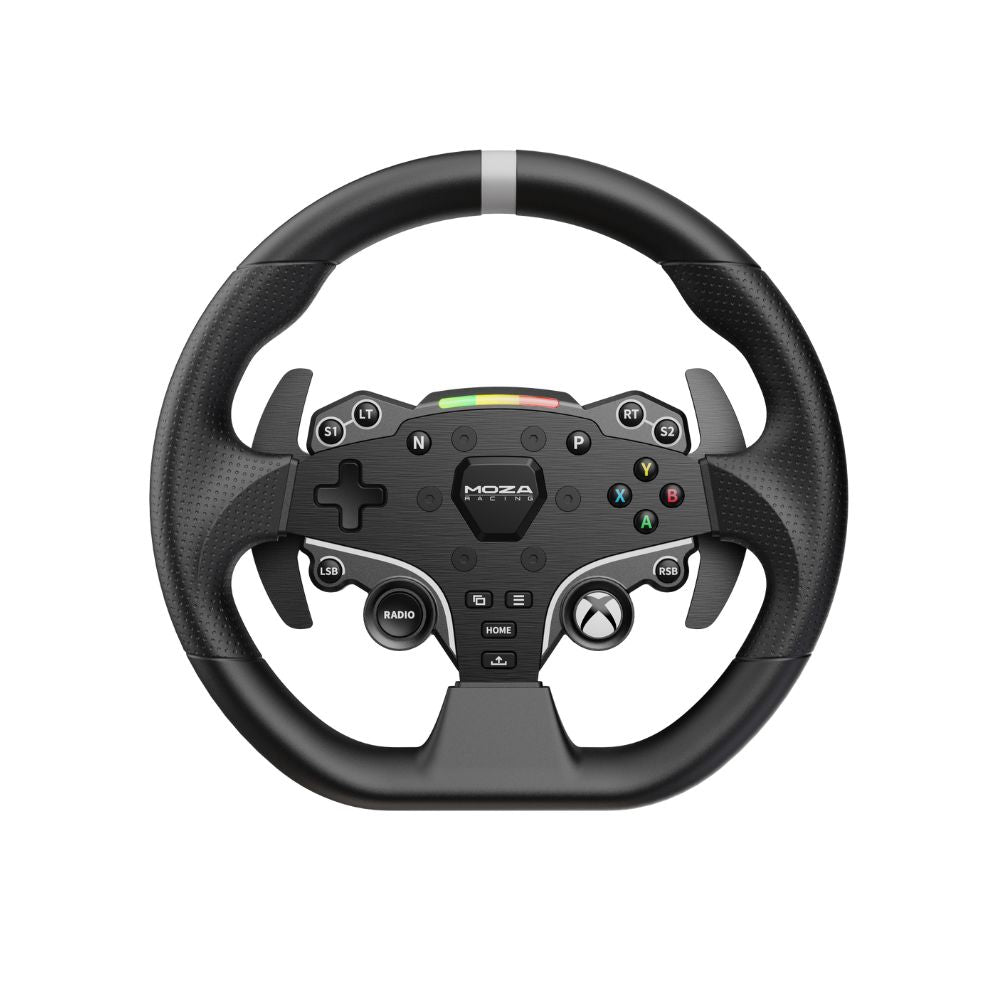

The bundle ships with the MOZA ESX racing wheel, which is officially licensed for Xbox, so this bundle is Xbox and PC compatible as supplied. Choose a different wheel from the options above and the setup becomes PC only.

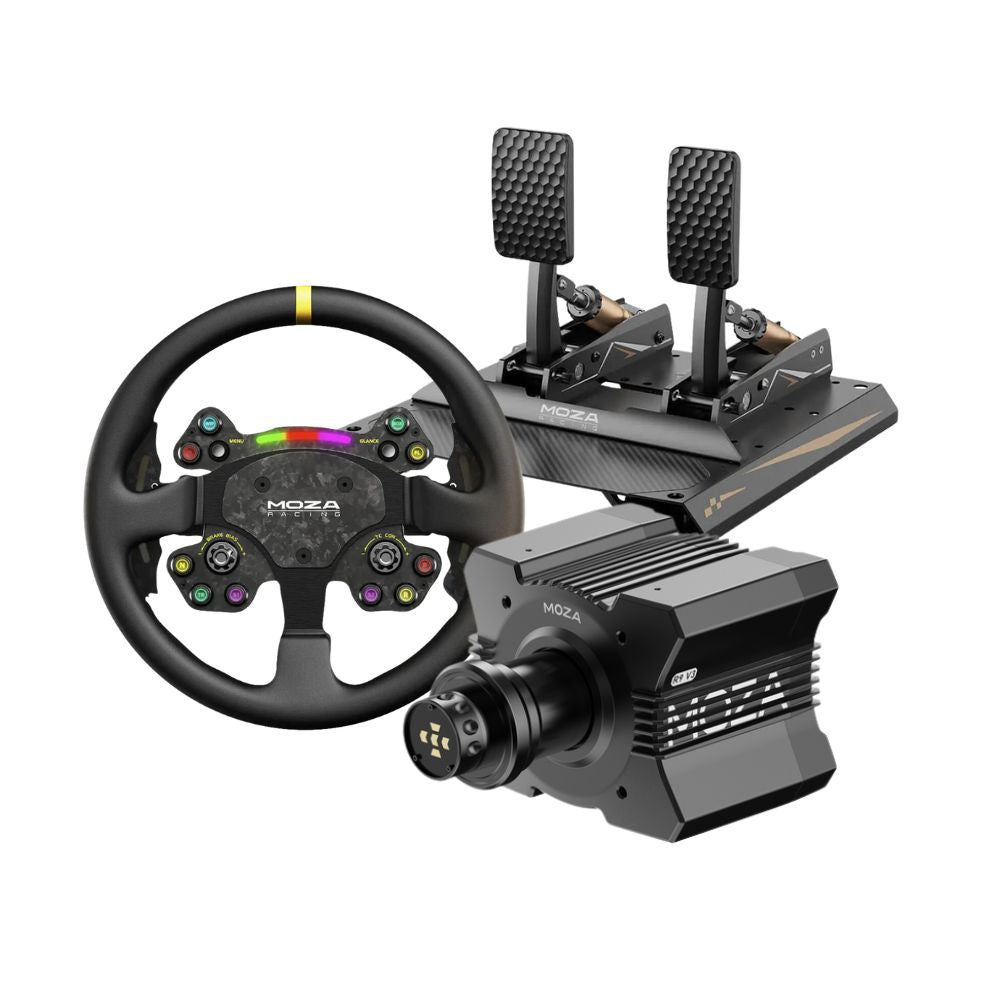

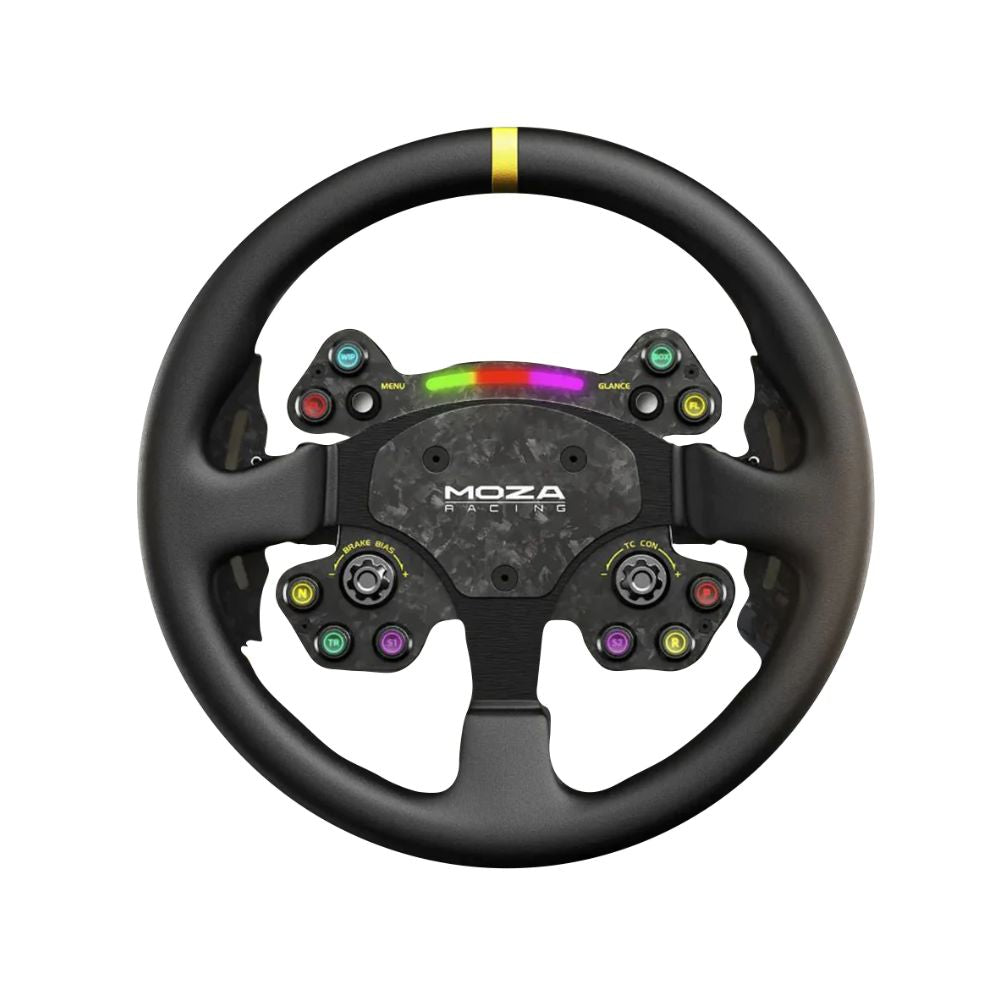

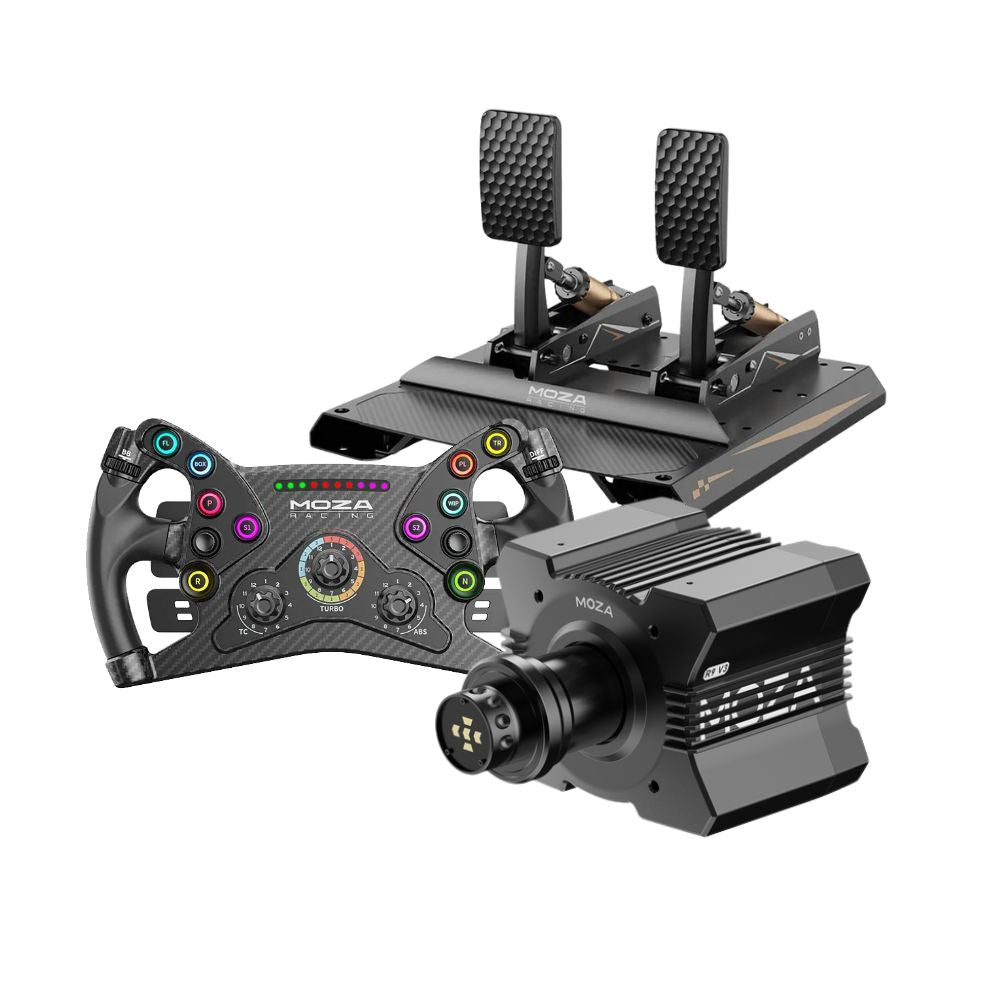

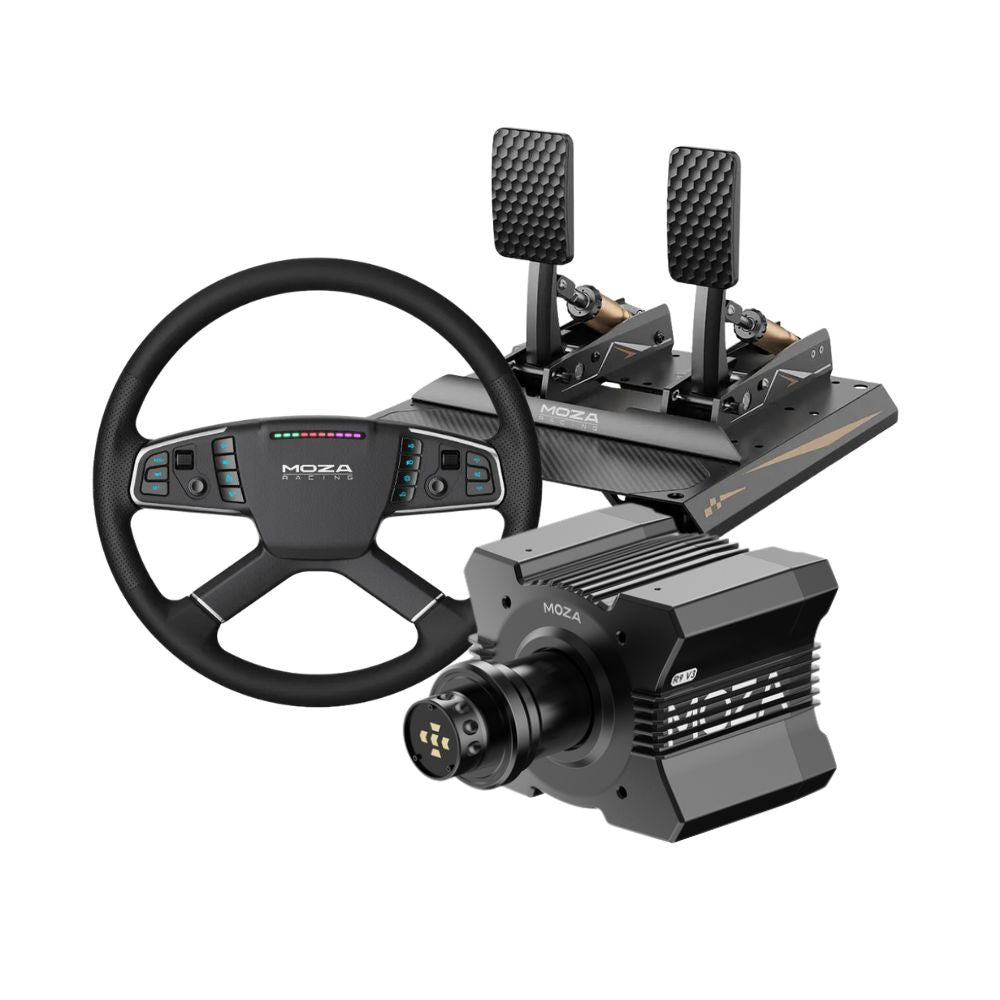

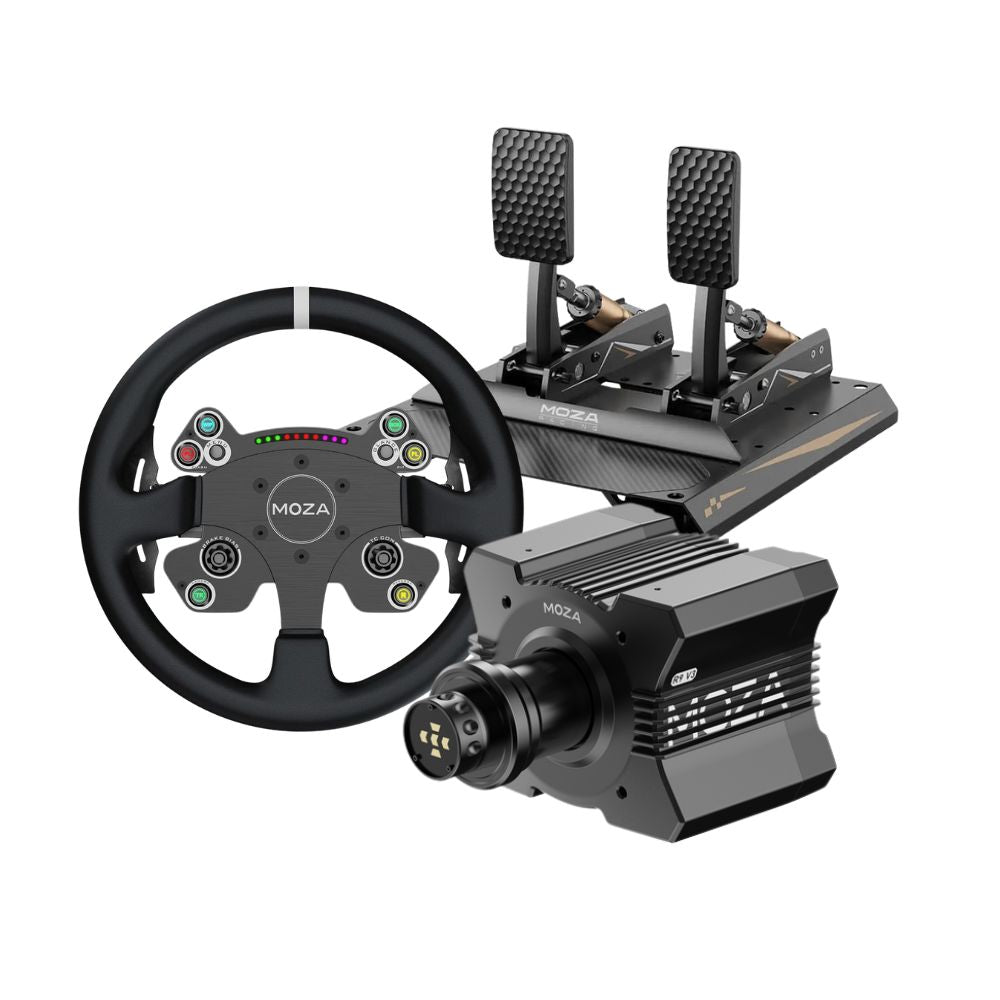

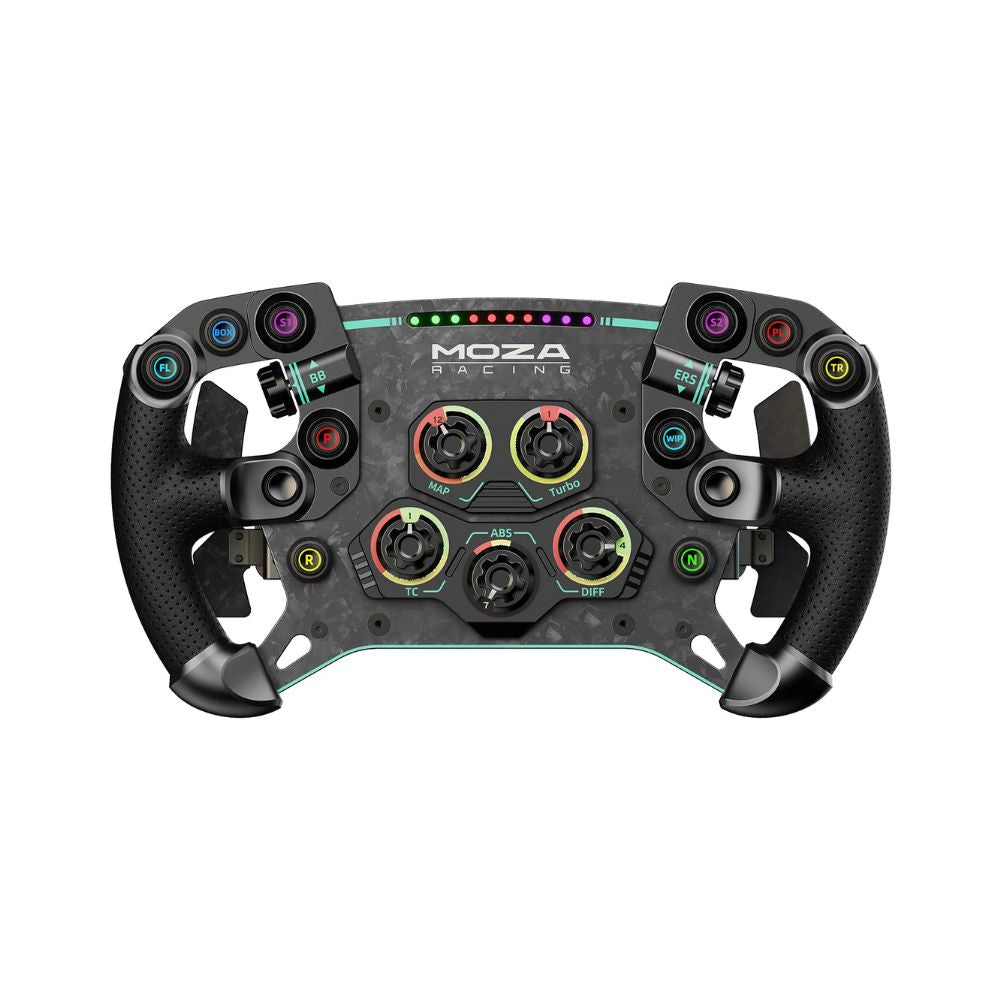

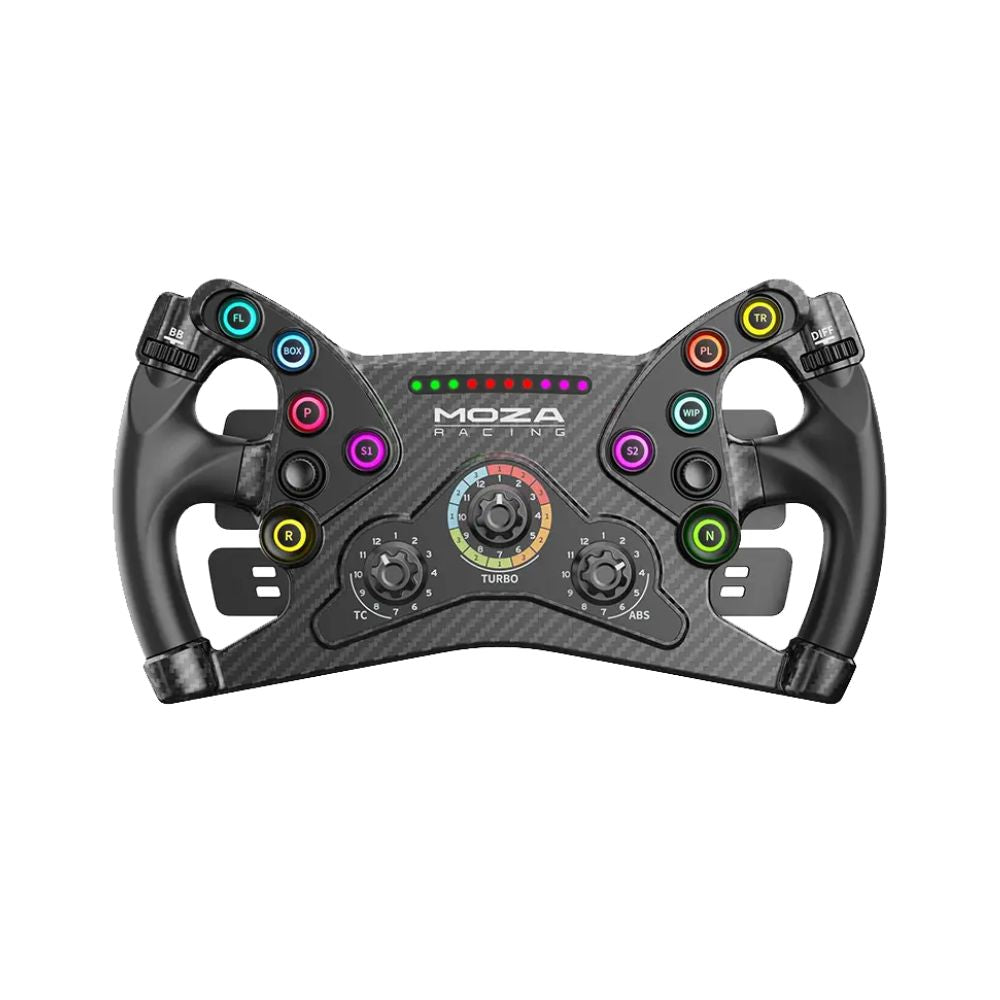

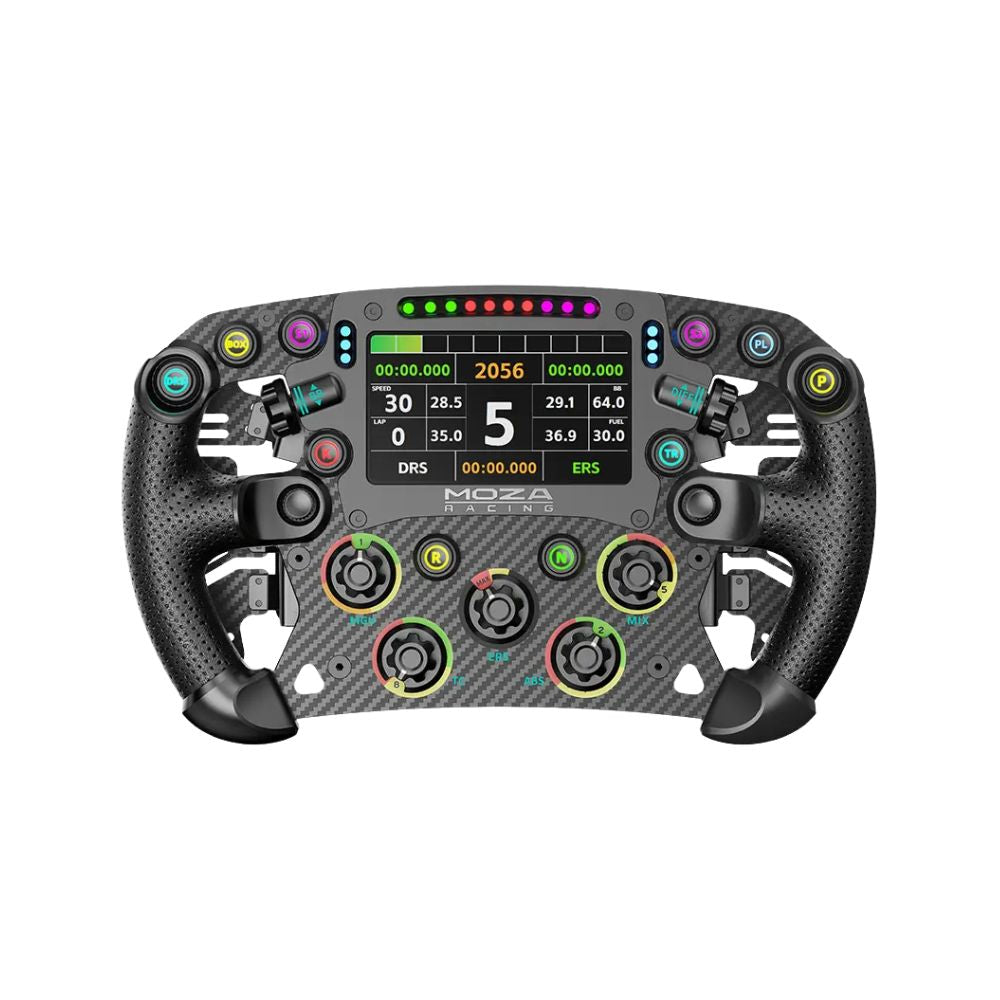

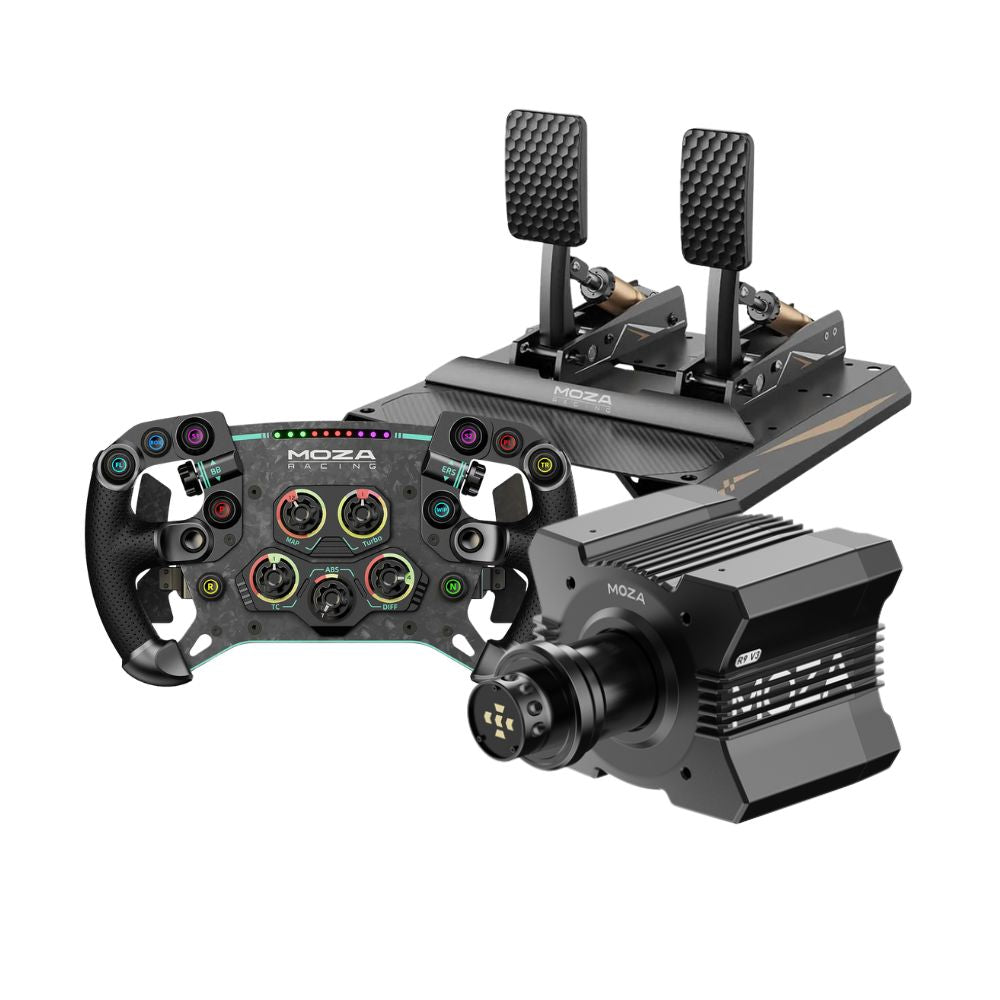

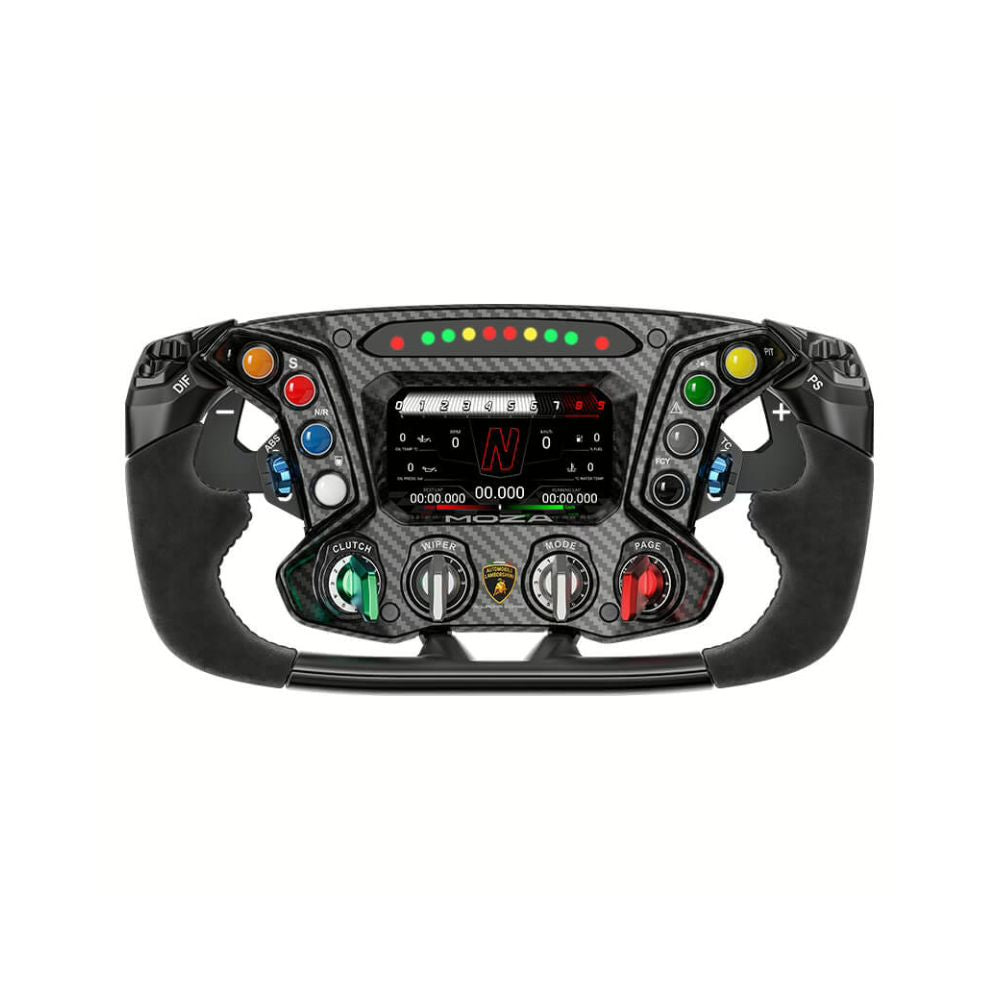

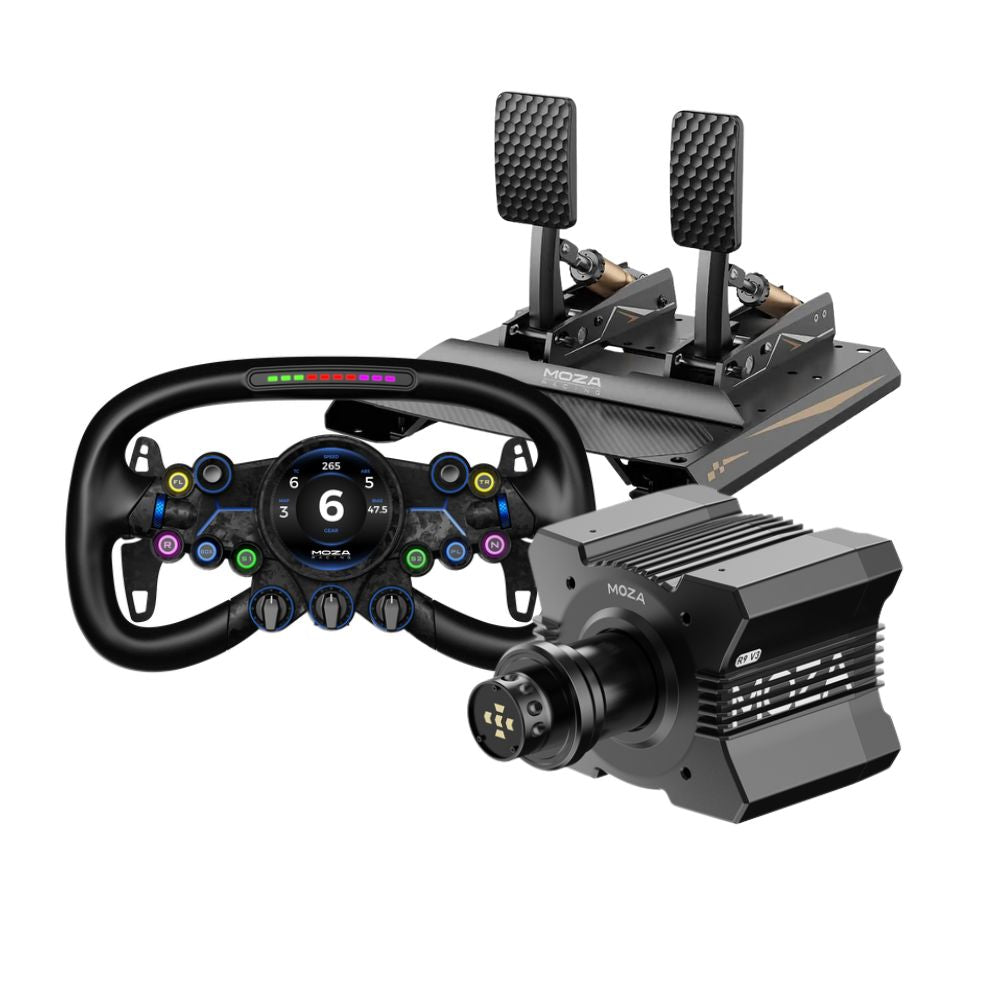

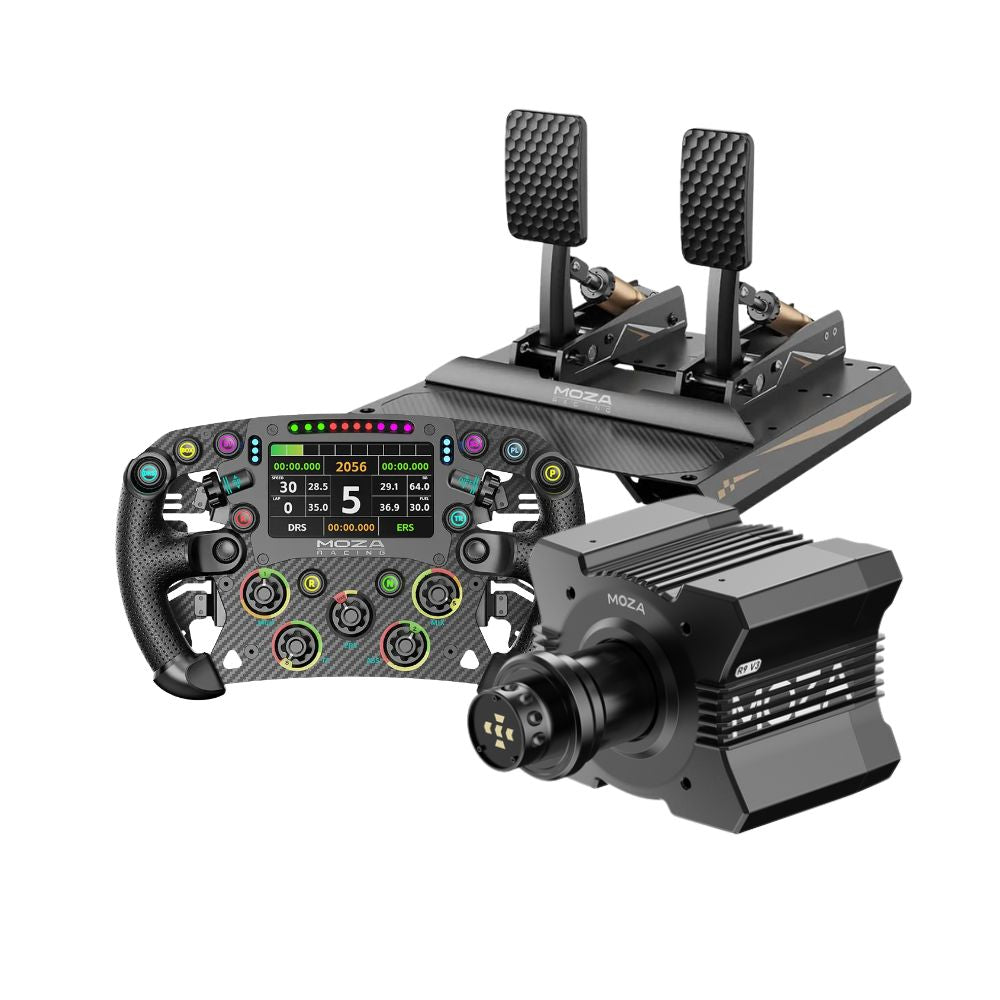

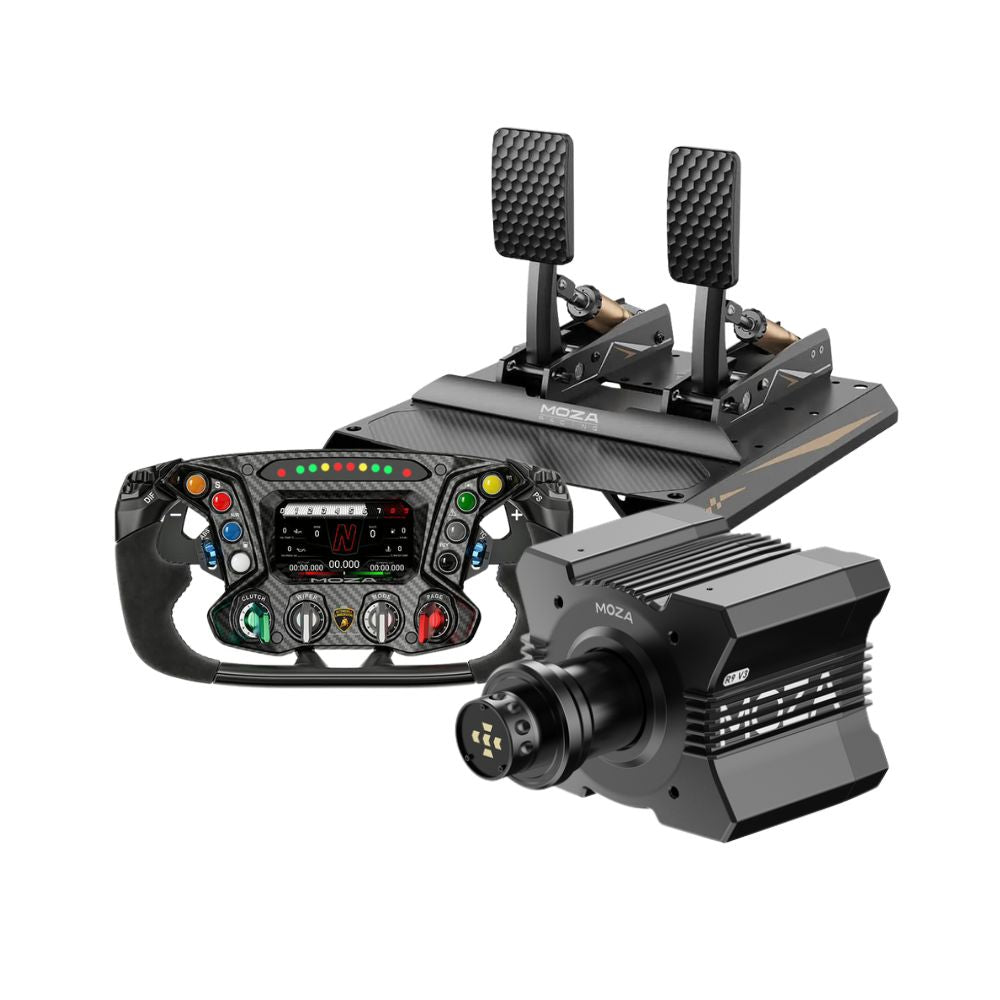

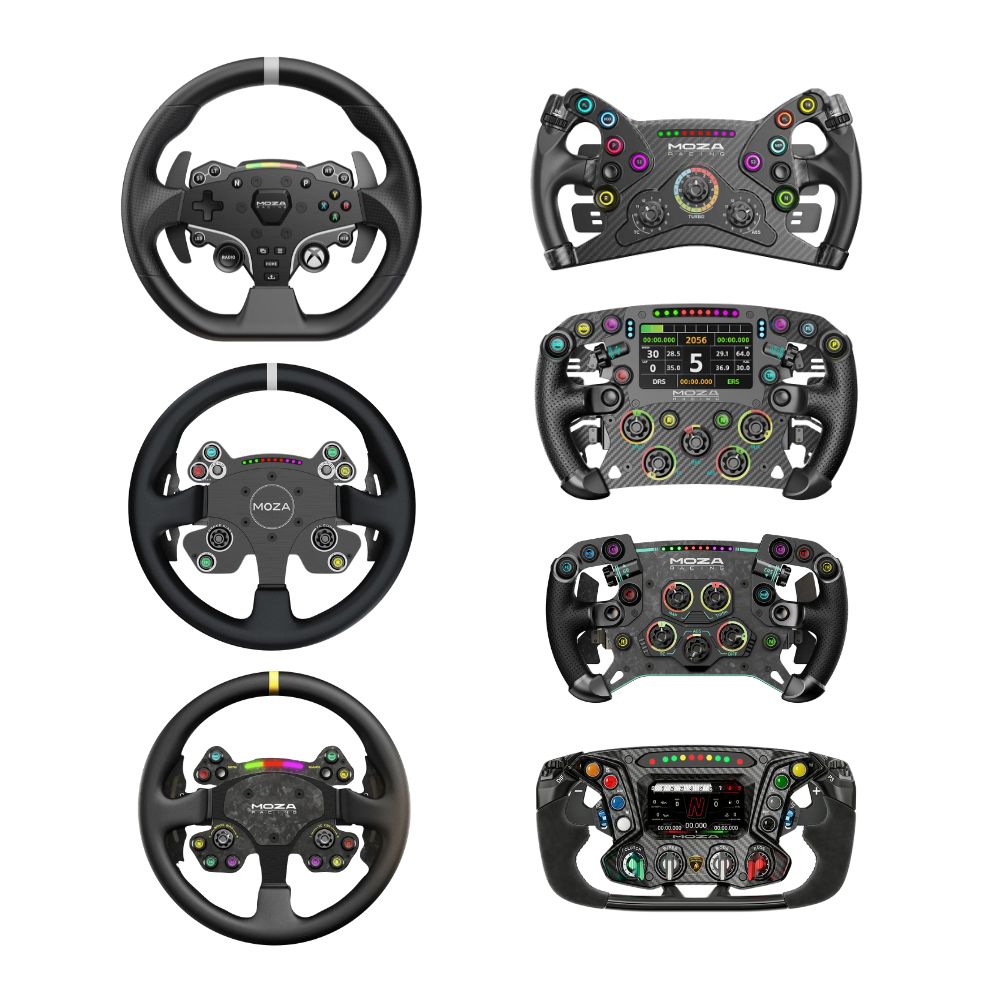

Every wheel in the MOZA Racing range fits the same base through the MOZA quick release, so the choice is about shape and controls rather than compatibility. Round GT rims suit touring and GT racing; formula rims suit open wheelers and put more controls in reach.
If you would rather have the hybrid load cell pedal set, the SRP2 pedal bundle is the same idea at a lower entry point. For truck simulation, the Trucking Bundle carries the TSW truck wheel, the stalks and the clutch. Base and wheel only is the base and wheel bundle.
“The pedals are the whole argument for this bundle. You can always add a load cell set later, but by then you have spent a season learning to brake on the wrong information, and that habit takes longer to unlearn than it sounds. The caveat is the wheel. It ships with the ESX because that is the one licensed for Xbox, so if you swap it for anything else in the range you are on PC only. Worth deciding before you choose, not after.”
Blake Sterling, CEO & Founder, Gamer Gear Direct
The R9 V3 direct drive wheelbase, the CRP2 load cell pedal set, and one MOZA racing wheel which you select above. The standard price includes the ESX wheel. A mount is not included.
Yes, as supplied. The standard ESX wheel is officially licensed for Xbox, which makes the setup Xbox and PC compatible. The other wheels in the range are PC only, so choose the ESX if you race on console.
A load cell brake measures pressure rather than travel, so braking is judged by how hard you push. That is closer to a real car and makes brake points far more repeatable once you have adjusted to it.
The SRP2 pedal bundle uses a hybrid load cell brake at a lower entry point. The CRP2 set here is the fuller pedal set, with more adjustment and a higher capacity brake.
Yes, extensively. Brake, throttle and clutch travel are all adjustable, the pedal faces move for height and angle, and the tuning is tool free. Inverted mounting is supported if your rig needs it.
Yes. Any wheel in the options above fits the same base through the MOZA quick release, and swapping rims later takes seconds.

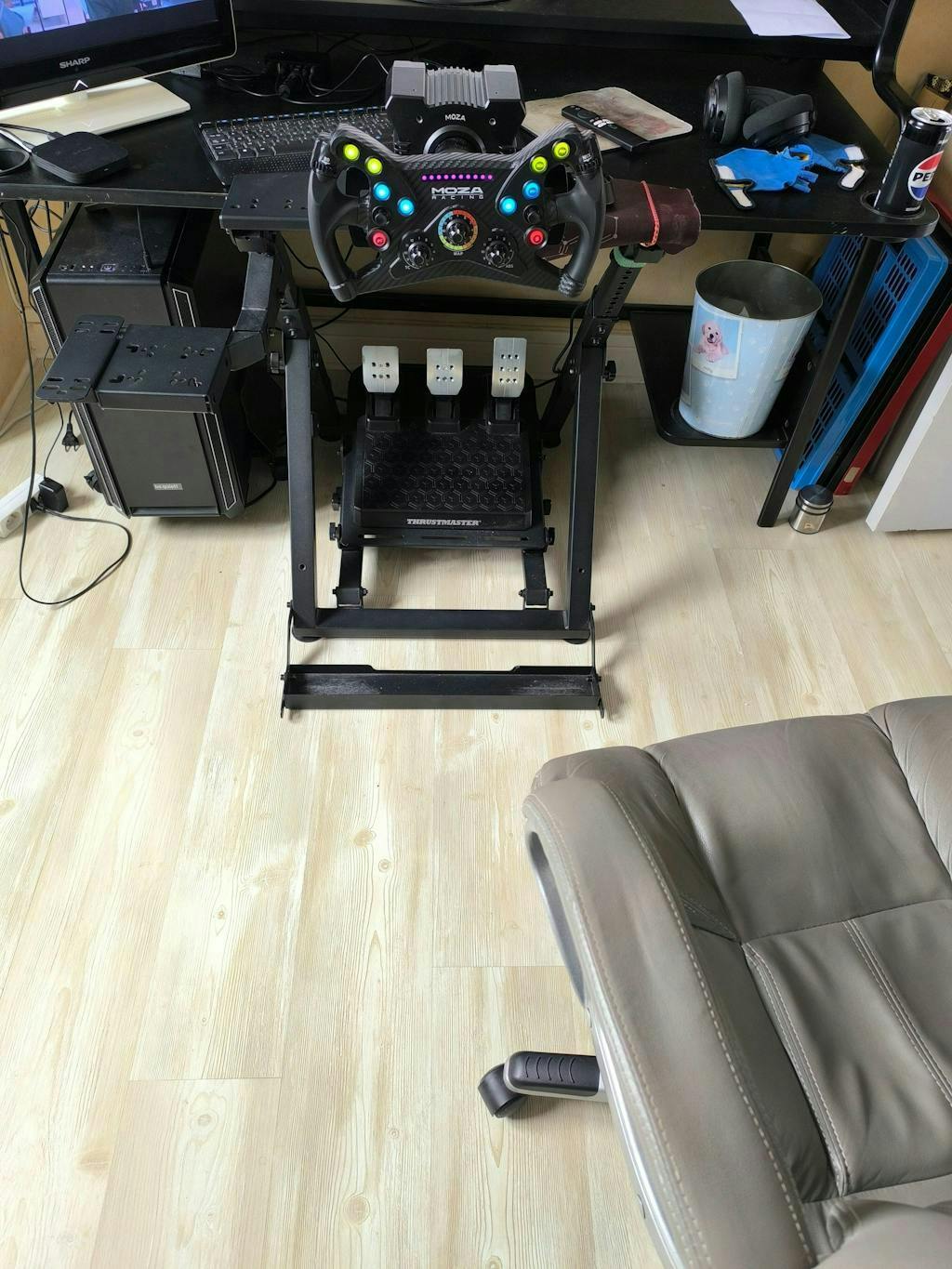

A rig or a desk clamp to mount the base, and a PC. Everything else is in the box.
Connect the base to your PC, install MOZA Pit House, and run the calibration once. Firmware updates go through the same software.
Then buy the base on its own. The MOZA R9 V3 wheelbase page covers the wheelbase alone, and the base and wheel bundle adds a wheel without pedals.
MOZA covers the wheelbase for 24 months and the power supply for 12 months. Gamer Gear Direct handles warranty support locally, and your rights under Australian Consumer Law apply in addition.
MOZA R9 V3 wheelbase
FFB Drive System
Direct Drive
Max Wheel Rotation
Limitless
Housing Material
Aviation Grade Aluminium Alloy
Colour
Black
Peak Torque
9 Nm
Peak Power
180W
Input Voltage
110V~220V AC to 36V DC
USB Refresh Rate
1000Hz
Encoder Resolution
21 bit
Indicator
YES
App Functions
Supported
Quick Release
Supported

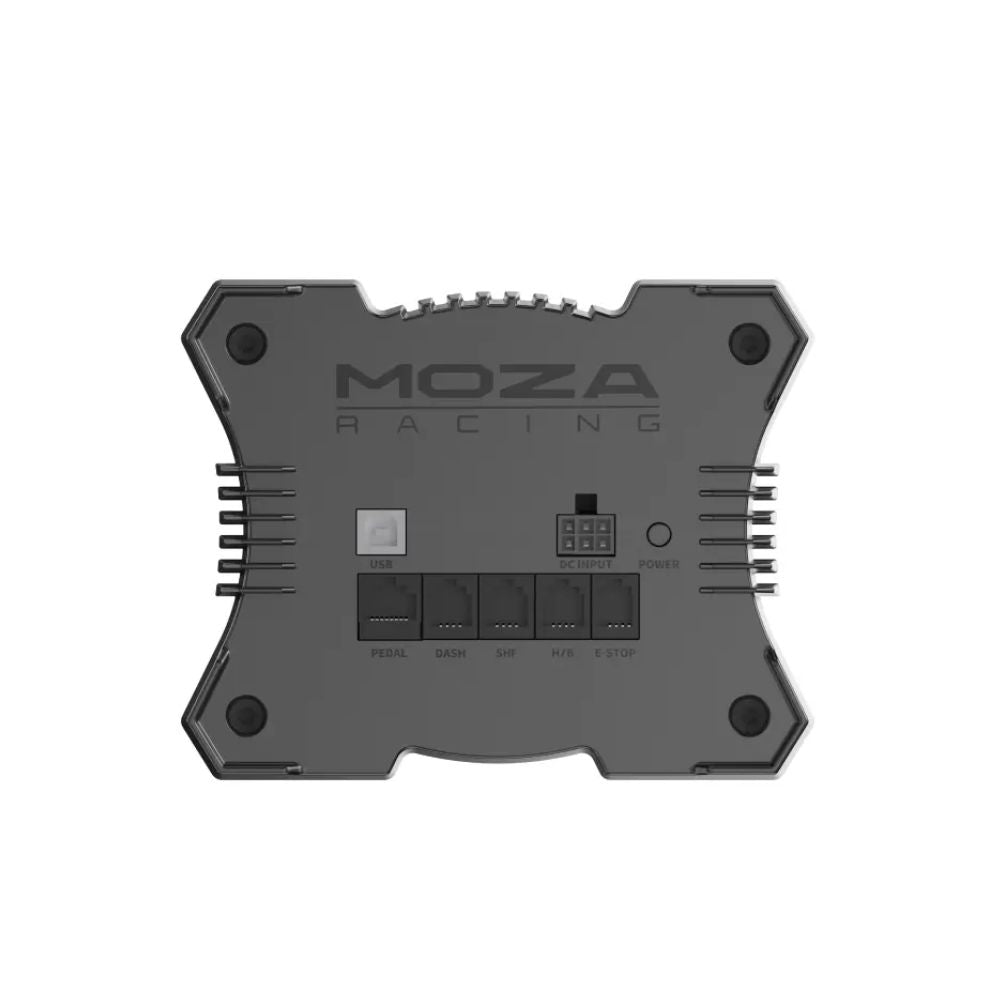

Connection Ports
Power, DC Input, E-stop, USB, Dash
Accessories
User manual, Warranty card, Power supply, USB cable, Toolkit
Mounting Method
Bottom mount
Side Mount Option
With optional side mount bracket
Desk Clamp
Optional
Emergency Stop Switch
Optional
Online Firmware Upgrade
Applicable
Firmware Update
Applicable
Dimension (L x W x H)（mm）
240*157*124
Weight
6.8kg
CRP2 load cell pedals
Pedal Body Material
Aerospace-grade aluminium alloy
Heel Plate Material
3K twill carbon fibre
Base Material
High-strength steel
Load Cell Sensor Range
0 to 200kg
Brake Sensor
Load cell sensor and angle sensor
Angle Sensor Resolution
15-bit (32768 PPR)
Brake Pedal Feel
115 standard adjustments, 1764 optional configurations
Throttle Adjustment
Two spring options with infinite adjustment
Clutch Adjustment
Two spring options with infinite adjustment
Brake Travel Adjustment
15 to 20°
Throttle Travel Adjustment
15 to 23°
Clutch Travel Adjustment
15 to 25°
Pedal Angle Adjustment
0 to 15°
Pedal Face Height Adjustment
Up to 30mm
Footrest Adjustment
Up to 30mm
Pedal Curve Adjustment
Adjustable
Real-time Pedal Output Display
Adjustable
Pedal Pressure Engagement Point
Adjustable
Pedal Surface
Biomimetic curved
Inverted Mounting Kit
Optional
ESX racing wheel
Grips
ISF PU
Face Plate Material
Aluminium Alloy
Shifter Paddle Material
Aluminium Alloy
Size
280mm
Buttons
22
RPM LED Light
10 High Brightness LED RGB Beads
Intelligent Telemetry
Supported
Fully Adjustable RPM LEDS through MOZA Pit House
Supported
Release Method
MOZA Quick Release
Wheelbase Compatibility: MOZA direct drive wheelbases, including the R9 V3 supplied in this bundle
1x R9 V3 wheelbase
1x CRP2 load cell pedals
1x ESX wheel
All accessories
MOZA stickers
User manuals
MOZA covers the R9 V3 wheelbase for 24 months, and the CRP2 pedals, the wheel and the power supply for 12 months, against defects in materials and workmanship. Warranty support is handled by Gamer Gear Direct’s Australian team. Every product is genuine and sourced through official MOZA distribution. Your rights under Australian Consumer Law apply in addition to the manufacturer warranty.
