Description

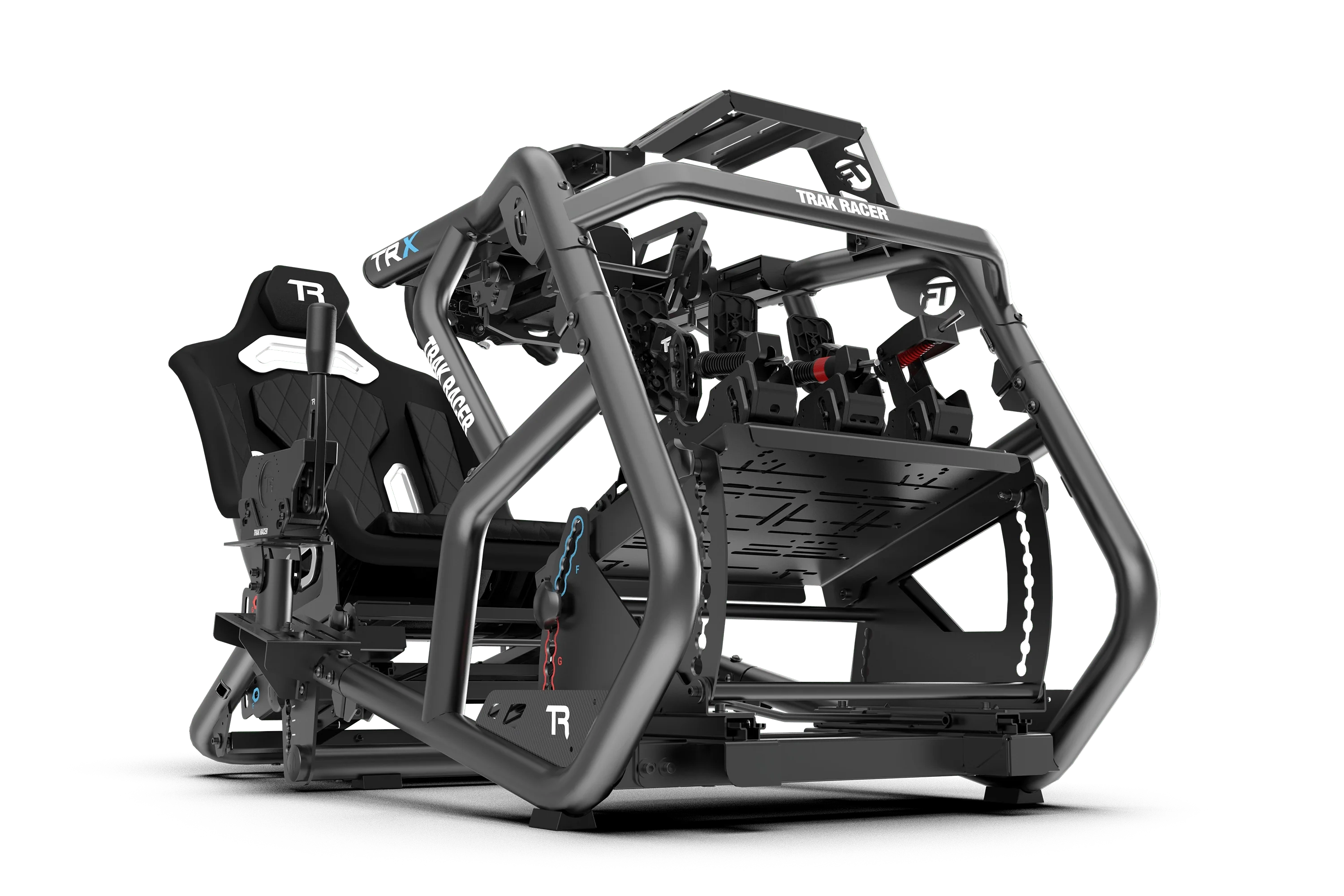

Trak Racer Racing TRX V2 Racing Simulator, Black
The Racing TRX V2 is the cockpit Trak Racer build when the answer is not allowed to be a compromise. It converts between formula and GT driving positions in minutes rather than half an hour, it takes wheelbases to 30Nm, and it weighs 89kg because that is what it takes to hold both while staying rigid.
The headline capability is the changeover. Trak Racer quote 3 to 5 minutes to move the TRX between a formula driving position and a GT one, with tool-free seat changes in under 10 seconds. For comparison the TR80S, TR120S and TR160 all quote around 30 minutes, and the TR8 Pro does not convert at all.
Underneath it is 2 inch tubular steel, 620 by 1507mm assembled and 89kg on the floor. It is by a wide margin the heaviest cockpit Trak Racer build, and mass is doing real work here: it is what keeps the wheel deck still while a 30Nm wheelbase argues with your hands.
Key features
- 2 inch tubular steel chassis
- Formula and GT hybrid system included as standard
- Changes between positions in 3 to 5 minutes
- Tool-free seat changes in under 10 seconds
- Rated for wheelbases from 0 to 30Nm
- Pedal plate rated to 180kg of braking force
- Four wheelbase mounting options
- Assembles in around 2 hours
Five minutes, not half an hour
That difference is the reason the TRX exists. Half an hour is a job you plan; five minutes is something you do between races because you feel like driving something else. One gets used, the other does not.
The wheel deck, the pedal plate and the seat all move without tools. The pedal plate slides fore and aft and adjusts for height and angle, supporting raised formula, low or angled GT and inverted mounting.
Trak Racer rate the TRX pedal tray adjustability as the highest in their range, which is what a frame designed around conversion from the start looks like.
Four ways to mount a wheelbase
Most cockpits give you one way to mount a wheelbase and expect your hardware to suit it. The TRX offers four: a wheel plate, a Fanatec direct drive side mount, a universal front mount and an Asetek front mount.
That matters because front-mounting and side-mounting suit different bases, and being locked to the wrong one means adapters, drilled holes or a wheelbase sitting further from you than it should.
The rating is 0 to 30Nm, which clears the strongest direct drive units, and the pedal plate is rated to 180kg of braking force. Browse the direct drive wheelbases for what pairs with it.
Colour, and what it says
Black is the version most people should buy, and not only because it disappears into a room. It is the finish that dates slowest and the one that photographs cleanest under the lighting people actually have.
It is also the reference colour for the platform. Every other TRX finish is this rig in a different paint, with identical frame, identical inclusions and identical figures.
If you want a livery rather than a neutral, the Tifosi Red, Silver Arrow, Bull Blue and Papaya finishes are the same cockpit with motorsport colour, and the Alpine Racing TRX V2 carries the team livery and badging.
What comes with it, and what does not
Included: every chassis section, the wheel mount, the fast-adjusting pedal mount, the seat assembly with height and angle adjustment, seat slider rails, rubber feet and an assembly tool kit.
Not included: the seat itself, the wheelbase, the wheel, the pedals and the monitor stand. The shifter mount and handbrake mount are optional extras here, where the TR160 V5 includes the shifter mount as standard.
Monitor mounting on the TRX is an optional integrated single stand up to 70 inches. For triples or quads, a freestanding stand is the route and it takes the load off the cockpit at the same time.
Our expert take
"Black is the one I would buy and the one I recommend by default. Colour on a rig this size is a commitment, and the finish that never looks dated is the one you stop noticing after a fortnight."
"Against the TR8 Pro V2, which is also tube frame, the TRX buys three things: formula and GT conversion in five minutes rather than not at all, 30Nm instead of 25, and four wheelbase mounting options instead of one. You give up an hour more assembly and 207mm more length."
- Blake Sterling, Founder & CEO, Gamer Gear Direct
Frequently asked questions
How quickly does it change between formula and GT?
Trak Racer quote 3 to 5 minutes for the full changeover, with tool-free seat changes in under 10 seconds. It is the fastest conversion in the range.
What wheelbase torque does it handle?
0 to 30Nm, with four mounting options: wheel plate, Fanatec direct drive side mount, universal front mount and Asetek front mount.
Does it include a seat?
No. The seat assembly with its height and angle adjustment and the seat slider rails are included, but the seat shell itself is chosen separately.
How big is it and how long does it take to build?
620 x 1507mm assembled, 89kg, and around 2 hours to build.
Is the shifter mount included?
No, the shifter mount and handbrake mount are both optional on the TRX.
Specifications
SKU: TRX-BLK24-AU
Colour: Black
Type: Racing simulator cockpit, tubular steel
Chassis: 2 inch tubular steel
Assembled footprint: 620 x 1507mm (24.4 x 59.33 inches)
Weight: 89kg (196lb)
Assembly time: Around 2 hours
Wheelbase torque rating: 0 to 30Nm
Pedal plate rating: 180kg braking force
Formula and GT hybrid pedal system: Included as standard
Changeover time: 3 to 5 minutes, with tool-free seat changes in under 10 seconds
Wheel mounting options: Wheel plate, Fanatec direct drive side mount, universal front mount, Asetek front mount
Pedal mount: Fast-adjusting, fore and aft slide with height and angle
Seat slider rails: Included
Shifter mount: Optional
Handbrake mount: Optional
Monitor mount: Optional integrated single up to 70 inches
Motion: Motion ready, motion base required, such as the Trak Racer TR Move platform (D-BOX actuators)
Seat, wheelbase, wheel, pedals and monitor: Not included
Warranty: 5 years
What's In The Box?
All tubular steel chassis sections
1x Wheel mount as selected
1x Fast-adjusting pedal mount
Seat assembly with height and angle adjustment
Seat slider rails
Floor-protecting rubber feet
Assembly tool kit
