Description
Thrustmaster Raceline LC Upgrade Kit
The Thrustmaster Raceline LC Upgrade Kit adds a load cell brake to your Raceline pedal set. Instead of reading how far the pedal moves, a load cell measures how hard you press, so you brake by pressure the way you would in a real car.

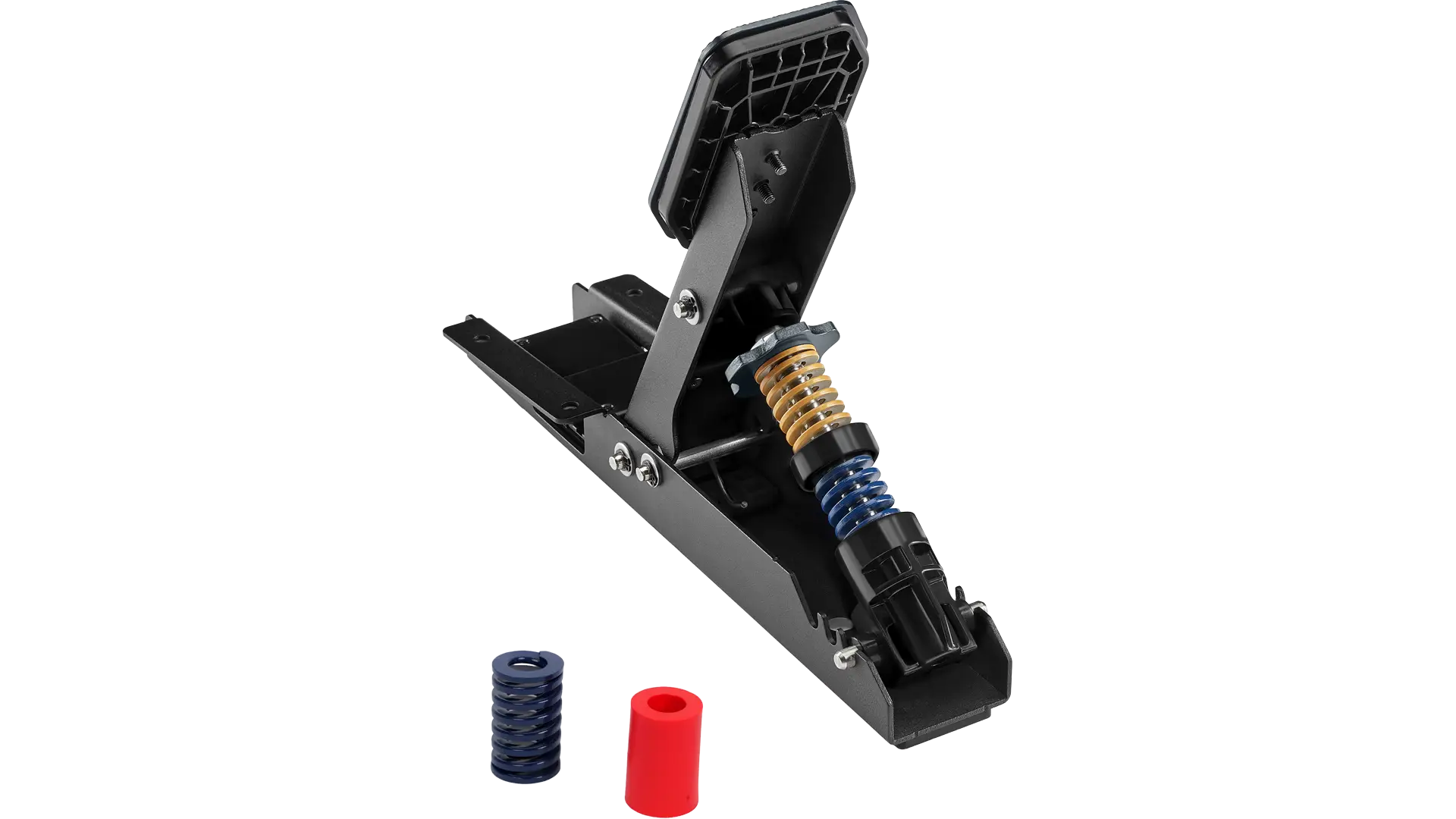

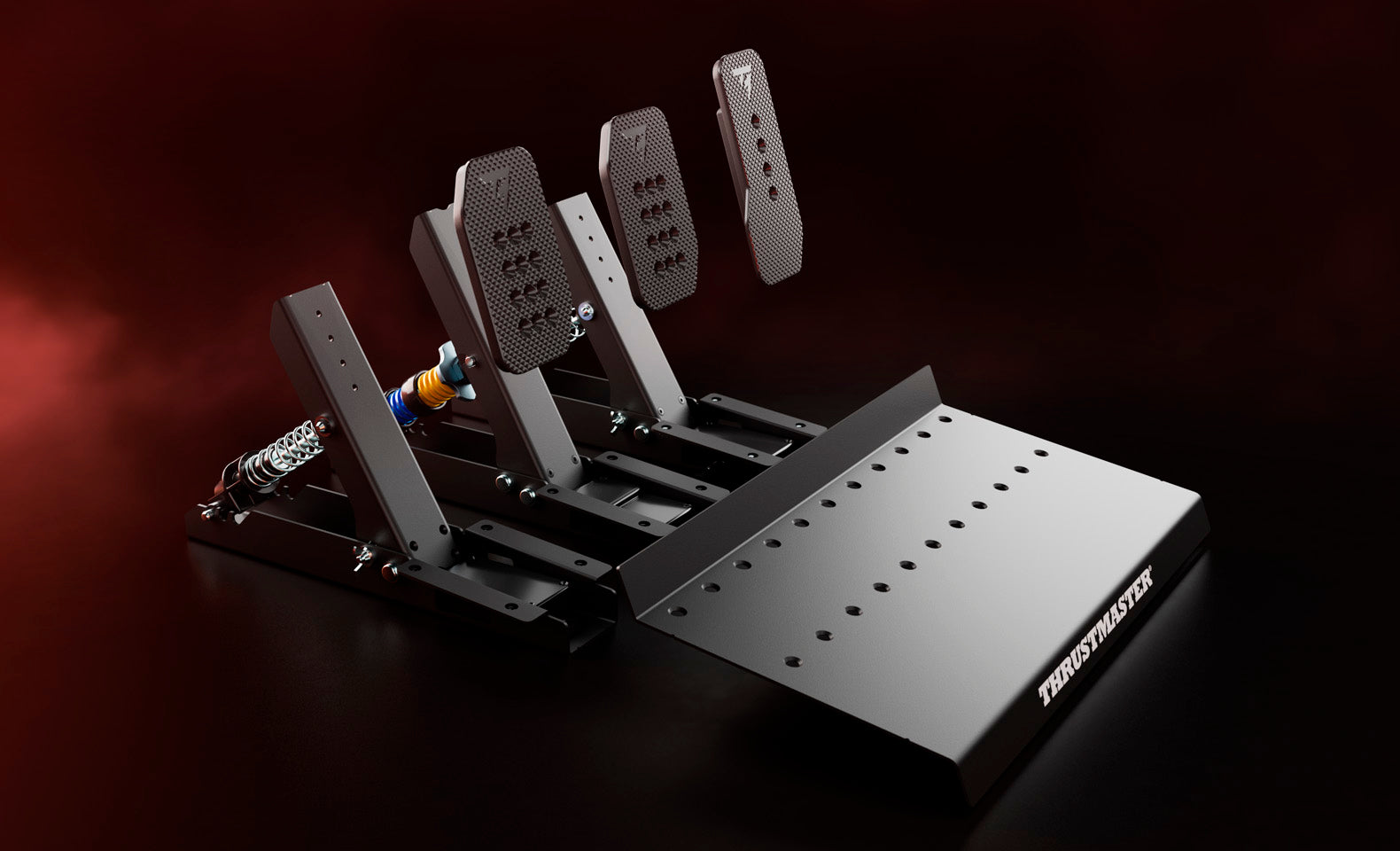

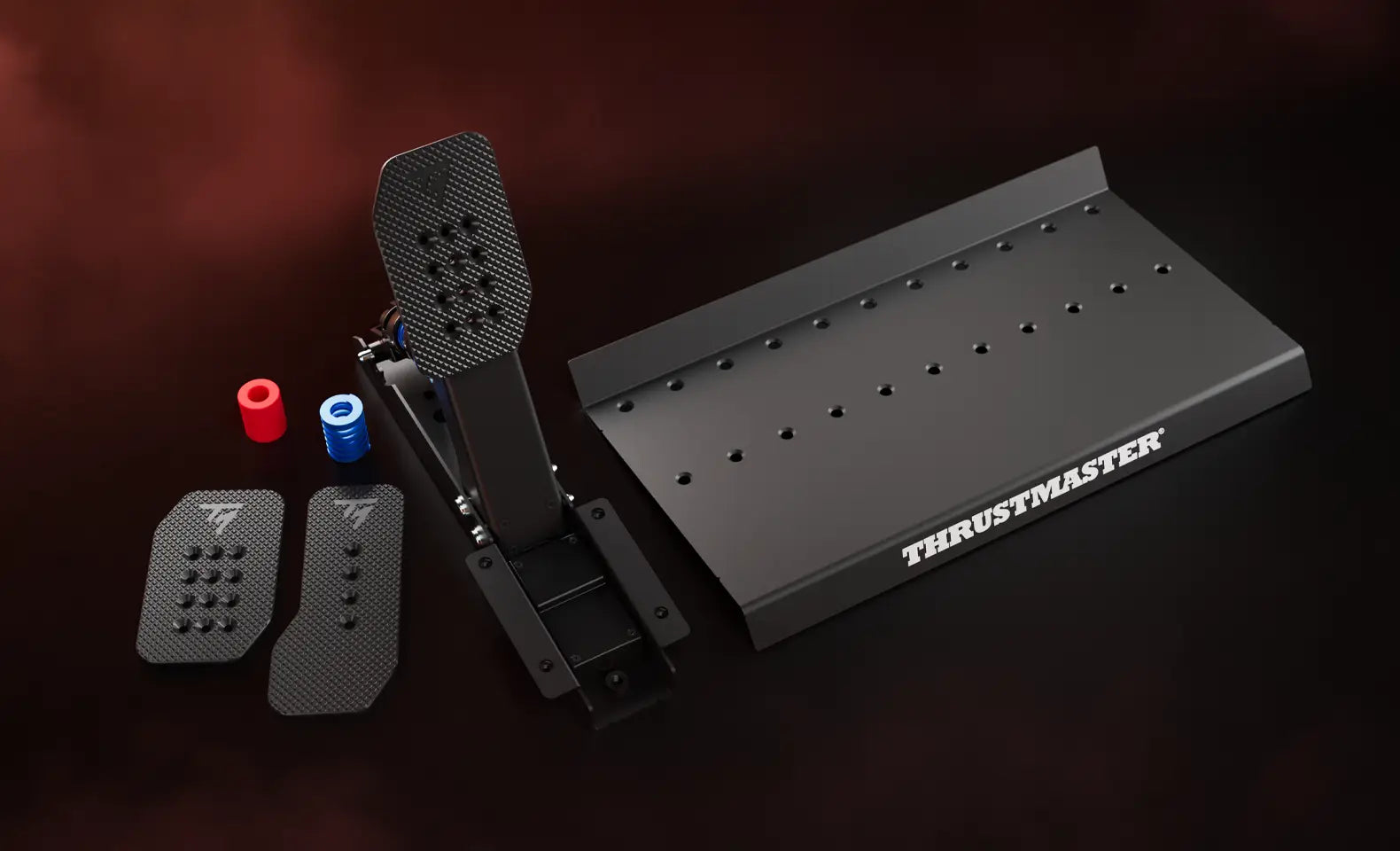

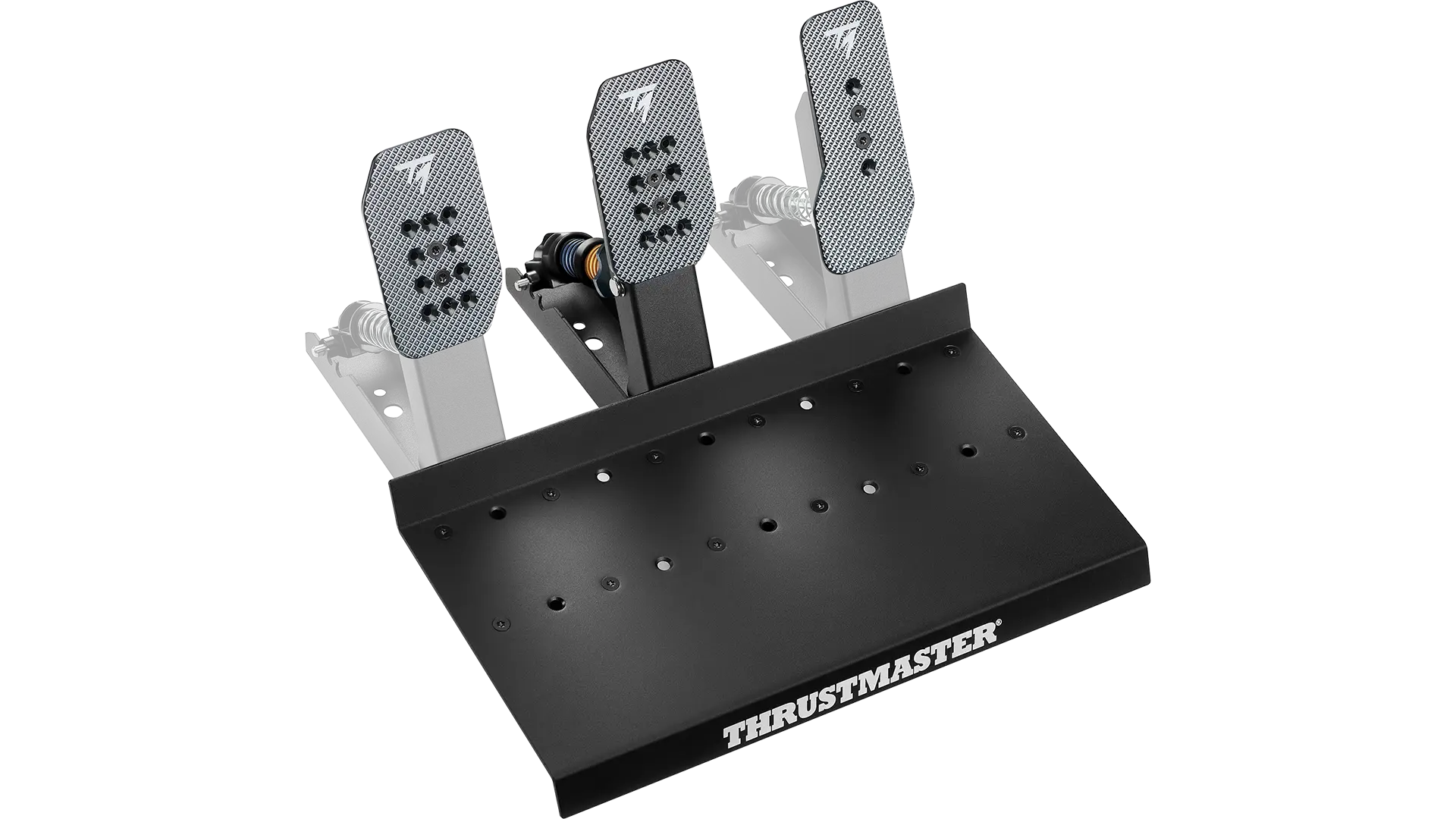

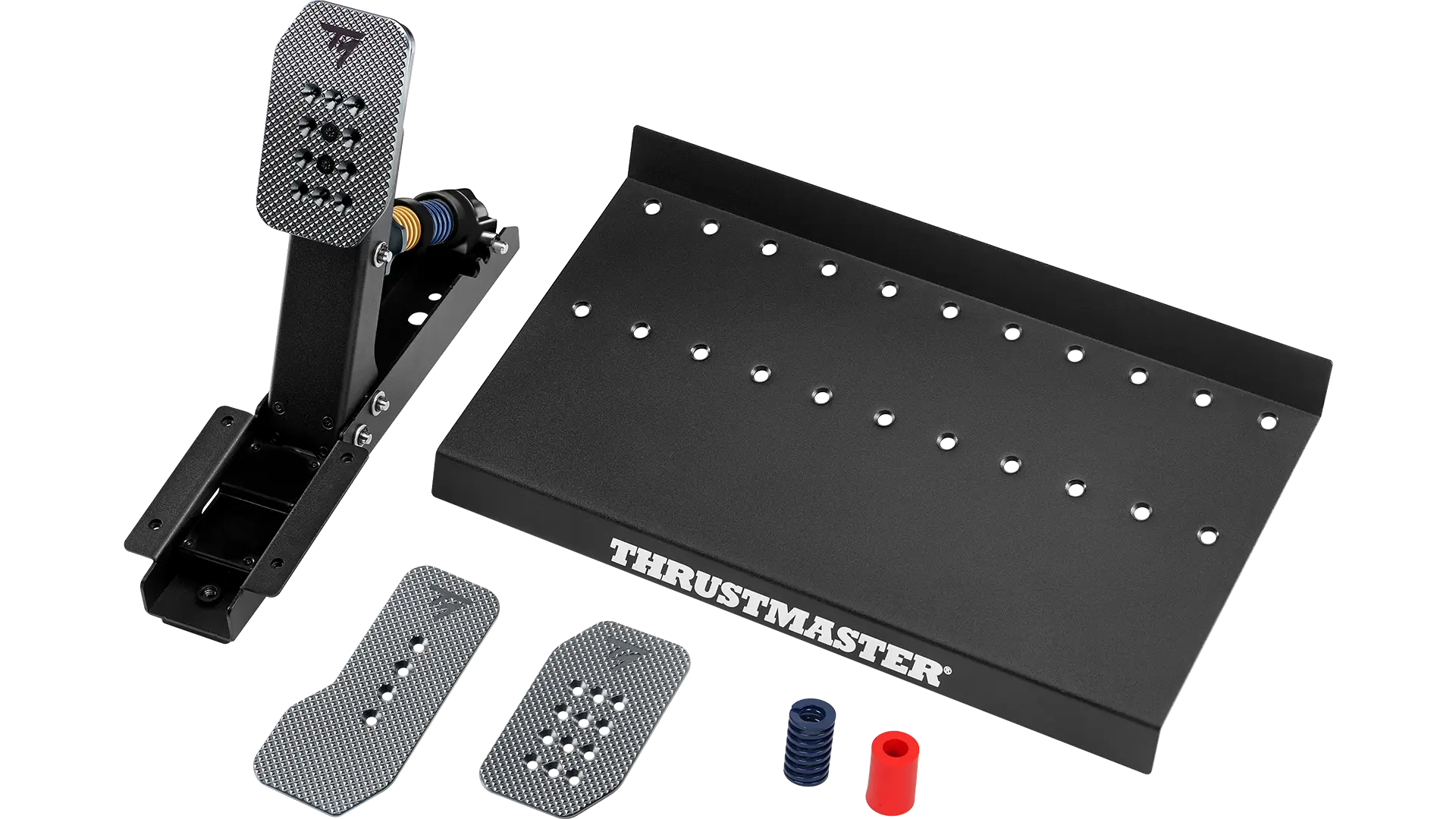

The kit includes the load cell brake pedal, a metal top plate for three pedals, metal heads for the clutch and accelerator, and an extra spring and elastomer buffer. Fitted together, it turns a Raceline pedal set into a Raceline Pedals III LC.
It is designed for the Thrustmaster RaceLine Pedals III and the Raceline Pedals LTE, and works on PC, PlayStation and Xbox. It is part of the Thrustmaster range.
Key features
- Load cell brake pedal for Raceline pedal sets
- 100kg load cell with 24-bit resolution
- Four brake force configurations from 25 to 100kg
- Preload dial in 5kg steps
- Tool-free spring and elastomer changes
- Metal top plate for three pedals
- Metal clutch and accelerator pedal heads
- Settings in My Thrustmaster Panel or on the T598 Race Dash
- Works on PC, PS5, PS4 and Xbox
- Fits Raceline Pedals III and Raceline Pedals LTE
Brake by pressure, not travel
A standard brake pedal reports its position, so braking is about how far your foot moves. A load cell reports force, which is how a real brake behaves under your foot. That makes it easier to repeat the same braking point lap after lap and build muscle memory.

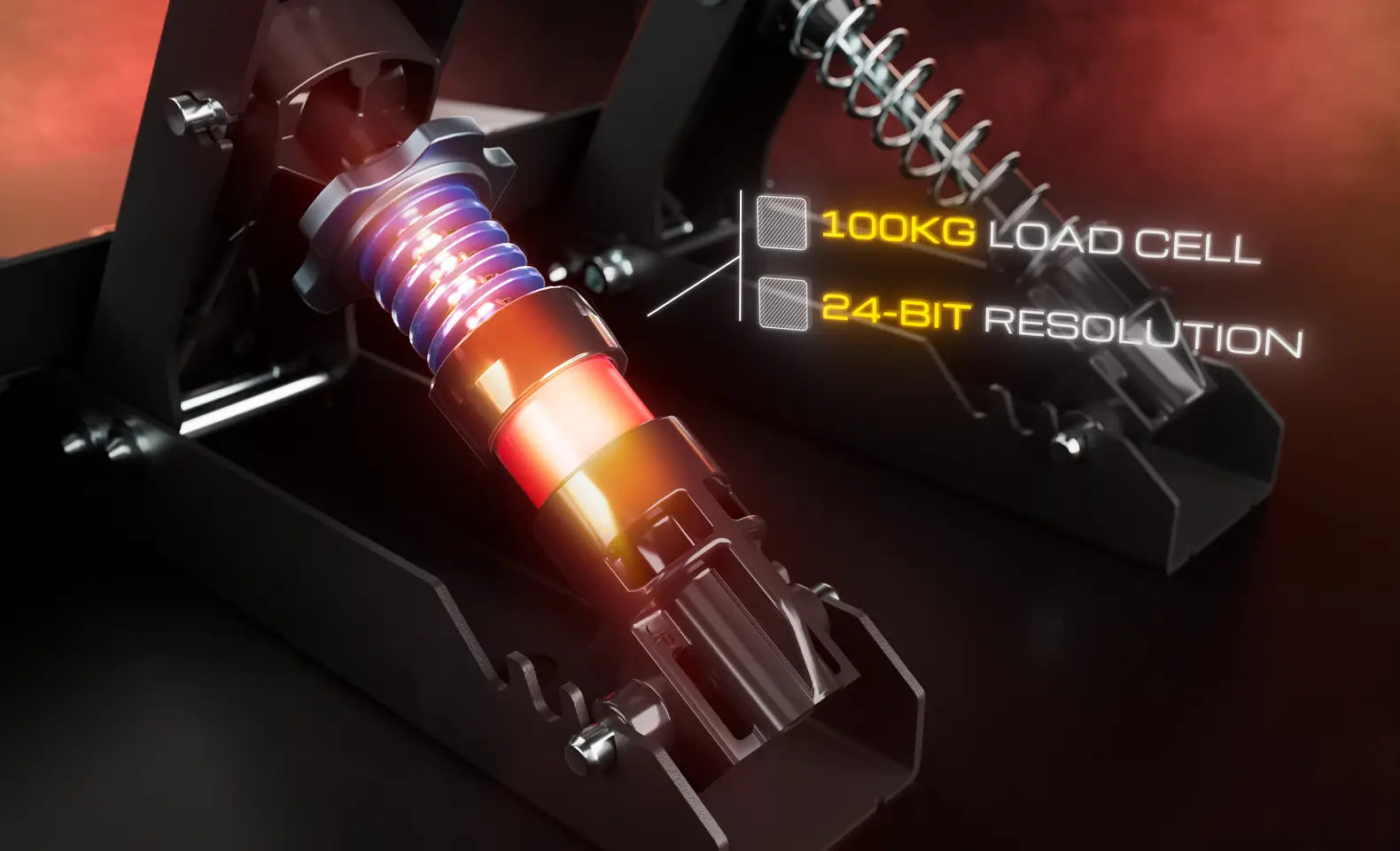

The sensor in the Raceline LC brake is rated to 100kg and reads with 24-bit resolution across an 11 degree travel angle, so small changes in pressure come through to the game.
Set the brake to suit you

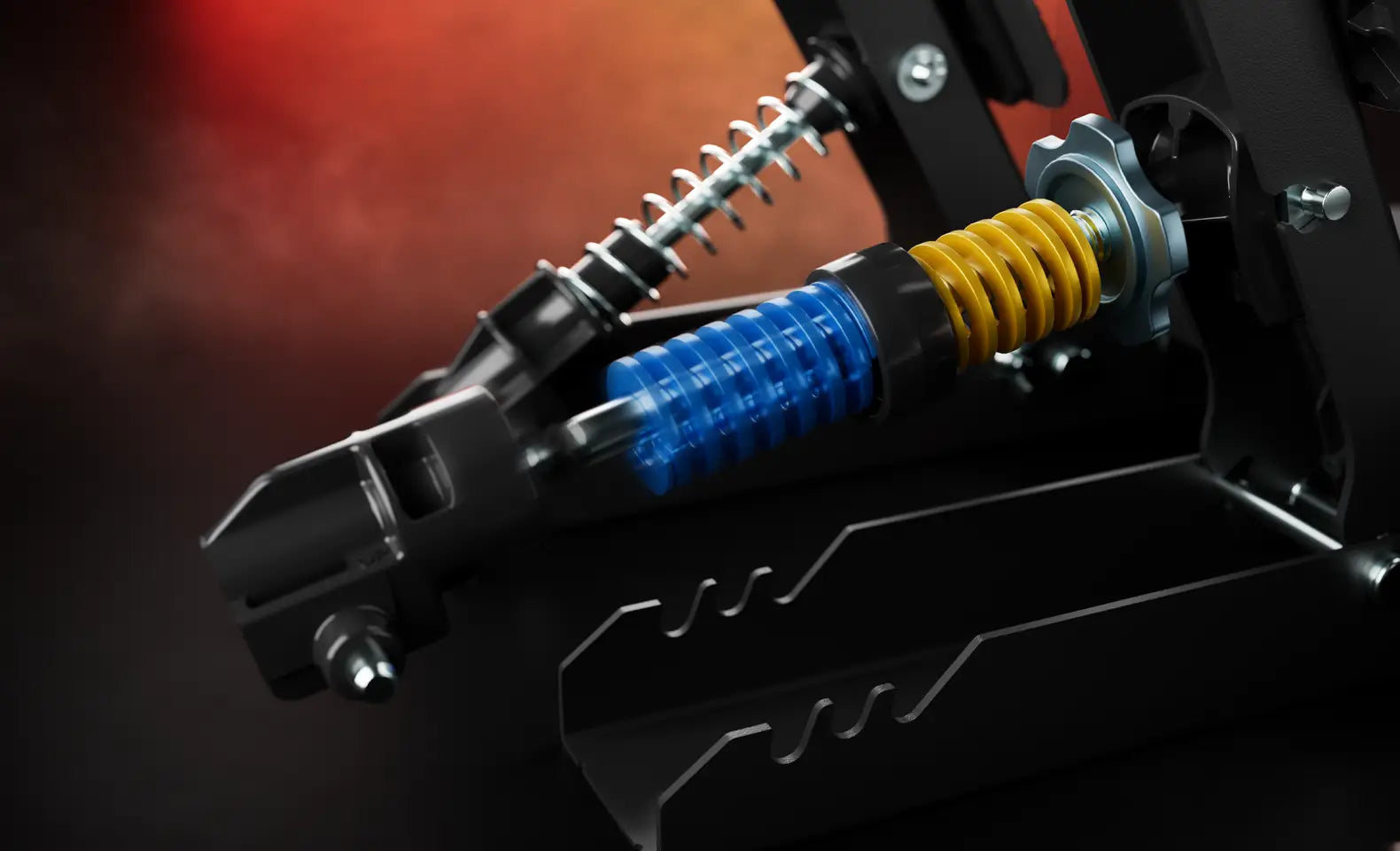

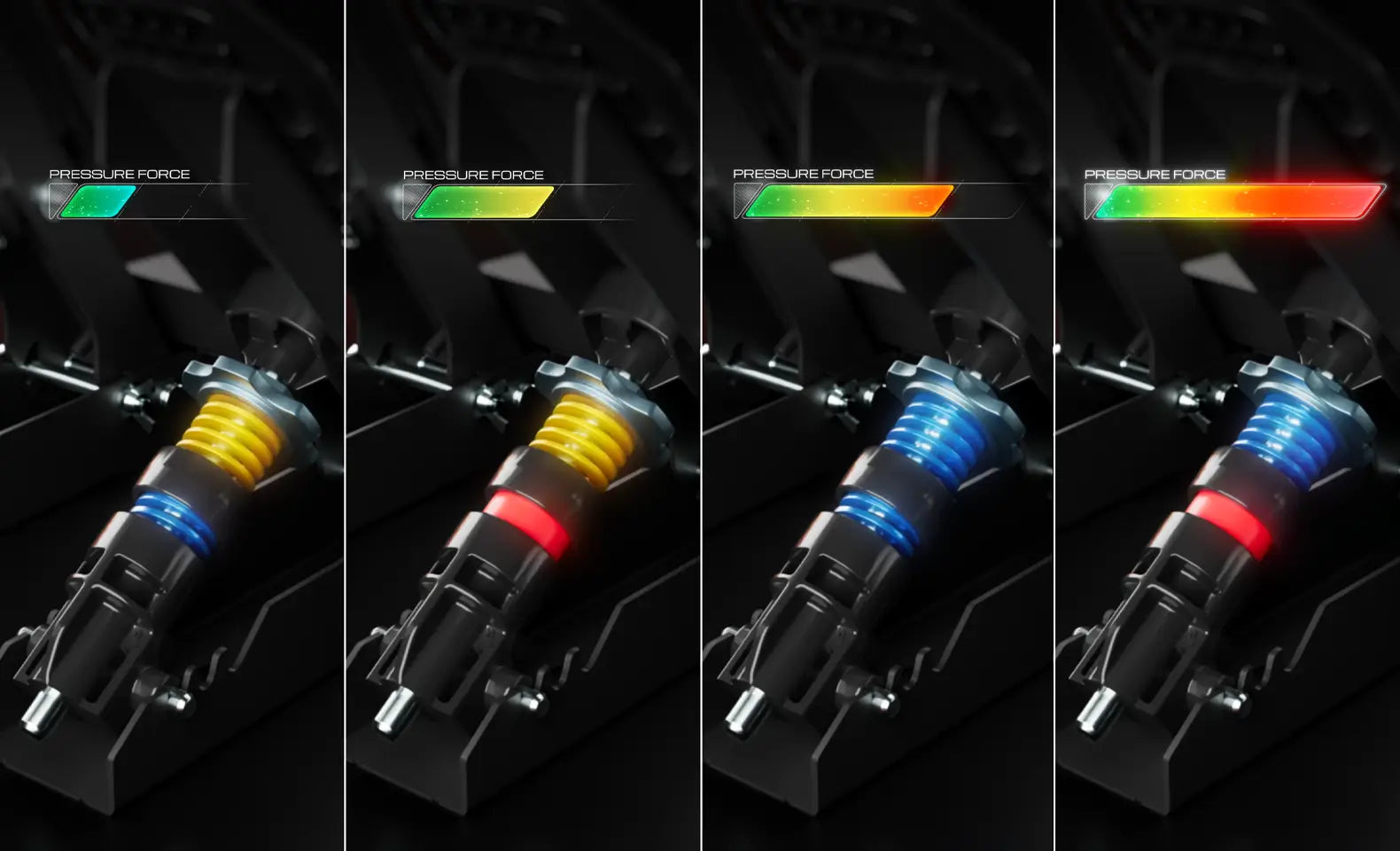

The brake has four configurations that set the maximum pressure force anywhere from 25 to 100kg. You switch between them using the three springs and the elastomer buffer included, and no tools are needed.
A preload dial then fine-tunes the force in steps of 5kg. A lighter setup suits a desk or table, while the firmer settings suit a pedal set bolted into a cockpit.
Tune it in software

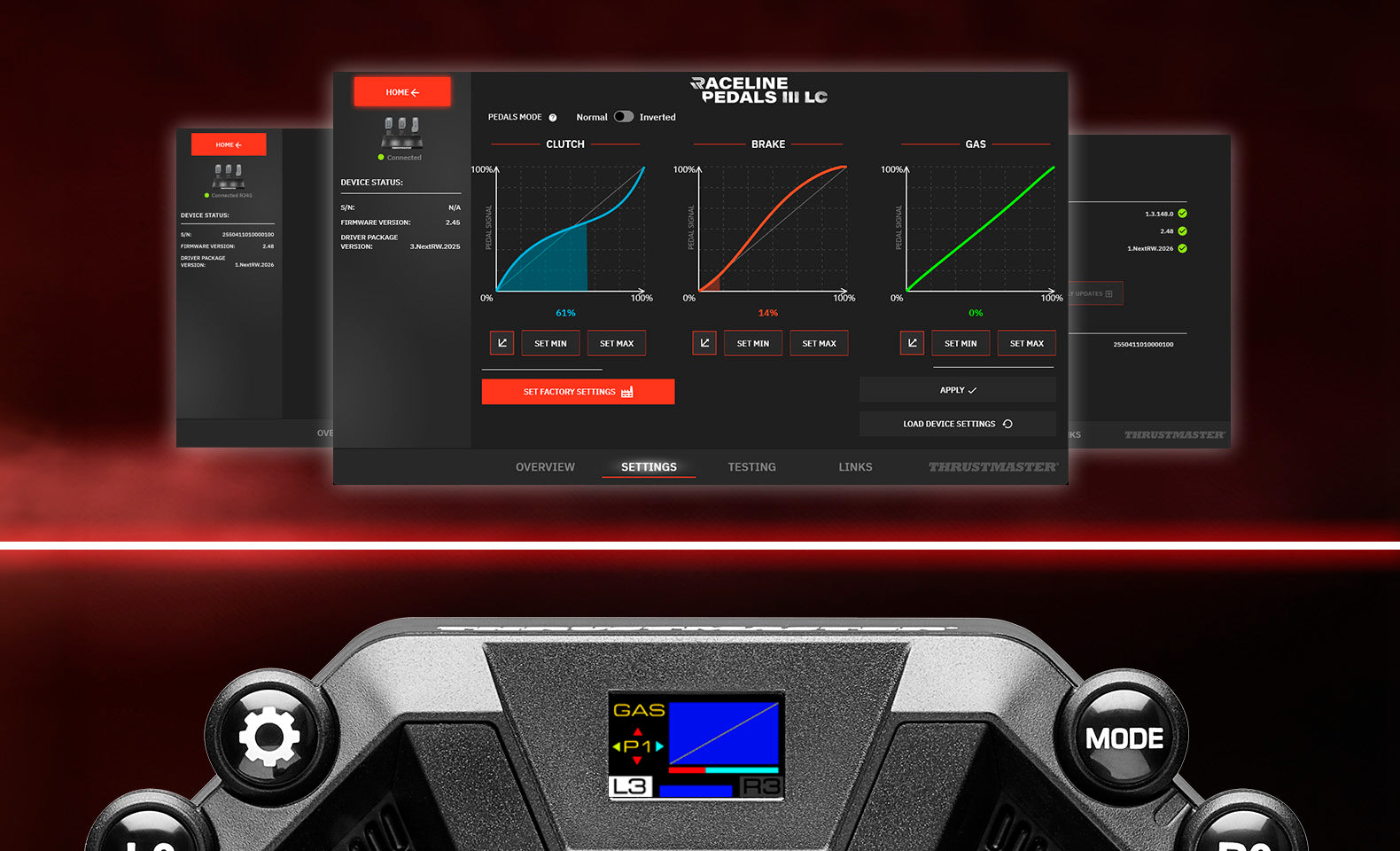

Once fitted, the pedals can be adjusted in My Thrustmaster Panel on PC or directly on the Race Dash screen of the T598 wheel base. You can change each pedal's travel, add dead zones and shape the response curves with the Equalizer.
That puts the fine tuning in one place if you race on the Thrustmaster T598 Direct Drive Bundle.
Compatibility
The kit is compatible with the Raceline Pedals III and Raceline Pedals LTE pedal sets. On PlayStation and Xbox it works through Thrustmaster force feedback wheel bases, with the exception of the T500.
On PC (Windows 10 and 11) the pedal set connects by USB, so it works alongside any wheel base. Browse our sim racing pedals for complete pedal sets.
Our expert take
"Moving to a load cell brake is one of the most worthwhile upgrades you can make to a pedal set, and this kit lets Raceline owners do it without replacing pedals they already own. The range of spring settings means it can start soft on a desk and firm up as your setup does."
"It is an upgrade kit, so you need a Raceline Pedals III or Raceline Pedals LTE set to fit it to, and T500 owners are left out on console. To get the most from the higher force settings, mount the pedals in a racing simulator cockpit rather than leaving them loose on the floor."
- Blake Sterling, Founder & CEO, Gamer Gear Direct
Frequently asked questions
Which pedal sets does the Raceline LC Upgrade Kit fit?
It fits the Raceline Pedals LTE and the Thrustmaster RaceLine Pedals III. With the kit fitted, the set becomes a Raceline Pedals III LC.
Does it work on PlayStation and Xbox?
Yes. On PS5, PS4 and Xbox it works through Thrustmaster force feedback wheel bases, except the T500. On PC (Windows 10 and 11) the pedals connect by USB and work with any wheel base.
How heavy is the brake?
The maximum pressure force can be set from 25 to 100kg across four configurations, with a preload dial for 5kg adjustments in between.
Do I need tools to change the brake feel?
No. The springs and elastomer buffer can be swapped without tools. A Torx wrench is included for adjusting the pedals.
Can I adjust the pedals in software?
Yes. Pedal travel, dead zones and response curves can be set in My Thrustmaster Panel on PC or on the T598 Race Dash screen.
What warranty does the Raceline LC Upgrade Kit have?
It is covered by a 2-year Thrustmaster manufacturer warranty, supported locally by the Gamer Gear Direct team.
Specifications
Model: Thrustmaster Raceline LC Upgrade
Product code: 173051
Sensor: Load cell, 100kg capacity, 24-bit resolution
Brake travel: 11 degrees
Brake force: 4 configurations, 25 to 100kg, preload dial in 5kg steps
Construction: Metal
Compatible pedal sets: Raceline Pedals III, Raceline Pedals LTE
Compatible platforms: PC (Windows 10, 11), PS5, PS4, Xbox
Console compatibility: Thrustmaster force feedback wheel bases, excluding T500
Dimensions: 350mm W x 360mm D x 210mm H
Colour: Black
What's In The Box?
1x Brake Pedal LC
1x Carpet grip non-slip pad
1x Metal top plate for 3 pedals
1x Gas metal pedal head
1x Clutch metal pedal head
1x Clutch spring
2x 2.5mm jack to 3.5mm jack pedal-to-pedal cables
1x RJ45 pedal set cable
1x Triple 3.5mm jack to RJ12 cable
1x USB-C pedal set cable
1x Torx wrench to adjust pedals
Warranty flyer
Instruction flyer
