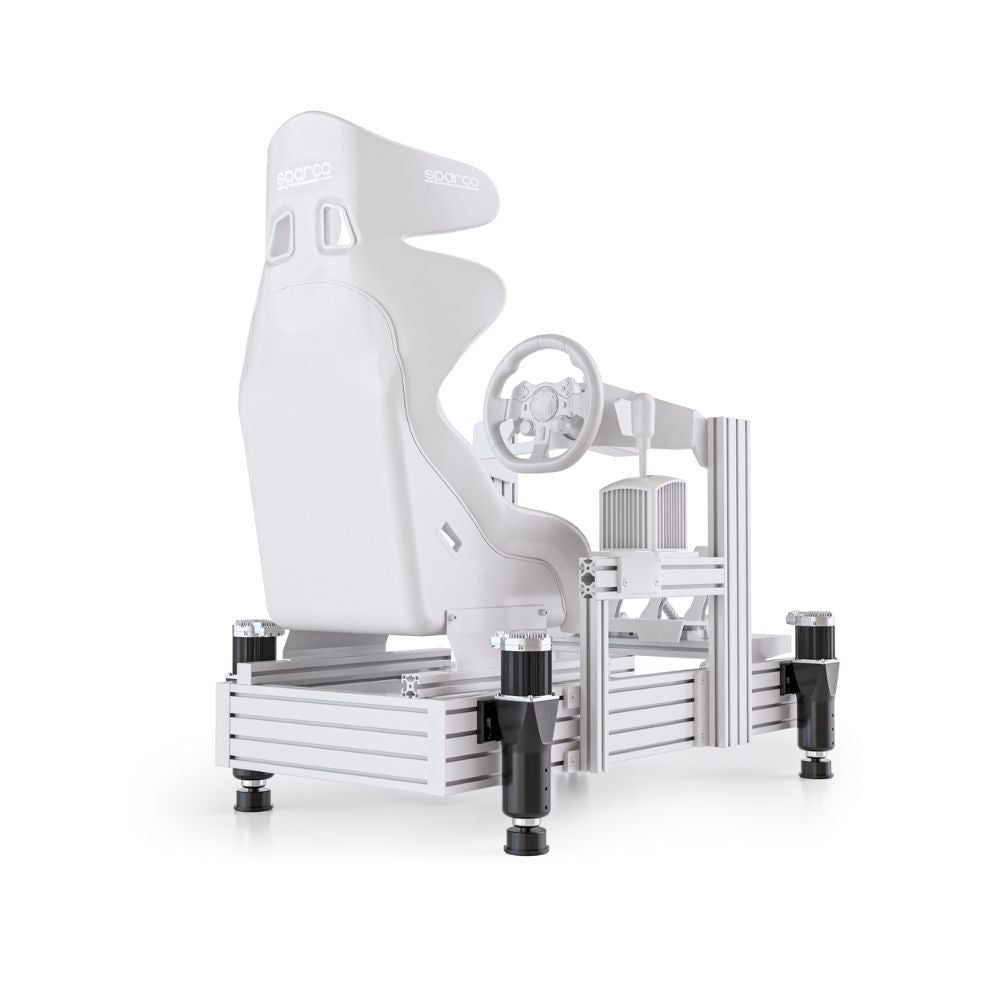

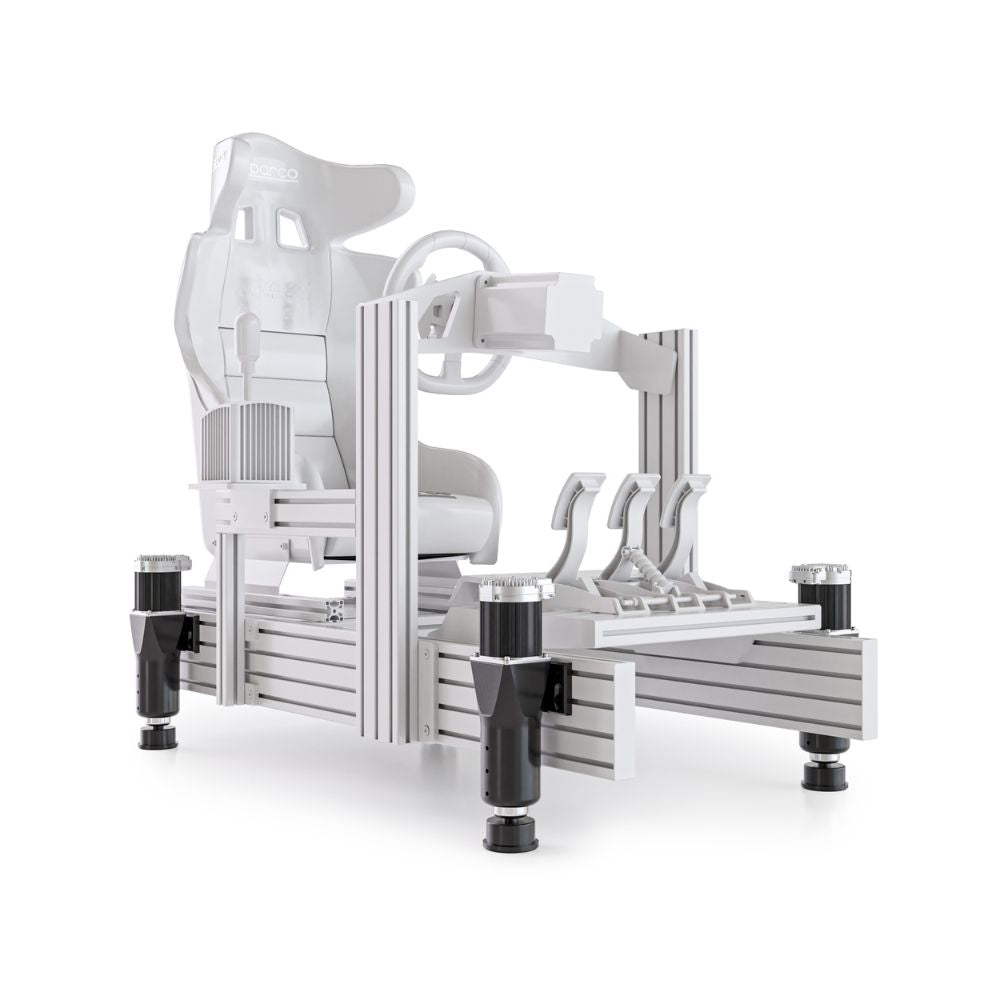

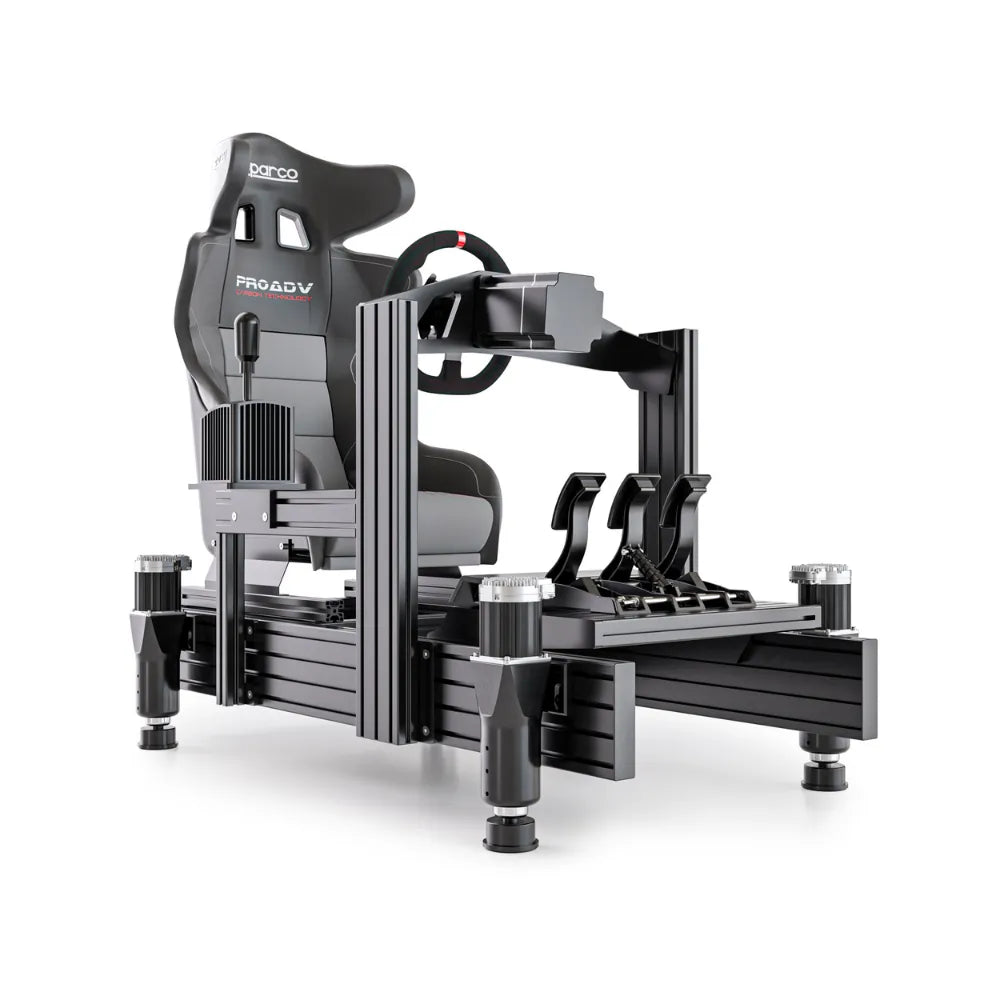

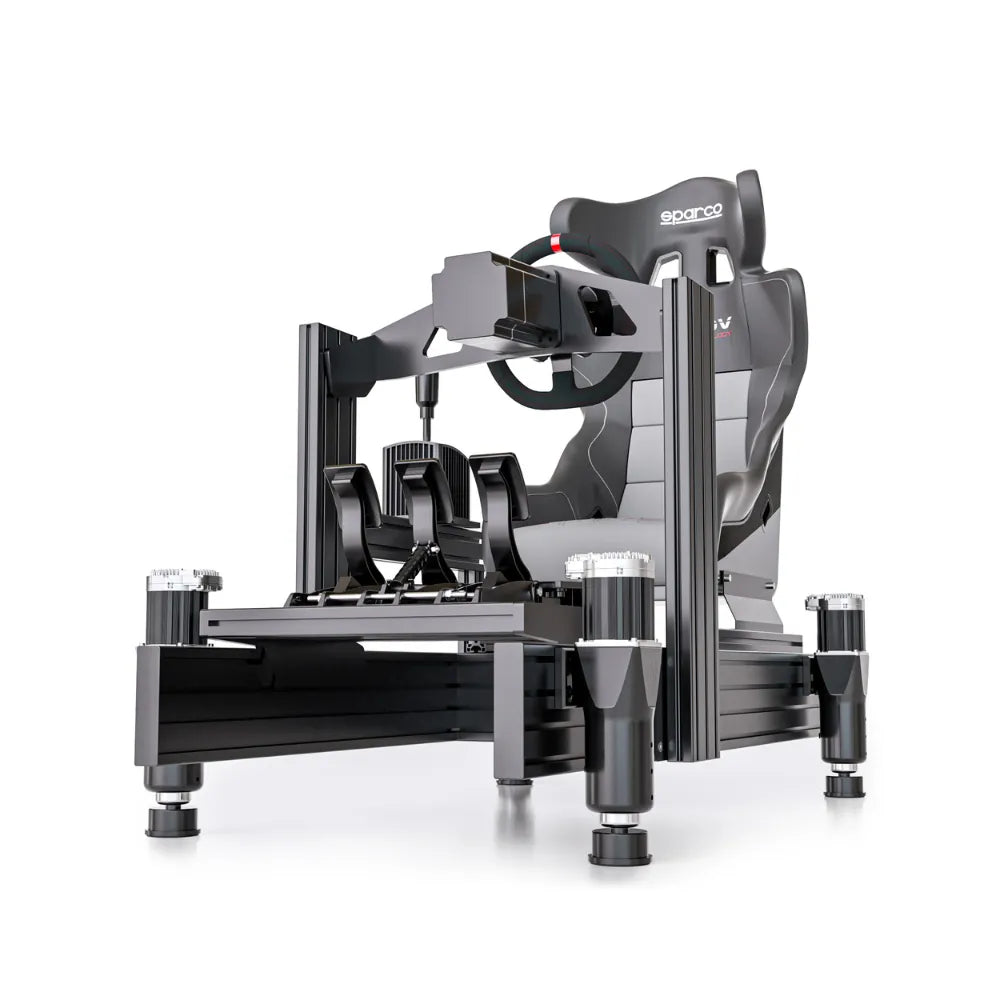

Sigma Integrale DK2+ Motion System

Save $400.00
Original Price $12,399.00
Current Price $11,999.00

✔ Authorised Australian Dealer
✔ Fast Shipping Australia Wide
✔ 30 Day Money Back Guarantee
✔ Backed By Manufacturer Warranty
✔ Questions? Call Us (03) 9961 0240

Secured and trusted checkout with

Notify me when back in stock

Shipping Calculator

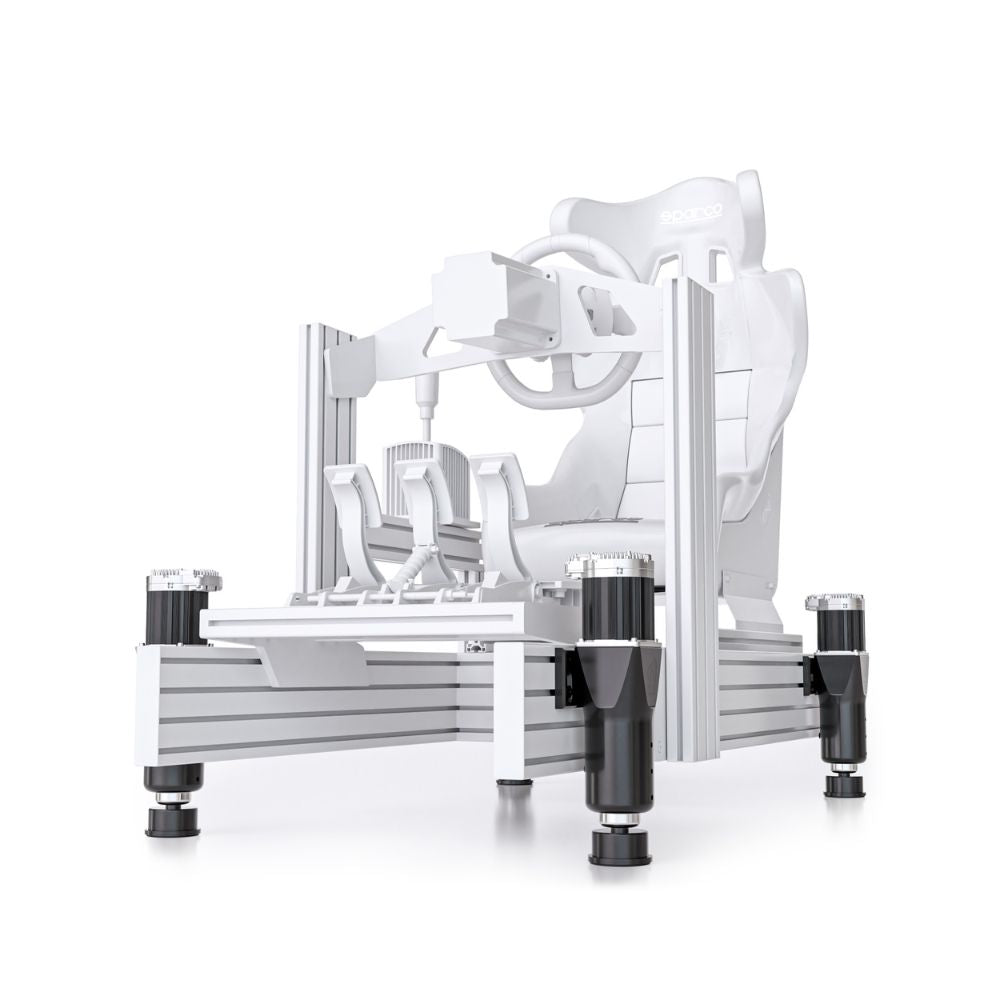

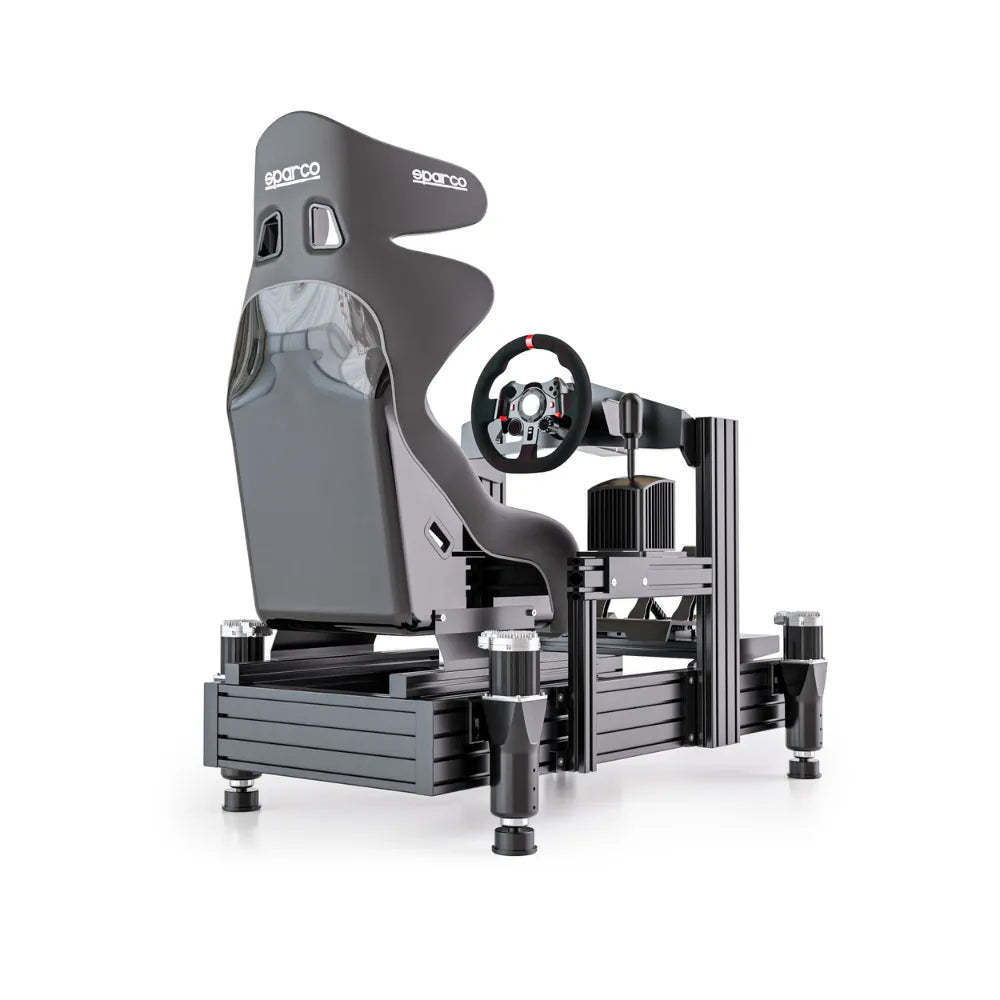

The Sigma Integrale DK2+ motion system delivers insanely-realistic sim racing motion

Unlock the full potential of your sim racing experience with the Sigma Integrale DK2+ motion system.

Designed with larger motors than the DK2 system, the DK2+ can handle 363 kg supported mass (rig and driver) versus the 227kg of the DK2 system. This makes the DK2+ perfect for heavy duty rigs or heavier drivers.

The DK2+ sim racing motion system offers unparalleled precision and responsiveness. With this system installed to your rig, you’ll feel every shift, turn, bump, knock and terrain variation exactly as you would on the track.

The DK2+ is engineered to mirror real vehicle dynamics, capturing and replicating every movement with astounding accuracy, thanks to the 50mm mechanical stroke, custom algorithms & simulation software.

There are no pre-recorded effects like other motion systems. Just pure, unadulterated racing realism.

Whether you're a seasoned racer, an enthusiastic beginner, or a professional researcher, the DK2+ offers a high-fidelity motion simulation experience that truly stands out in the world of virtual motorsports.


Key features


  • Feel every detail in your racing thanks to Sigma’s custom algorithms & simulation software
  • Crafted to perfection from premium billet aluminium
  • 50mm, solid steel pistons designed for exceptional durability and precision, even under intense loads
  • Equipped with high-quality American-made motors and controllers
  • Less than 1ms latency (faster than the blink of an eye) for an ultra-responsive racing experience
  • Comes with licence-free, easy-to-use software that updates automatically, keeping your system at peak performance without fuss
  • Maintenance-free operation, just set up and start racing with zero downtime
  • Maximum weight capacity of 363kg (rig and driver) makes the DK2+ suitable for heavy sim setups
  • Billet-machined floating feet with large rubber pads for maximum stability and minimal vibration
  • Includes aluminium T-slot mounting hardware for hassle-free installation on most profile rigs
  • Single controller box compatible with both 115V and 240V outlets and includes hardware to mount to your rig
  • All necessary network and power cables included
  • Automatic over-the-air firmware updates, ensuring your system always runs the latest enhancements with zero downtime
  • Backed by a robust 3-year electrical and 1-year mechanical warranty

Custom Sigma Integrale motion algorithms gives the DK2+ mind-blowing motion and haptics

Thanks to Sigma's proprietary motion layer algorithms, every aspect of the race—from the roar of the engine to the subtleties of roll, heave, and terrain changes—is replicated with stunning accuracy.

Feel the pulse of every RPM and the grit of every surface as if you were truly there, all delivered through a system designed to translate virtual into reality with breathtaking precision.

The DK2+ motion system offers a simulation experience that’s as close to real as it gets. Every turn and twist is an opportunity to test your skills against the most realistic and responsive racing simulation on the market.

Buckle up and prepare for a driving experience that not only mimics but mirrors the complexities of a real race environment.

Sigma Integrale DK2+ Motion System

All Sigma Integrale motion systems are designed and engineered in America

When it comes to sim-racing, the Sigma Integrale DK2+ stands apart with its bullet-proof build quality, designed to withstand the toughest racing conditions without a sweat.

Every component, from the American-made motors and controllers to the billet-machined floating feet, is engineered for exceptional durability and signal control.

The core of the DK2+ system and its resilience lies in its all-billet aluminium construction and robust 50mm solid steel pistons, guaranteeing optimal haptic transfer and the ability to handle significant side loads without faltering.

This motion system supports up to a huge 360 kg (rig and driver) with its 4-actuator setup.

The DK2+ promises years of maintenance-free operation, with its lubrication-free setup.

Sigma Integrale DK2+ Motion System

50mm actuator travel provides all the movement you need for intense, mind-blowing motion

The DK2+ motion system is engineered with a precise 50mm of actuator travel.

Drawing from decades of expertise in full-scale commercial simulators, Sigma Integrale has distilled their knowledge into a consumer-ready system that delivers hyper-realistic, accurate, and deeply immersive simulations.

Whether it’s the subtle drift of a car on a tight corner or the jolt from an uneven track, the DK2+ makes every detail palpable.

This compact yet powerful travel range is your secret weapon for an unmatched simulation experience. With the DK2+, you're completely immersed in your racing or flight environment.

Each movement is a direct response to your actions, providing a seamless blend of technology and reality that elevates your sim-racing to new heights.

Get ready to feel every twist, turn, and terrain change with an accuracy that only Sigma Integrale can deliver—because when it comes to simulation, precision is everything.

Sigma Integrale DK2+ Motion System

The DK2+ features an easy, plug-and-play setup

Get ready to hit the track faster than ever with the Sigma Integrale DK2+ motion system, designed for effortless installation and immediate enjoyment.

Forget about complicated setups and technical headaches, the DK2+ comes with everything you need to securely bolt the system to your rig and start racing.

Powered by a single controller box that attaches directly to your setup, this motion system is the height of plug-and-play convenience. Just connect it, and you’re ready to go—no fuss, no muss.

Beyond easy installation, the DK2+ keeps things smooth with its user-friendly, licence-free Sigma software.

Automatic over-the-air updates ensure your system always operates with the latest enhancements at no extra cost.

This means more time racing and less time troubleshooting. With free lifetime firmware updates, your racing experience will only get better over time, keeping you in the driver's seat with the most up-to-date technology.

Sigma Integrale DK2+ Motion System

Download the Sigma Integrale DK2+ user manual

Looking for detailed information on installing the Sigma Integrale DK2+ motion system? Then click on the link below to download the DK2+ user manual.

PDF Installation Instructions

Frequently asked questions

What makes the Sigma Integrale DK2+ motion system unique?

The DK2+ system stands out due to its incredibly realistic simulation, capturing every detail with Sigma’s proprietary motion layer algorithms. This system ensures an immersive experience by accurately replicating engine RPMs, rolls, heaves, and terrain changes.

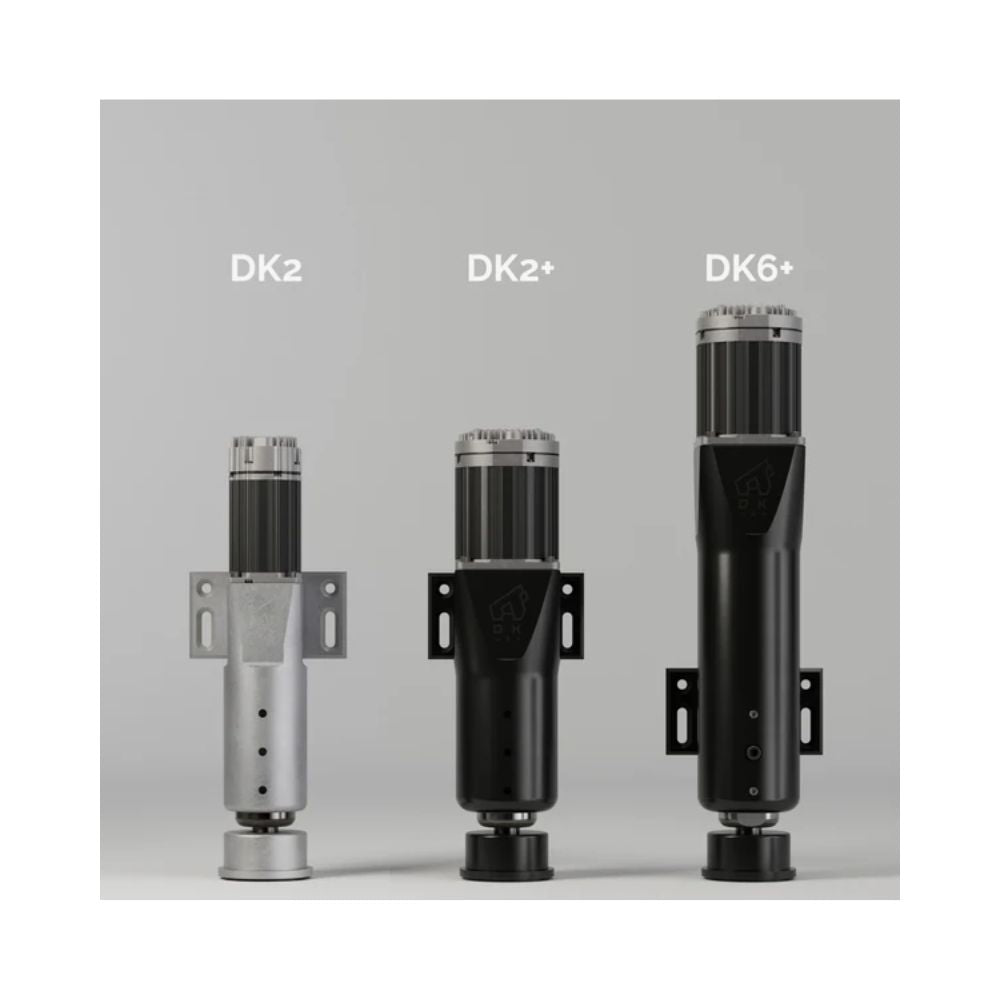

What’s the difference between the DK2 and the DK2+ motion systems?

The DK2+ features a larger motor that can handle more weight. The max weight capacity for the DK2 is 227kg (rig + driver), whereas the DK2+ system can handle up to 360kg (rig and driver).

How does the DK2+ enhance sim racing realism?

With its precise 50mm actuator travel and custom algorithms, the DK2+ provides an experience that mirrors real-world driving dynamics, making every twist and turn feel like you're actually on the track.

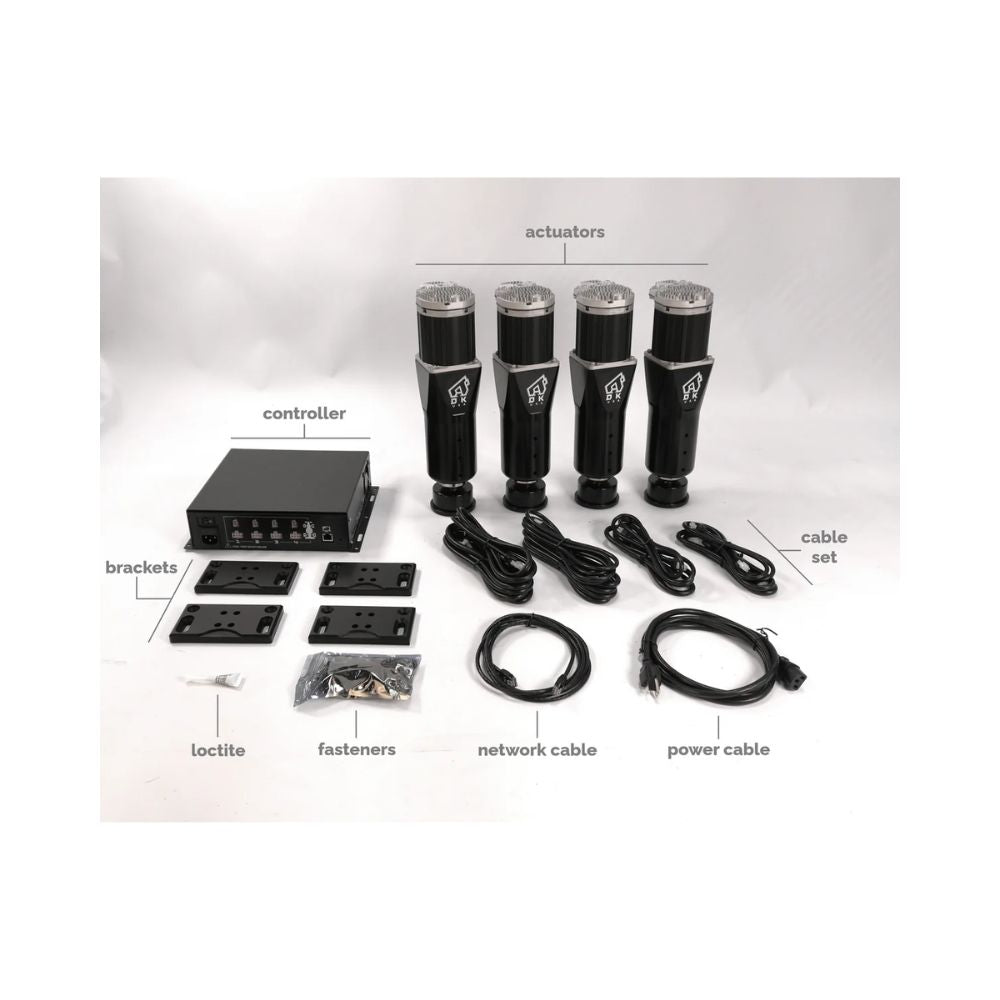

What is included in the DK2+ motion system package?

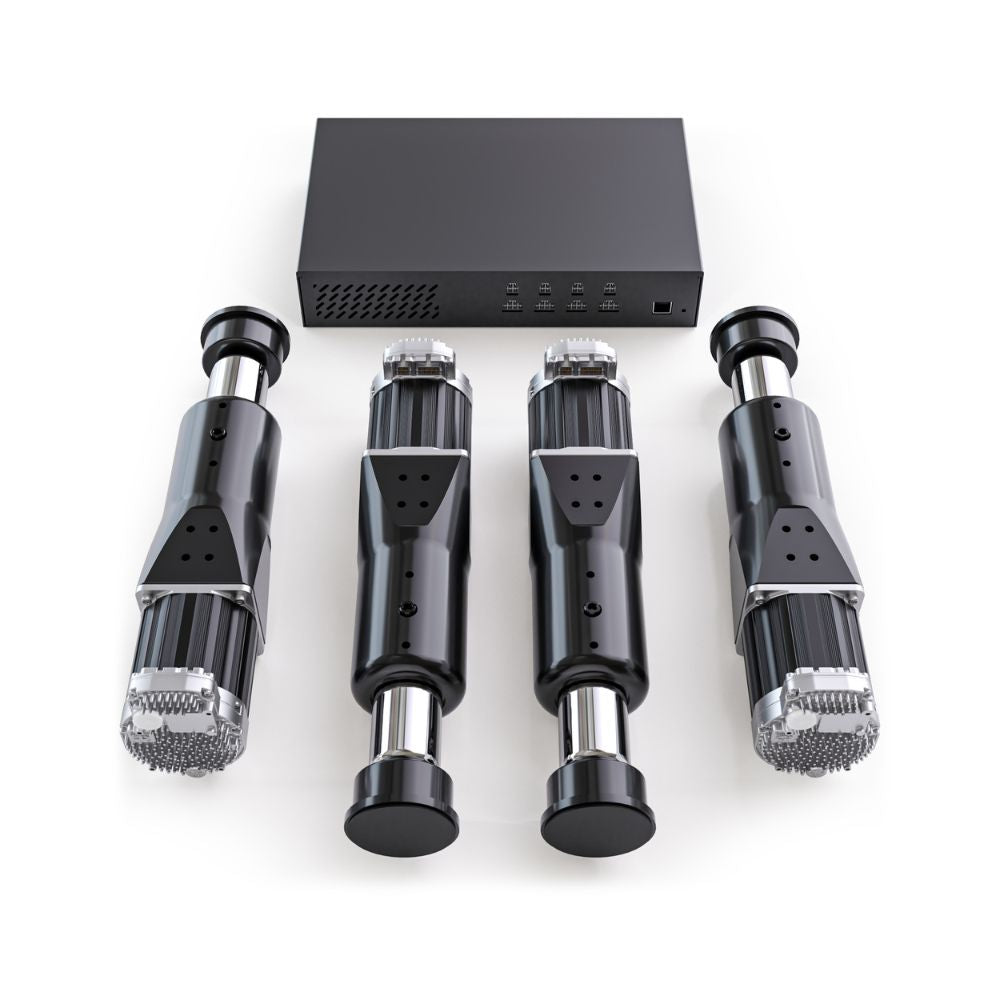

The full package includes 4 actuators, a controller box, all necessary mounting hardware, and network and power cables. It’s designed to support a total weight of 360kg, perfect for various sim racing setups.

Is the DK2+ motion system difficult to install?

No, the DK2 is designed for easy, plug-and-play setup. It includes everything needed to attach the system directly to your rig, allowing for a quick and hassle-free installation.

Are updates required for the Sigma software that runs the DK2+?

The DK2+’s Sigma software is licence-free and features automatic over-the-air updates, ensuring your system remains up-to-date without manual effort and at no additional cost.

How durable is the DK2+ motion system?

Built from premium billet aluminium and featuring solid steel pistons, the DK2+ is engineered for durability and can handle intense usage without maintenance, thanks to its lubrication-free design.

What type of warranty does the DK2+ motion system offer?

The Sigma Integrale DK2+ comes with a robust 3-year electrical and 1-year mechanical warranty, providing peace of mind and protection for your investment.

Can the DK2+ system be used for applications other than sim racing?

Absolutely! While it’s optimised for sim racing, the DK2+’s high fidelity and precise motion replication make it suitable for any application requiring realistic motion simulation, including flight simulators and professional research setups.

What power requirements does the DK2+ motion system have?

The DK2+ operates on a single controller box that is compatible with both 115V and 240V outlets, making it versatile for different power setups around the world.

How responsive is the DK2+ motion system?

With less than 1ms latency, the DK2+ system offers an ultra-responsive experience, reacting faster than the blink of an eye to your in-game movements and decisions.

What kind of support and maintenance does the DK2+ require?

The DK2 is designed for maintenance-free operation, with no lubrication required and automatic software updates, allowing you to focus more on racing and less on upkeep.

How does the DK2+ handle different weight setups?

The system supports a maximum weight of 360 kg, accommodating both the chassis and driver, which ensures stability and performance across a wide range of racing and flight simulation setups.

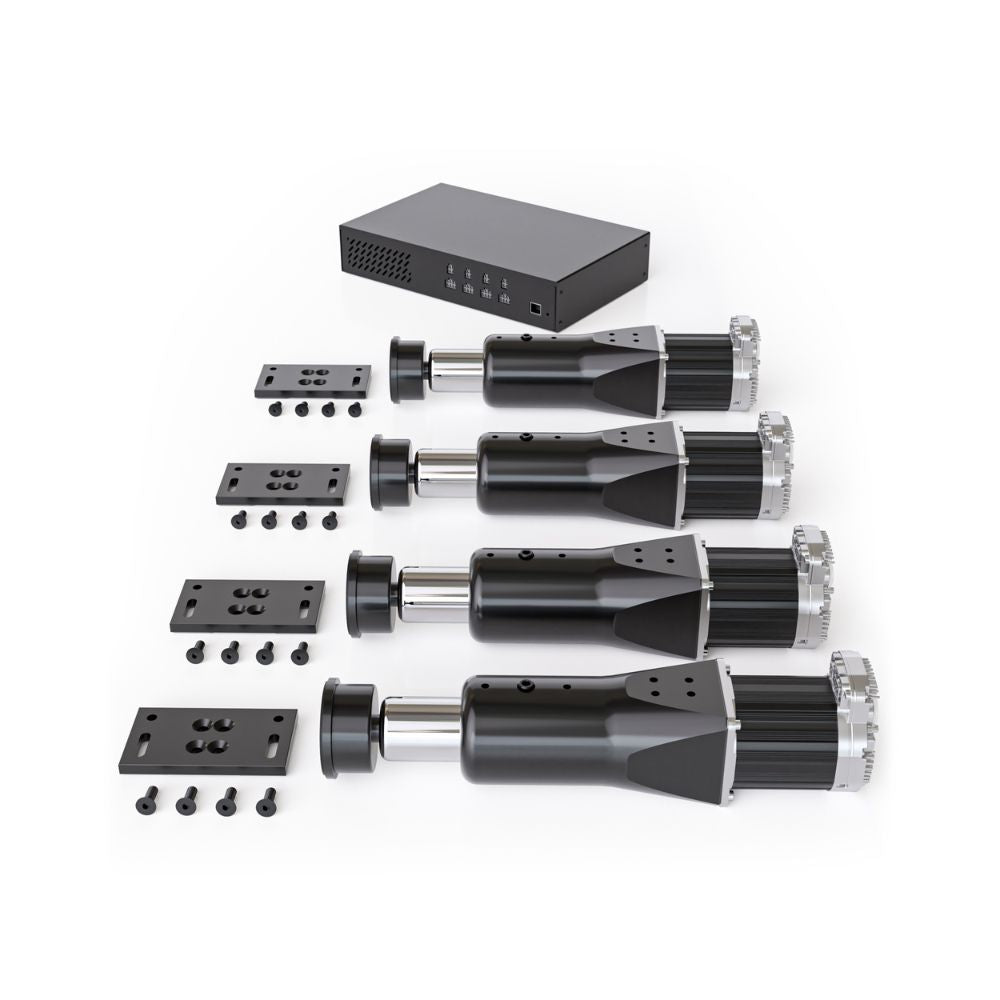

Contents

mono-block, machined billet actuators with 6” (150 mm) travel
powerful, responsive and compact American Teknic servo motors
maximum weight capacity (chassis and driver):
3-actuator system = 600 lb (272 kg)
4-actuator system = 800 lb (363 kg)
billet-machined floating feet with large rubber pads
aluminium t-slot mounting hardware compatible with 25 to 45 series profiles
single controller box (115v/240V compatible) with power and network cables
two sets of 1m and 2m data and power cables from the controller to actuators
Sigma’s motion algorithms & simulation software
automatic Over-the-Air controller firmware updates

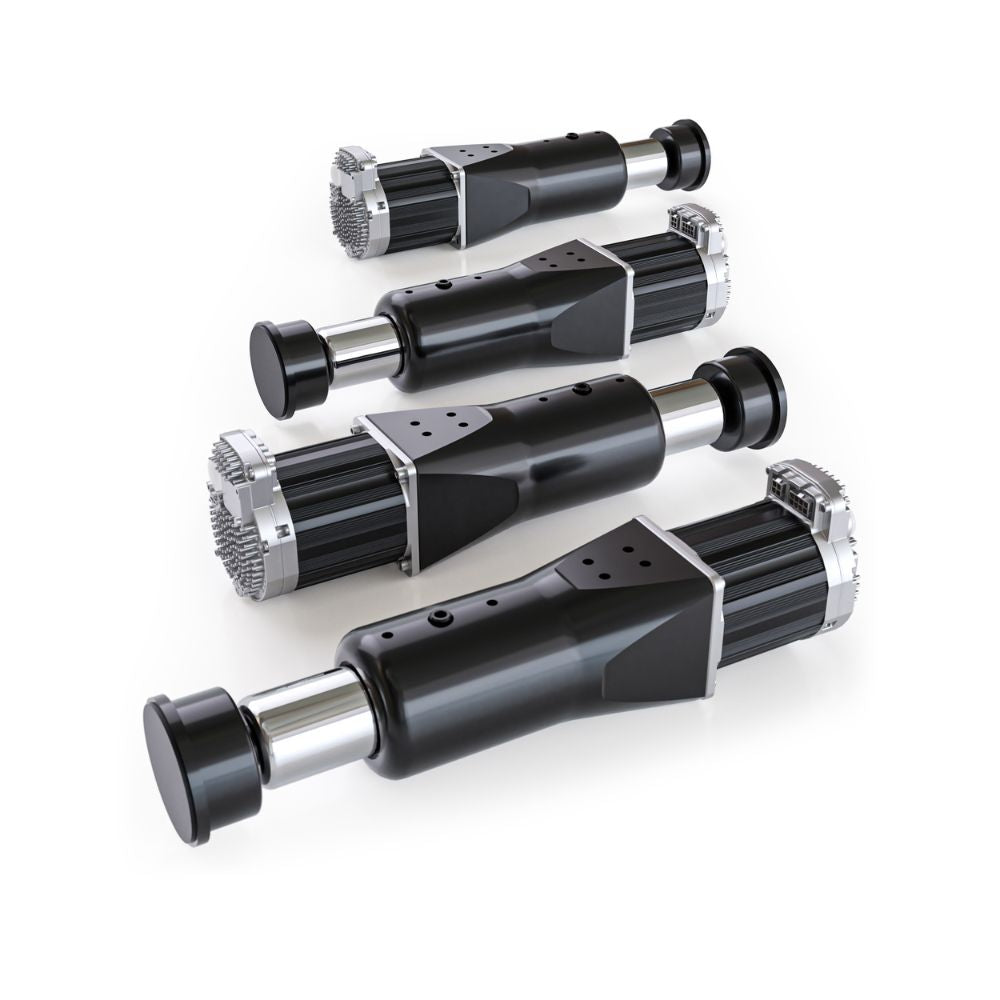

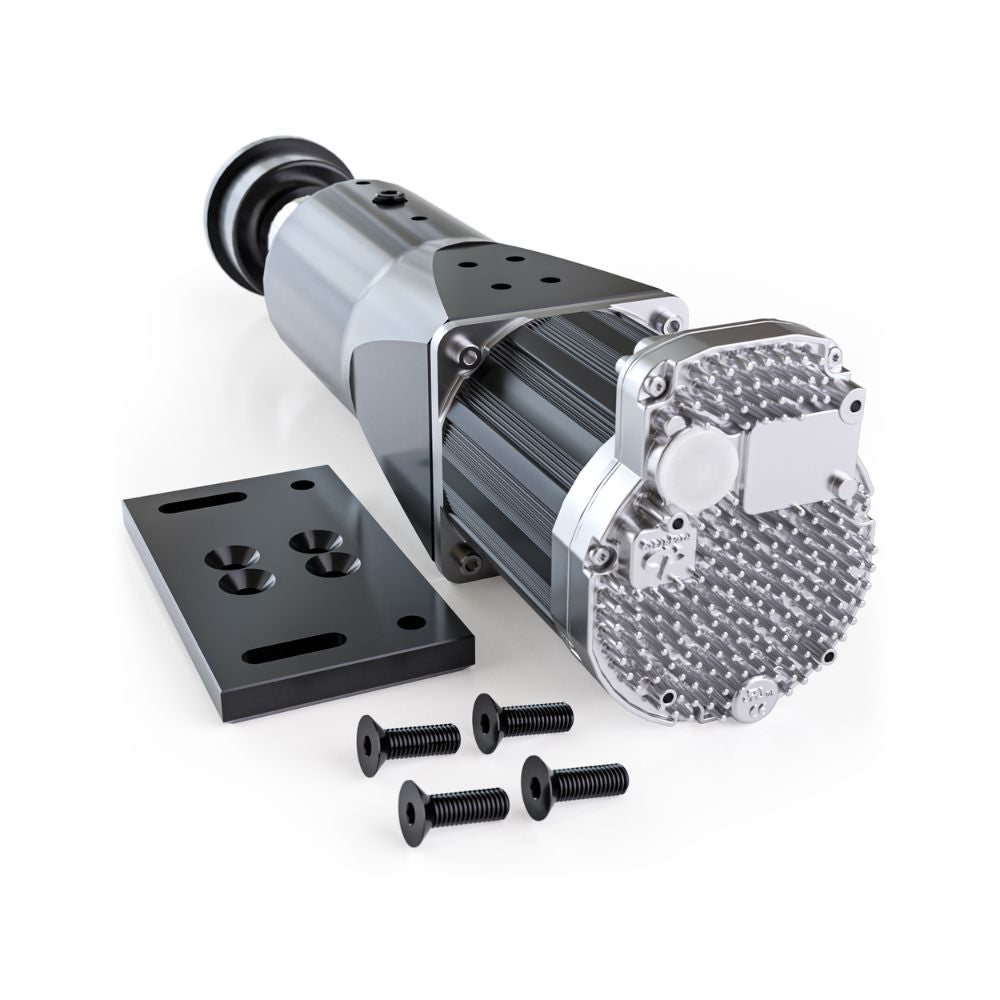

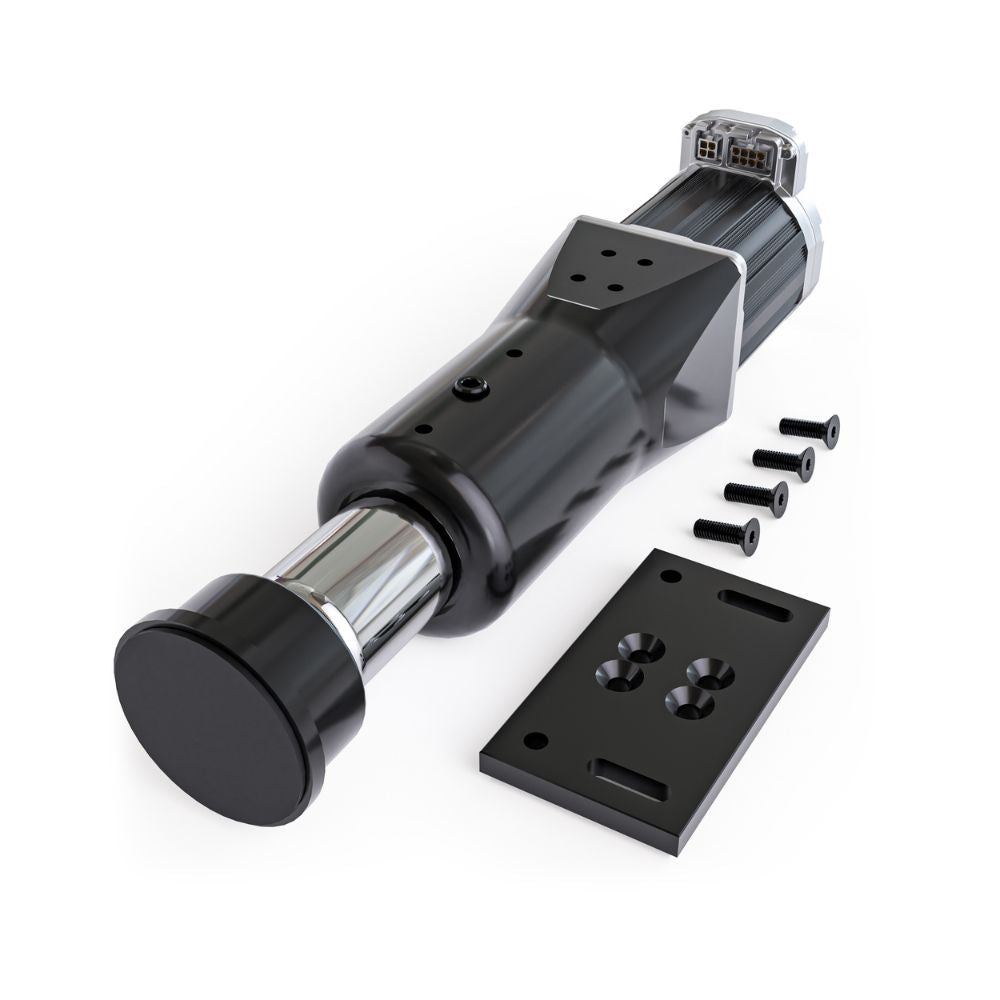

Actuators

100% designed, manufactured, assembled and tested in California, USA
Premium THK ball screw for smooth performance and durability
Machined billet aluminium body to ensure concentricity and accuracy
6″ (150mm) in piston diameter for large side-loading capability
T-slot aluminium extrusion friendly
20 lbs. each (9.07 kg) with the larger DK6 motor
Environmentally friendly tumbled finish

Latency

PC side (Windows 10/11)
Game physics engine @ 333 Hz: 3 ms
Windows OS response: 1 ms average
Sigma 10-layers algorithm: 1 ms
Send target positions via Ethernet: 0.3 ms
Controller side (Real-time OS in ARM)
Response to new position targets: < 1 microseconds
Motion Algorithm for smooth motion: Average: 25 ms, Range: 0 to 50 ms
Send motion data to 1st micro-controller at 1000 Hz: 1 ms
Controller side (2 low-latency micro-controllers)
Send motion data from 1st microcontroller to 2nd: 0.1 ms
Digital pulse generation: 0.002 ms
Electrical connection from 2nd microcontroller to ClearPath motor
3V to 5V conversion: 2 ms
ClearPath servo motor
Digital pulse signal to actual motion: 1 ms

Technical

ClearPath Integrated Servo Motor CPM-SDSK-3432P-RLN
Rated (RMS) Torque = 209 oz-in (1.5 N-m)
Peak Torque = 698 oz-in (4.9 N-m)
Max Speed = 2,380 rpm
Total Weight Capacity (for optimal performance), including fully-loaded simulator with driver:
3-actuator system = 600 lb (272 kg)
4-actuator system = 800 lb (363 kg)
Optically isolated, current-based I/O system (EMI free)
Average system draw at 110V is about 0.330 KW (Peak 1600VA)
In-house manufactured actuators | 3D Model: Available Upon Request
6” (150mm) actuator travel
speeds of 7.93"/s @ 2,380 rpm
5/8” diameter, USA ball screw and nut
2” (50mm) diameter piston
Mono-block machined billet aluminium body
All American made components

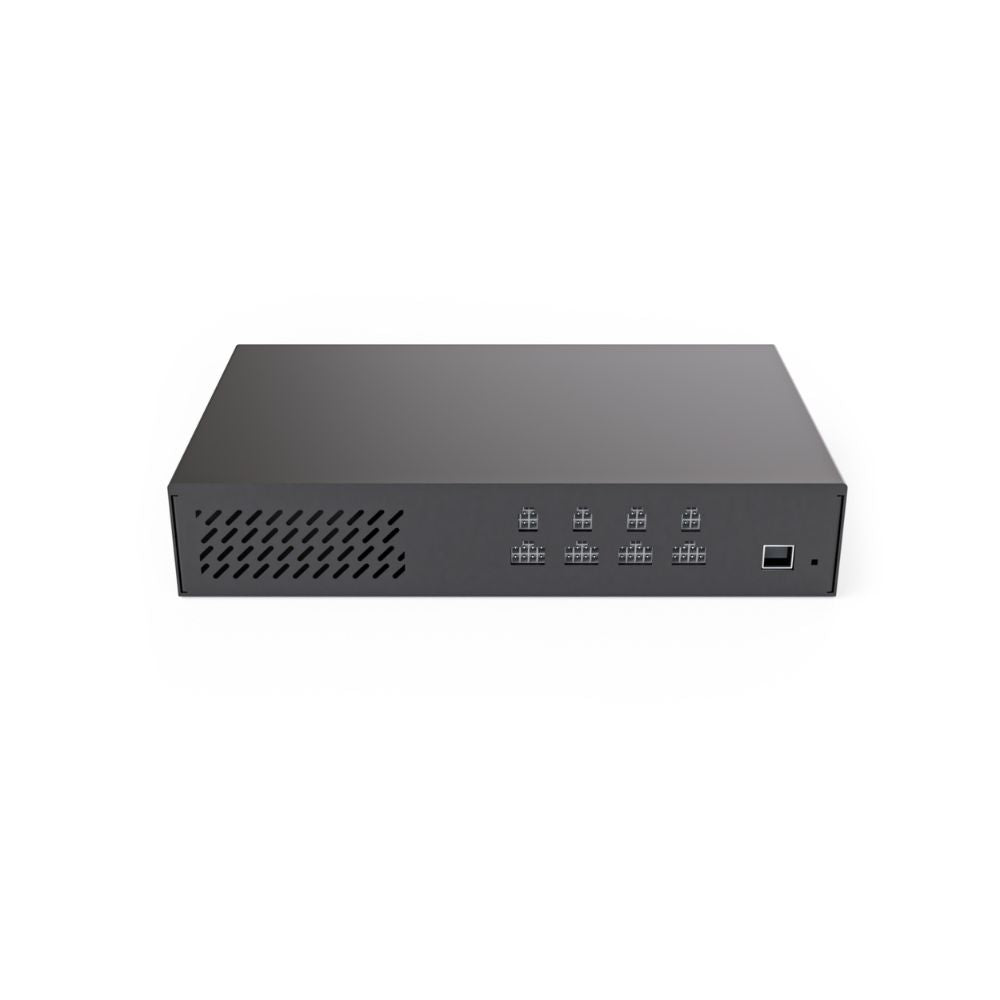

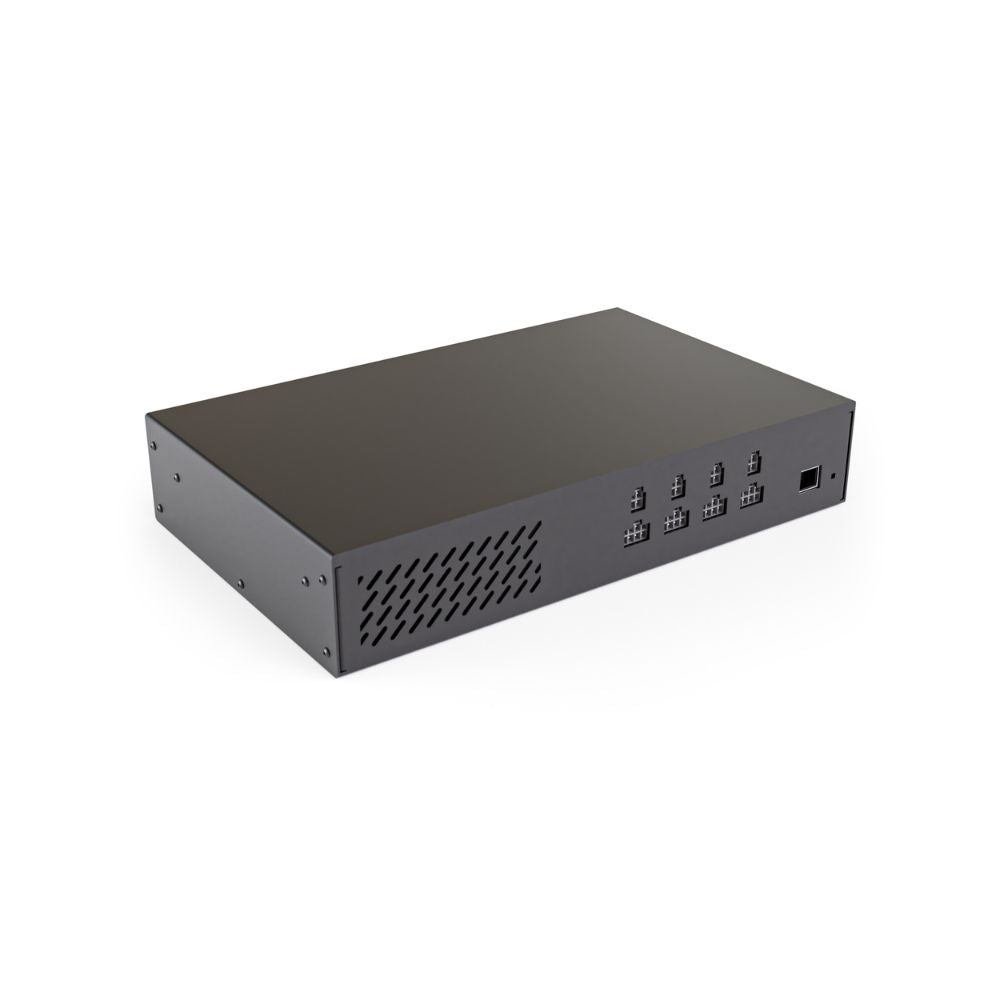

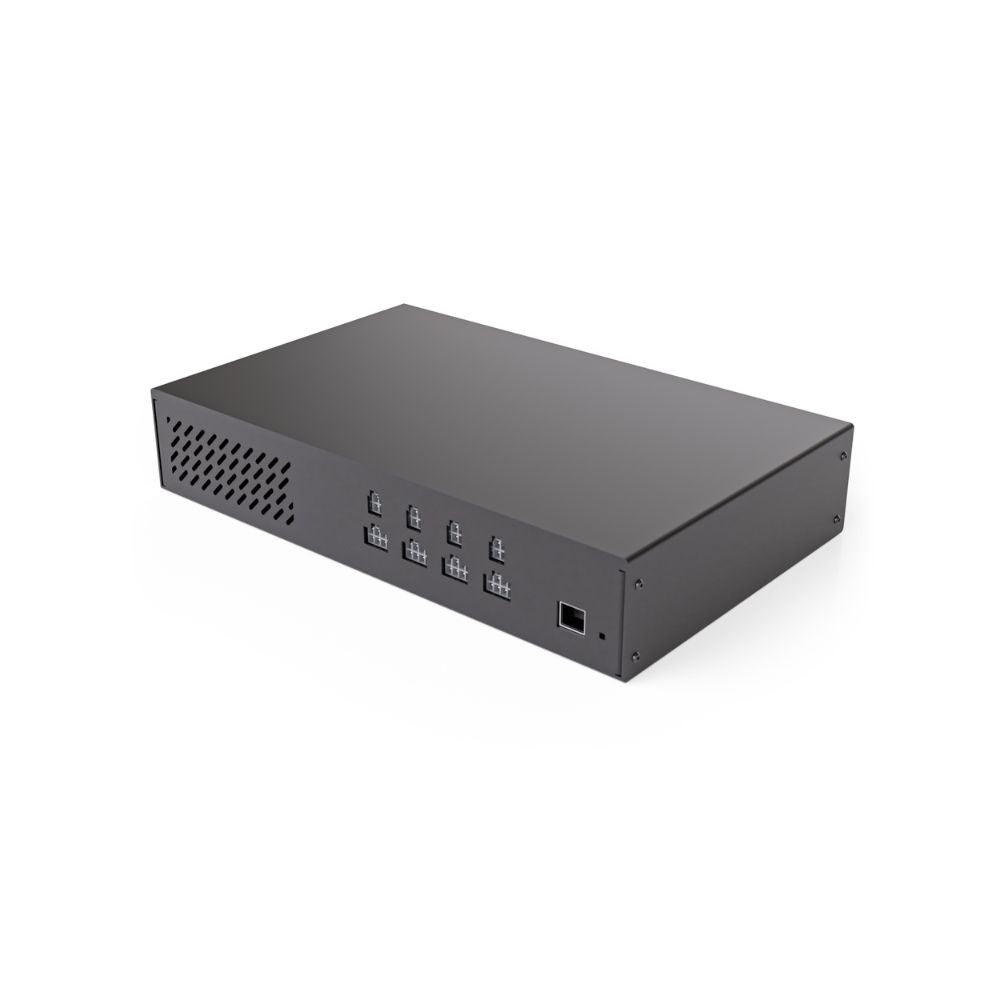

Motion Controller | 3D Model: Available Upon Request
ClearPath IPC-5 Intelligent Power Supply
Input voltage 95-125/190-250 VAC; 50-60Hz (NO INVERTERS REQUIRED!)
Real-time and remote motion control via default browser or phone/tablet
Signal processor with amplifier
Embedded microcontrollers
Shielded Molex connectors
15" wide, 9.25" deep and 3" tall
Sigma's Software and Algorithms
Motion Integrity™ architecture to provide ultra-responsive, precise and accurate motion control
Dynamic scaling algorithm to best represent all layers in the available actuator travel
Organic and natural feeling Velocity Trap™ algorithm
Smooth integration of the 10 motion layers
Real-time remote control interface
Custom Motion Profiles
Mounting hardware
Machined billet mounting bracket
T-slot aluminium extrusion (80/20) friendly
Machined billet floating feet with mounting capability

Sigma Integrale DK2+ motion system (4 actuators)
Controller box
All mounting hardware
All installation accessories



All Sigma Integrale products are backed by a 3-year electrical and 1-year mechanical warranty. These warranties cover you against manufacturer defects and faulty products.

If for some reason your item doesn't work as expected, simply contact us and we'll either repair your item under warranty or we may be able to offer a refund/exchange. Again, if for some reason your item doesn't work as expected, contact us right away and we'll sort out any issues ASAP.

You might have some questions about shipping times and costs. So, let’s cover some of those questions for you.

How long will it take for my order to arrive?

We’ve partnered with Australia’s fastest couriers to make sure you get your order FAST.

99% of our orders are shipped within one business day. That means if you order on a Monday, we’ll usually ship same day or the next business day (Tuesday).

Your order will usually arrive in 3 to 5 business days. Of course, this depends on where you’re located. If you live in a metro area, you can expect your order to arrive within 3 days.

If you live outside a metro area, you order will usually take a little longer to arrive. We recommend you allow 5 business days for your order to arrive.

The moment your order is on the way, we’ll send you tracking details via email. That means you’ll be able to keep an eye on your order and see where it is at any point in time.

Of course, if you have any questions or queries in relation to your order, simply email us, call (03) 9961 0240 or open the live chat function. We’ll help you in any way we can.

How much is shipping?

Shipping costs depend on item weight and shipping destination. We’ll do everything we can to ensure you receive the best shipping rates available.

Shipping is calculated in checkout. Simply fill in your address details and our shipping calculator will show the final shipping cost.

A lot of items we sell include free shipping. If an item is labelled free shipping, you won’t pay a single cent for shipping.

What if I’m not home when my order arrives?

No stress. If you’re not home, our couriers will drop your order off at the nearest depot or post office.

Contact details will be left at your door or in your mailbox so you can organise redelivery.

Hey what gives, it’s been more than a week and my order hasn’t arrived. Where is it?

No worries. The first thing we recommend you do is check your tracking details. It may just be that your order was held up a little.

If your tracking details don’t shed any light on where your order is, contact us on (03) 9961 0240 and we’ll help work out where your order is.

If you’ve clicked on this tab, you’re obviously looking for a reason or two on why you should shop for your gaming goodies at Gamer Gear Direct, rather than those other online stores.

And we’ll (not so) humbly say there are SEVEN reasons we think you should shop with us and not hand over your hard-earned cash at one of those big box retailers like Harvey Norman or JB Hi-Fi.

REASON #1: 100% customer satisfaction GUARANTEED (if you’re not happy then neither are we – simple as that)

We’ll bend over backwards to ensure you are 100% happy and satisfied with your order and our world-class customer service. We want you to rave about your experience with us to your friends and family.

But we know that’ll only happen if we treat every customer like you’re the most important customer in the world. And you are! Without you we wouldn’t be in this business. We’ve only got to where we are today by treating our customers to a high level of service that you’ll rarely find online.

We’ll literally bend over backwards to ensure your experience with us is one you’ll shout about to your neighbour or mates at work. See, we’re not one of those big box electronics stores with a multi-million marketing budget. Those companies treat you like a number. Because they can afford to! They’ve got money coming out of their ears.

We’re different. We’re a small Aussie owned and operated business. Every single potential customer that hits our website is precious to us (that includes you). So, again, we’ll do everything we can to make sure you’re over the moon with your Gamer Gear Direct shopping experience.

Do you think Harvey Norman can promise that kind of service?

Probably not. In fact, I’d bet my house they won’t. But look, you don’t have to take my word for it. Here’s what our customers are saying about us…

Ashley Woolnough says: ‘I want to say a huge thank you to Blake and the team at Gamer Gear Direct. The service has been absolutely impeccable from the moment I first looked at items to the moment they were delivered. I bothered Blake quite a bit, but nothing was too much trouble and he went above and beyond to help me. 5-star service’.

Luke H. had this to say: ‘Amazing, Excellent Service. I'm very impressed. Well informed staff and good quality selection of Sim Racing gear. Staff even went above and beyond to answer a query regarding whether a certain set of pedals would properly mount to a specific cockpit by testing it themselves on my behalf. Delivery is ridiculous fast and free. Less than 24 hour delivery to Sydney NSW which is impressive. Definitely my go to place for all future gear'.

And this from Brendan: ‘Hands down the best online supplier in Australia atm. Customer service is above an beyond any other Australian company. Blake is always happy to try an keep the customer as happy as possible an with the best deal. I will be back...a forever shop and first stop when hunting any sim upgrade.’

That’s not an exhaustive list, either. There are plenty more happy customer stories we could share with you. But let’s move on to reason number two…

REASON #2: Five-star customer support

We’re around to support you and help you out with your questions and queries between normal business hours (Mon to Fri, 9am to 5pm).

We understand a lot of our customers (like you) are busy individuals.
Sometimes, you’ve only got time to peruse our website when you’re sitting down on the couch, chilling out after a hard day at work (maybe with a cold beverage in hand).

If you need a hand with anything, or you’ve got a question. Just tap on the live chat widget (at the bottom right of screen), email us (support@gamergeardirect.com.au) or call on (03) 9961 0240.

REASON #3: Shop with confidence thanks to our 30 day return policy

The moment you buy anything (yes, anything!) from Gamer Gear Direct you’re automatically covered by our 30-day return policy.

Buy today and if your item is not performing as it should or is faulty just return inside those first 30 days, in 'as new' condition for a refund or exchange. Please note that our return policy does not cover 'change of mind' purchases.

On top of our 30-day return policy, you’re also covered by a manufacturers’ warranty. Every product we sell is covered by a MINIMUM 6-month warranty (most are covered by a 1 year or better warranty).

When you buy from us, you’re buying top quality, brand name products (no crap ‘grey import’ products here), that’ll do exactly what they say on the box.

You'll find more details on our return policy HERE.

REASON #4: We’re competitive on our prices. If you see a Gamer Gear Direct product cheaper online, contact us and we’ll see if we can work out a deal

That doesn’t mean we’ll always beat the competition on price. Some of the big-name stores bulk up big time on products. We’re still competitive, but may not have the margin to beat them.

That aside, our prices are easily some of the cheapest you’ll find online. Plus, when you bundle several items together, we’re more than happy to chat about a bundle discount

Hit us up and we’ll chat more about price (you can open the chat widget at the bottom right of screen and start a conversation).

REASON #5: Fast shipping Australia wide

When you’re shopping online, you want your order delivered fast, right? We understand. That’s why 99% of our orders are shipped within one to two business days from the time you order.

Your order will usually arrive at your doorstep within 3 to 5 business days from the day you ordered. Doesn’t matter whether you order a 50kg racing simulator cockpit or a mousepad, we’ll make sure you get your order in super quick time.

We use the fastest couriers in the country to make sure you get your order in record time.

You can track your order the entire time, too. As soon as your order is on the way we’ll send you an email with tracking details, so you can keep your eye on where your order is the entire time.

Of course, if you have any questions or queries about your order simply email or call us and we’ll help you in any way we can.

REASON #6: Every product from Gamer Gear Direct is covered by a manufacturer warranty

Nothing worse than buying something online and it’s faulty, right?

We feel you.

That’s exactly why every item we stock is covered by a minimum 6-month warranty.

If the product you ordered from us doesn’t work right, simply return it to us and we’ll get it fixed for you under warranty.

Or if we can’t have it fixed, we’ll provide you with a replacement item as soon as possible.

REASON #7: Safe and 100% secure checkout

Our shopping cart is fitted with SSL encryption.

What the hell does that mean, you ask?

Well, that simply means all your data is 100% secure when you shop on the Gamer Gear Direct website.

We don’t save or share any of your payment details. Nor are those precious details stored anywhere on our website.

So, there you have it. There are our 7 big reasons on why you should buy all your sim goodies from us and not the competition.

Remember, we are always happy to chat with you at any time. You can open a live chat (at bottom right of screen). Email us at support@gamergeardirect.com.au or give us a call on (03) 9961 0240.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
