Description

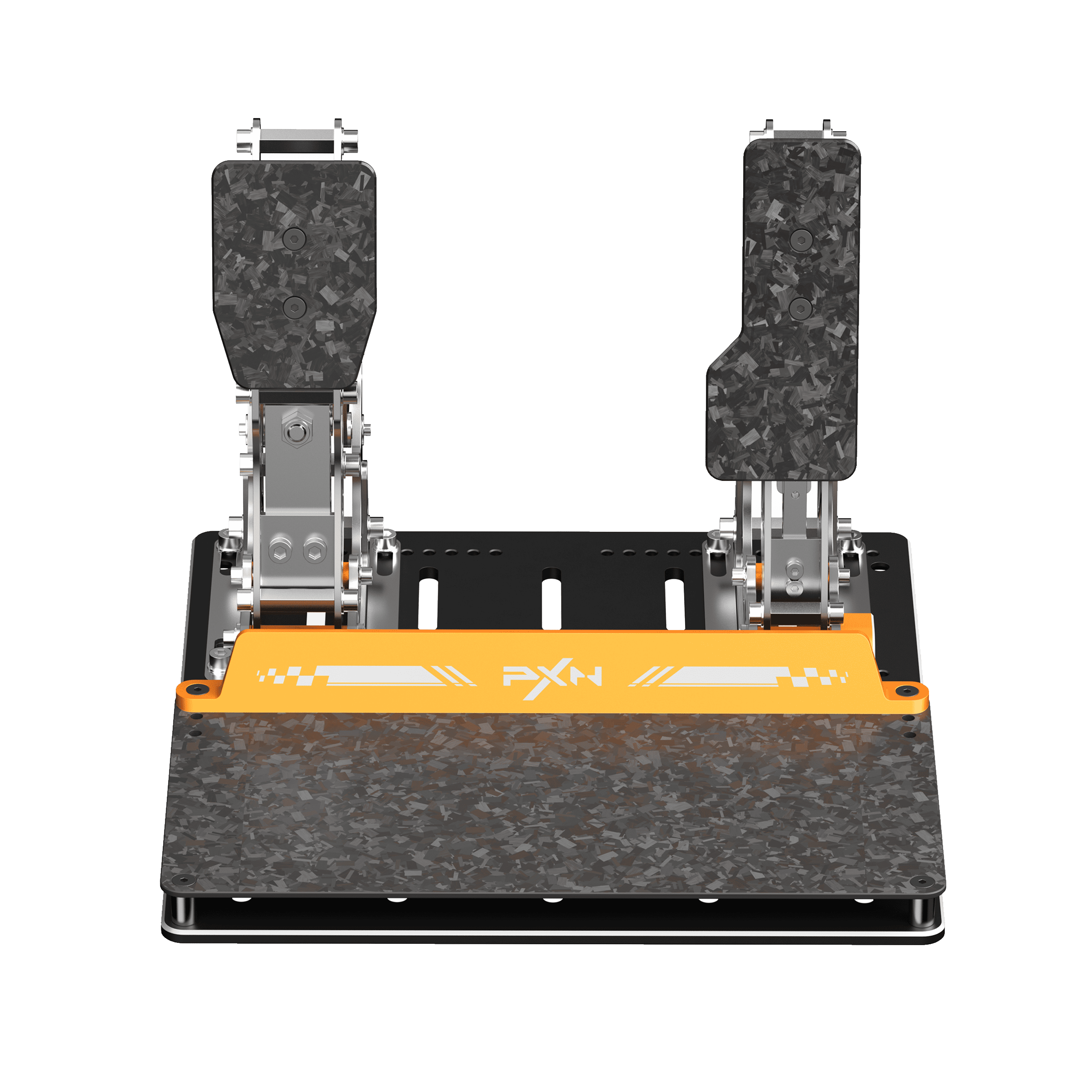

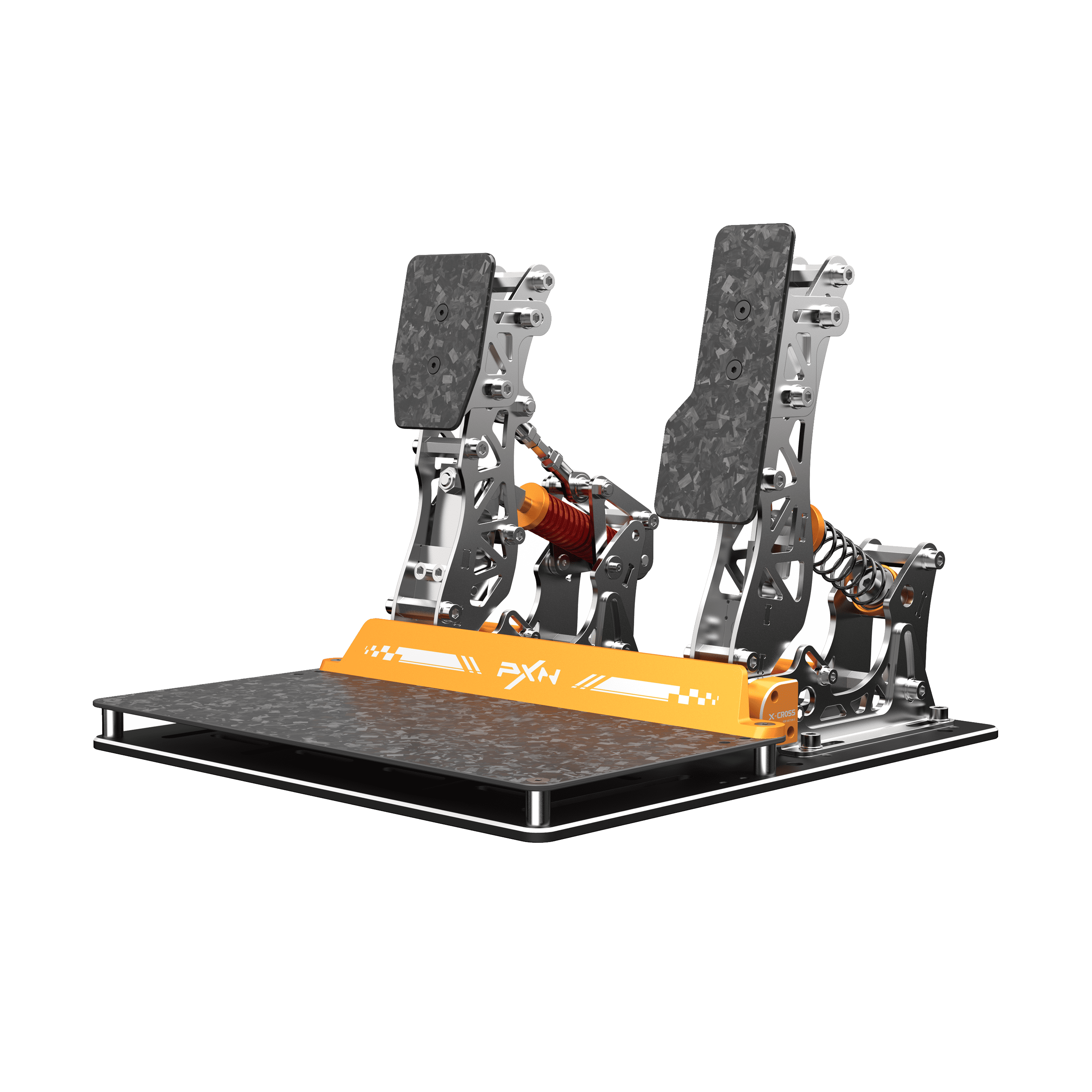

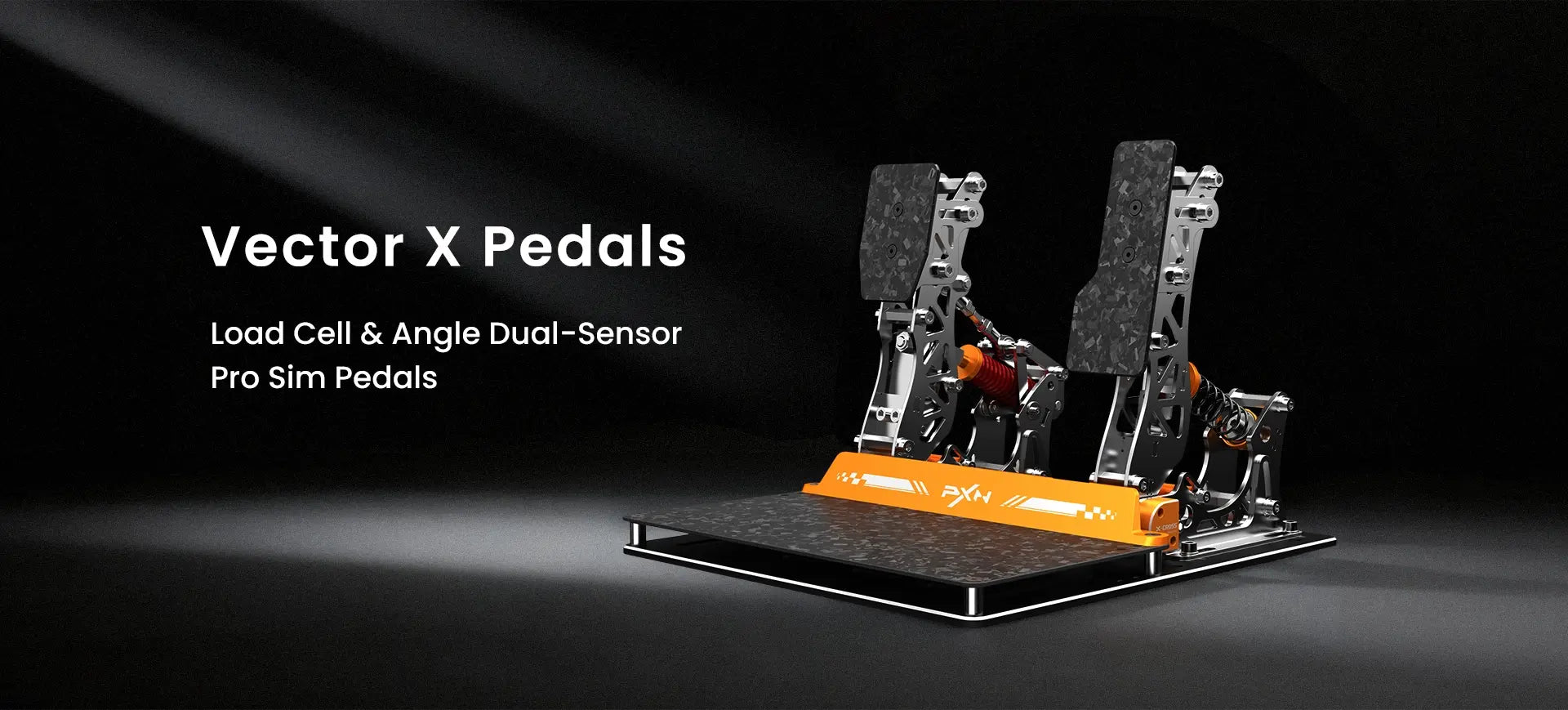

PXN Vector X Load Cell Pedals
The PXN Vector X is a competition-focused load cell pedal set for sim racers ready to move beyond potentiometer pedals. It pairs a load cell brake with a dual-sensor throttle, and the pedals are built from carbon fibre, stainless steel and aluminium. Within the PXN sim racing range, it is the pedal set built for serious drivers.
The brake uses a load cell rated to 200kg, so it reads how hard you press rather than how far the pedal travels. The throttle combines an angle sensor and a load cell through PXN's X-Cross fusion algorithm, and both pedals report at 24-bit resolution through an external aluminium control box.

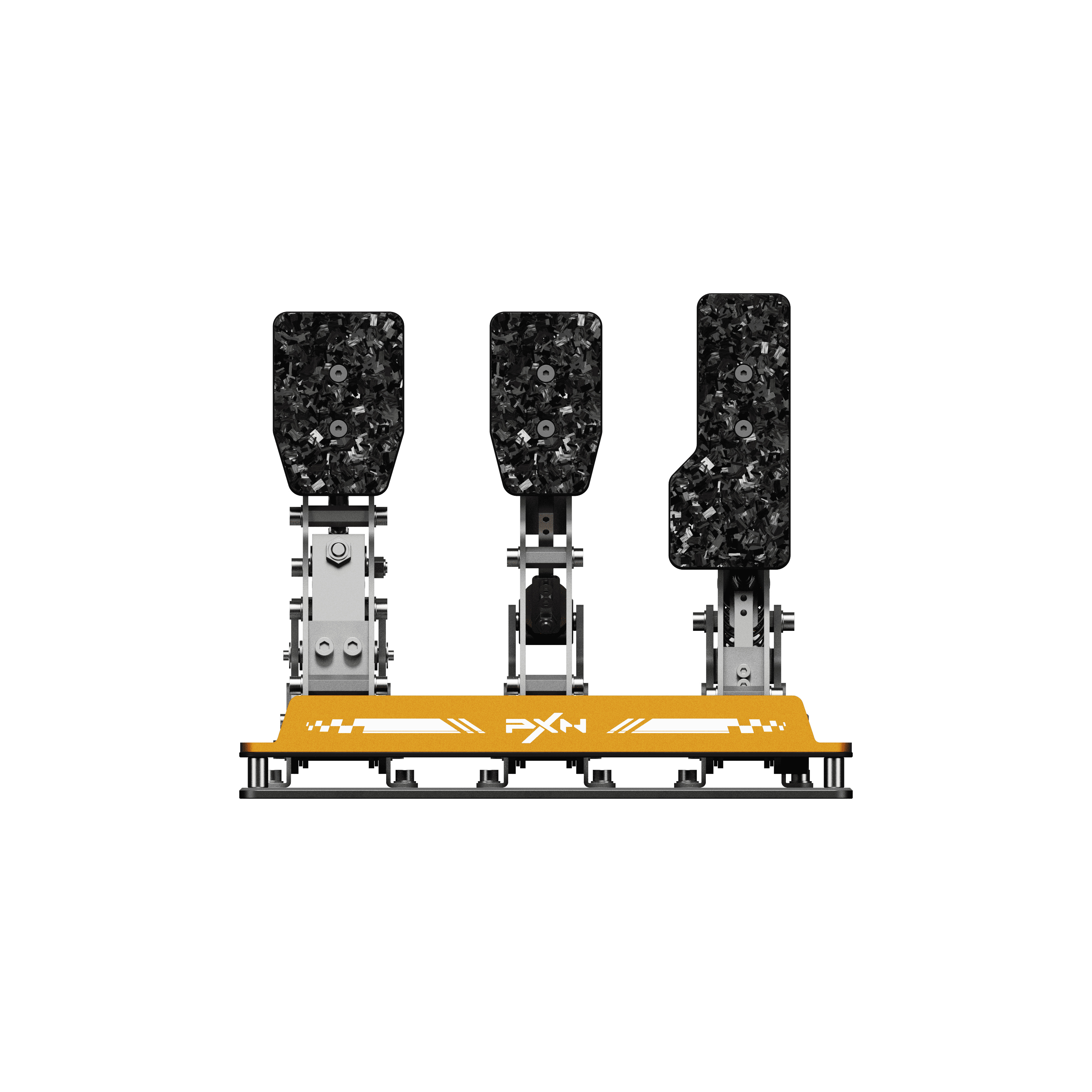

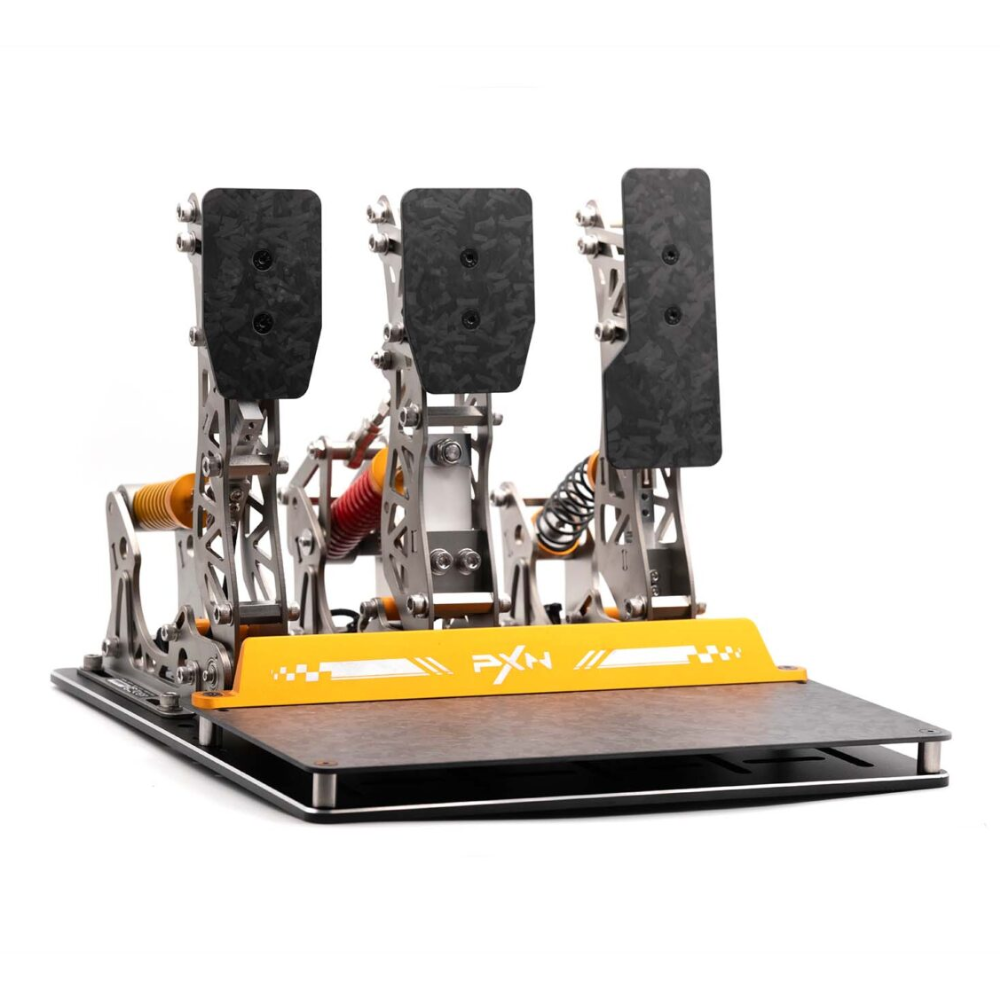

The standard set is throttle and brake. Choose the Throttle, Brake & Clutch option to add the matching Vector X load cell clutch, which shares the same carbon fibre and aluminium construction and mounting pattern.
Key features
- X-Cross dual-sensor throttle fuses an angle sensor and load cell for low-lag input
- Load cell brake rated to 200kg for pressure-based, repeatable braking
- Interchangeable brake springs rated to 125kg and 187kg to tune pedal feel
- 24-bit resolution (16,777,216 steps) on every pedal

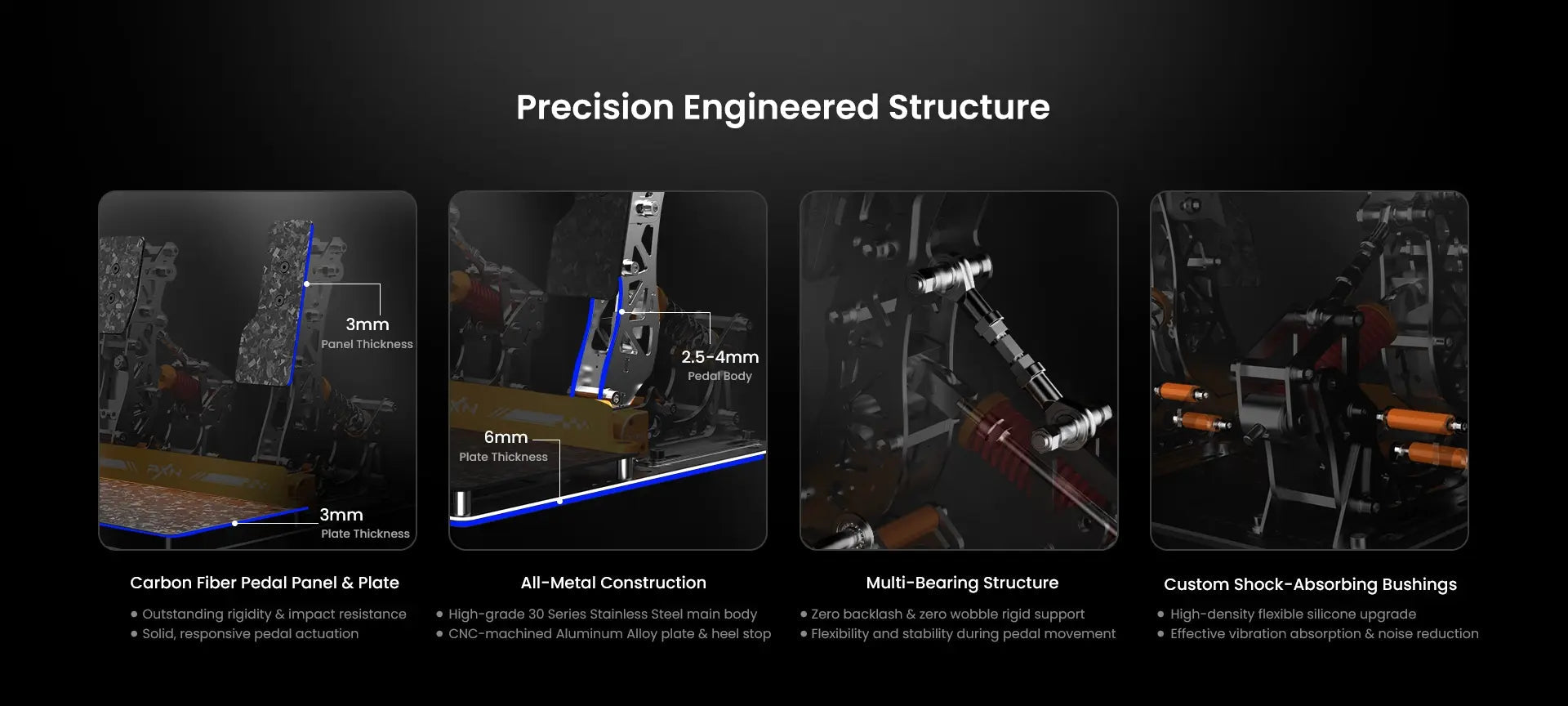

- Carbon fibre, 304 stainless steel and 6061 aluminium construction
- Adjustable pedal travel, face height, fore-aft position and tilt up to 43.5°
- Brake force, linearity and deadzones tuned in PXN SimRacing software
- Sealed aluminium control box with plug and play USB connection to PC
- Integrated aluminium base plate with carbon fibre footrest and anti-slip bar
- Optional load cell clutch with two-stage linkage and 30kg sensor

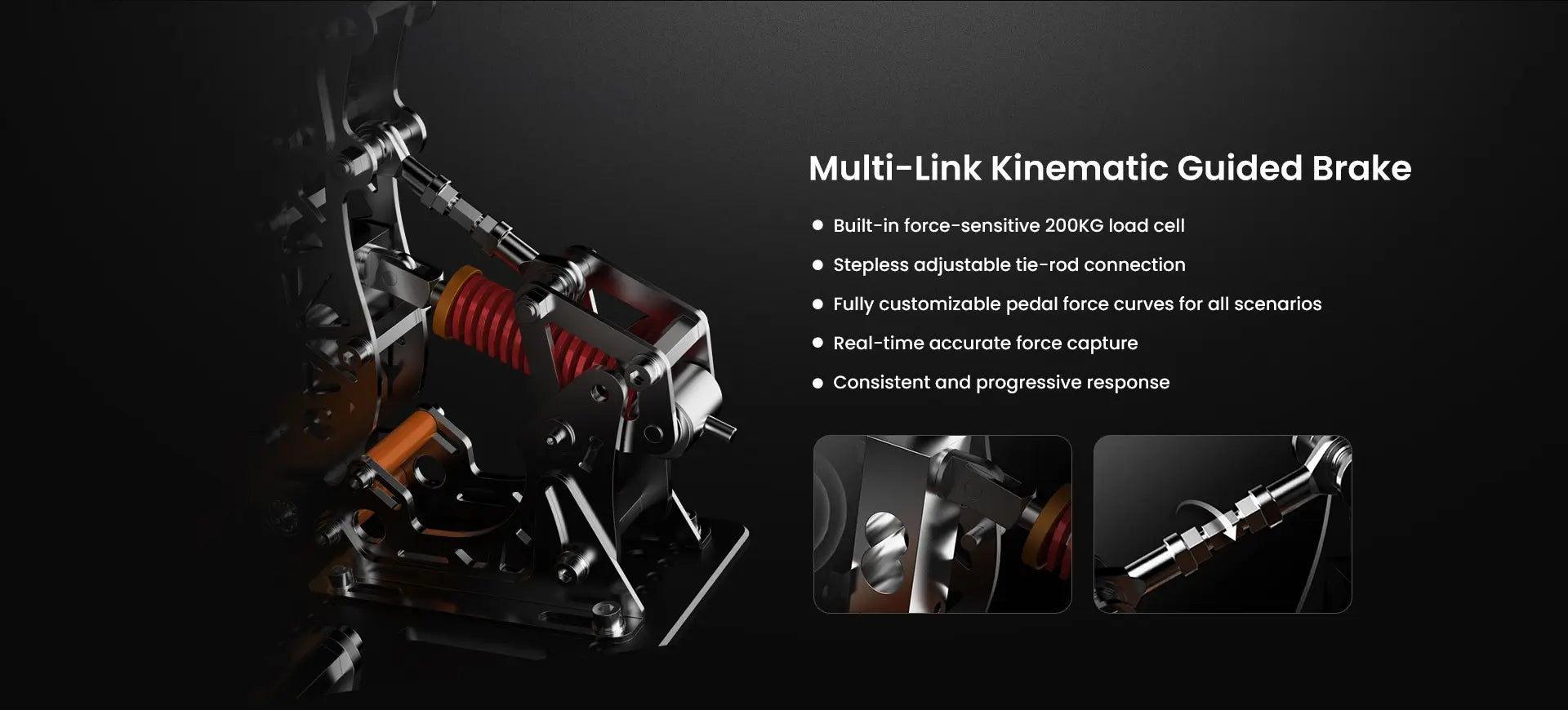

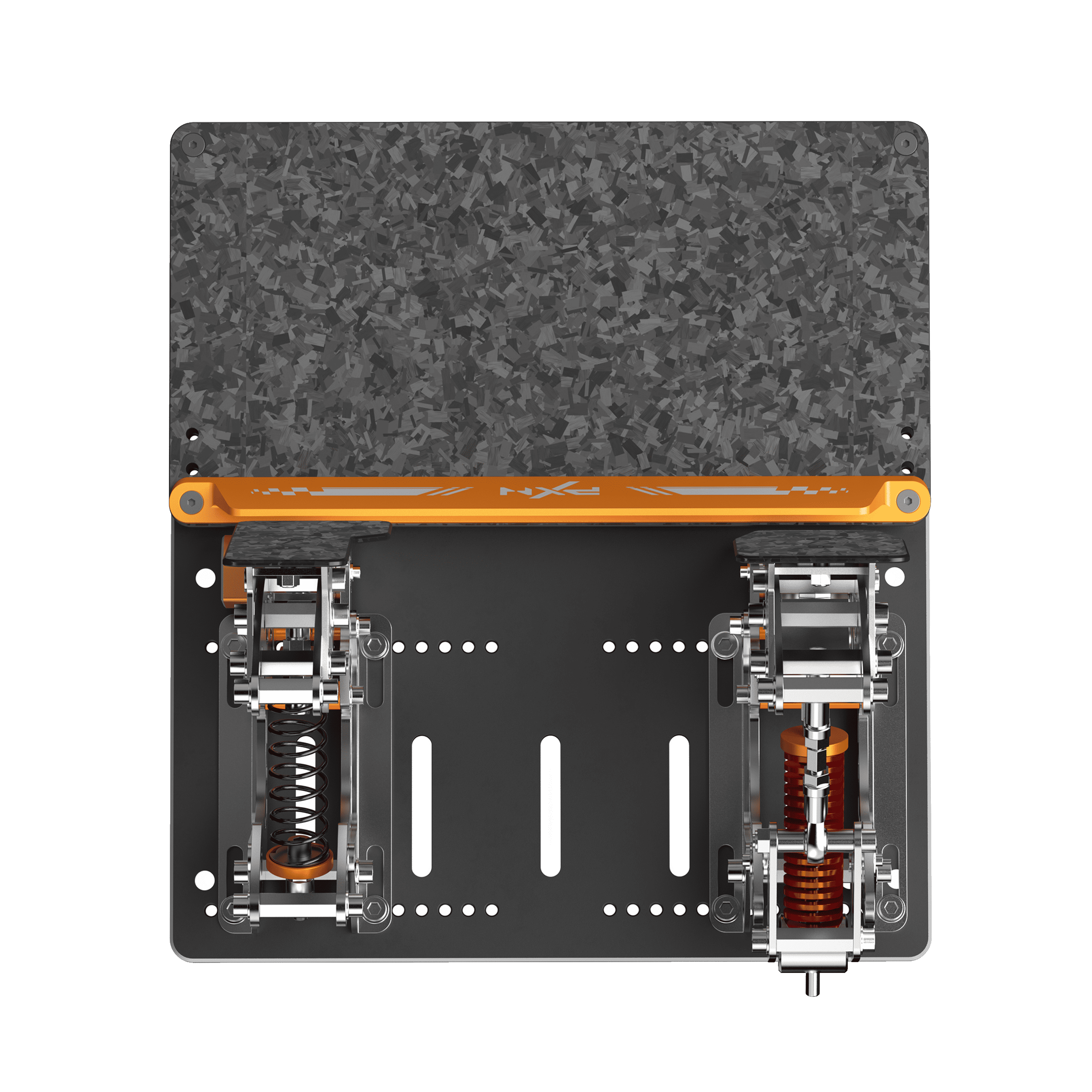

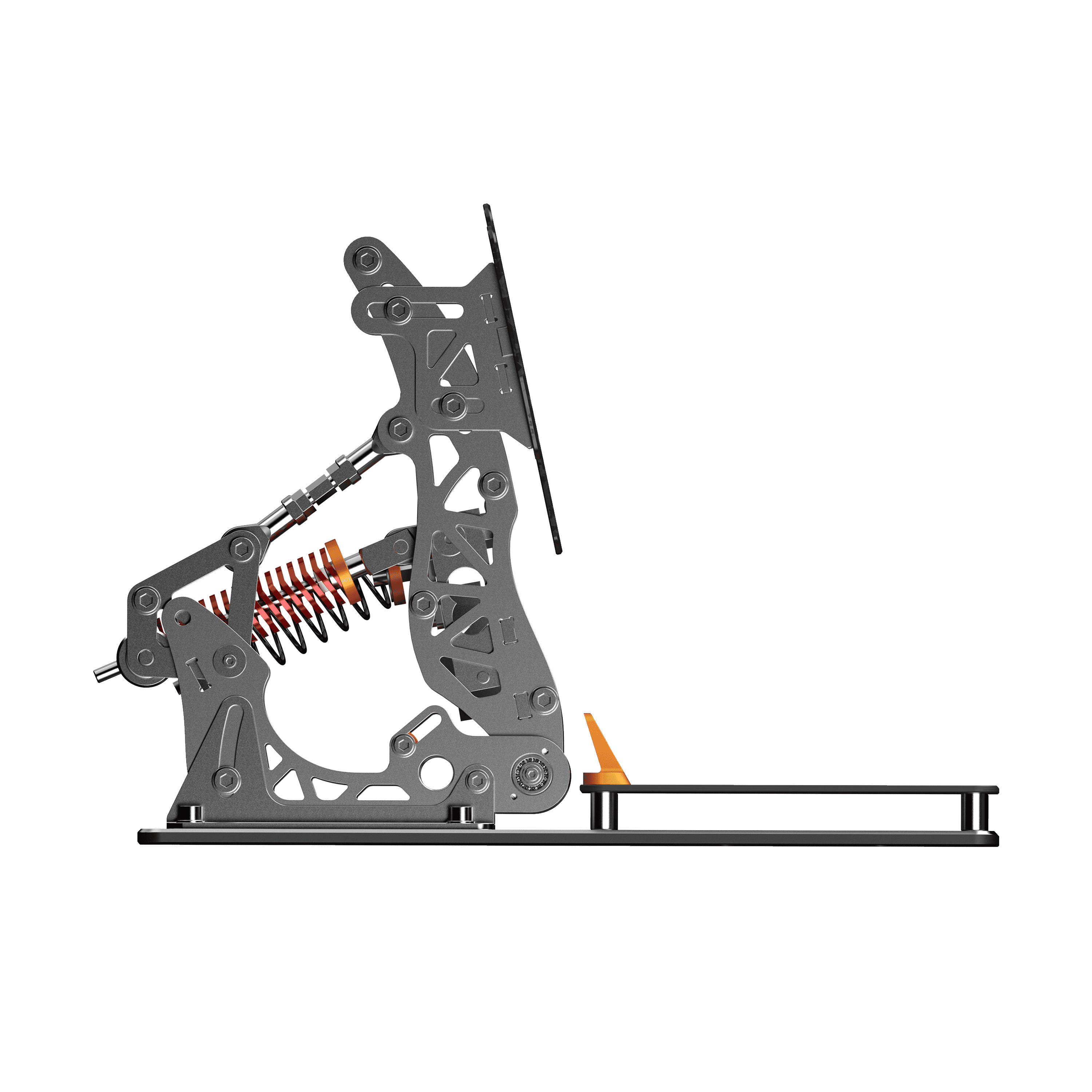

A load cell brake rated to 200kg
A load cell brake responds to pressure, not travel. That is how a road or race car brake behaves, and it is why a load cell brake is the upgrade that makes braking points repeatable.
The Vector X brake is rated to 200kg and comes with two interchangeable springs: the red spring is rated to 125kg and the green to 187kg. Swap springs to change how firm the pedal feels, then fine-tune brake force, linearity and deadzones in PXN SimRacing software.

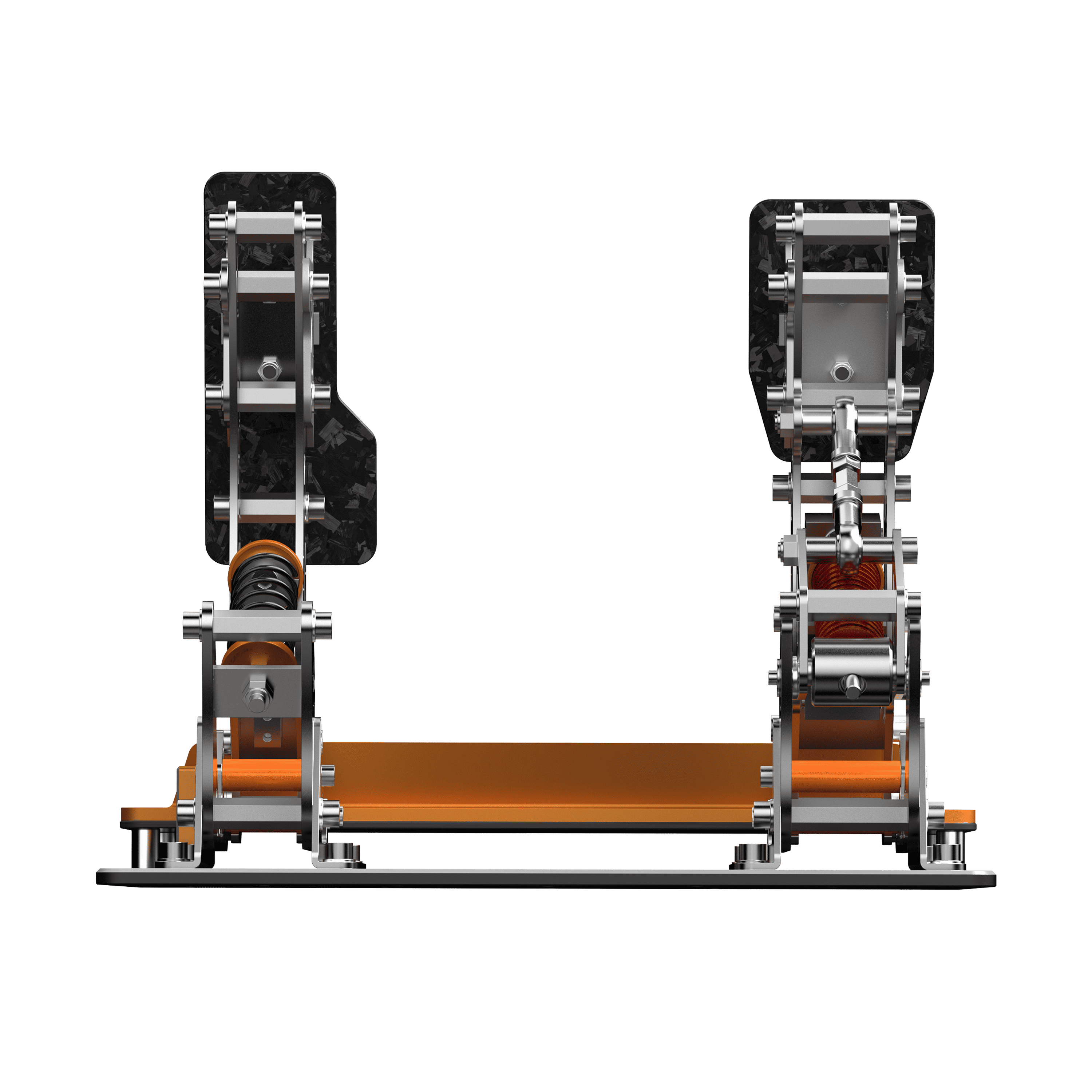

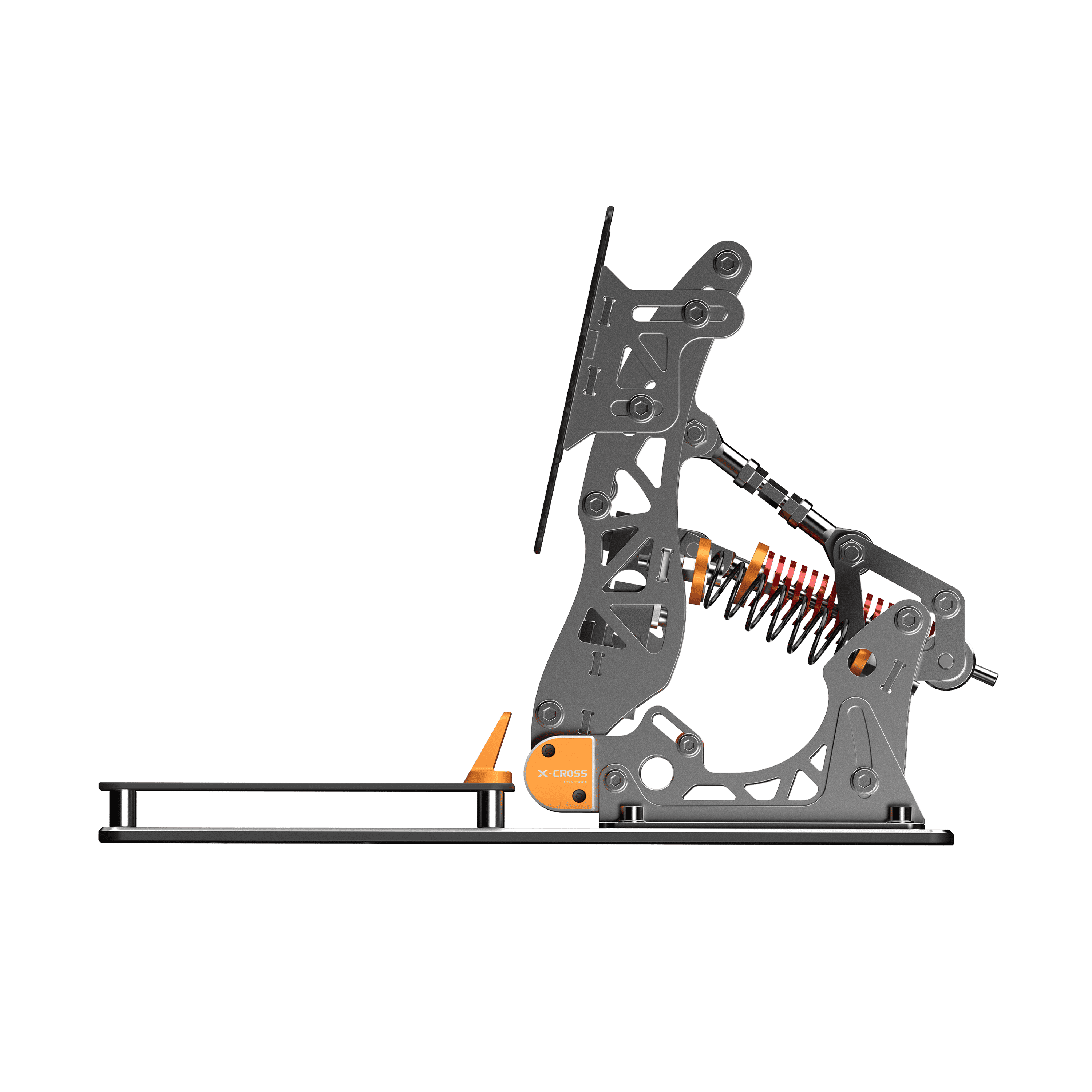

X-Cross dual-sensor throttle control
Most throttles rely on a single position sensor. The Vector X throttle pairs an angle sensor with a load cell, and PXN's X-Cross fusion algorithm combines the two signals for accurate, low-lag input across the full pedal stroke.
The result is smoother modulation on corner exit, where small throttle changes decide whether the rear steps out. Both pedals run at 24-bit resolution, or 16,777,216 steps, through a sealed aluminium control box that connects to your PC over USB.
Adjustment built around your driving position
The Vector X adjusts pedal travel, pedal angle and brake spring force. The pedal faces move roughly 17mm in height and 15mm fore and aft, and tilt up to 43.5 degrees, so you can set them for your shoes, foot angle and seating position.
Everything sits on an integrated aluminium base plate with a carbon fibre footrest and anti-slip bar. At roughly 360 x 326mm, the set suits the pedal deck of a rigid sim racing cockpit.
Our expert take
"The Vector X is a great mid-tier load cell pedal set, and it impressed us on both build quality and performance. The carbon fibre and aluminium construction feels properly solid, and the load cell brake and sensor-fused throttle deliver the consistency you buy load cell pedals for."
"It is PC only, and at the top of its 200kg range it needs a rigid cockpit to match, since a flexing wheel stand will move before the pedal does. For PC racers stepping up from potentiometer pedals, it is an easy set to recommend."
- Blake Sterling, Founder & CEO, Gamer Gear Direct
Frequently asked questions
Will the PXN Vector X work with my wheelbase?
Yes, on PC. The Vector X connects to your computer with its own USB cable, so it runs alongside any brand of wheelbase, including the direct drive wheelbases we stock. Your sim sees the pedals as a separate device and you map them in game.
Does the PXN Vector X work on PlayStation or Xbox?
No. The Vector X is built for PC and supports Windows 7, 8, 10 and 11. If you race on console, choose a pedal set or wheel package with PlayStation or Xbox in its title from our sim racing pedals collection.
Which brake spring should I use?
The red spring is rated to 125kg and the green to 187kg. Start with the red spring if you are new to load cell braking, then move to the green once you want a firmer pedal. Brake force, linearity and deadzones can also be tuned in PXN SimRacing.
Is the clutch pedal included?

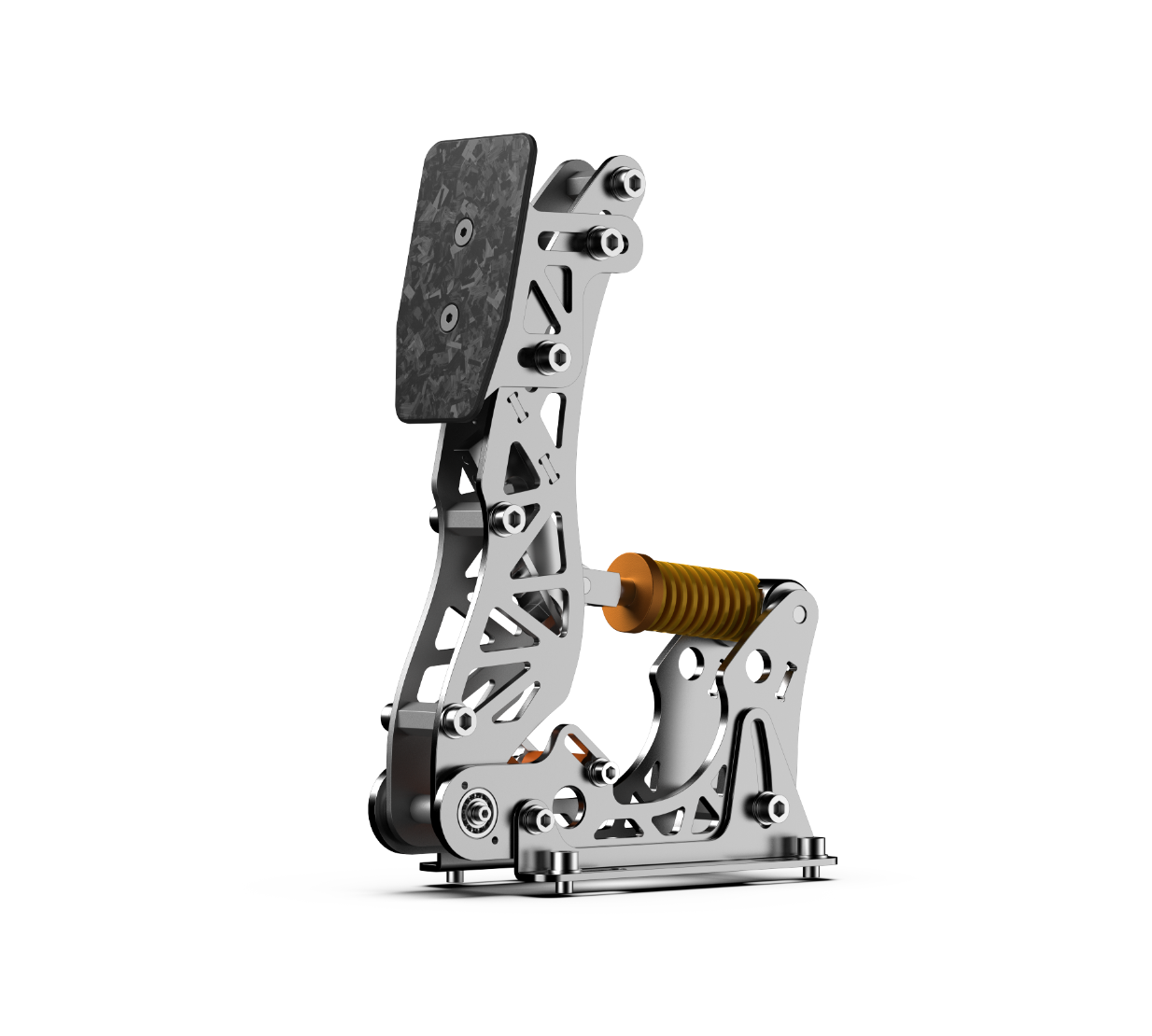

Not in the standard Throttle & Brake set. Choose the Throttle, Brake & Clutch option to add the Vector X clutch, which uses a two-stage linkage, a 30kg load cell and a progressive three-phase force curve to replicate a real bite point.
How do I set up and configure the Vector X?
The pedals are plug and play, so Windows recognises them as soon as the control box is connected by USB. PXN SimRacing software handles calibration and lets you adjust pedal response, deadzones, linearity and brake force.
Specifications
Model: PXN Vector X
Pedals: Throttle and brake (clutch optional)
Compatible platforms: PC (Windows 7, 8, 10, 11)
Connection: USB via external control box, plug and play
Software: PXN SimRacing
Resolution: 24-bit (16,777,216 steps)
Throttle sensor: Angle sensor and load cell (X-Cross dual-sensor fusion)
Brake sensor: Load cell
Brake force rating: Up to 200kg
Brake springs: Red (rated to 125kg), green (rated to 187kg)
Adjustments: Pedal travel, pedal face height and angle, position, spring force, linearity, deadzones, brake force
Pedal face adjustment: Approx. 17mm height, 15mm fore-aft, up to 43.5° tilt
Pedal materials: Carbon fibre, 304 stainless steel, 6061 aluminium
Control box: Aluminium enclosure
Dimensions: Approx. 360 x 326 x 269mm
Product weight: Approx. 5.65kg
Optional clutch: Two-stage linkage, 30kg load cell, 24-bit resolution, approx. 74 x 198 x 253mm
What's In The Box?
1x PXN Vector X brake pedal module
1x PXN Vector X throttle pedal module
1x Aluminium control box
1x Aluminium alloy base plate
1x Carbon fibre footrest
1x Aluminium alloy anti-slip bar
1x Replacement brake spring (green)
Cables
Accessories pack
User manual
Throttle, Brake & Clutch option adds:
1x PXN Vector X clutch pedal module
