Description

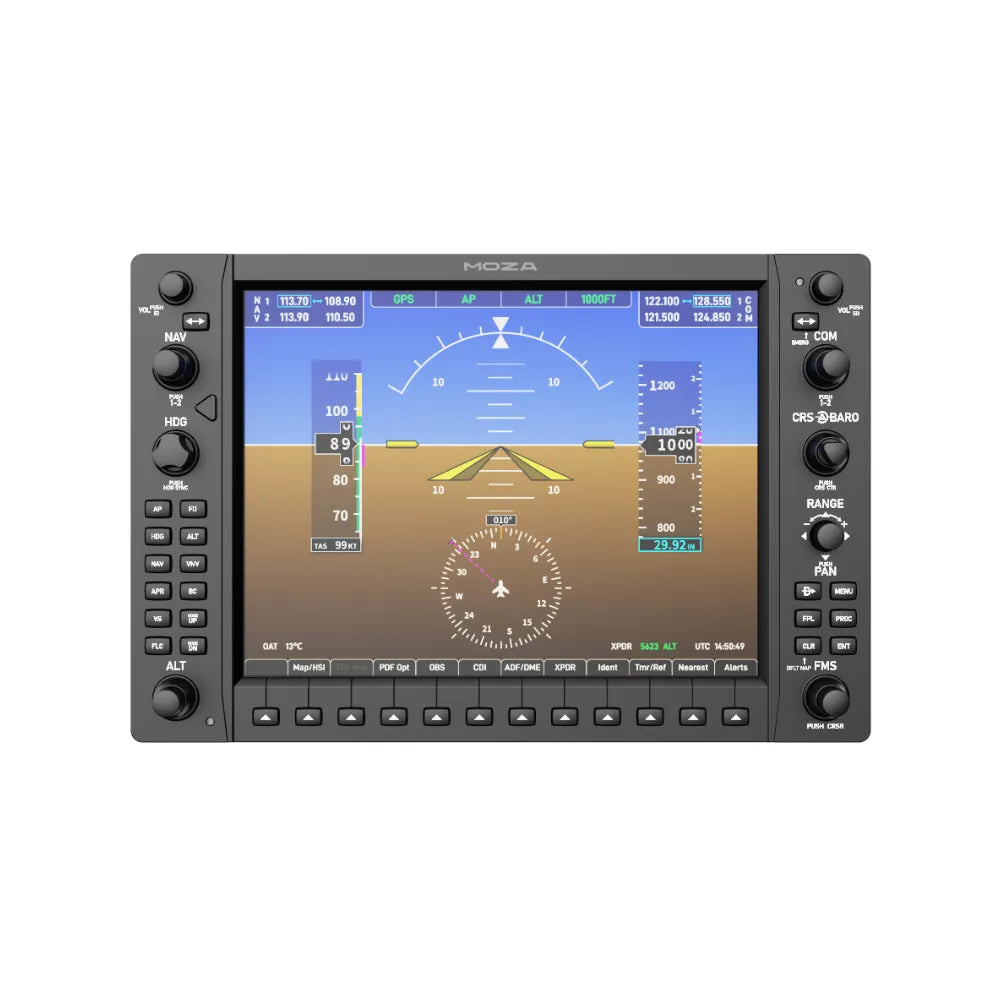

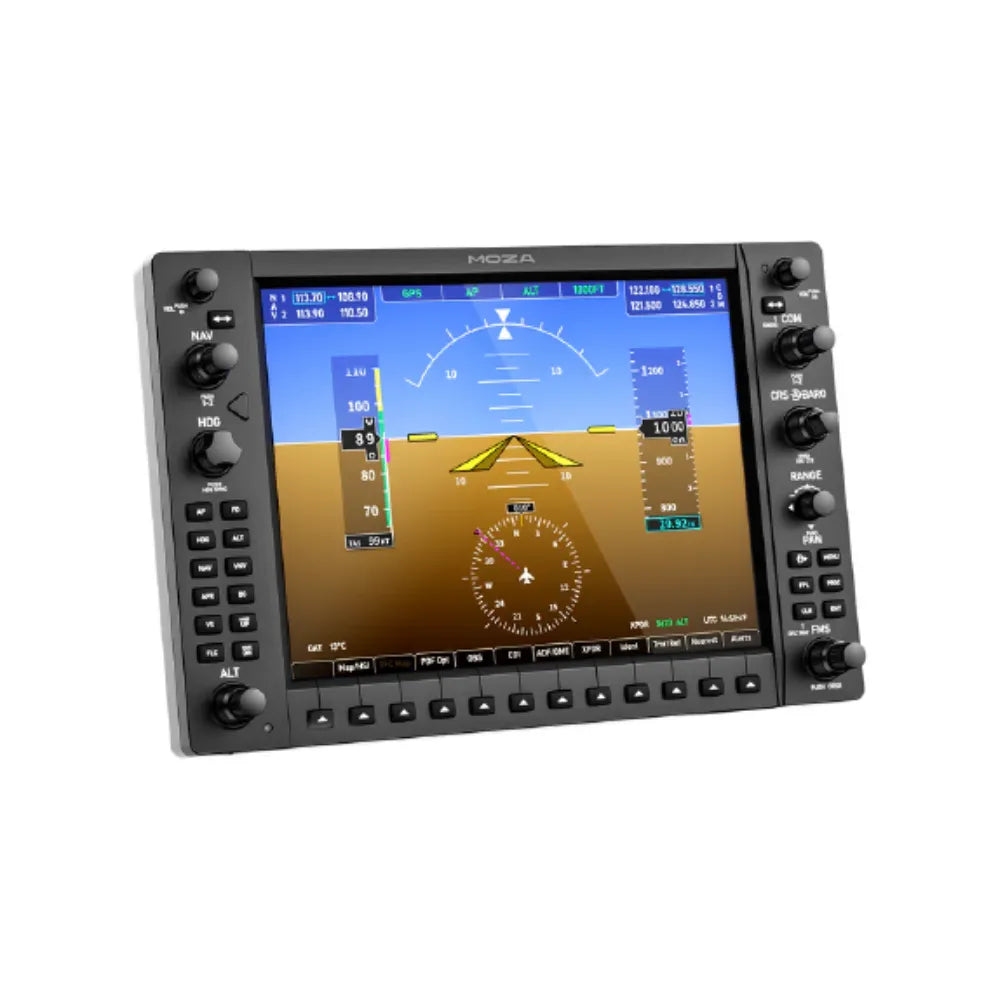

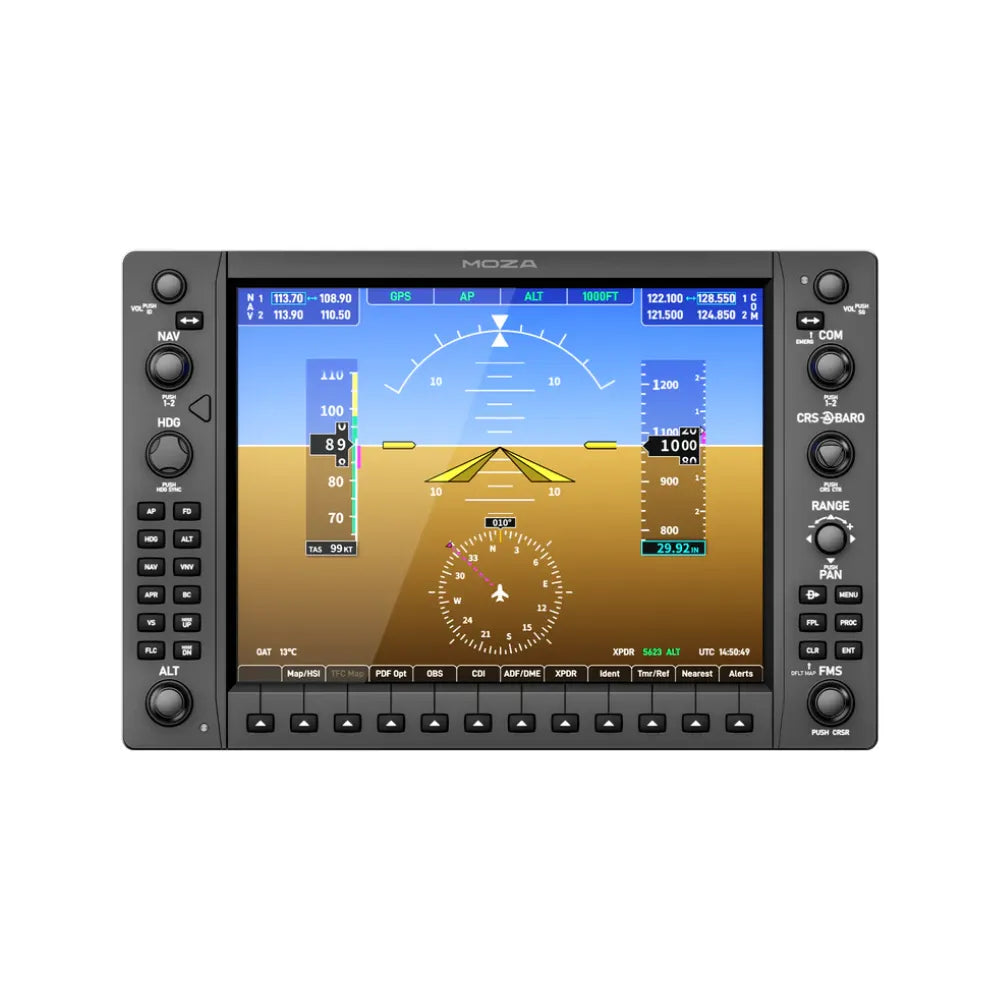

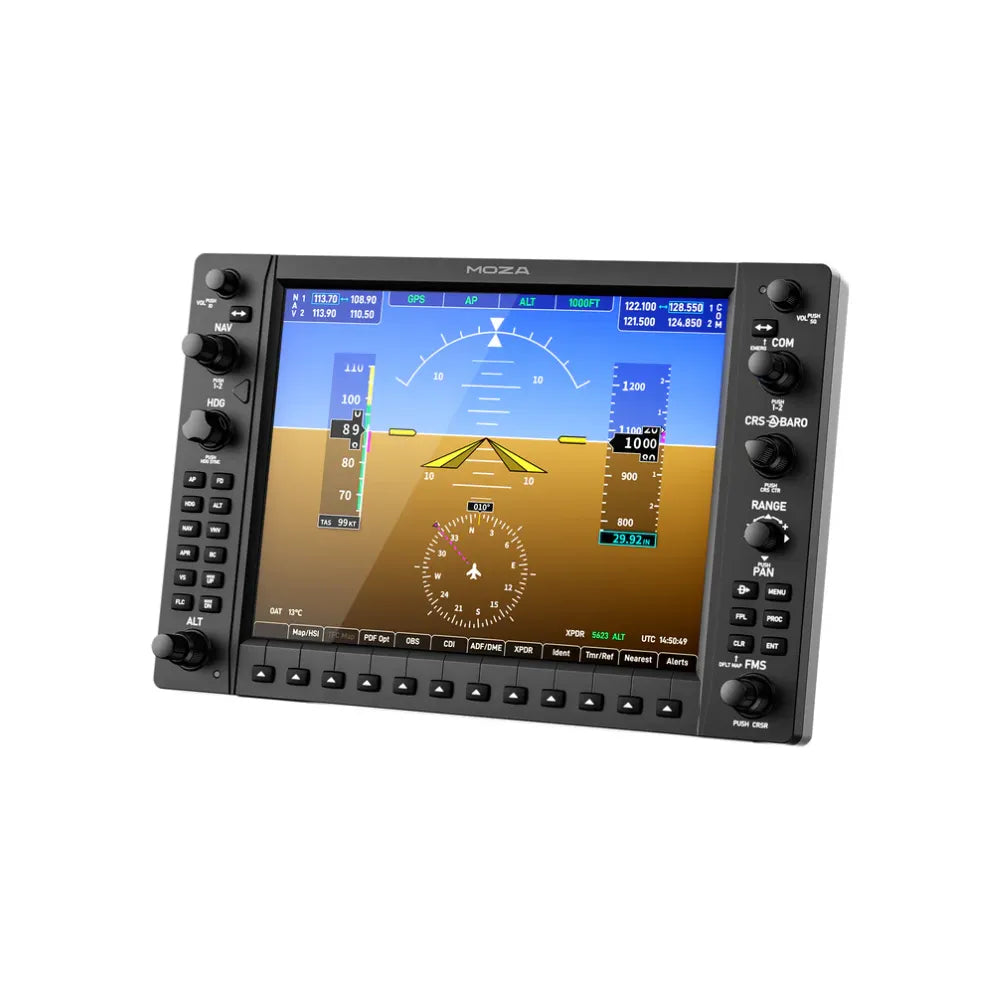

MOZA MGX1000 Instrument Panel
The MOZA MGX1000 is a purpose-built Garmin G1000-style instrument panel for general aviation flight simulation, designed for sim pilots and real-world student pilots who want to interact with a physical G1000 rather than the on-screen version rendered inside the cockpit.
At its centre is a true-to-size 10.4-inch IPS display matching the exact physical dimensions of a real G1000 unit, surrounded by a 1:1 panel layout of tactile buttons, precision rotary encoders with crisp detents, and a 7-way ALPS joystick for zoom, pan, and cursor input. Each unit connects to your PC via DisplayLink over USB-A — no HDMI cable or dedicated GPU port required — and can be independently assigned as a Primary Flight Display or Multi-Function Display through MOZA Cockpit, with two units running simultaneously to replicate the full dual-panel G1000 layout.
The MGX1000 is compatible with all native G1000 aircraft in MSFS 2024 and X-Plane 12, including third-party aircraft from COWS and Simworks Studios. Screen brightness, character illumination, and button-status lighting are all independently adjustable with telemetry-based lighting synchronisation through MOZA Cockpit, and flexible mounting across the included desktop stand, 75×75mm VESA, aluminium profile rigs, and bottom mounting points makes it equally practical for a desktop setup and a dedicated home cockpit build.
Key features
- True-to-size 10.4-inch IPS display matching the exact physical dimensions of a real Garmin G1000
- 1:1 G1000 panel layout with tactile buttons and precision rotary encoders with crisp, well-defined detents
- 7-way ALPS joystick for precise zoom, pan, and cursor selection inputs
- DisplayLink USB-A connectivity — no HDMI cable or dedicated GPU port required
- Configurable as PFD or Multi-Function Display per unit via MOZA Cockpit
- 500 nits peak brightness for vivid display clarity at any cockpit lighting level
- 1024×768 native resolution matched to the G1000's actual display specification
- Independently adjustable screen brightness, character illumination, and button-status lighting
- Telemetry-based lighting synchronisation through MOZA Cockpit for a cohesive cockpit atmosphere
- Flexible mounting across desktop stand, 75×75mm VESA, aluminium profile rigs, and bottom mount
How the MGX1000 compares to other G1000 simulation solutions
Most GA sim pilots interact with the G1000 through the on-screen cockpit rendered by MSFS or X-Plane, navigating it with a mouse or joystick hat switch. The functional result is accurate — the avionics behave correctly — but the physical experience is nothing like the real thing. A real G1000 is operated by feel: the rotary encoder detents give tactile confirmation that the COM frequency incremented one step, the soft-key buttons have a specific travel and click, and the ALPS joystick cursor moves with a precision that a hat switch cannot replicate. None of that is present when navigating the on-screen version with a mouse.
The MGX1000 closes that gap with a purpose-built panel at an accessible price point, delivering a true-size display, authentic physical controls, and DisplayLink connectivity in a slim 1.17kg body that works as easily on a desktop as it does mounted in an aluminium profile cockpit frame. Two units can run simultaneously with independent PFD and MFD assignments through MOZA Cockpit, covering the full dual-screen G1000 layout without any additional hardware or configuration complexity.
True-to-size 10.4-inch display: the difference physical scale makes
A real Garmin G1000 primary flight display is a 10.4-inch screen. The MGX1000 uses a 10.4-inch IPS panel at 1024×768 native resolution — the same resolution specification as the G1000 itself — which means the display output from MSFS or X-Plane fills the screen at the correct size without scaling artefacts. Text, symbology, and instrument readouts appear at the same physical dimensions you would read in an actual G1000-equipped cockpit.
The IPS panel delivers vivid colour reproduction and up to 500 nits of peak brightness, keeping the display readable across a range of ambient lighting conditions. Screen brightness adjusts independently from the button and character illumination, allowing the panel to be tuned to match the cockpit environment without affecting the readability of the physical controls.
Real G1000 controls: tactile buttons, rotary encoders, and ALPS joystick
The physical control layout of the MGX1000 replicates the G1000's bezel controls with the same operational logic. The rotary encoders feature crisp, well-defined detents so each click step is confirmed by feel, allowing frequency and navigation data to be entered without looking down at the panel. The tactile buttons deliver clean actuation feedback and are backlit with independently adjustable lighting that can sync to in-sim cockpit illumination through telemetry.
The integrated 7-way ALPS joystick handles cursor movement, zoom, and selection inputs across both PFD and MFD modes. ALPS joystick switches are a commercial-grade component used in professional avionics applications, and the MGX1000's implementation replicates the cursor control feel of the real G1000 bezel. Navigation data browsing, map zoom, and procedure selection all operate through the joystick in the same way they do in actual G1000-equipped aircraft.
DisplayLink connectivity for multi-panel cockpit builds
DisplayLink technology transmits video over standard USB rather than HDMI or DisplayPort, removing the requirement for a dedicated GPU output port for each panel. For pilots running two MGX1000 units alongside a main simulator display, this means no additional GPU is needed and cable management stays straightforward — a single USB 3.0 Type-A cable per panel carries both video and control input data.
For a dual-panel PFD/MFD setup, each MGX1000 is assigned its display mode independently through MOZA Cockpit. The PFD unit displays attitude, airspeed, altitude, HSI, and flight data in the standard G1000 primary layout. The MFD unit displays the moving map, engine data, navigation pages, and procedure information. Both update from the same simulator telemetry in real time.
Our expert take
The MGX1000 is built for GA sim pilots and student pilots who want to interact with a real G1000 panel rather than click through the on-screen version. The difference in immersion and procedural realism is immediate — having physical controls you can reach for and operate by feel changes how you engage with the avionics, and the true-to-size display makes the panel feel proportionally correct in a way that a scaled-down or screen-only approach does not. Whether you are building IFR procedures ahead of real training flights or simply want the most authentic general aviation cockpit experience MSFS can offer, the MGX1000 is the hardware that closes that gap.
Tested and recommended by the team at Gamer Gear Direct's Melbourne sim racing showroom.
Frequently Asked Questions
What flight simulators are compatible with the MGX1000?
The MGX1000 is currently compatible with MSFS 2024 and X-Plane 12. Support for MSFS 2020 and X-Plane 11 is coming in a future MOZA Cockpit update.
Which aircraft are confirmed compatible with the MGX1000?
In MSFS 2024, confirmed aircraft include the Cessna 172 Skyhawk G1000, Beechcraft Bonanza G36, Diamond DA40 NG, Diamond DA40/DA42 (COWS), Cirrus SR22 (Asobo), Cessna 400 Corvalis TT, Diamond DA62, Beechcraft Baron G58, Cessna 208B Grand Caravan, Cessna 408 SkyCourier, Grumman Albatross G111, Daher Kodiak 100 (SWS), and Pilatus PC-6. In X-Plane 12, confirmed aircraft include the Lancair Evolution N844X, Van's Aircraft RV-10, BETA Technologies Alia-250, Cessna 172 SP, Cirrus Vision SF50, and Cirrus SR22. Additional aircraft support will expand with MOZA Cockpit updates.
Can I run two MGX1000 panels simultaneously as a PFD and MFD?
Yes. Two units can be connected to the same PC and assigned independently as PFD or MFD through MOZA Cockpit. This replicates the full dual-screen G1000 layout found in most G1000-equipped GA aircraft. Each unit connects via its own USB cable and requires no additional hardware.
What is DisplayLink and why does it matter for cockpit builds?
DisplayLink transmits video over a standard USB connection rather than requiring HDMI or DisplayPort. For home cockpit builders this means the MGX1000 does not consume a GPU output port, which matters when running multiple displays alongside a main flight simulator monitor. The single USB 3.0 Type-A cable carries both video and control input data.
How is the MGX1000 different from using the on-screen G1000 in MSFS?
The MGX1000 provides physical controls — tactile buttons, rotary encoders with defined detents, and an ALPS joystick — that replicate the feel of operating real G1000 avionics. The 10.4-inch display is true to the physical size of a real G1000 unit, and all inputs build the same muscle memory as operating actual avionics rather than navigating a rendered cockpit with a mouse.
Is the MGX1000 useful for real-world G1000 procedure training?
Yes. The physical control layout, true-to-size display, and accurate button and encoder placement make it a practical tool for building G1000 procedural familiarity before flying a real G1000-equipped aircraft. Student pilots and rated pilots can work through COM/NAV frequency entry, FMS data input, autopilot coupling, and procedure loading in MSFS 2024 with the same physical interactions as the real avionics.
What mounting options does the MGX1000 support?
The MGX1000 supports four mounting configurations: the included desktop stand, 75×75mm VESA mounting, aluminium profile cockpit rig integration, and bottom mounting points for integrated chassis builds. Mounting dimension drawings are available on the MOZA product page for cockpit builders requiring precise alignment.
Does the MGX1000 include everything needed to get started?
Yes. The box includes the panel, a 1.5m USB 3.0 Type-A cable, desktop stand, and power adapter. A DisplayLink driver download is required for first-time setup, and MOZA Cockpit handles all panel configuration including PFD/MFD assignment and lighting settings.
Specifications
|
Specification |
Detail |
|
Display Size |
10.4-inch IPS |
|
Resolution |
1024 × 768 |
|
Peak Brightness |
500 nits |
|
Panel Layout |
1:1 Garmin G1000 replication |
|
Joystick |
7-way ALPS joystick switch |
|
Controls |
Tactile buttons and precision rotary encoders |
|
Connectivity |
DisplayLink via USB-A (single cable for video and input) |
|
PFD/MFD Configuration |
Supported (per unit, via MOZA Cockpit) |
|
Lighting |
Screen, character, and button-status — independently adjustable |
|
Telemetry Lighting Sync |
Supported via MOZA Cockpit |
|
Mounting Options |
Desktop stand, 75×75mm VESA, aluminium profile, bottom mount |
|
Dimensions |
304 × 201 × 66.8mm |
|
Weight |
1.17kg |
|
Material |
ABS + PC |
|

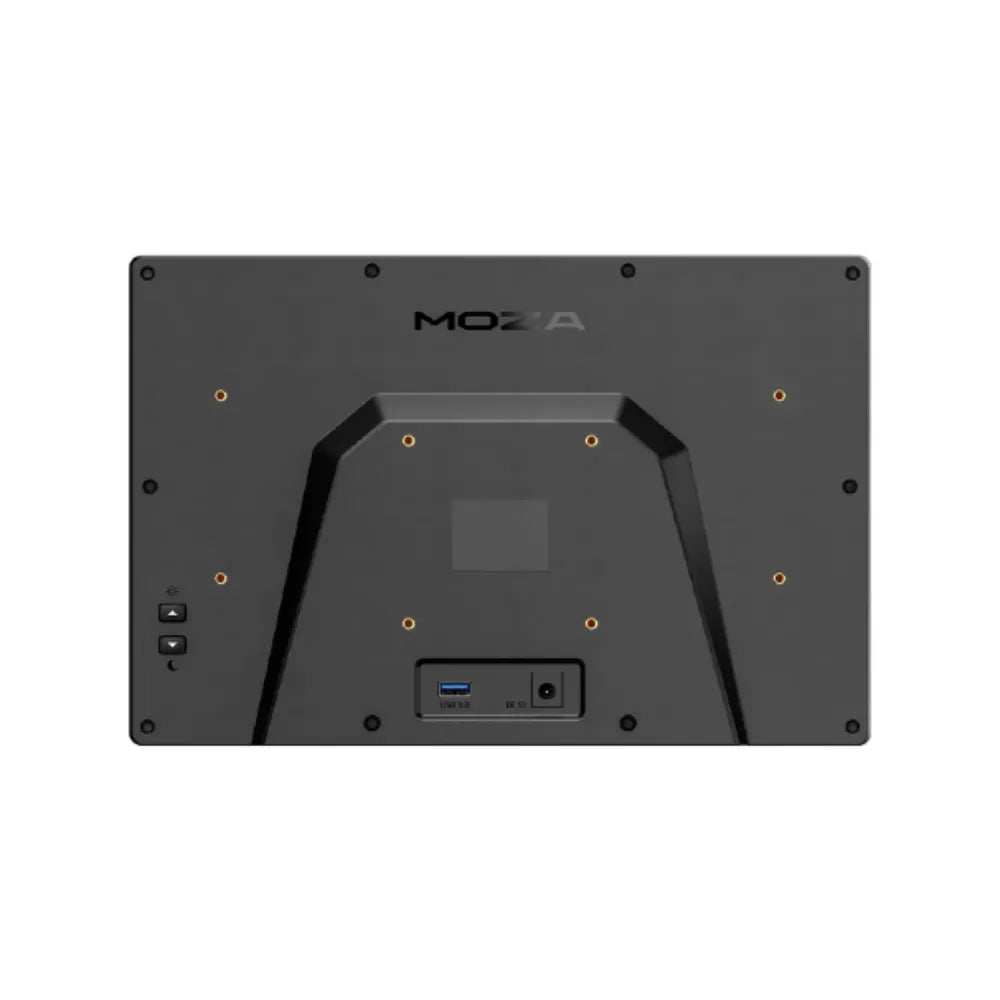

Connection Ports |
USB-A, DC 5V |
|
Rated Voltage |
5V (USB), 5V (DC) |
|
Software |
MOZA Cockpit |
|
Compatible Simulators |
MSFS 2024, X-Plane 12 (MSFS 2020 and X-Plane 11 coming soon) |
|
Platform |
PC |
|
Warranty |
24 months |
What's in the Box?
MOZA MGX1000 Instrument Panel x 1
1.5m USB 3.0 Type-A Cable x 1

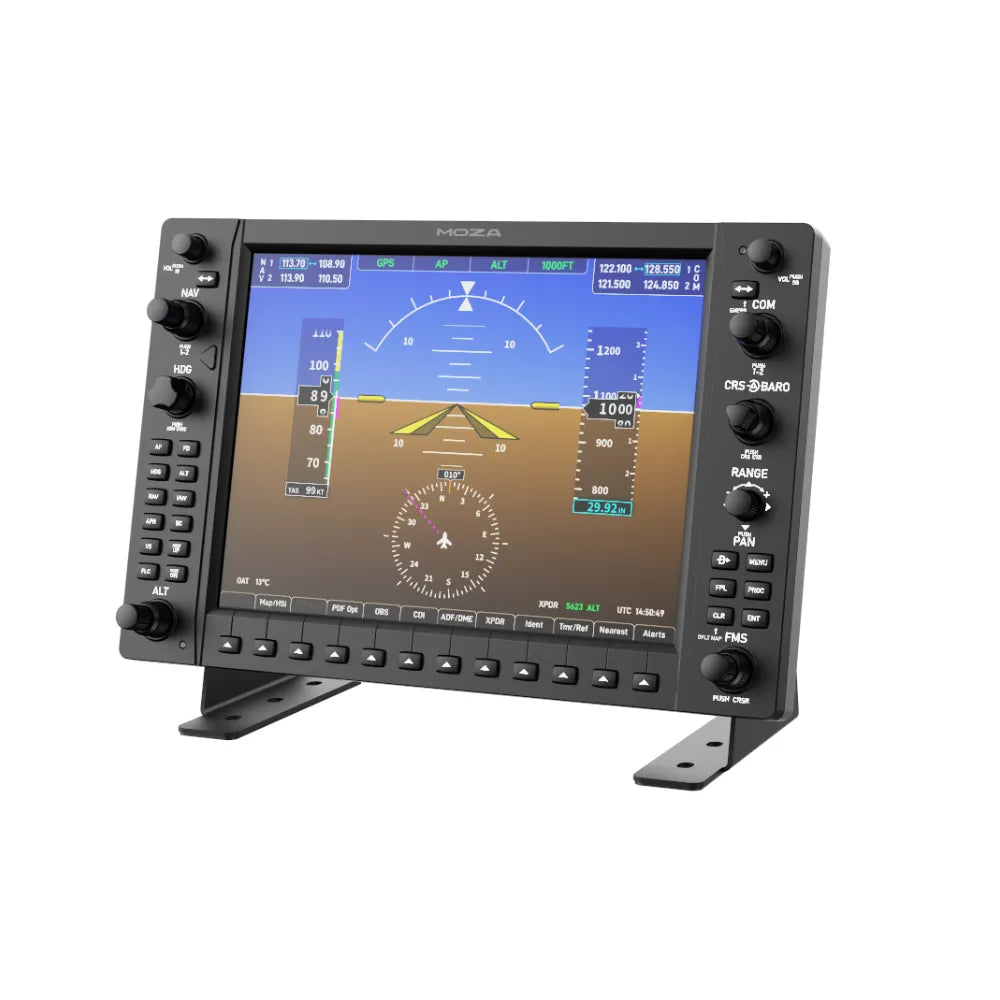

Desktop Stand x 1
Power Adapter x 1
Quick start guide and warranty card
