Description
Max Flight Stick Huey Max

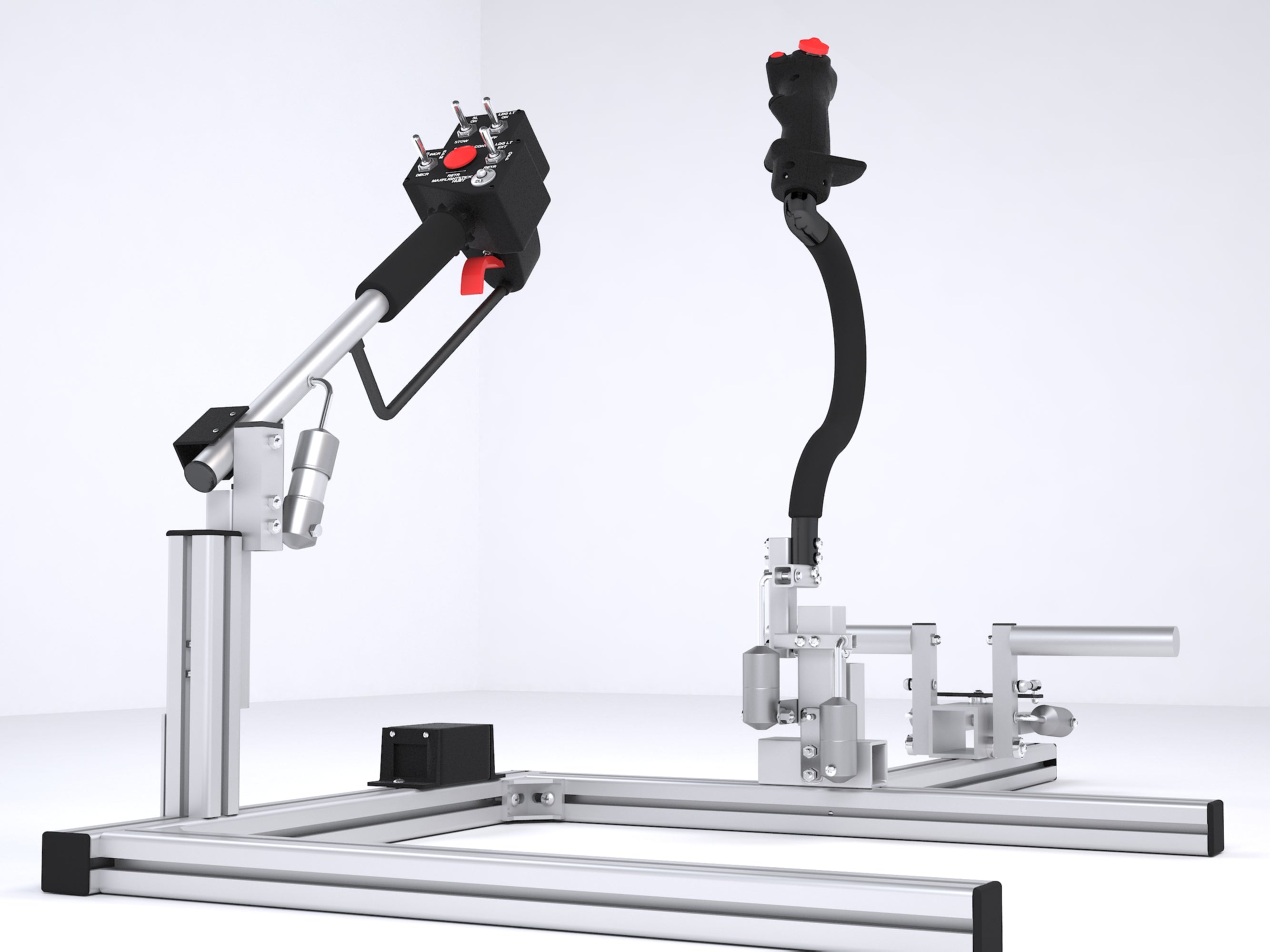

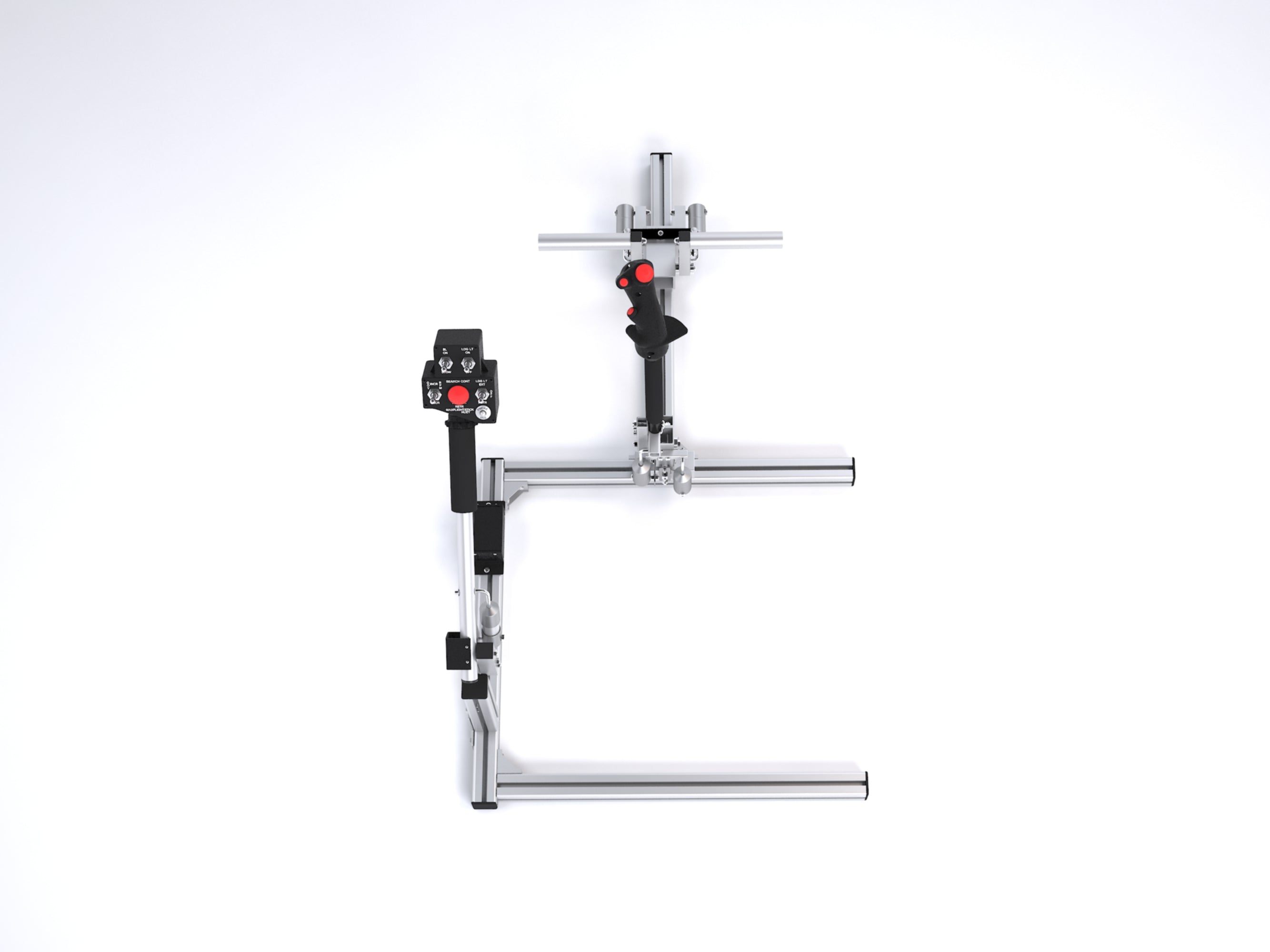

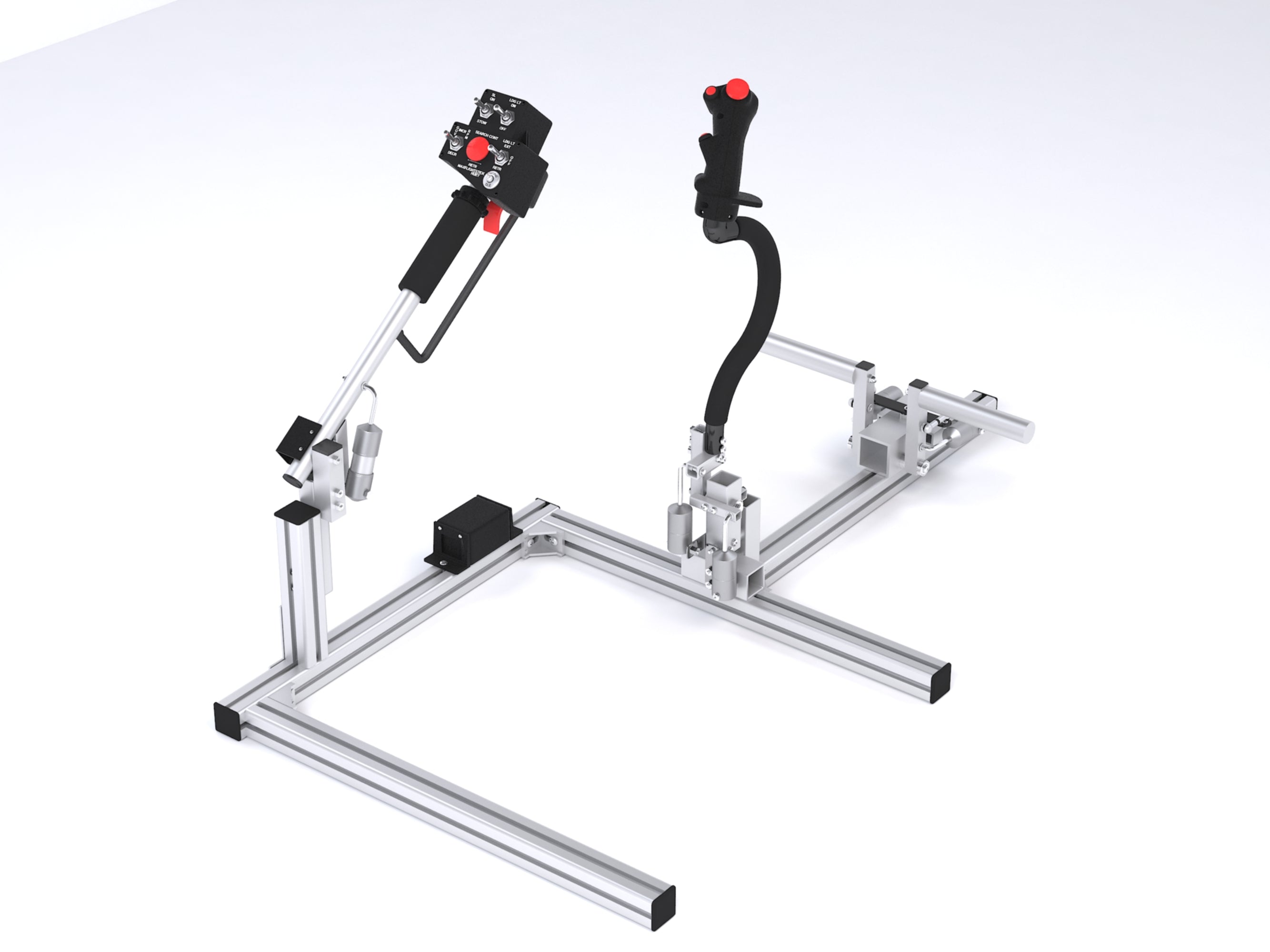

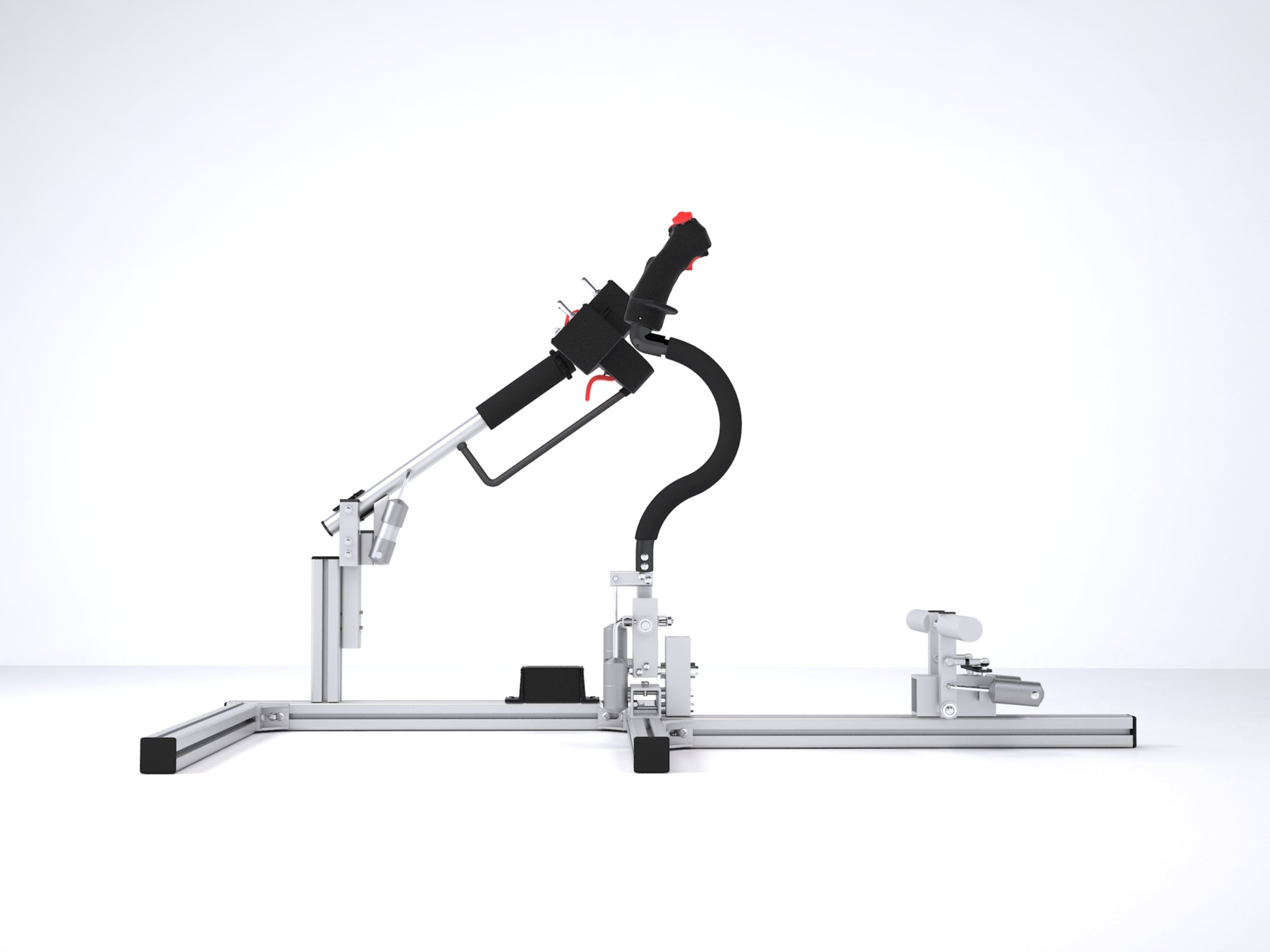

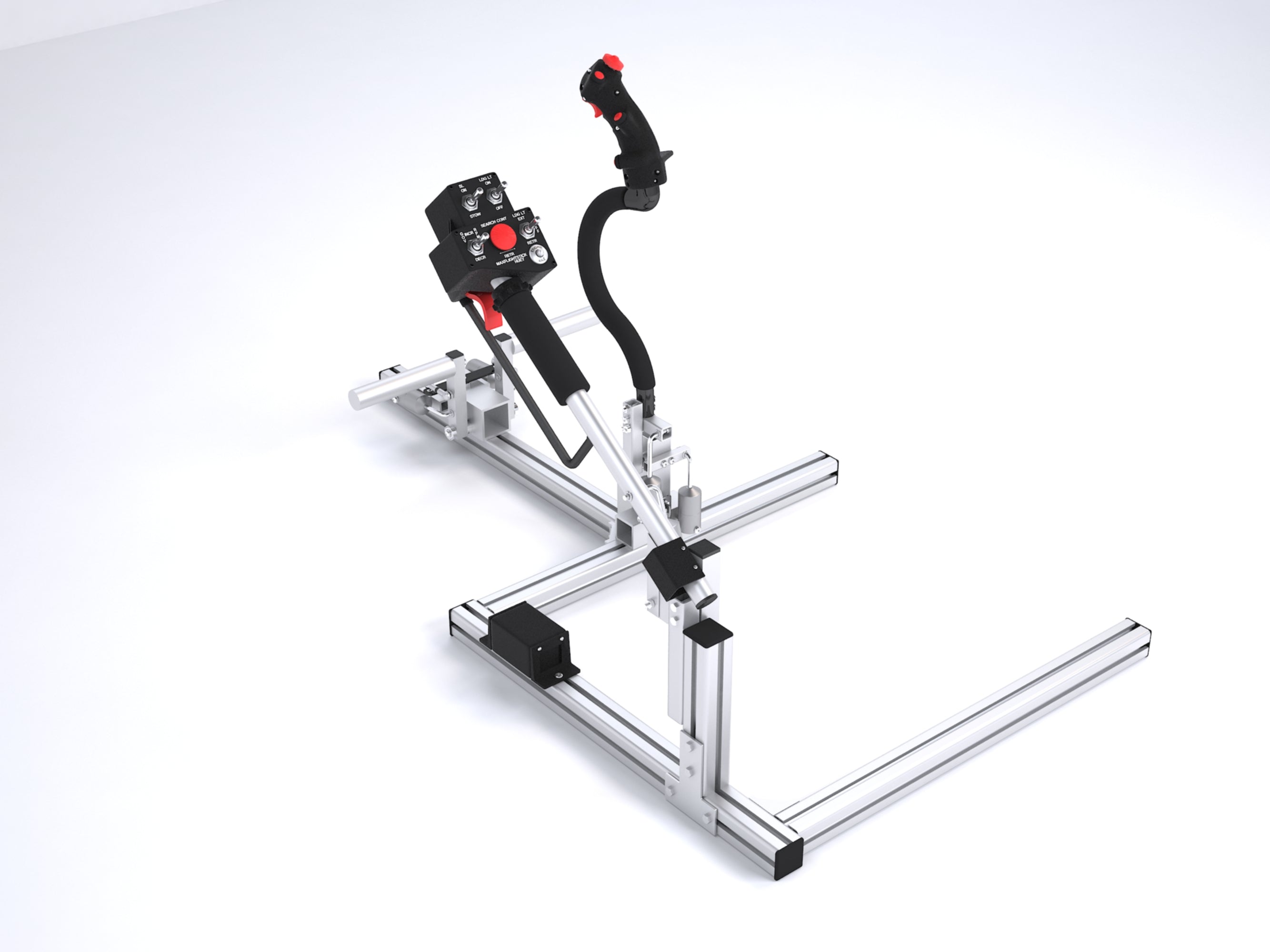

The Max Flight Stick Huey Max is a complete set of UH-1H helicopter controls for PC and Mac: cyclic, collective and anti-torque pedals on one aluminium frame. It is the eighth generation of Max Flight Stick UH-1H controls, developed and tested with a current UH-1H commander who visited their workshop.
Dimensions are taken from the actual aircraft, and every axis reads through Hall effect sensors and a 12-bit analogue to digital converter. Six custom pistons, set up with force data provided by the military, load the cyclic, collective and pedals.
This is the metal version, with the grips and collective front box printed in industrial-grade aluminium. Choose a single engine collective, or the twin engine variant with a twin throttle collective for multi-engine Hueys.
Key features
- Eighth-generation UH-1H replica controls
- Developed with a current UH-1H commander
- Hall effect sensors on all 5 axes
- 12-bit analogue to digital conversion
- 6 pistons tuned with military force data
- Cyclic: 3 buttons, dual-stage trigger, hat switch
- Collective: 4 switches, button, trigger, hat
- Solid metal anti-torque pedals on ball bearings
- Single or twin engine collective
- Plug and play over a single USB connection
Built from the real UH-1H

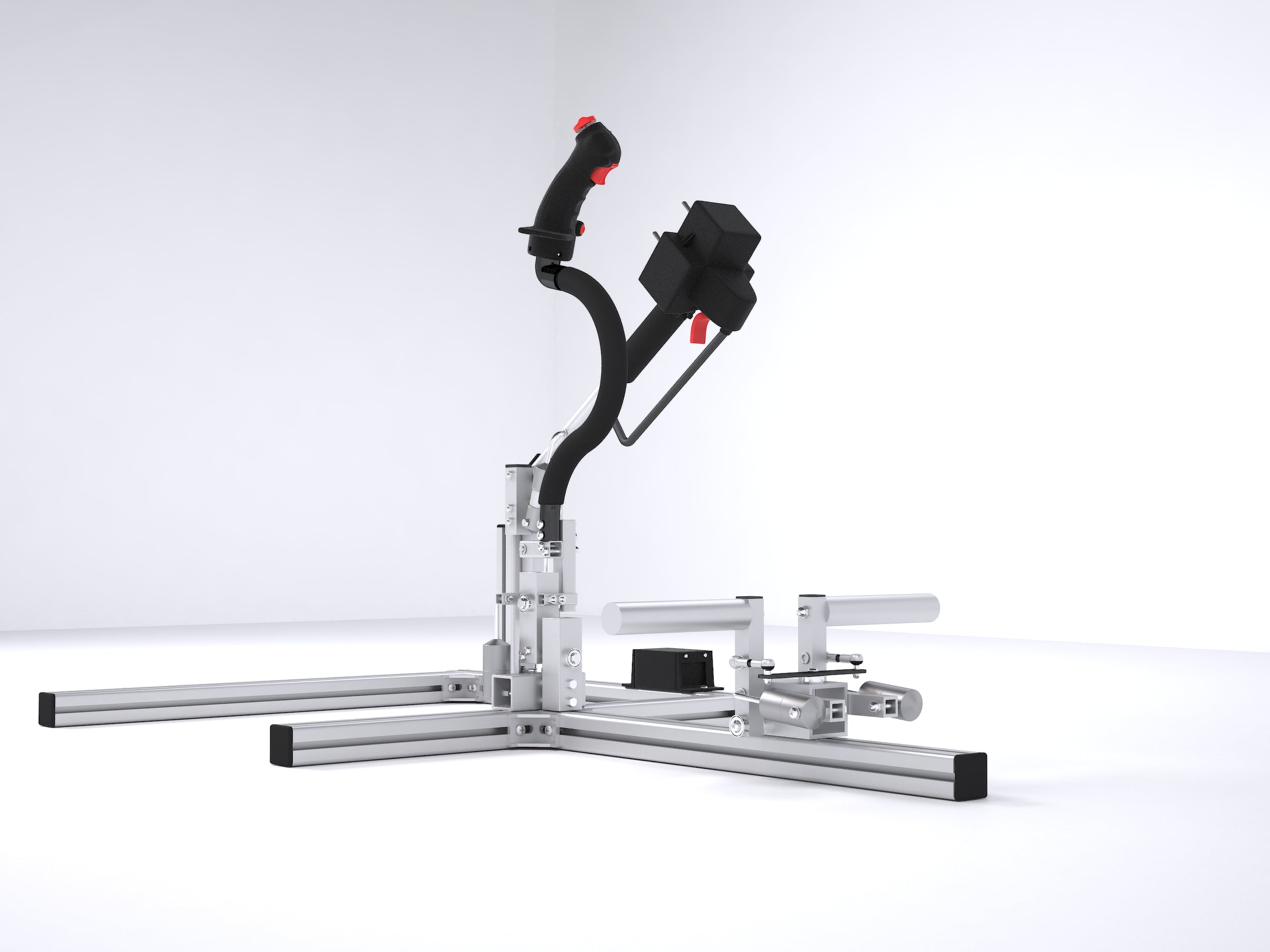

Every dimension on the Huey Max is taken from the actual aircraft, from the curved cyclic to the collective head. The set has had all-round material reinforcement since version 4.0 to handle rough, heavy flight inputs.
The cyclic carries 3 push buttons, a dual-stage trigger and a hat switch. The collective head adds 4 switches, a push button, a trigger and a second hat switch, so the controls you need in the hover are where the real ones are.
Piston-loaded feel from military force data
Six custom pistons give the cyclic, collective and pedals a weighted, hydraulic feel, using force data provided by the military. The latest generation improves both the hydraulic feel on every axis and the range of adjustment.
Hall effect sensors read the cyclic X and Y, throttle, collective and rudder axes without contact, so there is nothing inside the sensor to wear. Browse our helicopter controls for more rotorcraft hardware.
Single or twin engine, adjustable all round
The single engine variant has one twist throttle on the collective. The twin engine variant adds a twin throttle collective for flying multi-engine Hueys with independent engine control.
Like the real aircraft, the set is adjustable all round. The rudder section uses solid metal pedals on ball joints and ball bearings, with two of Max Flight Stick's own pistons providing the resistance.
Our expert take
"The Huey Max is about as close as a home cockpit gets to a UH-1H without building one from airframe parts. Aircraft-sourced dimensions, a pilot-developed layout and piston loading tuned with military force data make it a serious tool for DCS Huey pilots and rotary trainees alike."
"It is a floor-standing set, so plan the space in front of your seat, and the layout is specific to the UH-1H. Pick the twin engine variant only if you fly twin-engine Hueys, as it adds a second throttle you will not otherwise use. It works on PC and Mac only."
- Blake Sterling, Founder & CEO, Gamer Gear Direct
Frequently asked questions
What is the difference between the single and twin engine variants?
The single engine variant has one twist throttle on the collective. The twin engine variant has a twin throttle collective for multi-engine Hueys. Everything else in the set is the same.
Which simulators does it work with?
Max Flight Stick lists DCS, Microsoft Flight Simulator 2024 and 2020, FSX, X-Plane, Prepar3D, FlightGear and War Thunder, plus any PC flight sim that accepts a USB game controller.
Does it work on Xbox or PlayStation?
No. It is built for PC (Windows XP through to Windows 11) and Mac, connected with a single USB cable.
Is this the metal or resin version?
Gamer Gear Direct sells the metal version only. The grips and collective front box are made by industrial-grade powder metal printing in aluminium.
How realistic is the layout?
All dimensions are taken from the actual UH-1H, and the set was developed and tested with a current UH-1H commander. Six pistons load the controls using force data provided by the military.
Is the frame included?
Yes. The cyclic, collective and pedals come on the aluminium frame shown. See our flight simulator controls for the rest of your setup.
Specifications
Model: Max Flight Stick Huey Max
Version: Metal, eighth-generation UH-1H controls
Replicates: Bell UH-1H
Engine options: Single engine or twin engine collective
Grips and collective front box: Industrial-grade powder metal printed aluminium
Sensors: Hall effect on all axes
Analogue to digital converter: 12-bit
Axes: 5 (cyclic X and Y, throttle, collective, rudder)
Cyclic controls: 3 push buttons, 1 dual-stage trigger, 1 hat switch
Collective controls: 4 switches, 1 push button, 1 trigger, 1 hat switch
Pedals: Solid metal, ball joints, ball bearings, 2 pistons
Control loading: 6 custom pistons
Connection: Single USB, plug and play
Compatible platforms: Windows XP to Windows 11, macOS
Compatible sims: DCS, Microsoft Flight Simulator 2024 and 2020, FSX, X-Plane, Prepar3D, FlightGear, War Thunder
What's In The Box?
1x Huey Max cyclic
1x Huey Max collective (single or twin engine)
1x Anti-torque pedal set
1x Aluminium mounting frame
