Description
Max Flight Stick Apache Max

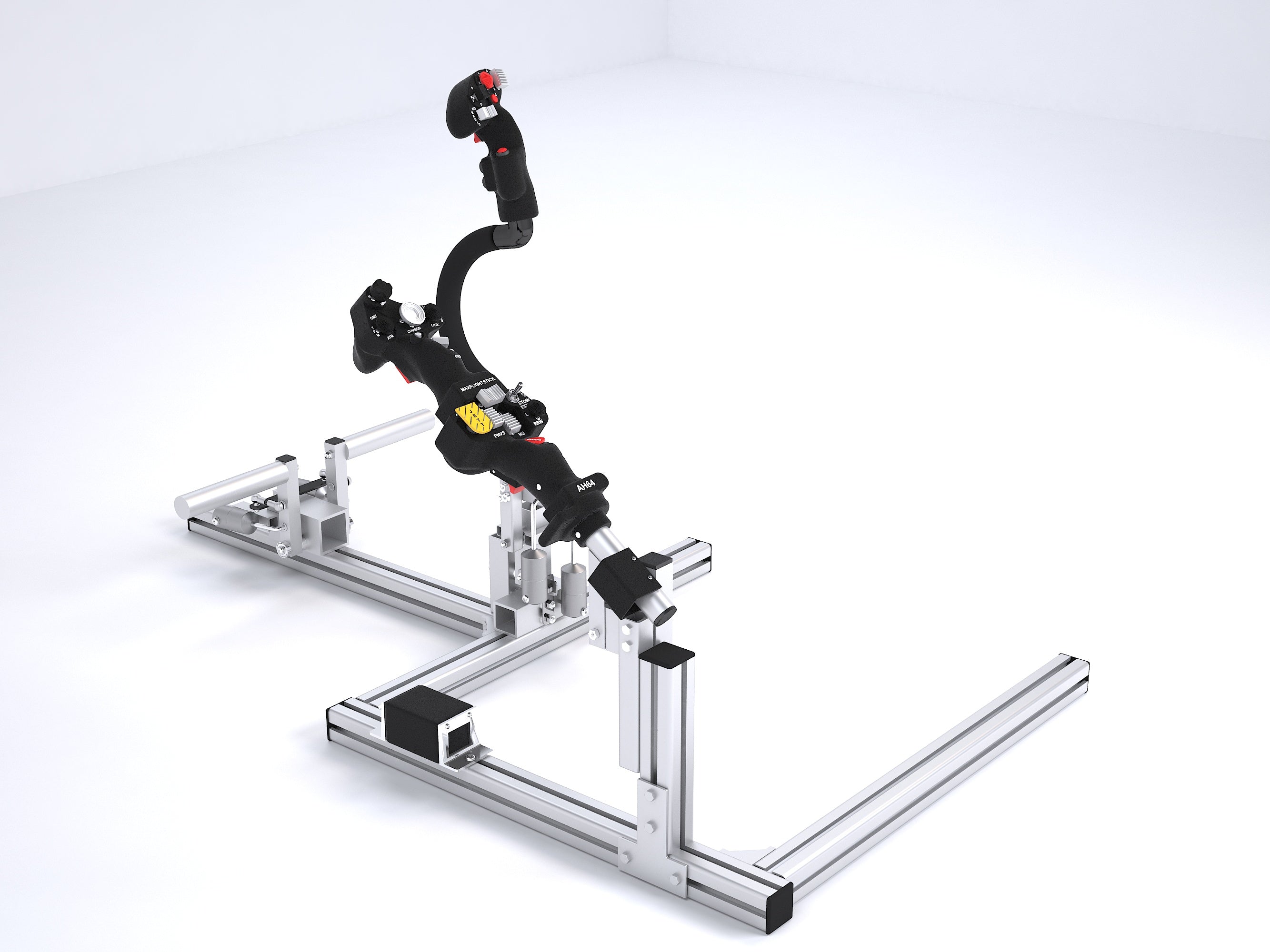

The Max Flight Stick Apache Max is a complete set of AH-64 Apache helicopter controls for PC and Mac: cyclic, collective and anti-torque pedals on an adjustable aluminium frame. It is the fifth generation of Max Flight Stick AH-64 model, developed with an ex AH-64E Apache pilot.
The cyclic carries up to 27 programmable buttons and the collective 38, with switch guards on the functions that matter. Hall effect sensors read every axis, and in-house pistons give all of them a hydraulic feel.
This is the metal version, with the grips and collective front box printed in industrial-grade aluminium. Choose the cyclic thumb option and the collective type, then connect with a single USB cable.
Key features
- Fifth-generation AH-64 Apache controls
- Developed with an ex AH-64E pilot
- Cyclic with up to 27 programmable buttons
- Four 5-way hats and dual-stage trigger
- Collective with 38 configurable buttons
- 2 switch guards on the collective
- Standard or duo twist throttle collective
- Hall effect sensors on all axes
- Adjustable aluminium frame and control positions
- Plug and play over a single USB connection

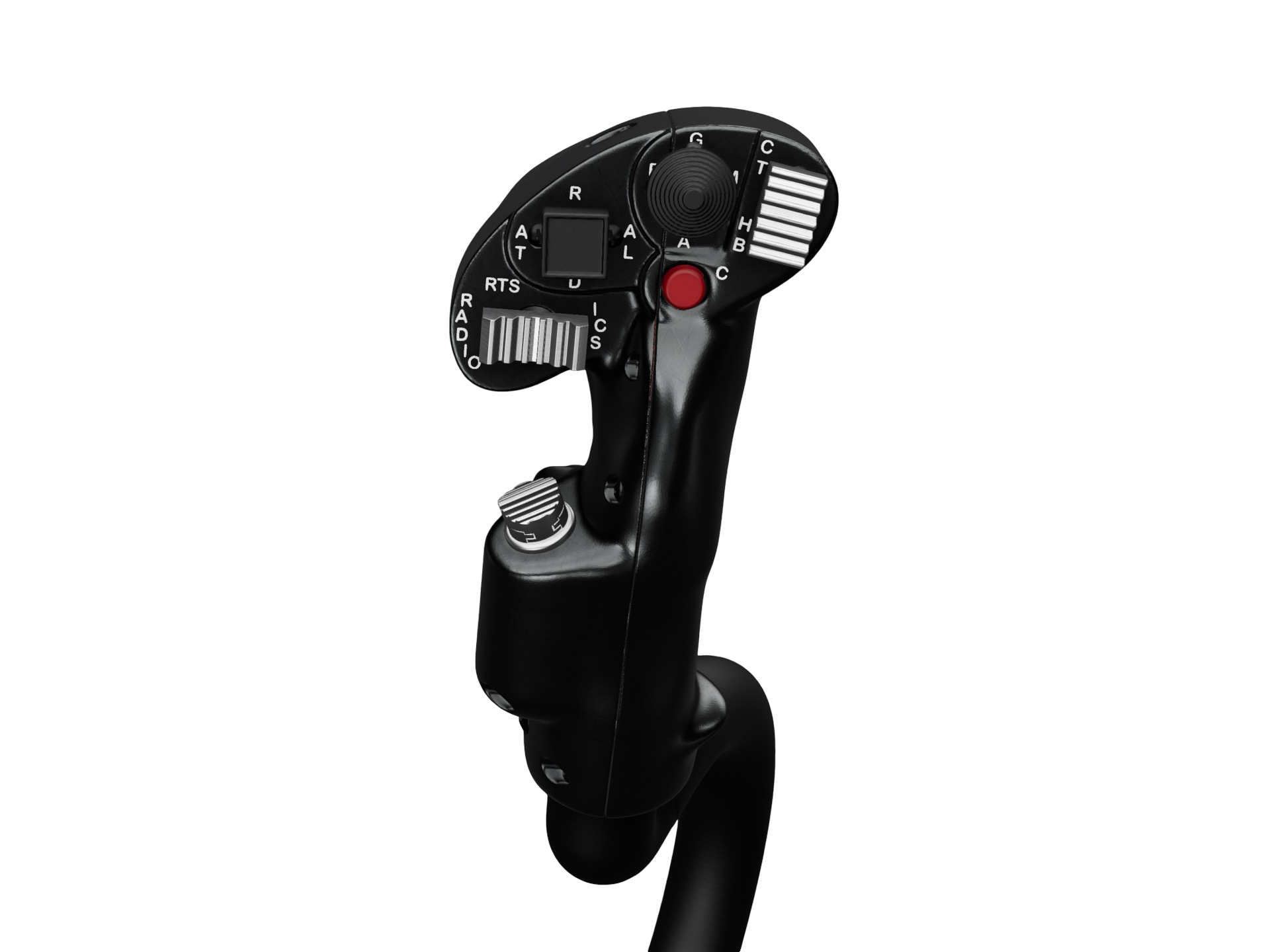

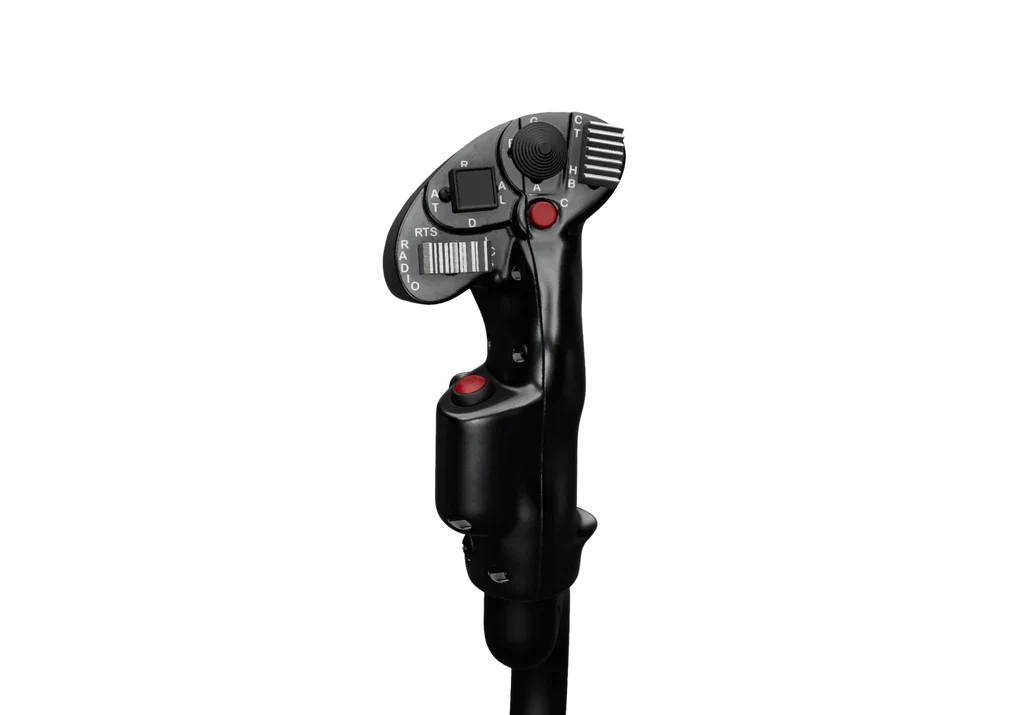

An Apache cyclic, standard or momentary thumb
The cyclic grip carries four 5-way hats, a dual-stage trigger and 4 push buttons, for 26 programmable buttons with the standard push button or 27 with the momentary thumb switch. Its aluminium tube bolts to the cyclic base with 2 bolts.
Every function can be mapped in DCS, so sensors, weapons and trim stay under your right hand through the whole mission.

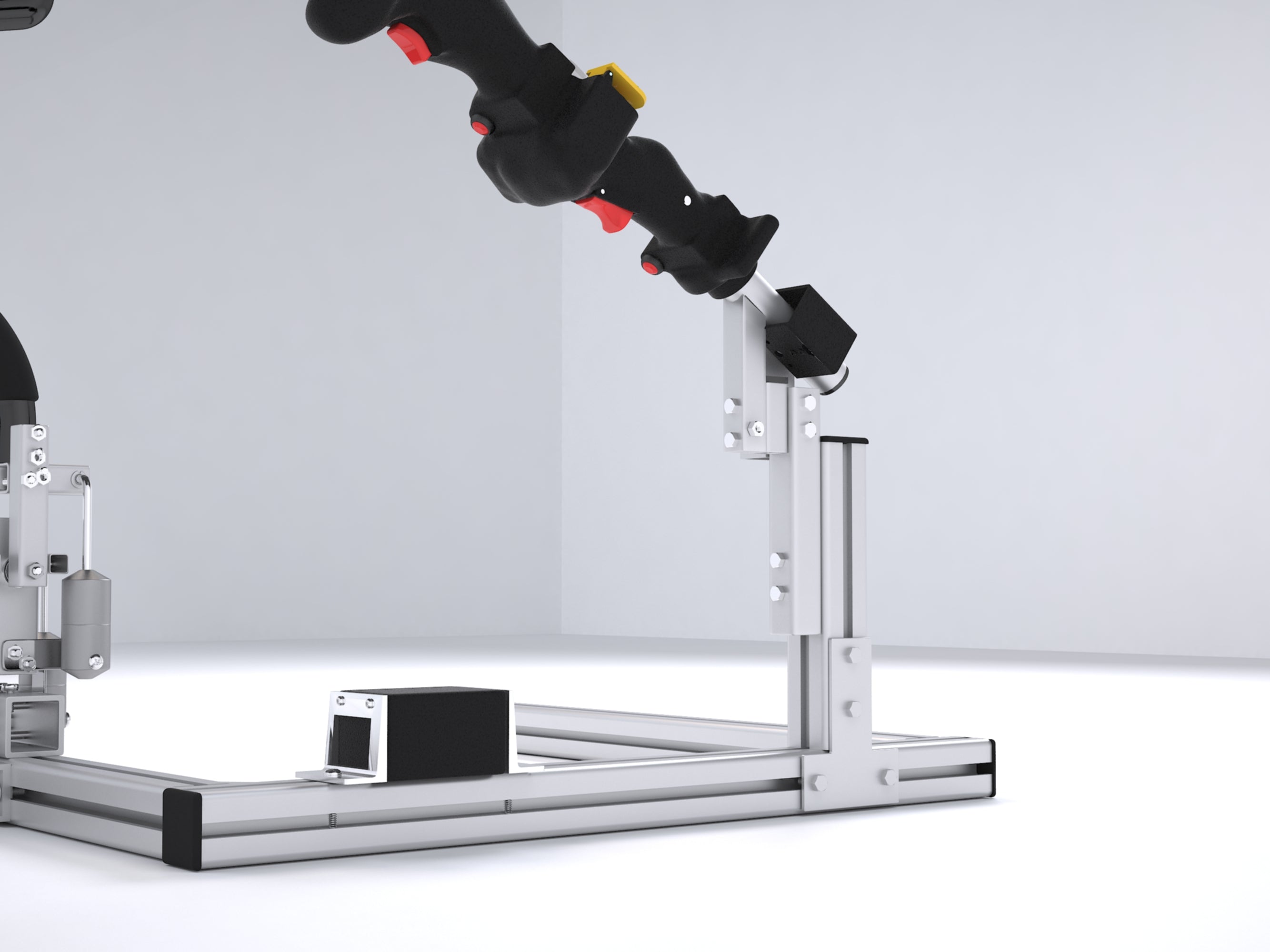

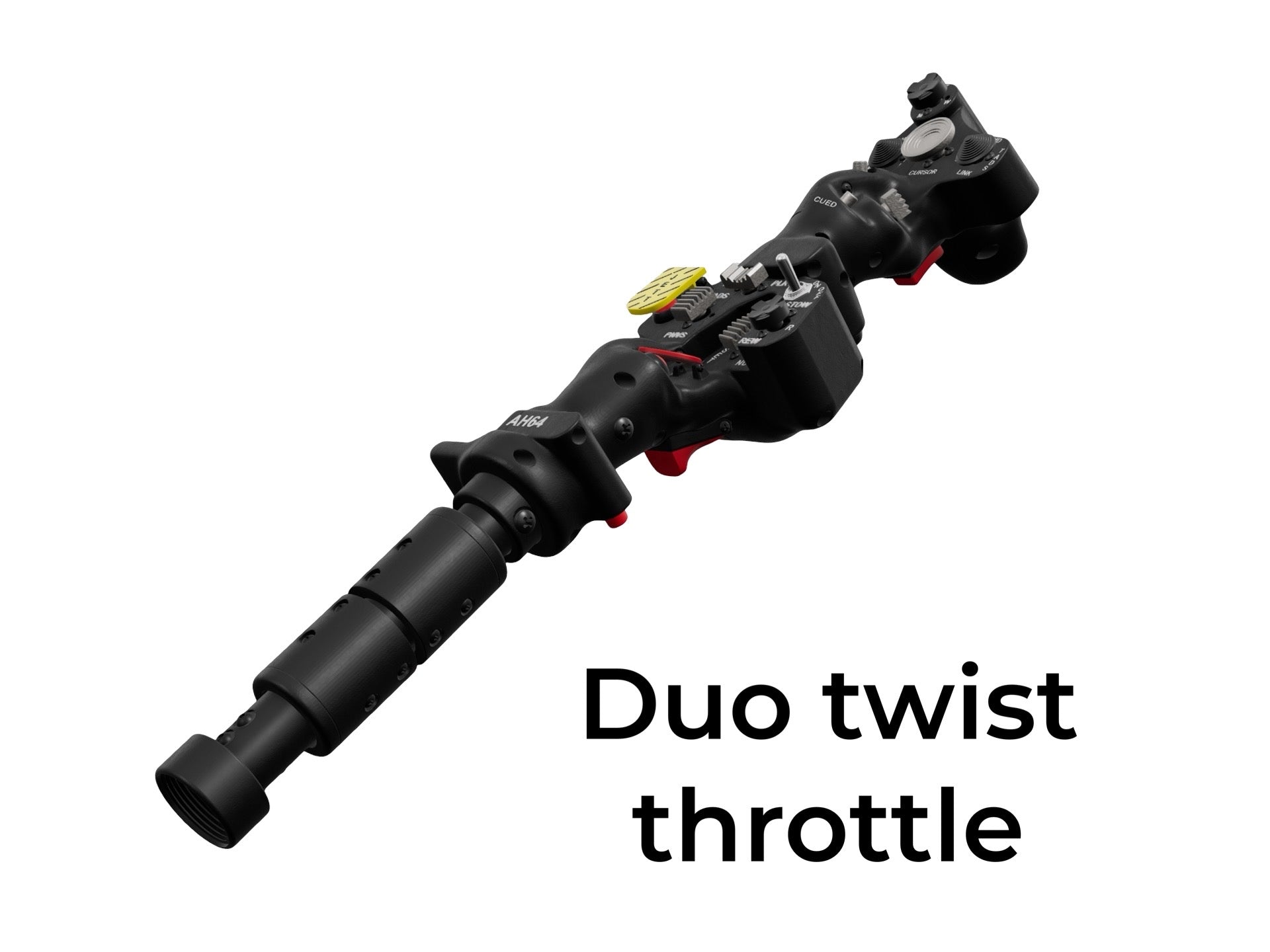

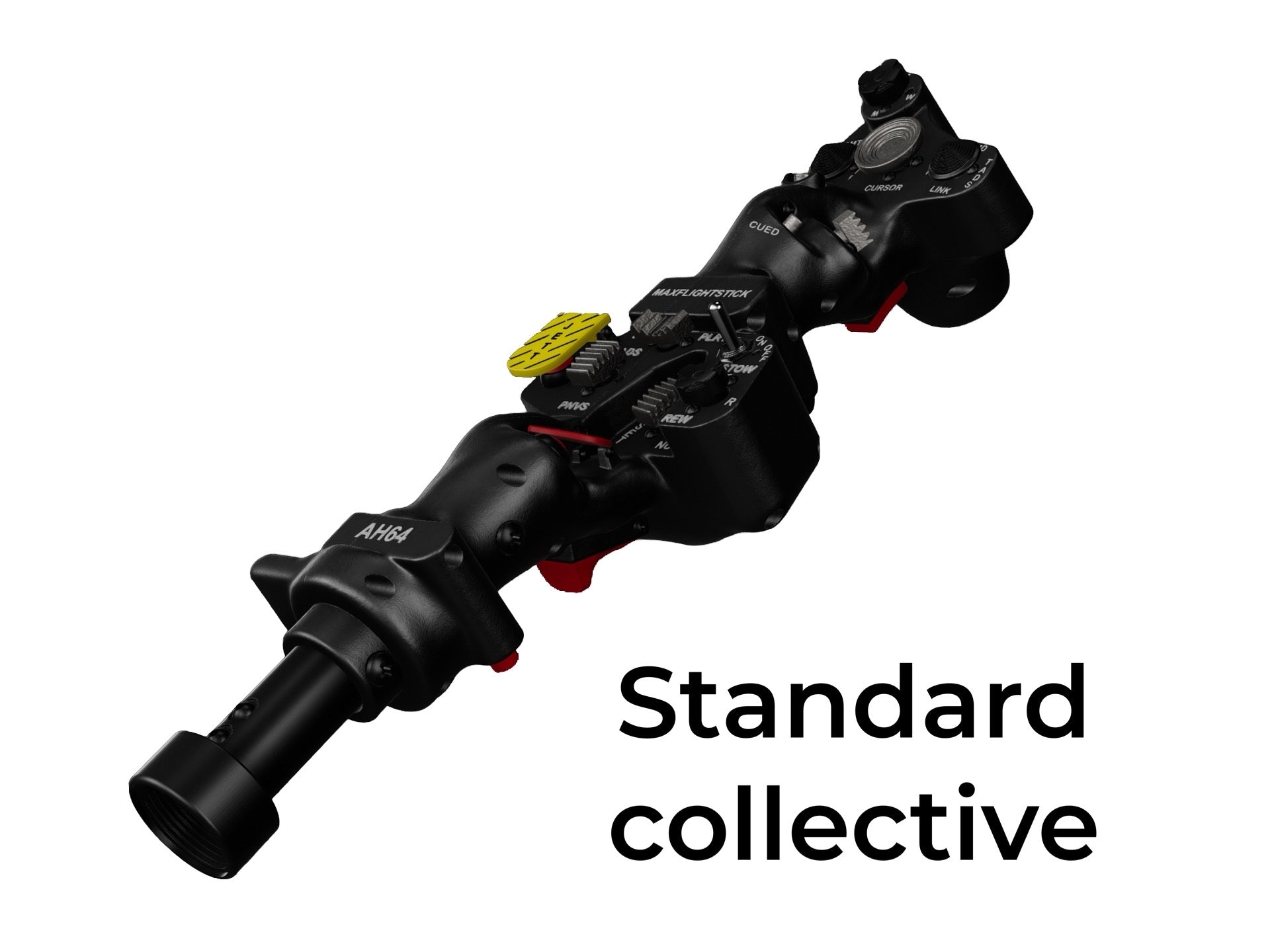

A 38-button collective, standard or duo twist throttle
The collective head combines 4 four-way switches, a four-way switch with push, 4 toggle switches, a toggle switch with push and 8 push buttons, for 38 configurable buttons, with 2 switch guards.
Choose the standard collective, or the duo twist throttle version for twin throttle control on the collective. Browse our helicopter controls for more rotorcraft hardware.

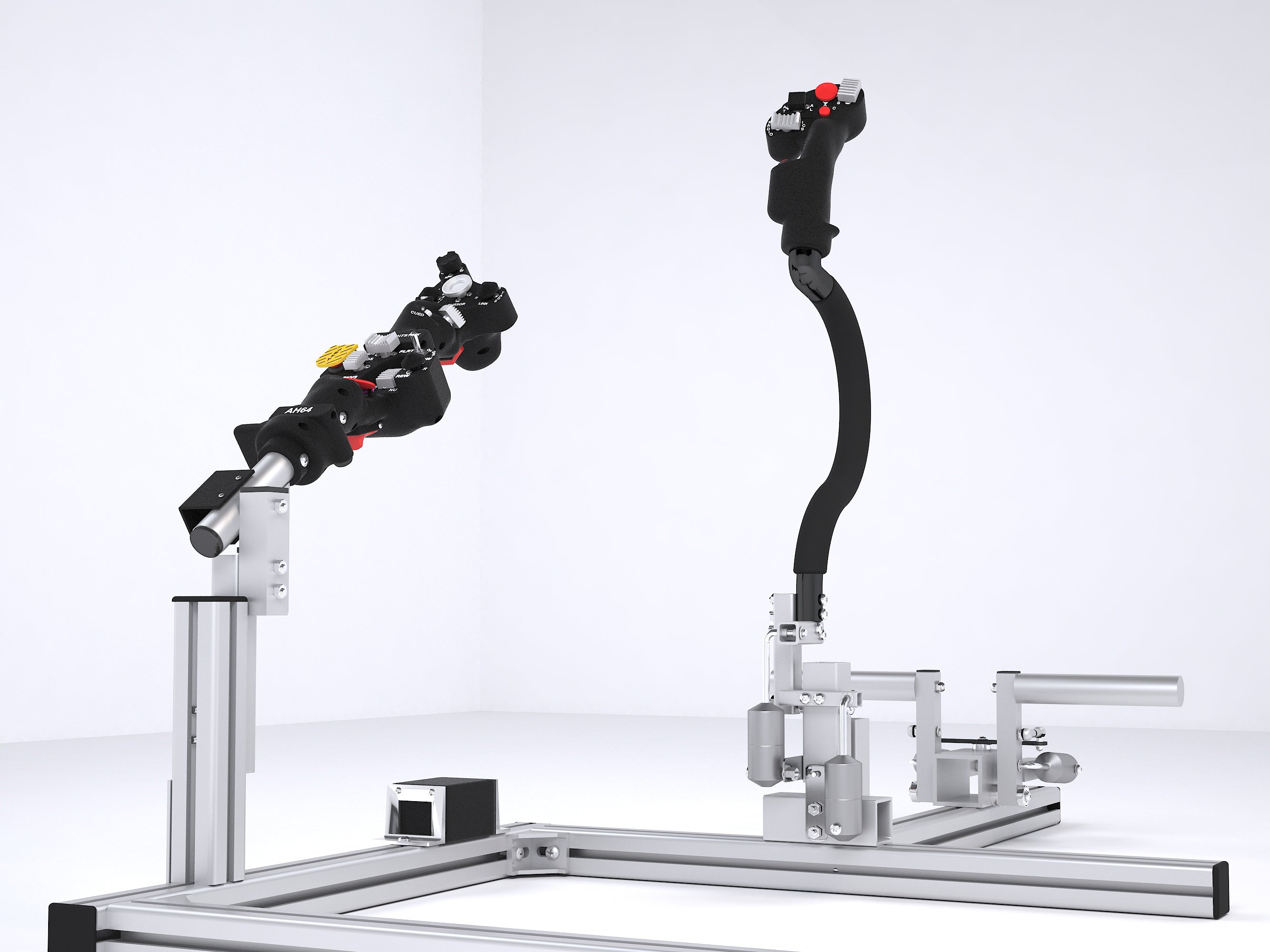

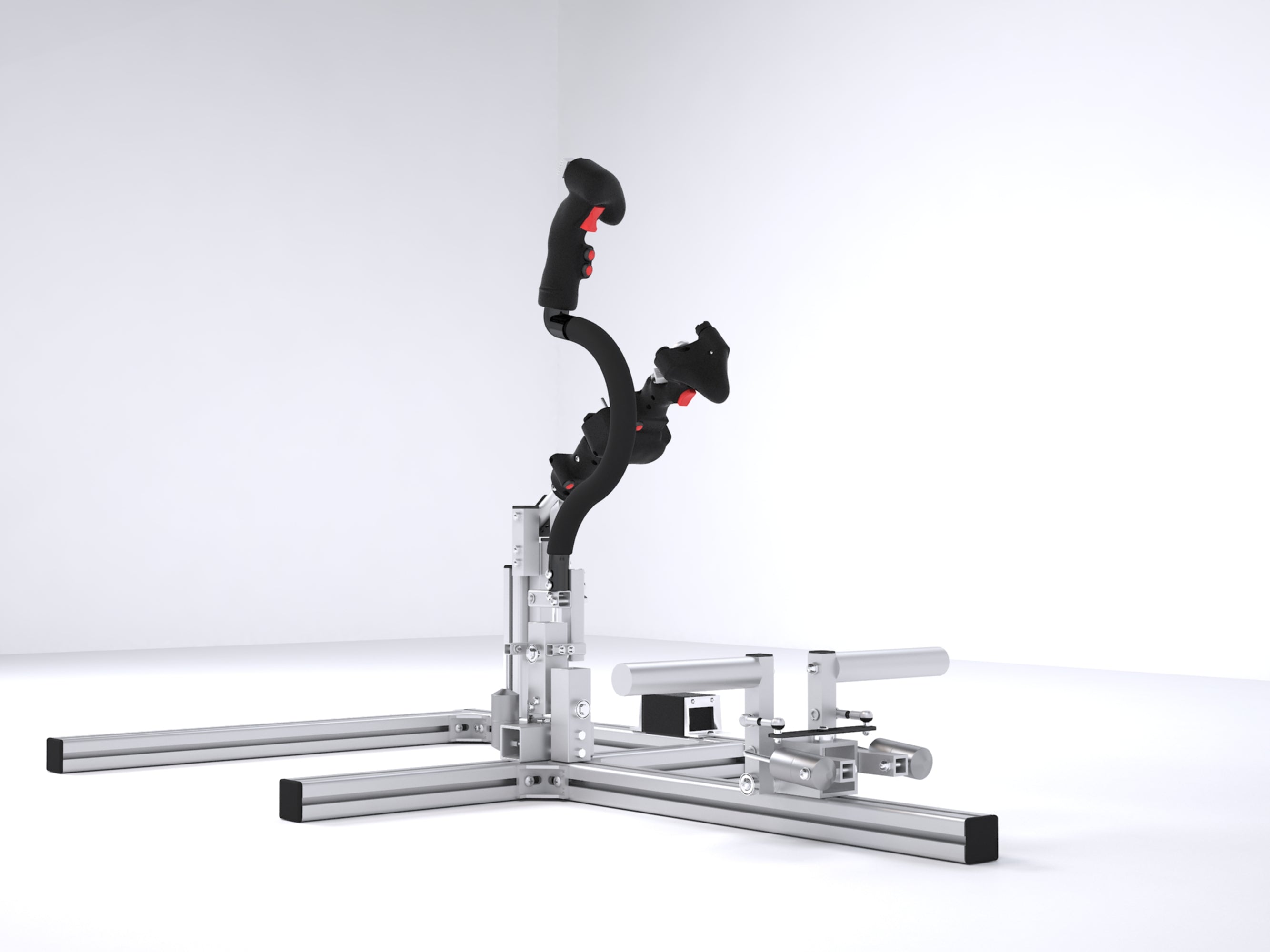

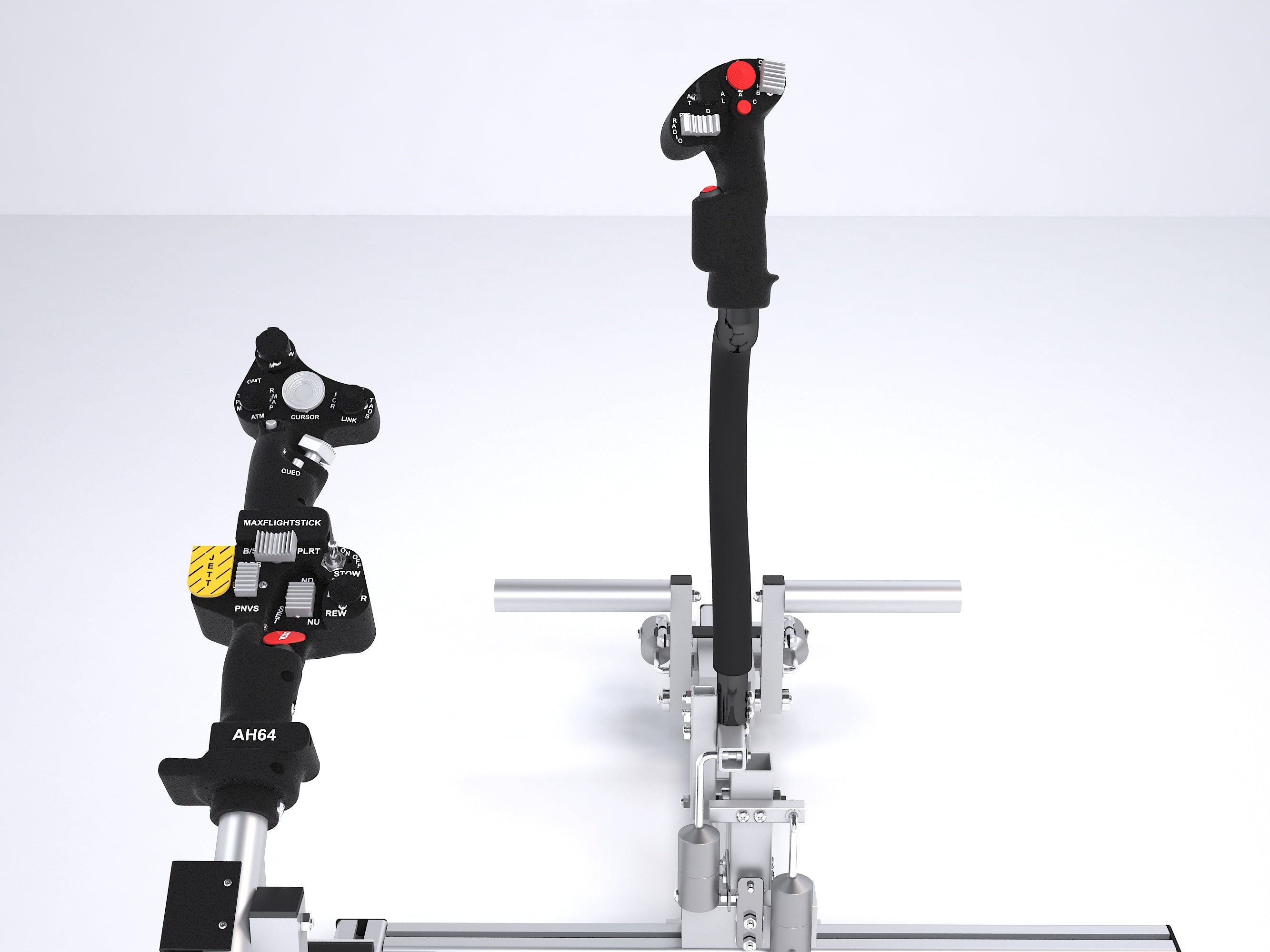

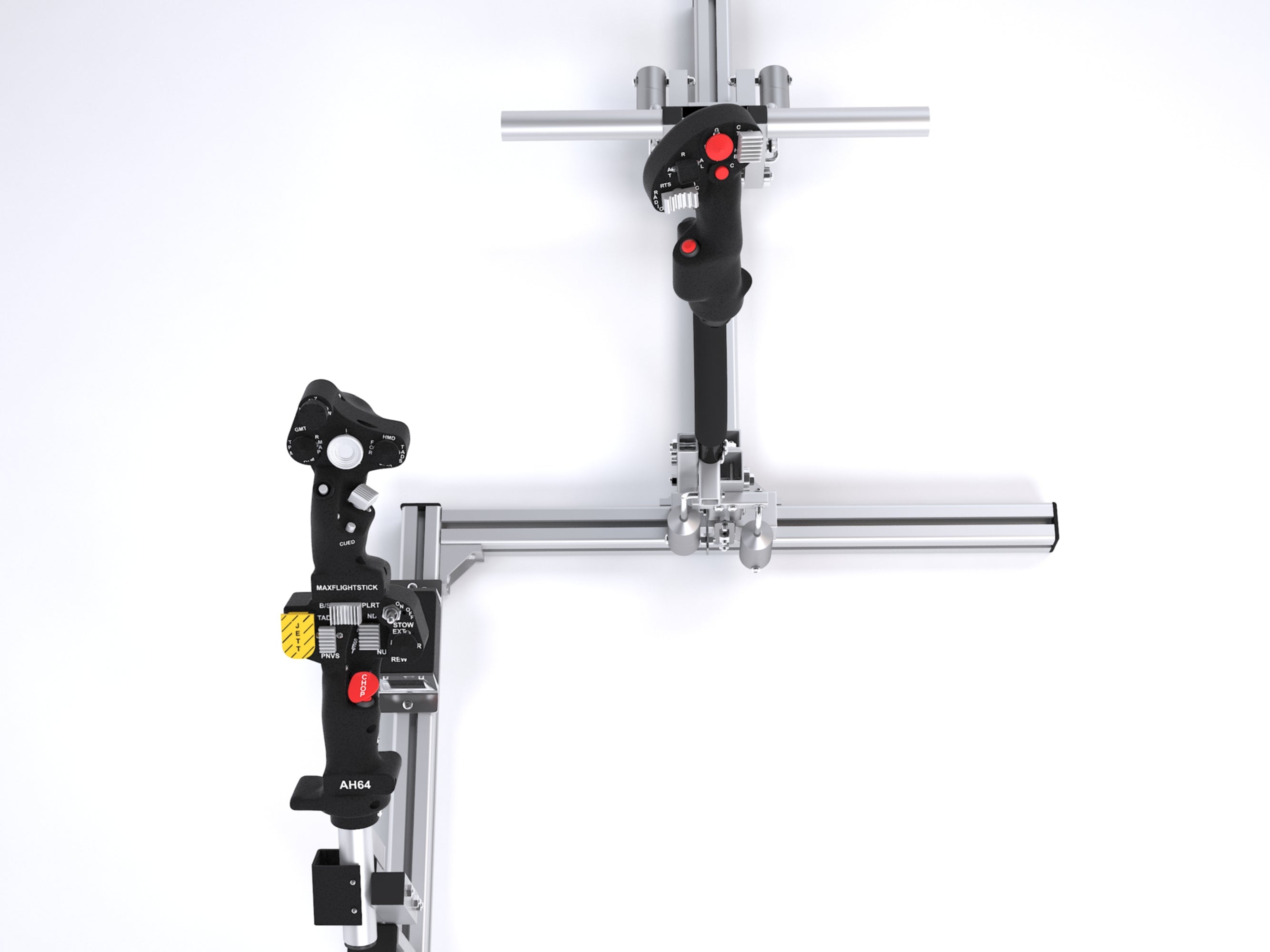

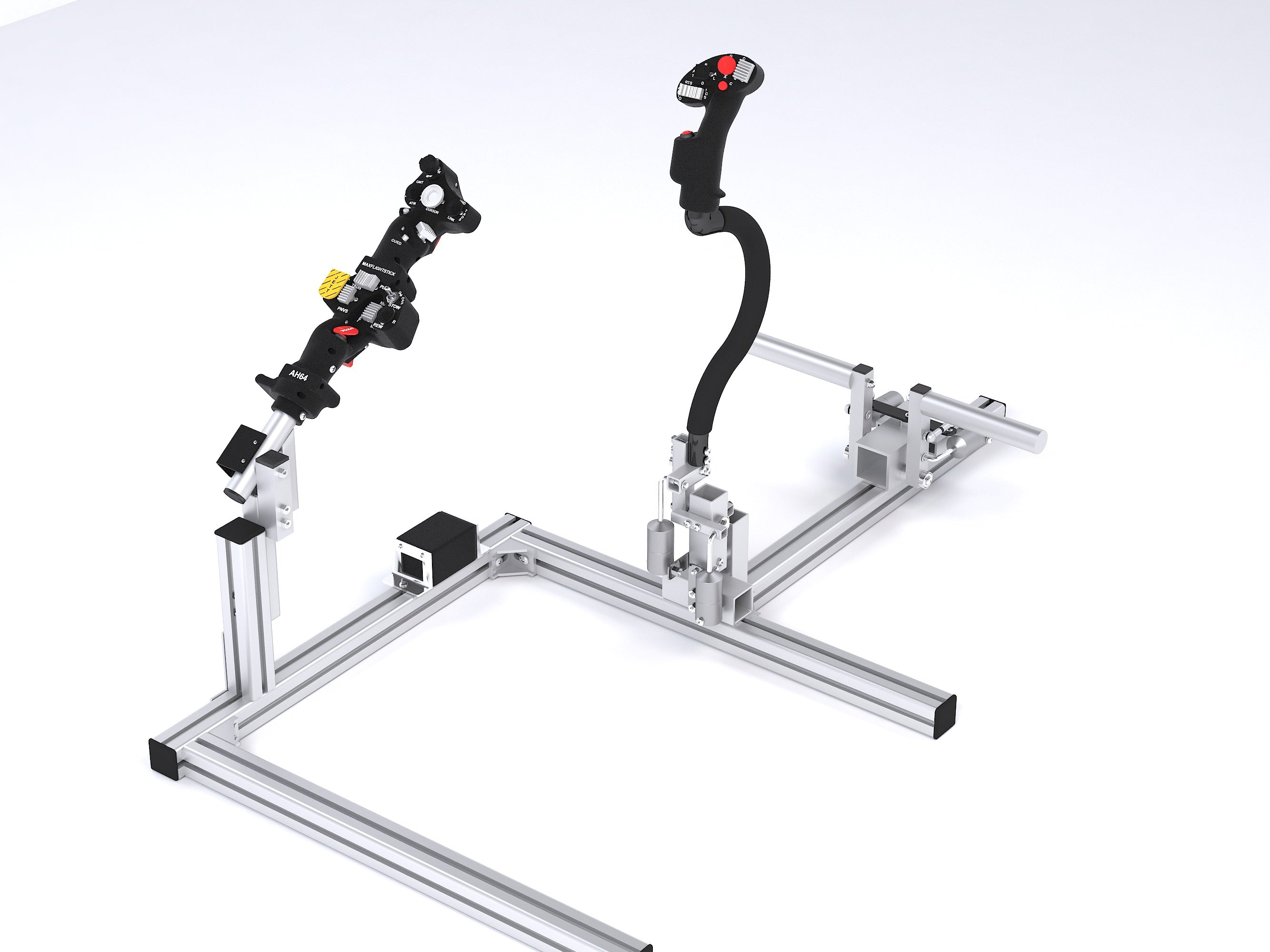

Adjustable frame, solid metal pedals
The aluminium frame is adjustable, as are the positions of the cyclic, rudder and collective, so the set can be fitted to your height and seat. In-house pistons give every axis a weighted, hydraulic feel.
The rudder uses solid metal pedals on high-quality ball joints and ball bearings, with two of Max Flight Stick's own pistons providing the resistance.
Our expert take
"For DCS Apache pilots, this is the complete package: a pilot-developed cyclic, a 38-button collective with real switch guards and piston-loaded pedals on an adjustable frame. It takes almost the entire AH-64 workload off the keyboard."
"It is a large floor-standing set that needs dedicated space, and the layout is specific to the AH-64. Choose the duo twist throttle only if you want twin throttle control on the collective. It works on PC and Mac only."
- Blake Sterling, Founder & CEO, Gamer Gear Direct
Frequently asked questions
Which options can I choose?
Two choices: the cyclic thumb control (standard push button or momentary thumb switch) and the collective (standard collective or duo twist throttle).
How many buttons are there?
Up to 27 programmable buttons on the cyclic and 38 configurable buttons on the collective, plus 2 switch guards.
Is the frame included?
Yes. The cyclic, collective and pedals come on the adjustable aluminium frame shown. See our flight simulator controls for the rest of your setup.
Is this the metal or resin version?
Gamer Gear Direct sells the metal version only. The grips and collective front box are made by industrial-grade powder metal printing in aluminium.
Which simulators does it work with?
Max Flight Stick lists DCS, Microsoft Flight Simulator 2024 and 2020, FSX, X-Plane 11 and 12, Prepar3D, FlightGear and War Thunder, plus any PC flight sim that accepts a USB game controller.
Does it work on Xbox or PlayStation?
No. It is built for PC (Windows XP through to Windows 11) and Mac, connected with a single USB cable.
Specifications
Model: Max Flight Stick Apache Max
Version: Metal, fifth-generation AH-64 controls
Replicates: Boeing AH-64 Apache
Grips and collective front box: Industrial-grade powder metal printed aluminium
Cyclic thumb options: Standard push button or momentary thumb switch
Cyclic controls: 4x 5-way hat switches, 1 dual-stage trigger, 4 push buttons (26 or 27 programmable buttons)
Collective options: Standard collective or duo twist throttle
Collective controls: 38 configurable buttons (4x 4-way switches, 1x 4-way switch with push, 4x toggle switches, 1x toggle switch with push, 8x push buttons), 2 switch guards
Sensors: Hall effect on all axes
Feel: In-house pistons on all axes
Pedals: Solid metal, ball joints, ball bearings, 2 pistons
Frame: Adjustable aluminium, adjustable cyclic, rudder and collective positions
Connection: Single USB, plug and play
Compatible platforms: Windows XP to Windows 11, macOS
Compatible sims: DCS, Microsoft Flight Simulator 2024 and 2020, FSX, X-Plane 11 and 12, Prepar3D, FlightGear, War Thunder
What's In The Box?
1x Apache Max cyclic
1x Apache Max collective (standard or duo twist throttle)
1x Anti-torque pedal set
1x Adjustable aluminium mounting frame
