Qubic System QS-V20 4DOF Motion Cockpit

Name: Qubic System QS-V20 4DOF Motion Cockpit
Brand: Qubic System
SKU: QS-V20
Price: 34999.0 AUD
Availability: InStock

by Qubic System

Save $1,000.00

$35,999.00

$34,999.00

Availability: Only 3 left!

✔️ Authorised Australian Dealer
✔️ Fast Shipping Australia-Wide
✔️ 100 Day FREE Returns
✔️ Backed By Manufacturer Warranty
✔️ Experts Ready To Help: (03) 9961 0240

Quantity

Estimated Arrival: Between Jun 07 and Jun 09. *ETA approximate ONLY

Secured and trusted checkout with

Description

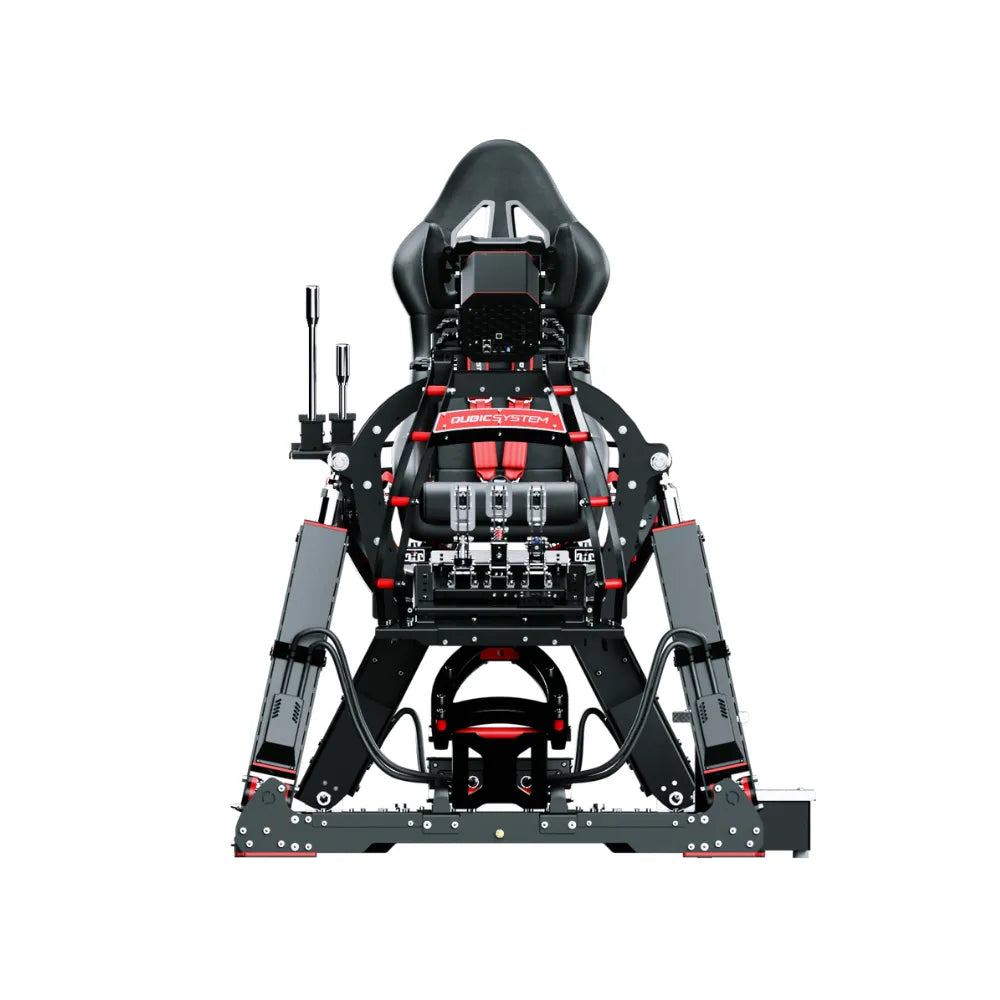

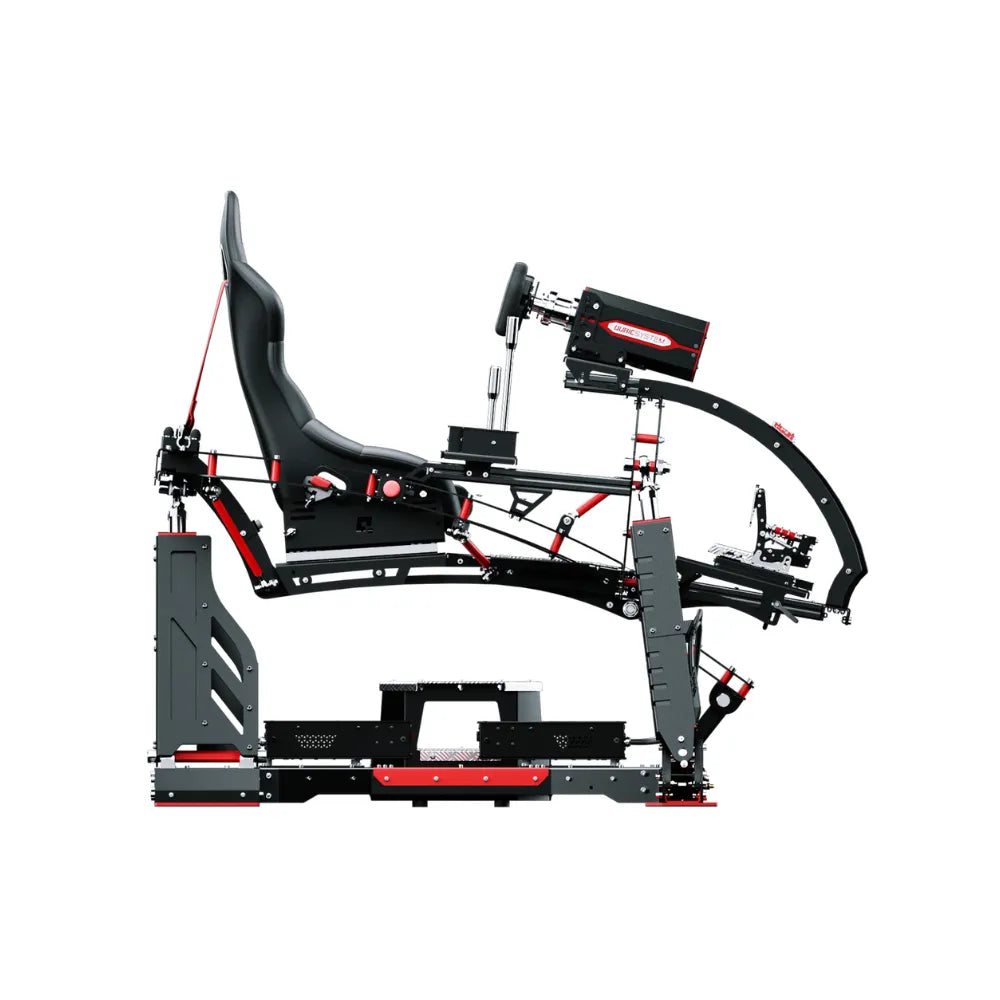

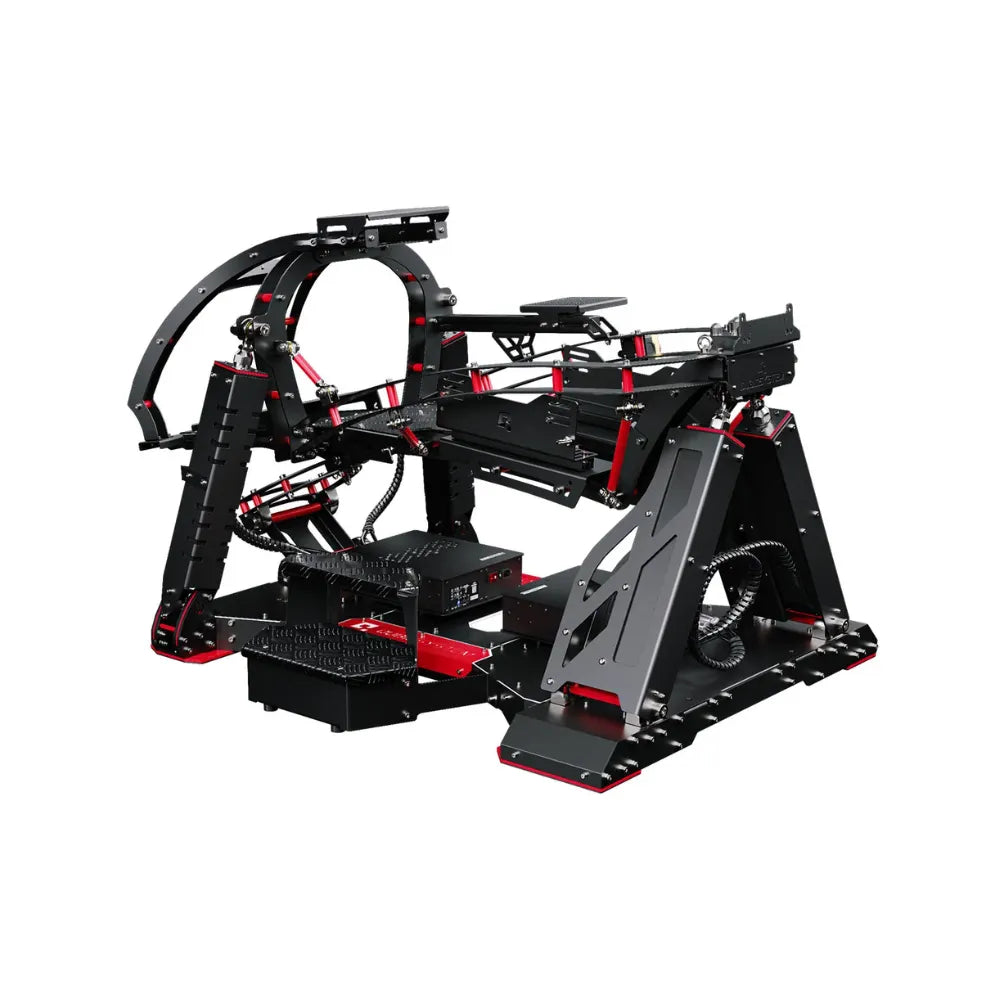

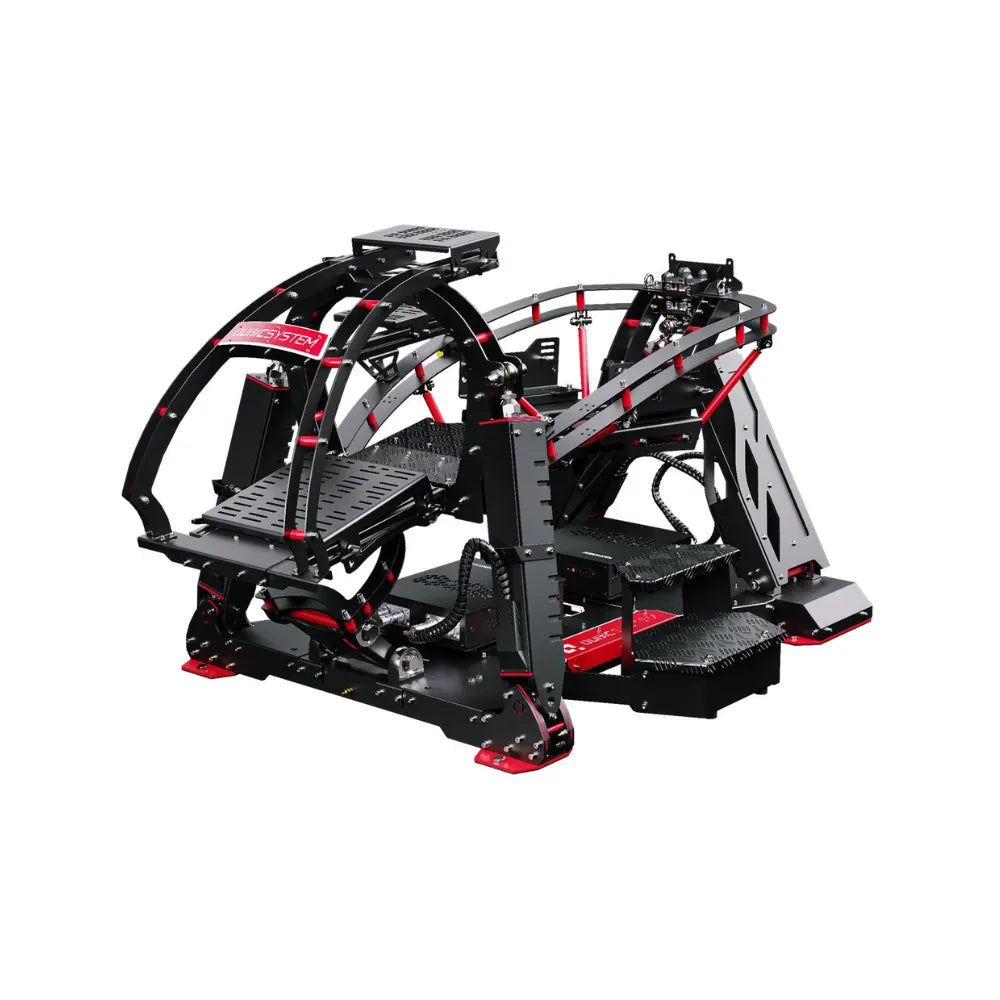

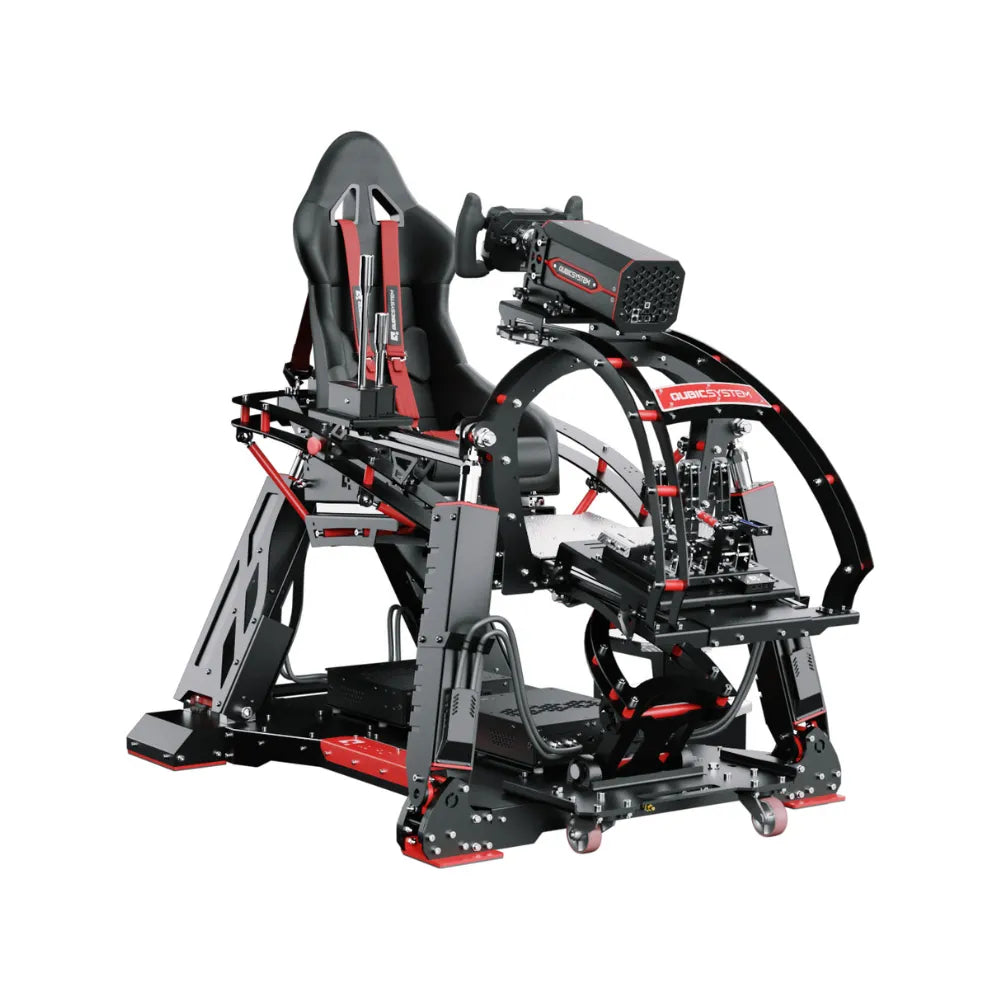

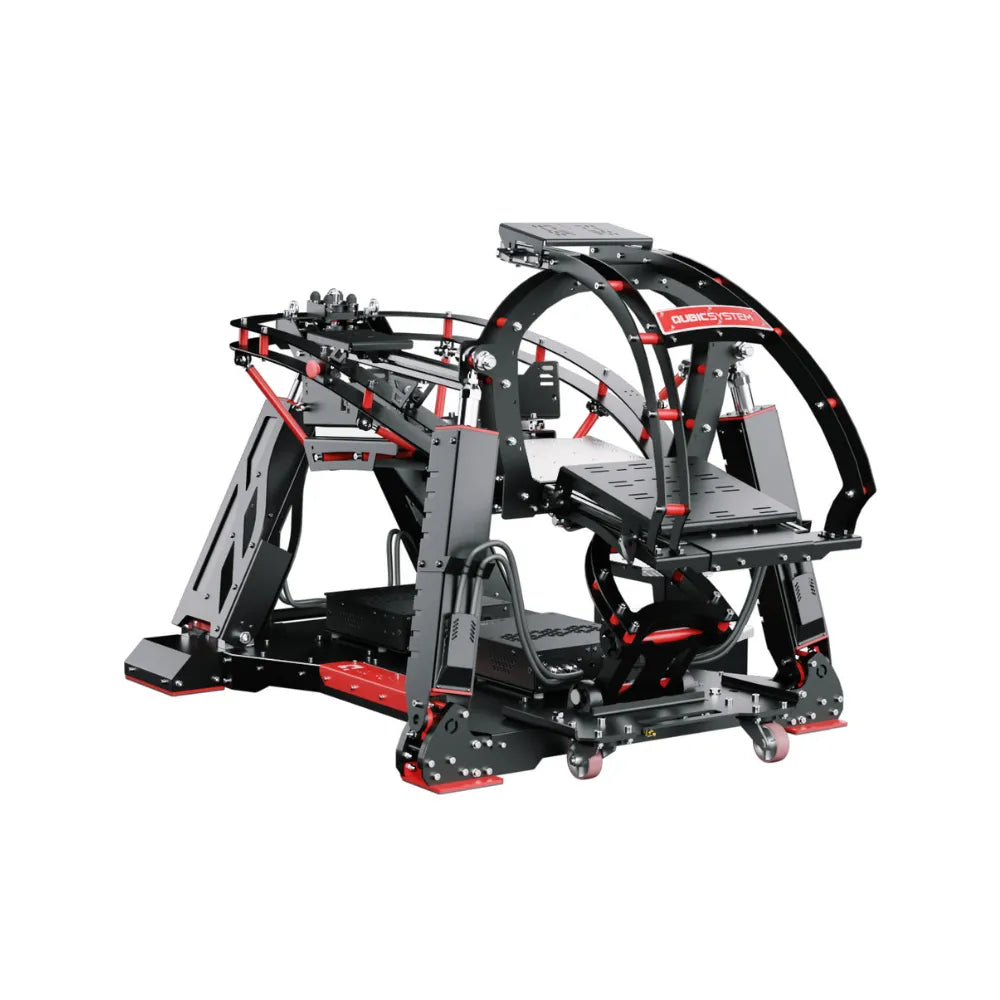

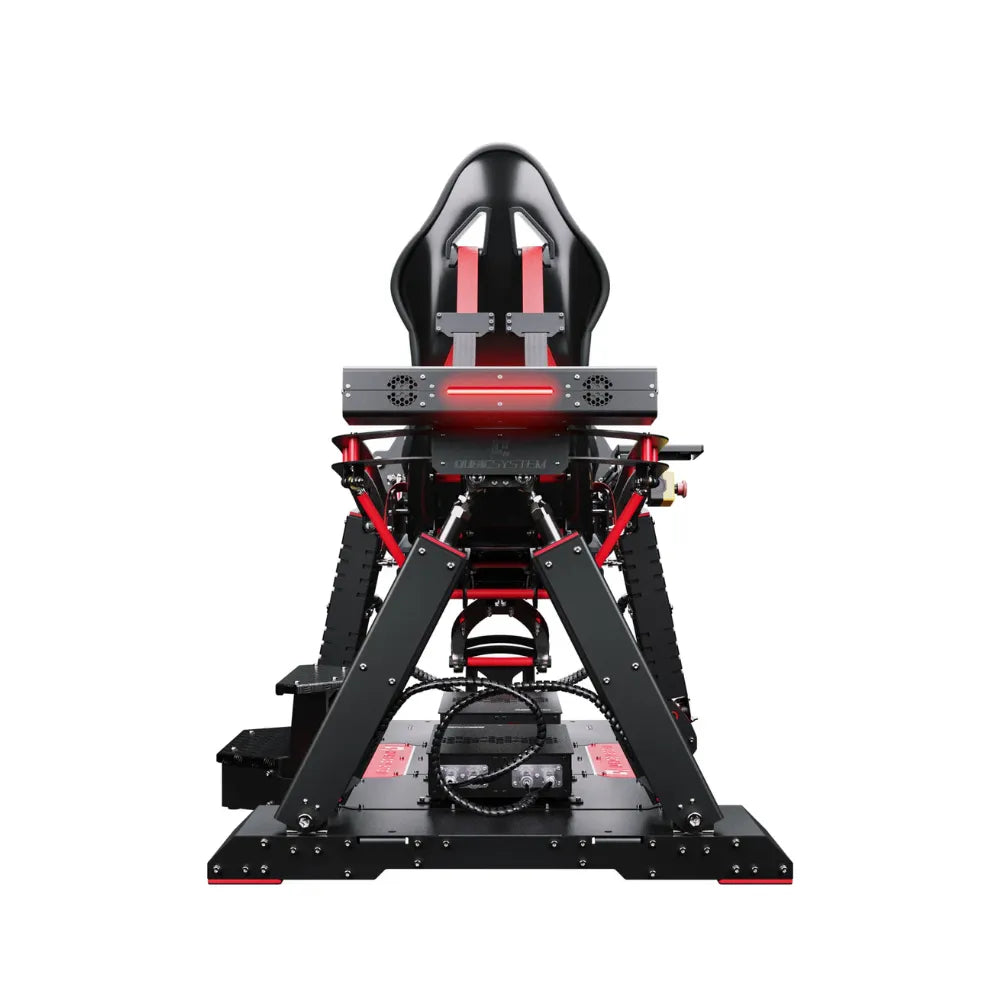

Qubic System QS-V20 4DOF Motion Cockpit

The Qubic System QS-V20 4DOF motion cockpit is built for serious sim racers, driver training setups and commercial racing simulation environments that demand physical feedback through the entire rig.

Using QS-220 linear actuator technology, the QS-V20 delivers heave, pitch, roll and yaw traction-loss movement, helping drivers feel braking load, kerb strikes, tyre slip, oversteer and chassis rotation.

With <8ms latency, 900mm/s maximum velocity and Qubic Manager software, this motion cockpit is a premium choice for sim racers or flight sim enthusiasts chasing an advanced, high-end motion simulator package.

Key features

4DOF cockpit architecture with integrated traction-loss yaw feedback
QS-220 linear actuator technology for precise motion cues
Less than 8ms latency for responsive feedback timing
900mm/s maximum velocity for sharp chassis movement responses

0.88G maximum acceleration for strong dynamic feedback response
0–100Hz vibration range for surface and engine detail
Adjustable wheel, pedal and racing seat brackets included
Qubic Manager software with VR motion compensation support

4DOF motion with traction-loss yaw feedback

The Qubic System QS-V20 4DOF motion cockpit gives drivers physical feedback across heave, pitch, roll and yaw.

This means the platform can simulate vertical movement, braking dive, cornering load and rear-end rotation through the cockpit.

The yaw axis is especially valuable for traction-loss feedback, helping drivers feel oversteer, grip changes and car rotation before it becomes obvious on screen.

It’s a strong upgrade path for users already running a high-torque direct drive wheelbase and high-performance pedals.

QS-220 actuators built for fast, detailed motion

At the core of the QS-V20 are high-speed QS-220 linear actuators designed for clean, repeatable and responsive motion.

The system delivers up to 900mm/s maximum velocity, 0.88G maximum acceleration and less than 8ms latency, helping motion cues feel sharp instead of delayed.

The 0–100Hz vibration frequency range also allows the cockpit to communicate finer details such as kerbs, engine vibration, surface texture and tyre behaviour.

For drivers comparing premium Qubic System motion systems, the QS-V20 is designed for a more complete cockpit-based motion experience than actuator-only upgrades.

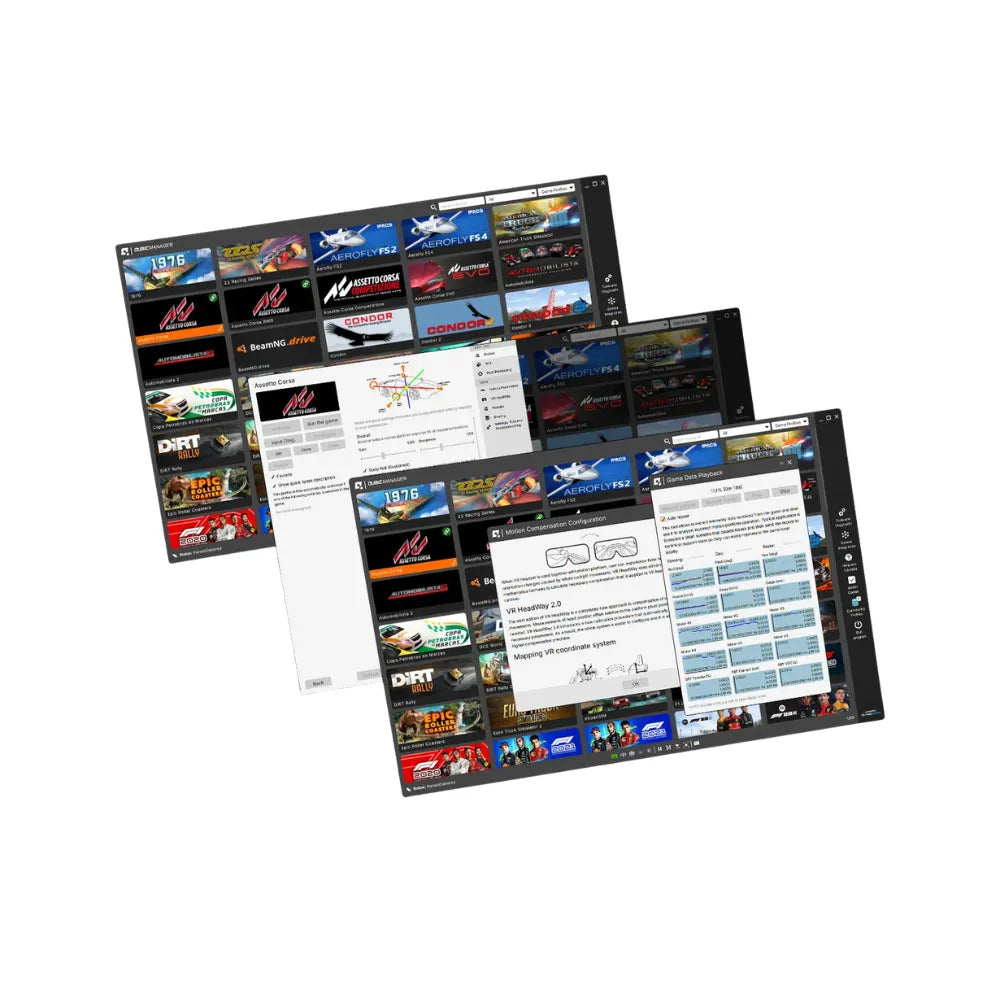

Qubic Manager software and VR-ready

The QS-V20 is controlled through Qubic Manager, Qubic System’s in-house motion platform software.

It supports major PC racing and flight simulation titles, with tuning options for motion levels, bumps, roll and pitch.

The platform also supports VR technology through motion compensation, helping reduce out-of-sync head movement when driving with compatible headsets.

For racers building a high-end training rig, this gives the QS-V20 a practical software layer to match its hardware performance.

It can also suit compatible flight simulator cockpits where yaw, pitch and roll cues add physical training feedback.

Seamless integration with your gear

The QS-V20 4DOF motion platform is designed to slot into serious GT, formula and rally simulator setups without forcing you to rebuild your hardware around the motion platform.

It works smoothly with top-tier direct drive wheels and pedals. The cockpit also gives you adjustable mounting points for the wheel deck, racing seat and pedals, helping you dial in a comfortable driving position for longer sessions, better posture and more natural control.

Adjustable elements include the desk with mounting points, racing seat brackets and pedal bracket.

Who is the Qubic System QS-V20 4DOF motion cockpit for?

The Qubic System QS-V20 4DOF motion cockpit is best for:

Serious sim racers wanting a complete motion cockpit
Drivers who want traction-loss feedback through yaw movement
Rally, GT and F1 simulation users
Home simulator rooms with premium racing hardware
Commercial racing centres and driver training environments
VR sim racers wanting motion compensation support
Users upgrading beyond static aluminium cockpit setups
Drivers pairing motion with direct drive wheels and load cell pedals

Frequently asked questions

What is the Qubic System QS-V20 4DOF motion cockpit?

The Qubic System QS-V20 4DOF motion cockpit is a complete motion simulator cockpit designed for pro racing simulation, driver training and serious sim racing. It uses QS-220 actuator technology to deliver heave, pitch, roll and yaw traction-loss feedback.

What does 4DOF mean on the QS-V20?

4DOF means four degrees of freedom. On the QS-V20, this includes heave, pitch, roll and yaw. These movement axes help simulate vertical load, braking dive, cornering forces and traction-loss behaviour through the cockpit.

Does the QS-V20 simulate traction loss?

Yes. The QS-V20 includes yaw-based traction-loss feedback, which helps simulate rear-end rotation, oversteer and grip changes. This is especially valuable for rally, drift, GT and F1-style racing simulation.

Is the QS-V20 suitable for professional driver training?

Yes. The official QS-V20 product information describes it as suitable for pro driver training and demanding commercial applications. It is built for serious racing formats, including Rally, GT, F1 and other racing simulations.

What actuators does the QS-V20 use?

The QS-V20 is based on QS-220 linear actuators. These actuators are designed for fast, repeatable and clean motion feedback, helping the cockpit communicate both larger chassis movements and smaller surface details.

Is Qubic Manager software included?

Yes. Qubic Manager software is required for the QS-V20 and the licence is included free of charge. The software is used to activate, configure and tune the motion cockpit for compatible PC simulation titles.

Is the QS-V20 compatible with VR?

Yes. The QS-V20 supports VR technology and Qubic’s VR HeadWay motion compensation system. This helps reduce out-of-sync head movement when using compatible VR headsets with motion simulation.

Can the QS-V20 work with the QS-BT1 seat belt tensioner?

Yes. The QS-V20 includes a bracket for mounting the QS-BT1 seat belt tensioner, but the QS-BT1 itself is purchased separately. This gives users an added upgrade path for braking, acceleration and motion-cue feedback through belt tension.

Specifications

Product
Qubic System QS-V20 4DOF Motion Cockpit

Architecture
4DOF with traction loss

Motion axes
Heave, pitch, roll and yaw

Actuator technology
QS-220 linear actuators

Maximum velocity
900mm/s

Maximum acceleration
0.88G

Latency
Less than 8ms

Maximum control frequency
1000Hz

Vibration frequency range
0–100Hz

Heave range
-51.8mm to 51.6mm

Roll range
-7.6° to 7.6°

Pitch range
-5.5° to 5.5°

Yaw range
-6.1° to 6.1°

Max user weight
150kg / 330.7lb

Connection
USB

Power supply
115 / 230V AC single phase

Software
Qubic Manager / ForceSeatPM

VR support
VR HeadWay motion compensation

Compatible use
Racing and compatible flight simulation

What’s In The Box?

2× QS-220 Motion Set

Dedicated upper and bottom frame
Motion controller
Qubic Manager / ForceSeatPM software license

Complete cable set
Adjustable brackets for steering wheel, racing seat, and pedals
Bracket to mount QS-BT1 (belt tensioner to be purchased separately)

Desk with mounting points
MOTION-LOCK Switch

Entry step
