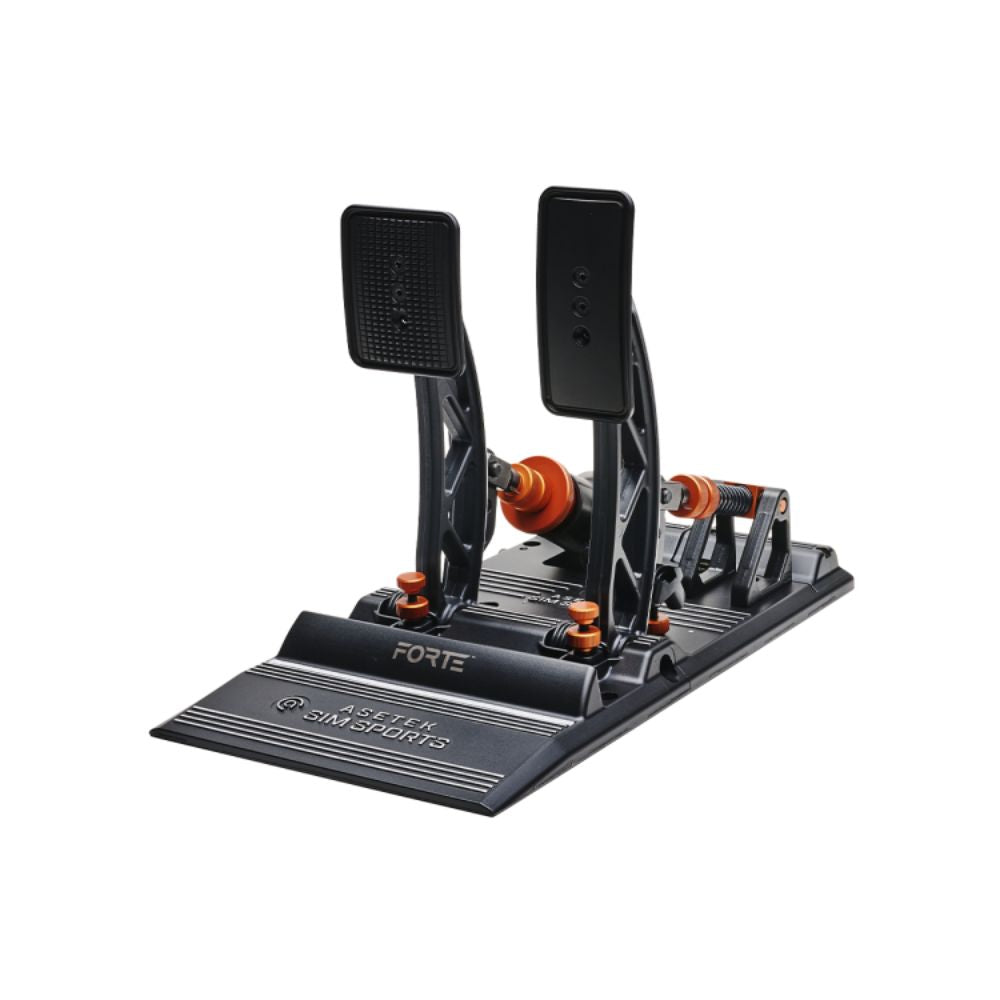

Asetek Forte Load Cell Racing Pedals

Save $100.00
Original Price $1,099.00
Current Price $999.00
 10 interest free weekly payments of $99.90 learn more

✔ Official Australian Reseller
✔ Fast Shipping Australia Wide
✔ 30 Day Money Back Guarantee
✔ Backed By Manufacturer Warranty
✔ Questions? Call Us (03) 9000 0545

Notify me when back in stock

Upgrade your sim racing set-up with the Asetek Forte load cell racing pedals

Performance, aesthetics and price rarely go hand in hand with sim racing hardware currently available. Beyond that, sim racers have had to put up with multiple frustrating software solutions that make calibration clumsy. All that is about to change.

Inspired by real-life racing standards, the Asetek Forte sim racing pedal set has been thoroughly tested by racers and sim racers alike. With that feedback in mind, the sim pedals are engineered and designed. The M.L.C.P.C.™ (Mechanical Load Cell Powered Cylinder) brake cylinder is designed to give you a realistic brake experience and is rigorously tested with up to 180 kg pedal force.

The Asetek Forte throttle and brake system is compatible with the Invicta clutch system. A matching Forte pedal plate for the clutch is included when you buy the Asetek Forte load cell racing pedals.

Key features

  • M.L.C.P.C.™ (Mechanical Load Cell Powered Cylinder) brake cylinder is designed to give you a realistic brake experience with up to 180 kg pedal force
  • Brake pedal hardness can be adjusted from a soft arcade feeling with extended travel to formula car mode hard pedal with minimal travel and true car feeling
  • 16-bit magnetic wireless hall TPS (throttle position sensor) with no mechanical wear and zero maintenance
  • Custom throttle curves can be adjusted and 100% customized in the RaceHub Software to mimic real race car butterfly opening
  • RaceHub software makes every task a breeze. Whether it is configuring your clutch bite point, calibrating dead zones, customizing throttle curves or updating firmware – expect an experience that will revolutionize what sim racing can be
  • Tried and tested for hundreds of hours by real world drivers (Formula and GT) and sim racing pros. Lifetime tested in automated mechanical rigs for over a million activations
  • Clutch designed to provide a proper physical bite point
  • Highly adjustable to help you channel your inner race car driver
  • User-replaceable pedal plates. Launching with plates for ultimate grip with more options to be available later, including sock-friendly versions
  • All black anodized aluminium pedal base, pedal arms, and pedal plates, with CNC machined contrast cut surfaces.
  • Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub software
  • Made in Denmark
  • Single USB connection to your PC
  • 12 month warranty

Engineered to perform at the highest level

If you have been looking for the best race car brake pedal feel, without going full hydraulic, look no further!

The brake pedal on the Forte pedal set can be adjusted from soft to hard and it will stay that way – unlike many other sim racing pedals on the market, where the hardness and feel will degrade over time. It is not a coincidence a race driver wants a brake pedal, when fully depressed, feels like pushing a wall.

Furthermore, the Asetek Forte pedal set, while not hydraulic, still offers you the “hydraulic sensation” of a fully depressed brake pedal, where you can still pressure modulate/trail brake thanks to the 2-stage system inspired by the Invicta hydraulic pedal set.

Highly adjustable design

The design is engineered with user experience in mind, where all adjustable elements are coloured to get you started quickly, and to ensure intuitive and mostly toolless use.

The Forte sim pedals are highly adjustable to help you channel your inner race car driver, by changing the travel and hardness settings to your exact preference. And by using the Asetek SimSports RaceHub™ software, you’re ready to race in no time.

Revolutionary M.L.C.P.C brake cylinder

The Asetek SimSports™ M.L.C.P.C (Mechanical Load Cell Powered Cylinder) brake cylinder gives you, shy of a full hydraulic system, an authentic race car driving experience.

The sim racing pedal set is in every sense Made in Denmark – designed, engineered, and assembled in Denmark. The brake cylinder features a load cell sensor (up to 180 kg of pedal force) detecting actual changes in force on the pedal plate, which makes it the closest you will come to a realistic brake experience.

High-end, high-performance throttle system

The Asetek Forte throttle system features a die-cast aluminium, zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.

Performance comes from a 16-bit magnetic wireless hall TPS (throttle position sensor) that boasts no mechanical wear and zero maintenance. Custom throttle curves can be adjusted and 100% customized using the RaceHub Software to mimic a real race car butterfly opening. For example, a linear curve in dry conditions and a progressive in wet conditions.

The throttle system is highly adjustable. You can calibrate pedal hardness, pedal travel and pedal stop.

Tried and tested professional pedals with included custom calibration software

The pedals are designed and tested with up to 200 bars of pressure in the hydraulic system and up to 200 kilogram of mechanical pedal pressure.

In Asetek’s testing environment, the pedals are pushed through a regime of over a million activations. All in an effort to ensure the Invicta sim racing pedals will provide the proper feel and reliability for years of use for competitive sim racers.

Using Asetek’s custom-made software, RaceHub, you’ll be able to quickly calibrate and fine-tune settings to your preference. In time RaceHub will be the bridge between all Asetek SimSports products from pedals to steering wheels, shifters – everything.

Compatible with the Invicta add-on clutch system

The clutch slides directly on to the Forte throttle and brake system by tightening two screws and a small electrical connector. With this, you are ready to turn your racing simulator from automatic to manual clutch. In just a few steps.

Asetek SimSports Forte load cell racing pedals are designed for competitive gamers and racing enthusiasts who want the ultimate immersive sim racing experience. The Forte sim racing clutch system features a proper clutch bite point with a realistic rebound to give you the best and most realistic racing experience of driving on a real circuit with sim pedals.

General Tech

Exquisite, radical, and minimalistic industrial Danish design
Made in Denmark
Adjustable pedal stops
Adjustable travel settings
All-black anodized aluminium pedal base and pedal arms with CNC machined contrast cut
All-black anodized aluminium smooth and sock-friendly pedal plates allowing hours and hours of comfortable use. The pedal plates can be adjusted vertically.
Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub™ software
Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, dead zones and more) will remain saved for every simulator/game (You do need to set 0 and 100% value in the game)
Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization
All adjustable mechanical features are by default coloured orange
Inhouse-developed electronics with 16-bit resolution
Easy to add clutch pedal to the Forte Throttle & Brake combo
Sustainable manufacturing with 100% on-site re-use of waste material
Designed and tested to +1,000,000 activations, which far exceeds any race car specification
Sock-friendly clutch plate included

Brake System

The M.L.C.P.C.™ (Mechanical Load Cell Powered Cylinder) patent-pending brake cylinder gives you the experience of driving a real race car
Die-cast aluminium zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point
Sustainable manufacturing with 100% on-site re-use of waste material
Load cell will sense up to 180 kg of force on the face of the pedal plate
Two-stage system that mimics the hard- and soft stages of a real race car
Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and expansion chamber to mimic race car feel as well as not overloading the elastomers
Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
Load cell will sense up to 180 kg of force on the face of the pedal plate
Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!

Throttle System

Die-cast aluminium zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
Sustainable manufacturing with 100% on-site re-use of waste material
16-bit magnetic wireless hall TPS (Throttle Position Sensor) with no mechanical wear and zero maintenance
Custom throttle curves can be adjusted and 100% customized in the RaceHub™ software to mimic a real race car butterfly opening. For example, a linear curve in dry conditions and a progressive in wet conditions
Adjustable pedal hardness
Adjustable pedal travel
Adjustable pedal stop
Interchangeable spring for bigger step in pedal hardness
Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!

Dimensions

Depth, width, and height: 457 mm x 212 mm x 256 mm
Weight: 3 kg

Clutch system (optional)

Exquisite, radical, and minimalistic industrial Danish design
16-bit magnetic wireless hall CPS (Clutch Position Sensor) with no mechanical wear and zero maintenance
Die-cast aluminium zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point
Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
Four mechanical pedal curve settings
Spring load adjustment
Attaches to Forte™ and Invicta™ pedal systemse
Adjustable pedal stop
Adjustable travel settings
Made in Denmark
Sustainable manufacturing with 100% on-site re-use of waste material
Die-cast high-quality pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed or turned completely off in the RaceHub™ software
The clutch can be calibrated through the RaceHub™ software
Clutch upper and lower dead zone, as well as bite point, can be set through the RaceHub™ software

Dimensions

Depth, width and height: 406 mm x 115 mm x 271 mm
Weight: 1.6 kg

1x Asetek Forte throttle and brake pedal system
1x Asetek Invicta clutch add-on (optional)
1x Asetek Forte clutch pedal pad
Installation accessories
User manual

Asetek racing pedals are backed by a 12-month limited warranty. This warranty covers you against manufacturer defects and faults
